eeBrakes - El Tornado

REMARKABLY POWERFUL. POWERFULLY LIGHT.

Black and Blue with a flash of gold like the lightning that paints the dark sky around a tornado, eeBrakes el tornado brings extraordinary stopping power and the lightweight you’ve come to rely on from eeBrakes.

Carbon Compatible brake pads are included with every brake!

eeBrakes el Tornado are no longer available to order direct. Regular mount and Direct mount sets will be available at select retailers early August 2021.

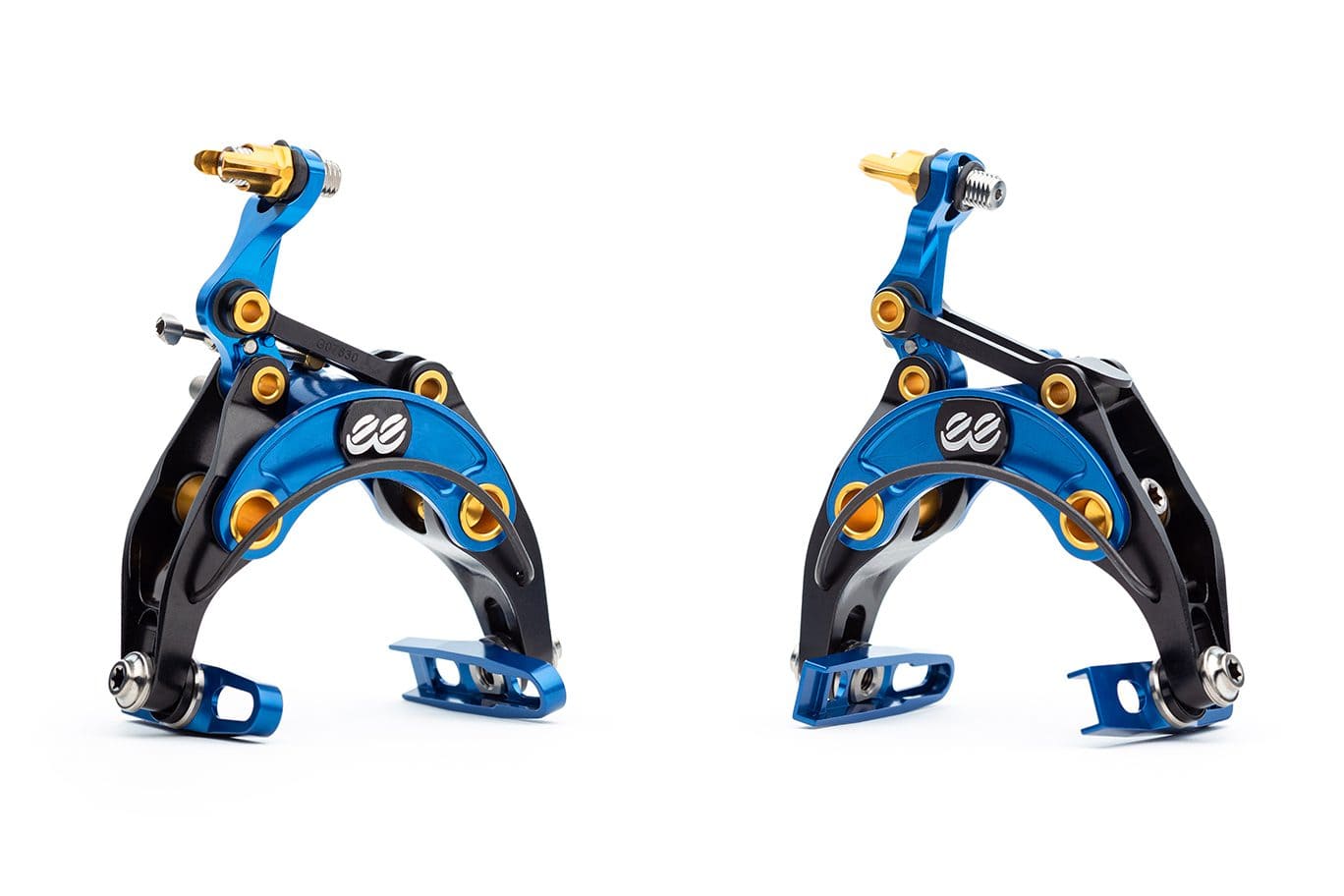

eeBrakes EL TORNADO

POWERFULLY LIGHT

Like the violent rotating column of air that is in contact with both the surface of the earth and the heavens, el Tornado makes connection with the rim to provide precise stopping power. Bring style and performance to your ride.

cane creek eeBrake road bike brake caliper

Aerodynamic

Cross Cable Path aligns the brake cable over the center of the brake. This alignment provides a graceful, clean line and moves cables into the “wind shadow” of the frame, providing an aerodynamic advantage over traditional brakes with their cables and lever arms off to one side of the caliper.

eeBrake cable adjuster

Perfect Cable Alignment

The titanium eeBrake cable adjuster pivots as the brake is applied, optimizing cable alignment during brake actuation. Also, the cable housing extends to lower tip of the cable adjustment screw eliminating added friction. That means, as the brake lever is squeezed, you get even and friction-free braking power.

EASY PRECISION

TITANIUM LINK

The tool-less adjustability provides super precision and pad motion consistency through the patented Link pad travel proportioning system. No annoying pad rub and constant need to re-center. No more re-adjusting the main fixing bolt after initial installation or using spring tensioning screws to align the brake pads.

Additional information

Materials

CNC High Grade Aluminum, Titanium, and Stainless Steel

Rim Width Compatibility

19mm to 28mm

Reach

39mm to 49mm

Adjustments

Tool-free caliper centering adjustment
Wheel removal – quick release
Titanium Barrel adjuster w/ retention O-ring
T-25 Torx pad holder / cable clamp

Leverage Compatibility

Optimized to work with Shimano, Campagnolo, and SRAM levers

Logo Badges

Two stage anodized engraved aluminum ee badge

Weight

DIRECT MOUNT 78.4 grams (Front), 78.2 grams (Rear)
REGULAR MOUNT 85.3 grams (Front), 83.7 grams (Rear)

Warranty

3 Years

Brake Pads

Carbon and Aluminum compatible brake pad inserts.
*Carbon compatible brake pads are included with every brake.
