Invert Gravel 100 & 200 Hour Service Instructions (Part 2 of 2)
Mar 2025 orig.
Table of Contents
Recommendations and Warnings
Cane Creek recommends only trained suspension technicians perform service on all suspension, using all required tools and following all proper procedures. Anyone without access to the proper equipment or with any concerns on the procedures should defer to an authorized Cane Creek service center for service. Improper service can result in loss of performance or suspension failure. Follow the service procedures exactly as written to avoid possible injury or harm to the suspension. Always wear eye protection while performing suspension service. Please dispose of all waste products and materials through proper channels to avoid contamination of the environment.
Any damage or issues resulting from improper service will not be covered by warranty. If you have a fork still in its original warranty period and do not wish to void your warranty, please contact an authorized Cane Creek service center.
These service instructions cover the basic service procedures using standard service kits. If your suspension requires parts beyond standard replacement parts – legs, chassis, etc. – please consult your authorized Cane Creek service center or contact us at our Cane Creek Support Center.
Service Notes
These instructions cover 100 & 200 hour oil and wiper change. If carrying onto further service, you will be prompted when to switch to those instructions.
These instructions cover the SL & CS variants. The CS will have more steps and those are noted. Those can be skipped for SL forks.
Service Kit
BBG0508 – Invert Gravel 200 Hour Service Kit
Required Cane Creek Tools
None
Additional Tools & Supplies
Open 12 Notch x 46mm (BSA30) Bottom Bracket Wrench
Allen wrenches - 2, 3, 4 & 6mm
13mm socket (CS only)
30mm wiper seal press
Open end/box wrench
Socket wrench
Torque wrench
Valve Core Tool
Soft Jaw Vice
Knipex pliers
Oil fill syringe
Pick
Suspension Grease
PolyLube Grease
Motorex 15wt Racing Fork Oil
Torque, Loctite & Oil Specs
Torque & Loctite Chart
| Part | Torque Spec | Loctite Spec |
|---|---|---|
| Air Valve | 2 Nm | 243 (Blue) |
| Valve Core | 0.5 Nm | None |
| Damper Bushing Carrier | Snug | 243 (Blue) |
| Air Shaft Bolt | 5 Nm | 243 (Blue) |
| CS Button | 7.5 Nm | None |
| Lower Seal Head | 15 Nm | None |
| CS Set Screw | Snug | None |
Oil Chart
| Oil Location | Oil Type | Oil Amount |
|---|---|---|
| Brake Side | Motorex 15wt Racing Fork Oil | 5 mL |
| Spring Side | Motorex 15wt Racing Fork Oil | 5 mL |
Related Technical Service Bulletins
Review all related TSBs before performing any service.
No specific Invert Gravel service TSBs at this time.
Wiper Install

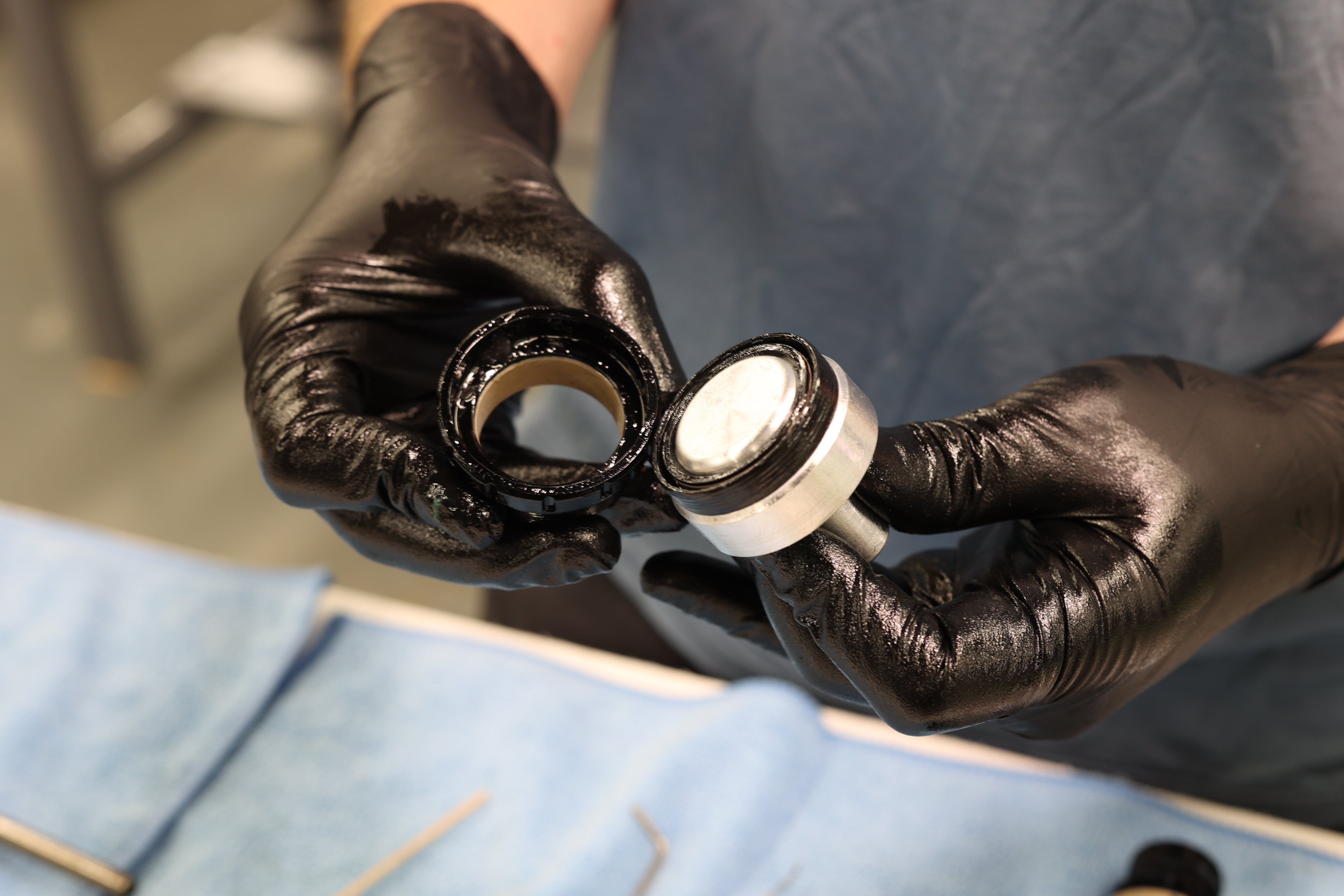

Place lower seal head on table or thread into fork upper. Using 30mm wiper seal press, install new wipers (ABG0128) into lower seal head. Remove seal head if installed for wiper install. Thoroughly grease and install seal head o-rings (ABG0127).
Wiper on Press
Leg Assembly
Step 1 – Spring Side Leg Seal Head Install

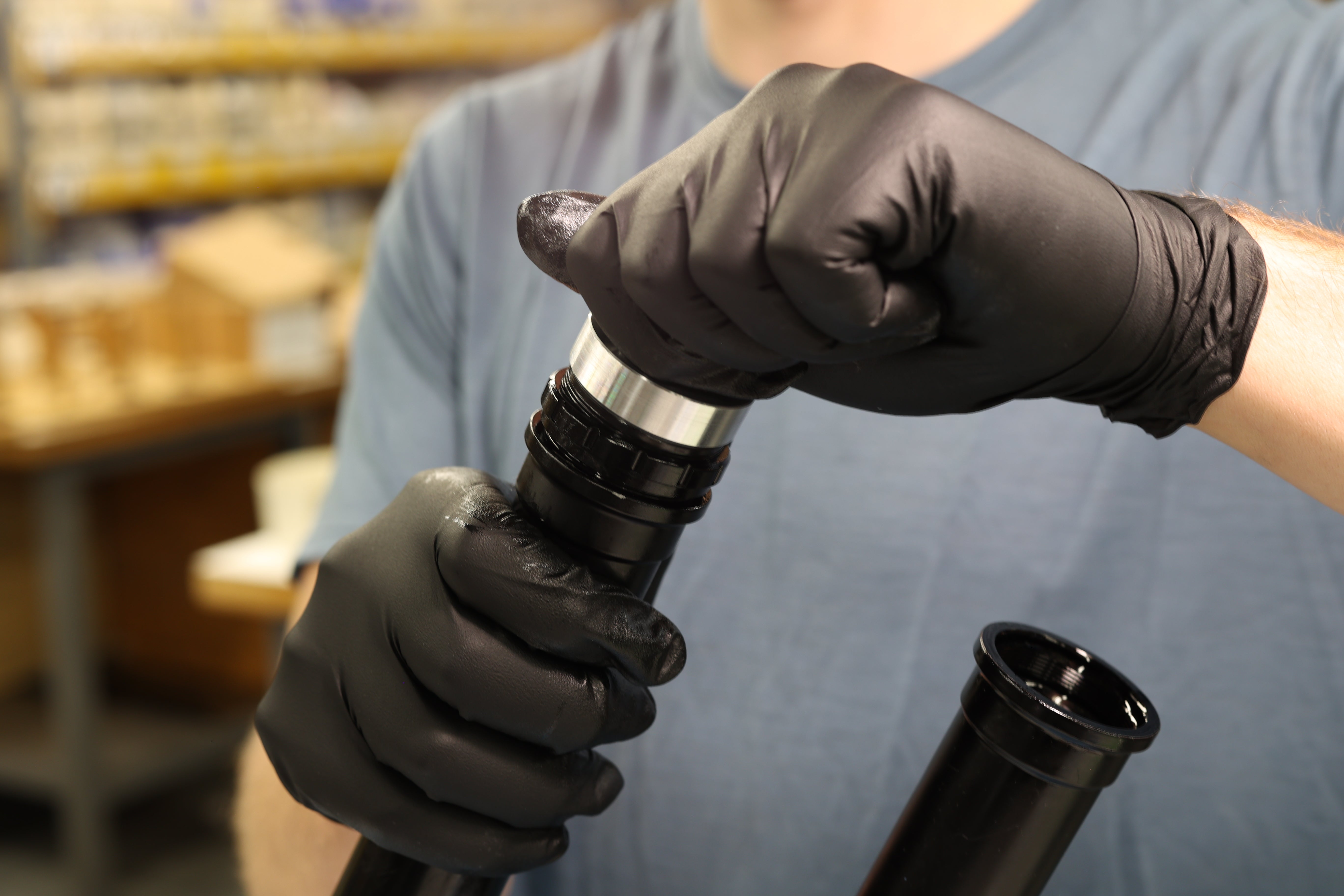

Thoroughly grease inside of wiper. Install seal head onto air leg. Note seal head orientation. Install sag o-ring (ABG0320).
Greasing Wiper
Step 2 – Air Valve Install

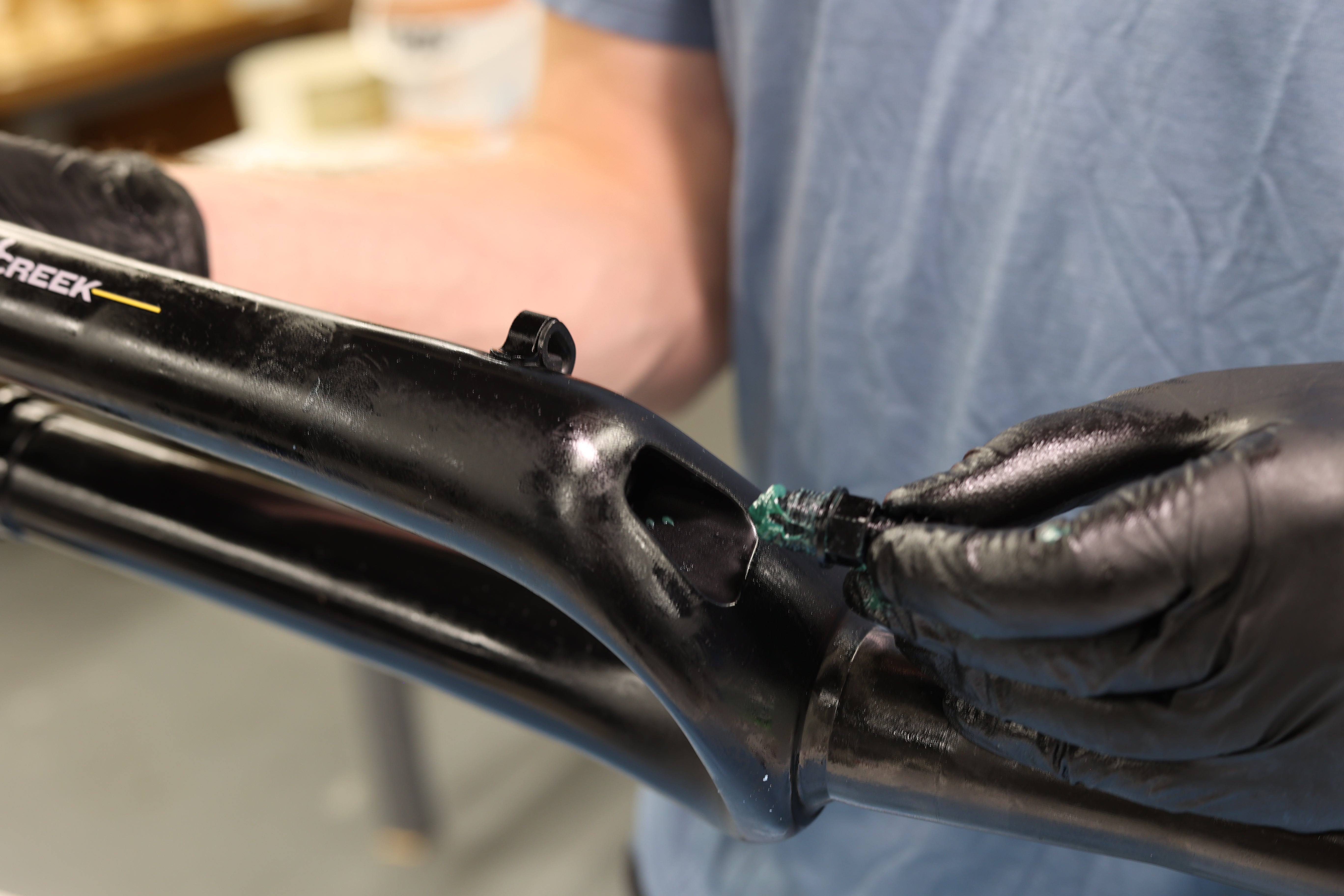

Apply 243 (Blue) Loctite to air valve threads. Install air valve using 3mm. Torque to 2 Nm. Install valve core. Torque to 0.5 Nm. Pressurize air leg assembly to at least 60 psi. Use dunk test to check for air leaks. Install valve cap.
Applying Loctite to Air Valve
Step 3 – Brake Side Leg Seal Head Install

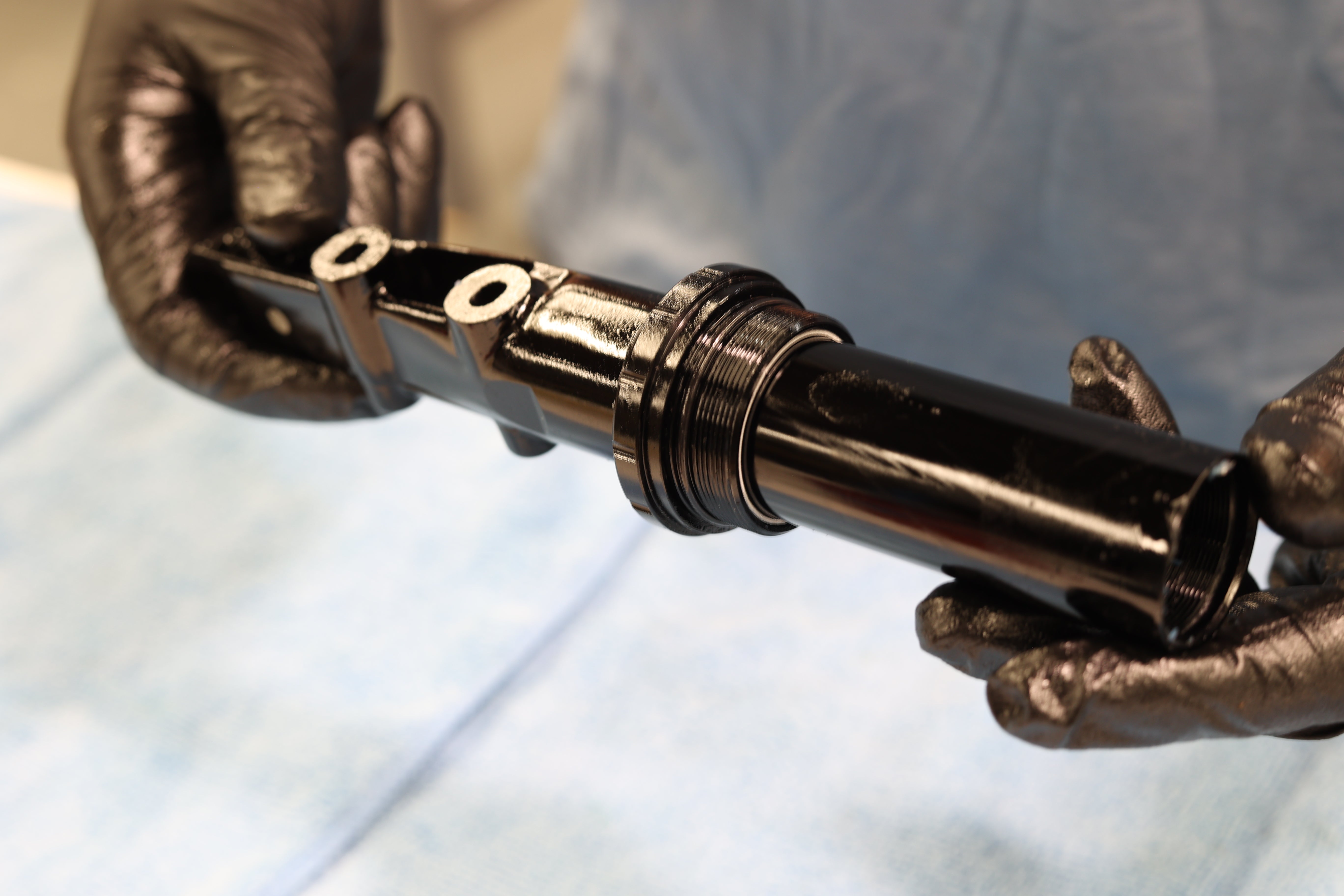

Thoroughly grease inside of wiper. Install seal head onto damper leg. Note seal head orientation.
Greasing Wiper
Step 4 – Bushing Carrier Install

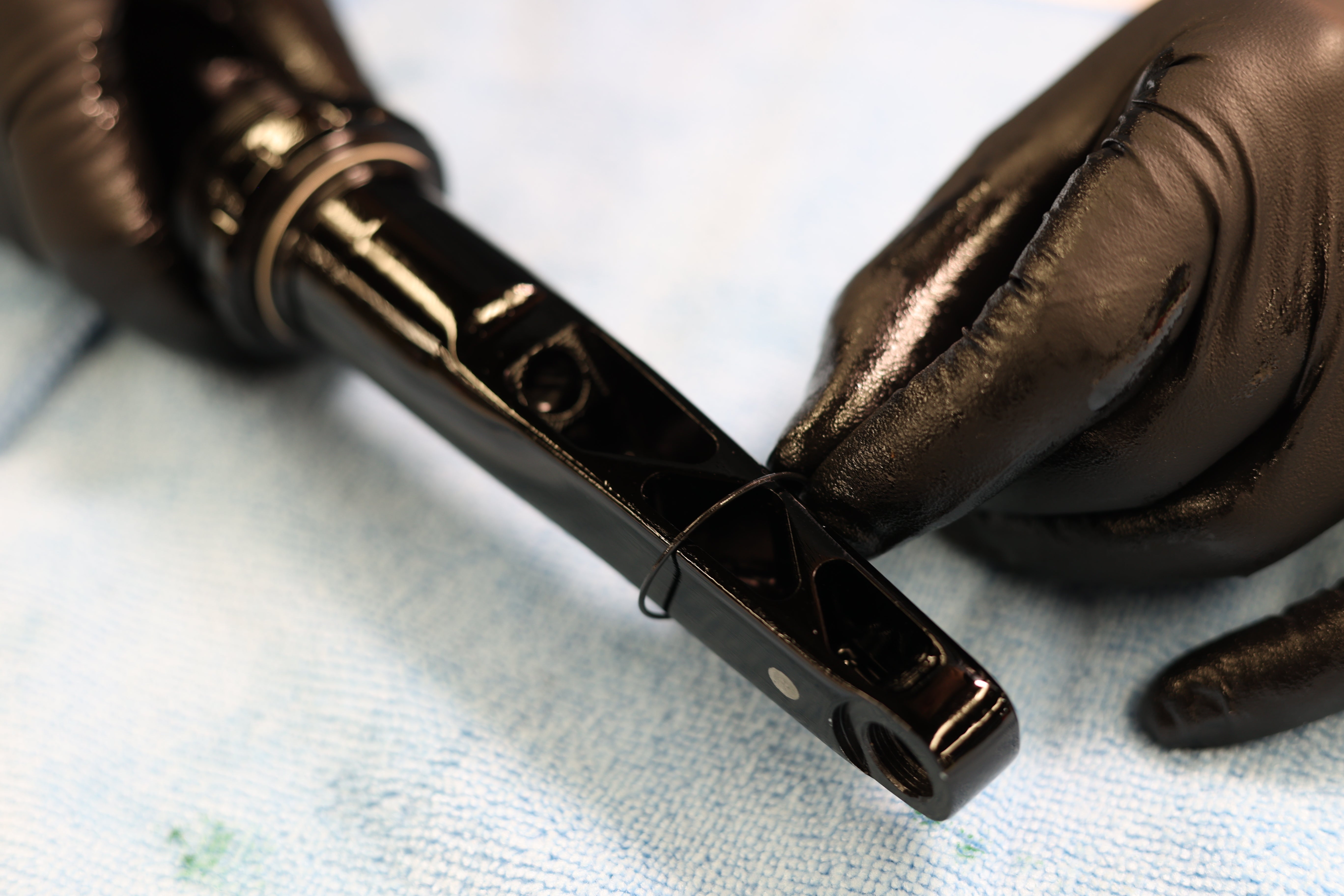

Apply 243 (Blue) Loctite to brake side bushing carrier thread. Thread carrier onto leg. Clamp leg on brake flats in soft jaw vice. Using Knipex, tighten carrier onto leg until snug.
Applying Loctite to Bushing Carrier Thread
Leg Install
Step 1 – Spring Side Leg Install

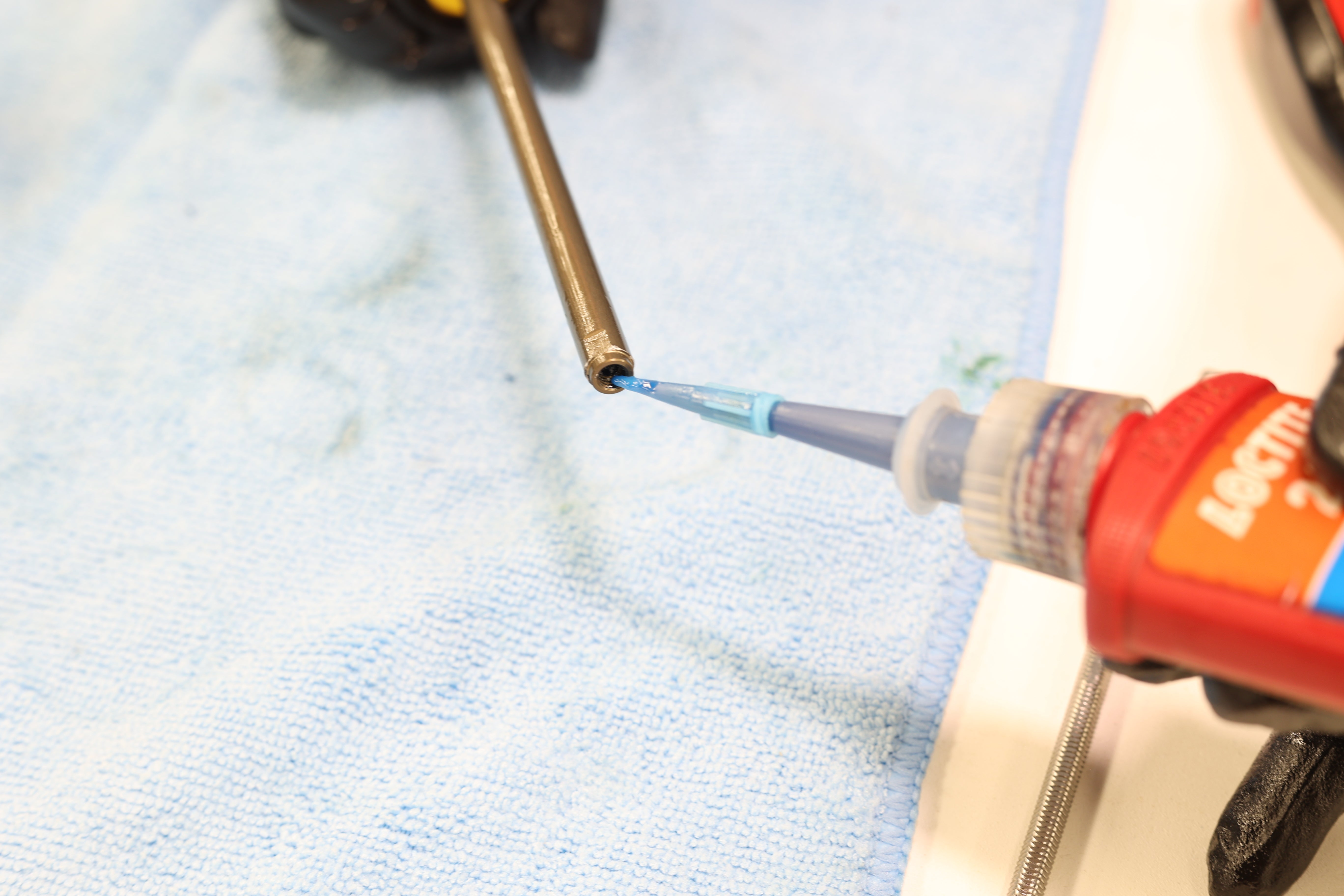

Clean threads on air shaft with pick. Apply fresh 243 (Blue) Loctite to shaft threads. While pinching bushing, insert air leg into air side of fork upper. Gently slide leg into upper until first contact with shaft and fork upper. While gently applying pressure, rotate air leg assembly until you feel the flats on the air shaft slot into place. Maintain pressure to keep shaft engaged. Using 3mm Allen, thread air shaft bolt onto air shaft through fork upper. Torque to 5 Nm. Reinstall air side plug on uppers.
Cleaning Air Shaft Threads
Step 2 – Brake Side Leg Install

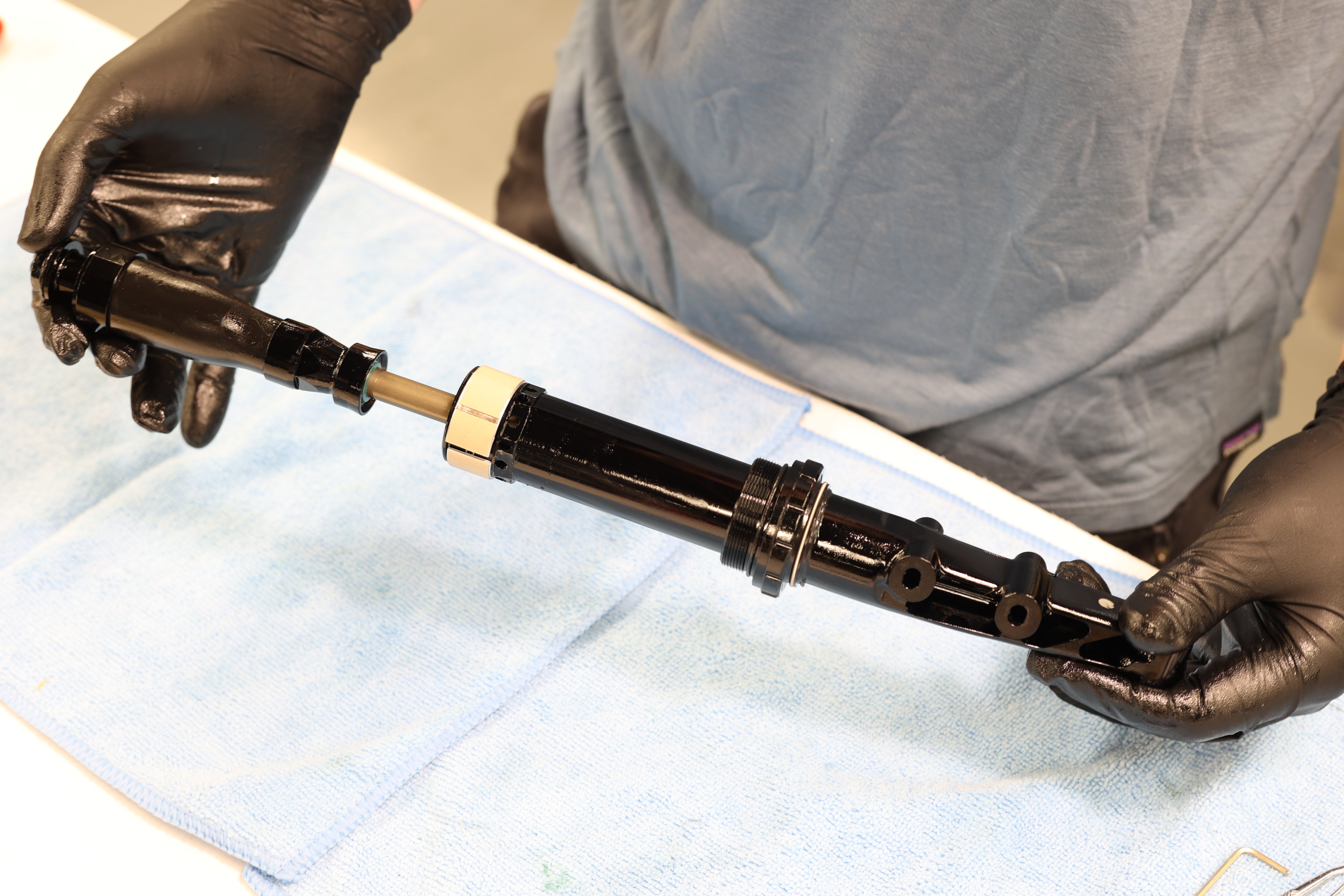

While pinching bushing, insert brake leg into brake side of fork upper. For CS only: Gently slide leg into upper until damper hex contacts inside of fork upper. Rotate leg until damper hex engages and slots into place. Maintain pressure to keep damper engaged.
Brake Side Leg Install
Step 3 – Button Install (CS only)
Pack button mechanism with PolyLube grease. Install button mechanism and tighten to damper using 13mm socket. Torque to 7.5 Nm. Insert CS button into cavity. Engage the button to ensure proper function. Leave CS in closed position so set screw is exposed. Cover upper around button to protect finish. Using 2mm Allen, tighten set screw until snug while applying little pressure to the button to keep it from twisting. Again check button for function.
Greasing Button Mechanism
Adding Oil & Seal Head Install
Step 1 – Adding Leg Oil

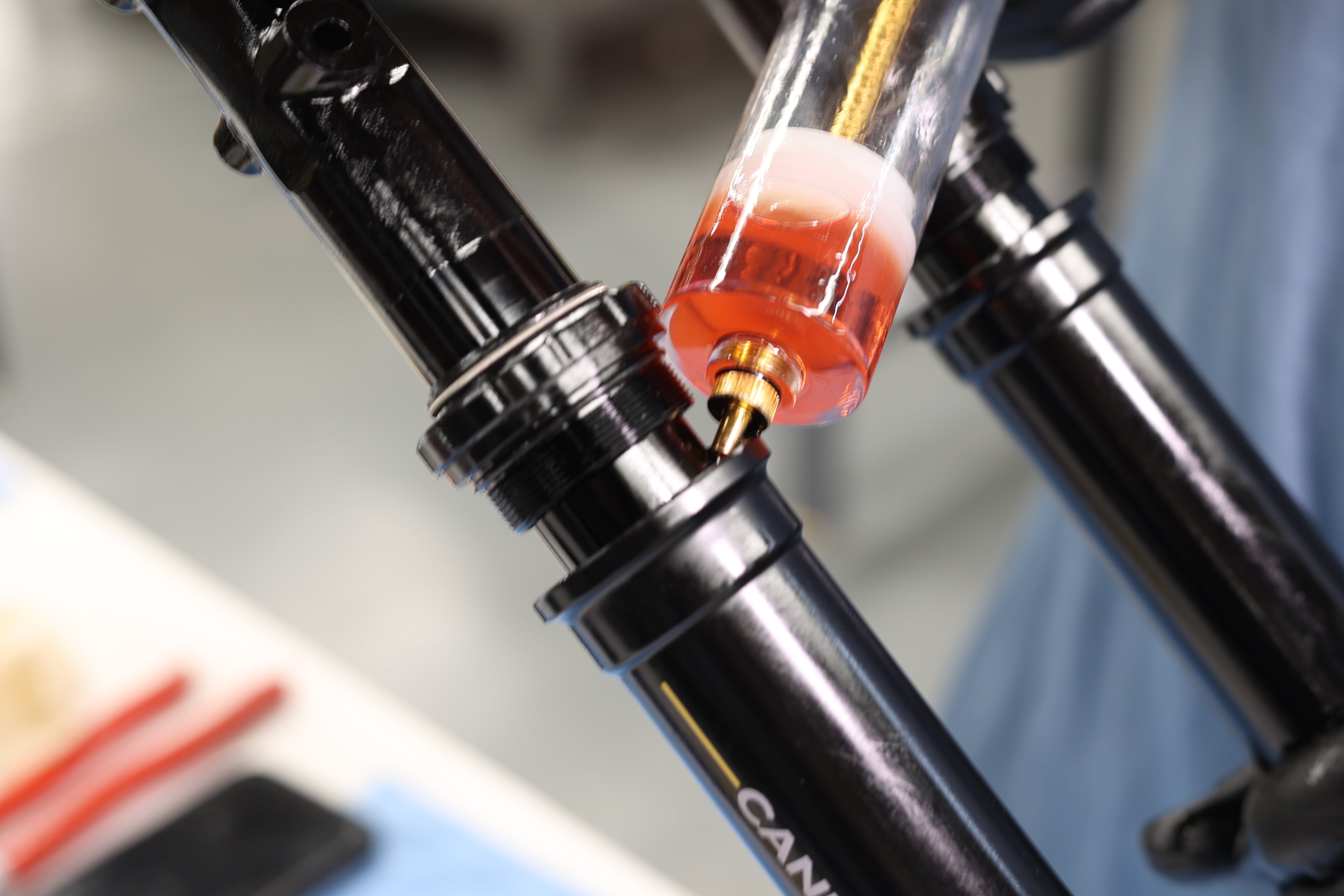

Secure fork with legs up. Using syringe, add 5ml of 15wt Motorex Racing Fork Oil to both legs.
Fork Oil in Syringe
Step 2 – Seal Head Install
Thread lower seal heads onto fork upper.
Using Bottom Bracket Tool, torque to 15 Nm. Reinstall seal head guards. Make sure they are properly seated and aligned.
