0mm

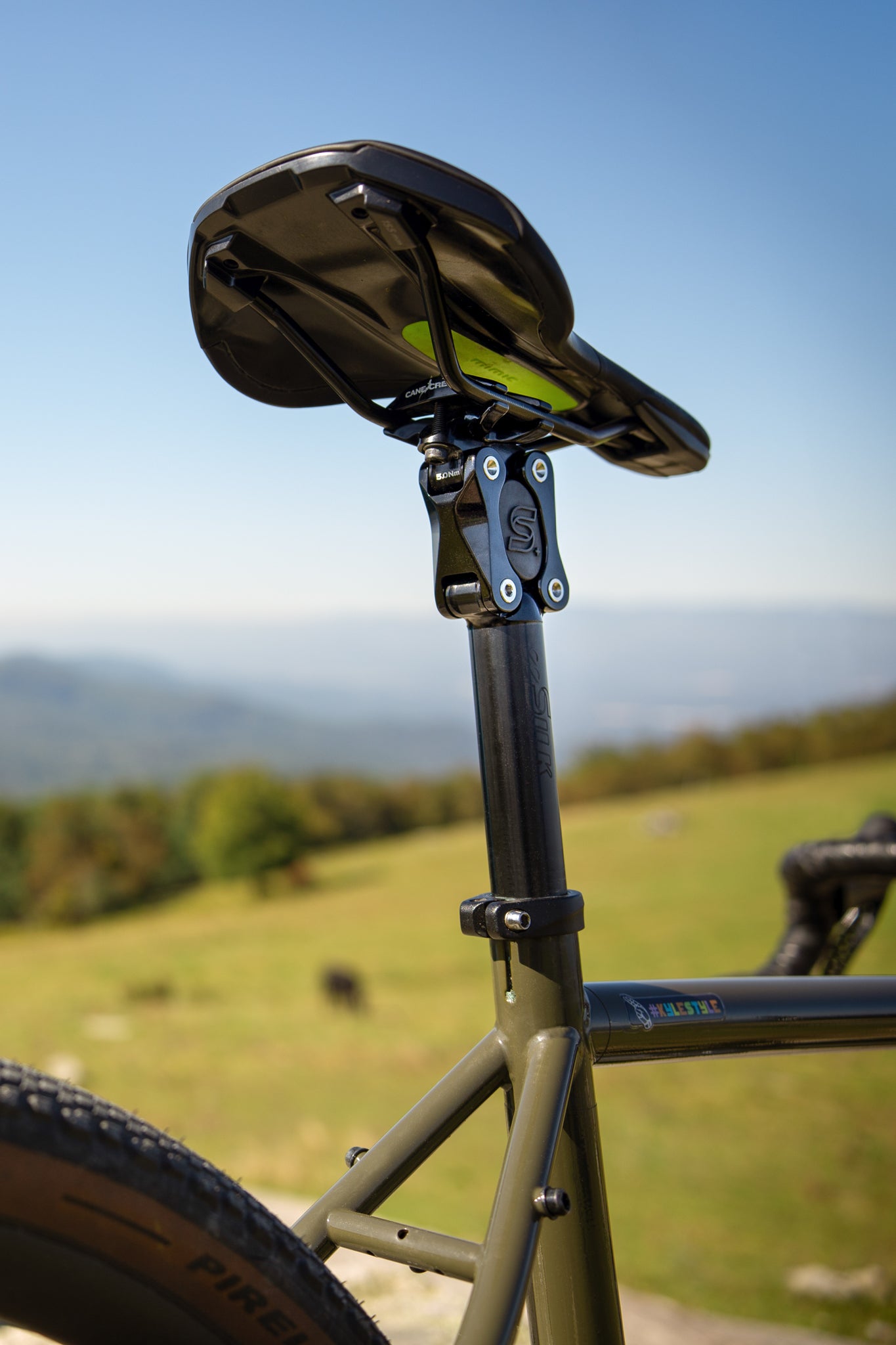

This is the setback of the static (unweighted) seatpost.  The setback will change once seated on the seatpost, and that amount will vary based on rider weight, elastomer choice, and bicycle geometry.

Yes!  eeWings are now compatible with Shimano XTR 12 speed drivetrains usingWolf Tooth Direct Mount Chainrings for Hyperglide+

Cane Creek offers various seatpost shims to accommodate a variety of seatpost diameters larger than 27.2. Click on the link provided to see the shim sizes that are available. Seatpost Parts and Accessories

All Cane Creek brakes use Shimano-style brake pads.

Yes. Every new Thudbuster ST seatpost includes a set of elastomers to fit your weight and riding style. The Thudbuster will come with a medium firm elastomer (150-200lbs / 68-90kg rider weight) pre-installed in the post. Thudbuster will also come with a Soft Elastomer (100-150lbs / 45-68kg rider weight) and a Firm elastomer (200-250lbs / 90-110kg rider weight)

• EC30 will take a 38mm bearing
• EC34 will take a 41mm bearing
• ZS44 will take a 41mm bearing
• ZS49 will take a 41mm bearing
• EC44/40 will take a 52mm bearing
• EC44/33 will take a 47mm bearing
• EC49 will take a 52mm bearing
• ZS56 will take a 52mm bearing
• ZS62 will take a 52mm bearing
• IS41 will take a 41mm bearing
• IS42 will take a 42mm bearing
• IS52 will take a 52mm bearing

All complete Cane Creek headset assemblies (top or bottom) will use a 36×45 degree contact angle bearing, with the exception of our IS47/33 and EC44/33 headset assemblies. IS47/33 and EC44/33 will use a 45×45 degree contact angle bearing.

We make five different crown race sizes, and they are labeled by “bearing size” first, and “crown race seat diameter” second. For example, a 52/40 crown race will work with a 52mm bearing and 40mm crown race seat diameter. First, figure out what size bearing your lower headset assembly takes. Then, confirm the crown race seat diameter on your fork. If you’re having trouble accurately determining these numbers, please visit your local bike shop for help, or visit the S.H.I.S page and our “I want to replace the bearing in my Cane Creek headset. What size do I need?” FAQ.

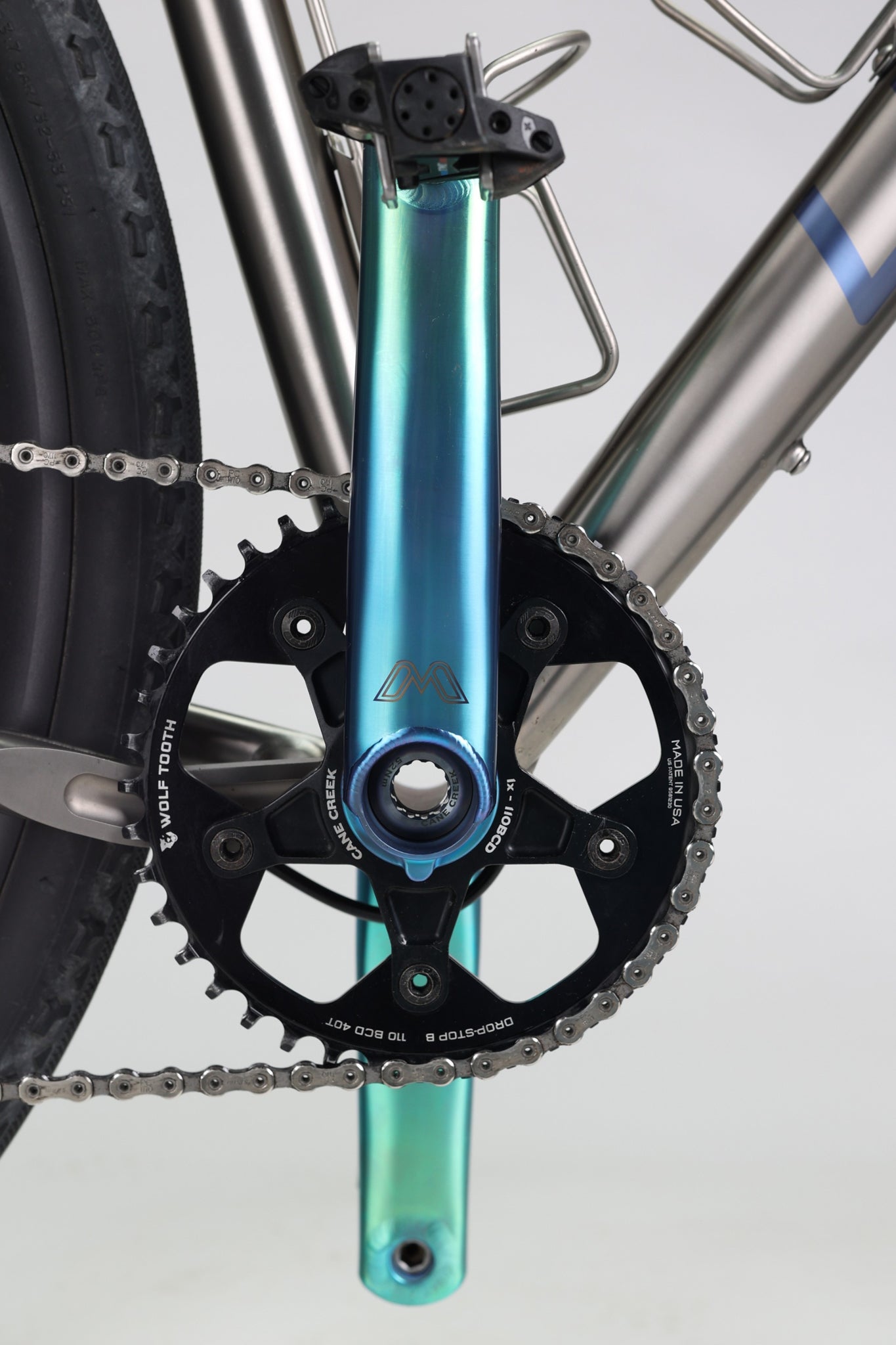

The eeWings arms are Grade 9 Ti-3AI-2.5V, the hirth joint/chain ring interface, spindle, pedal inserts, fastening bolt and washer, preload bolt, and the three chainring bolts are Grade 5 Ti-6AI-4V Titanium. The 1.75mm (eeWings Mountain) or 1mm (eeWings Road) spindle spacer, and preload assembly (thread ring and spacer ring) are made of 7075 aluminum.

Depending on the variation, a 12 notch 46mm bottom bracket tool and/or a standard press fit bottom bracket tool is required for installation. Please refer to the Instruction Manual section for more details.

The setback is 8mm at the static (unweighted) position.  The setback will change once seated on the seatpost, and that amount will vary based on rider weight, elastomer choice, and bicycle geometry.

Yes, for best performance, Cane Creek recommends a Fork Lower service for every 50 hours of use. Additionally, a Full Fork air spring and damper rebuild performed by a Cane Creek authorized service center for every 100 hours of use.
