Invert Gravel 100 & 200 Hour Service Instructions (Part 1 of 2)
Mar 2025 orig.
Table of Contents
Recommendations and Warnings
Cane Creek recommends only trained suspension technicians perform service on all suspension, using all required tools and following all proper procedures. Anyone without access to the proper equipment or with any concerns on the procedures should defer to an authorized Cane Creek service center for service. Improper service can result in loss of performance or suspension failure. Follow the service procedures exactly as written to avoid possible injury or harm to the suspension. Always wear eye protection while performing suspension service. Please dispose of all waste products and materials through proper channels to avoid contamination of the environment.
Any damage or issues resulting from improper service will not be covered by warranty. If you have a fork still in its original warranty period and do not wish to void your warranty, please contact an authorized Cane Creek service center.
These service instructions cover the basic service procedures using standard service kits. If your suspension requires parts beyond standard replacement parts – legs, chassis, etc. – please consult your authorized Cane Creek service center or contact us at our Cane Creek Support Center.
Service Notes
These instructions cover 100 & 200 hour oil and wiper change. If carrying onto further service, you will be prompted when to switch to those instructions.
These instructions cover the SL & CS variants. The CS will have more steps and those are noted. Those can be skipped for SL forks.
Service Kit
BBG0508 – Invert Gravel 200 Hour Service Kit
Required Cane Creek Tools
None
Additional Tools & Supplies
Open 12 Notch x 46mm (BSA30) Bottom Bracket Wrench
Allen wrenches - 2, 3, 4 & 6mm
13mm socket (CS only)
30mm wiper seal press
Open end/box wrench
Socket wrench
Torque wrench
Valve Core Tool
Soft Jaw Vice
Knipex pliers
Oil fill syringe
Pick
Suspension Grease
PolyLube Grease
Motorex 15wt Racing Fork Oil
Torque, Loctite & Oil Specs
Torque & Loctite Chart
| Part | Torque Spec | Loctite Spec |
|---|---|---|
| Air Valve | 2 Nm | 243 (Blue) |
| Valve Core | 0.5 Nm | None |
| Damper Bushing Carrier | Snug | 243 (Blue) |
| Air Shaft Bolt | 5 Nm | 243 (Blue) |
| CS Button | 7.5 Nm | None |
| Lower Seal Head | 15 Nm | None |
| CS Set Screw | Snug | None |
Oil Chart
| Oil Location | Oil Type | Oil Amount |
|---|---|---|
| Brake Side | Motorex 15wt Racing Fork Oil | 5 mL |
| Spring Side | Motorex 15wt Racing Fork Oil | 5 mL |
Related Technical Service Bulletins
Review all related TSBs before performing any service.
No specific Invert Gravel service TSBs at this time.
General Prep
Clean fork. Inspect fork for any damage. Particularly scratches on legs. Remove axle if installed.

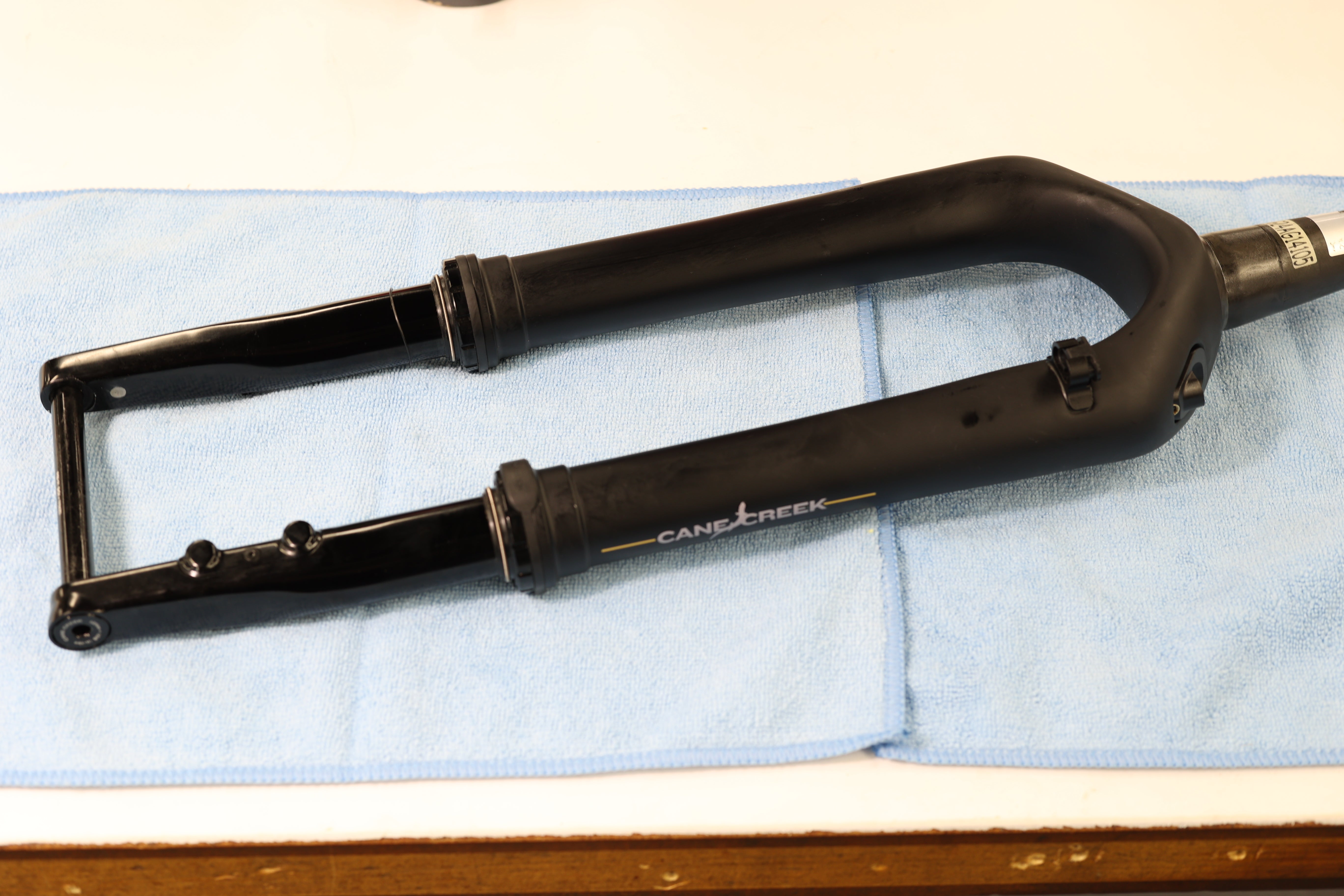

Fork Inspection
Axle Removal
Leg Removal
Step 1 – Draining Leg Oil
Remove seal head guards. Use pick if necessary. With fork inverted to prevent oil loss, loosen lower seal heads using Bottom Bracket Wrench or strap wrench. Back seal heads all the way off and dump splash oil. Dispose of oil properly.
End of 100 hour disassembly. Skip to Adding Oil & Seal Head Install for reassembly.

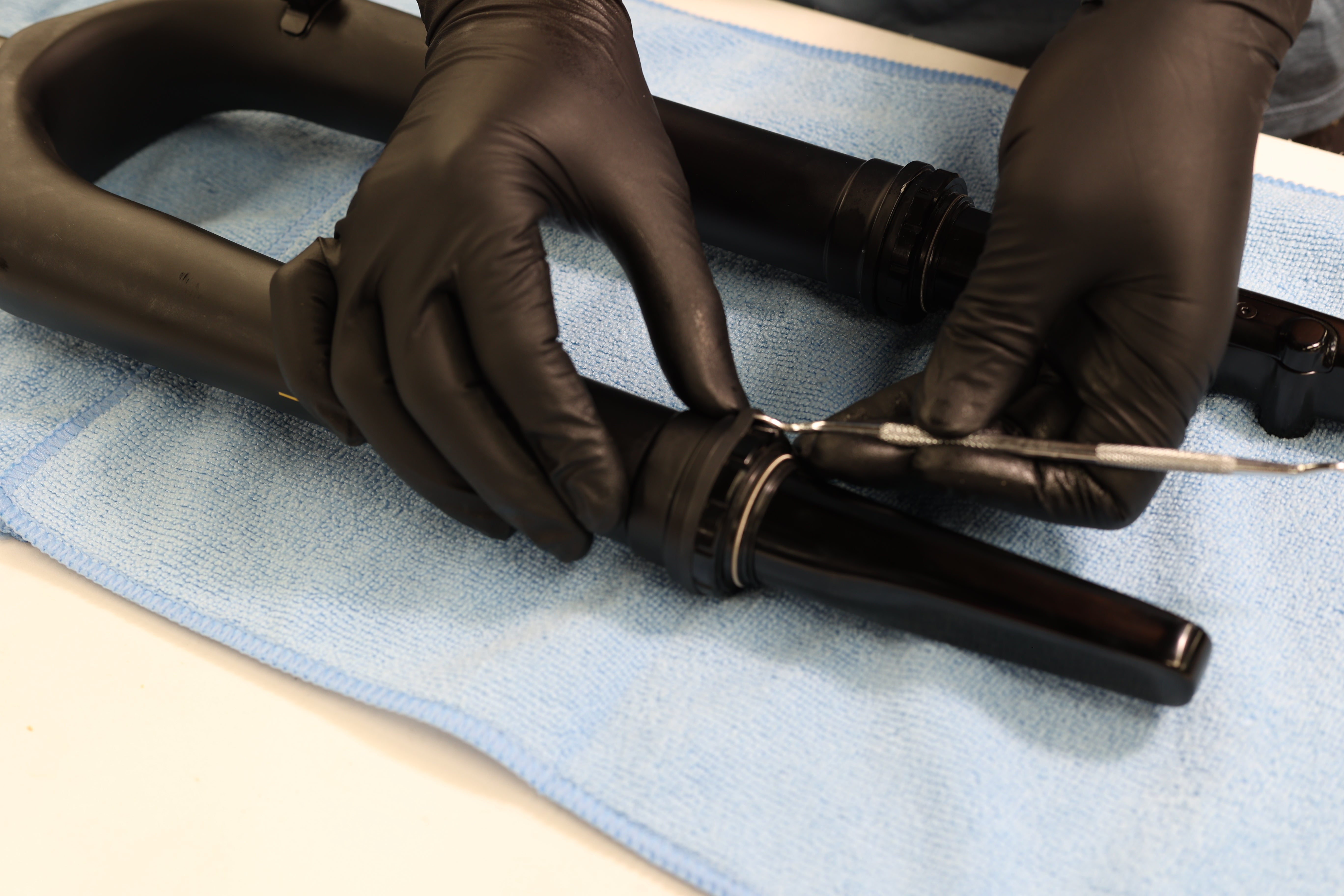

Brake Side Seal Head Guard Removal
Spring Side Seal Head Guard Removal

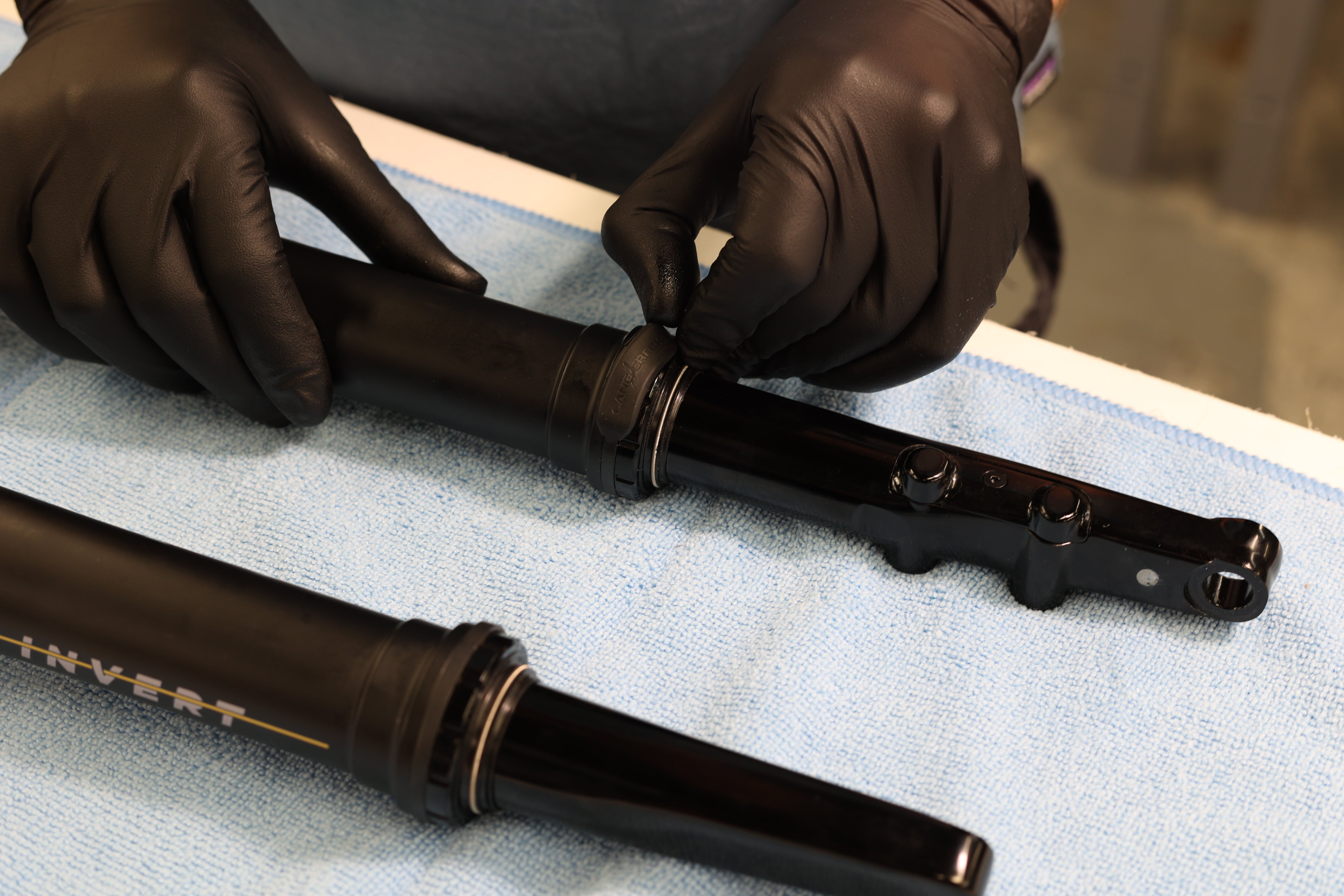

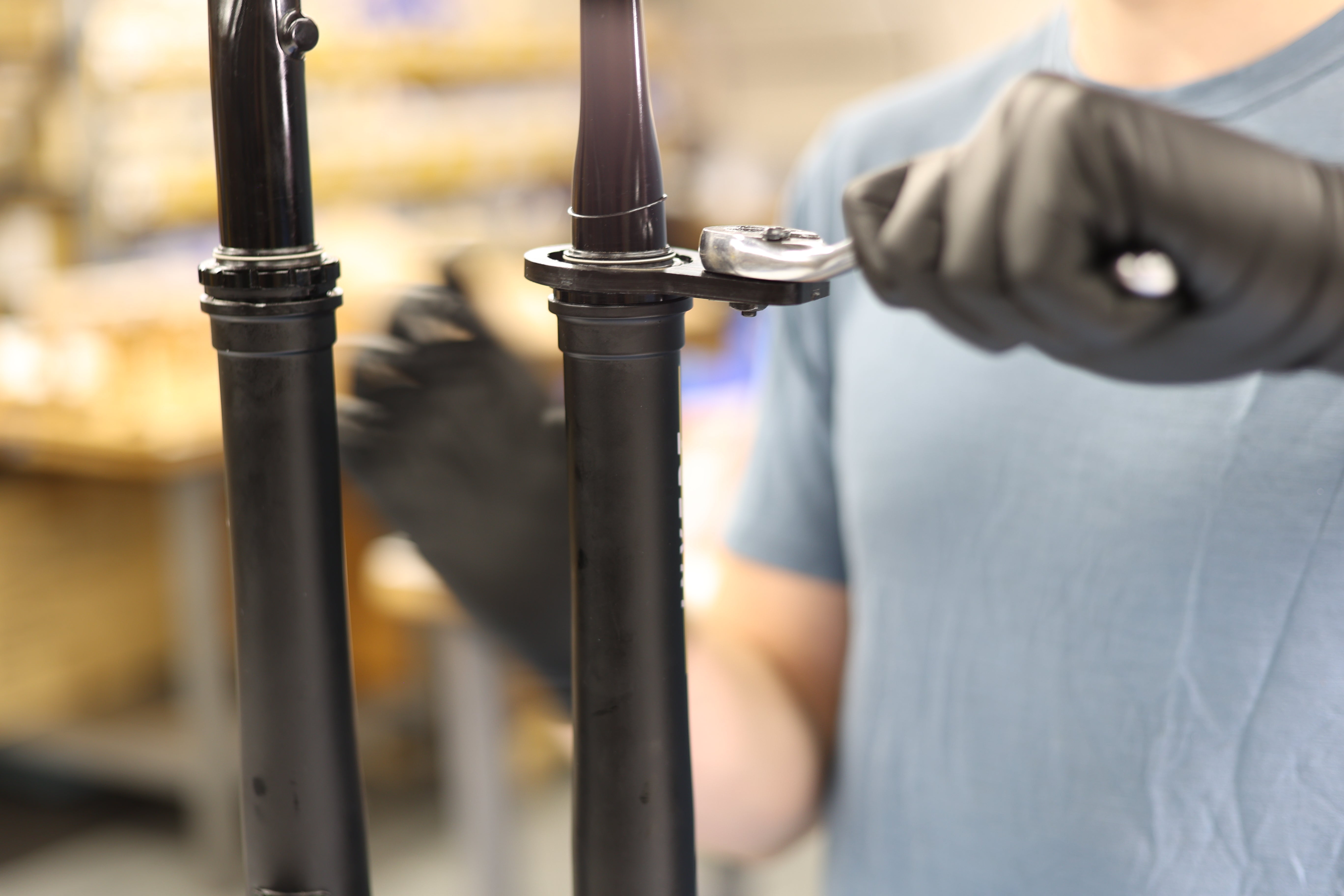

Freeing Spring Side Seal Head
Freeing Brake Side Seal Head

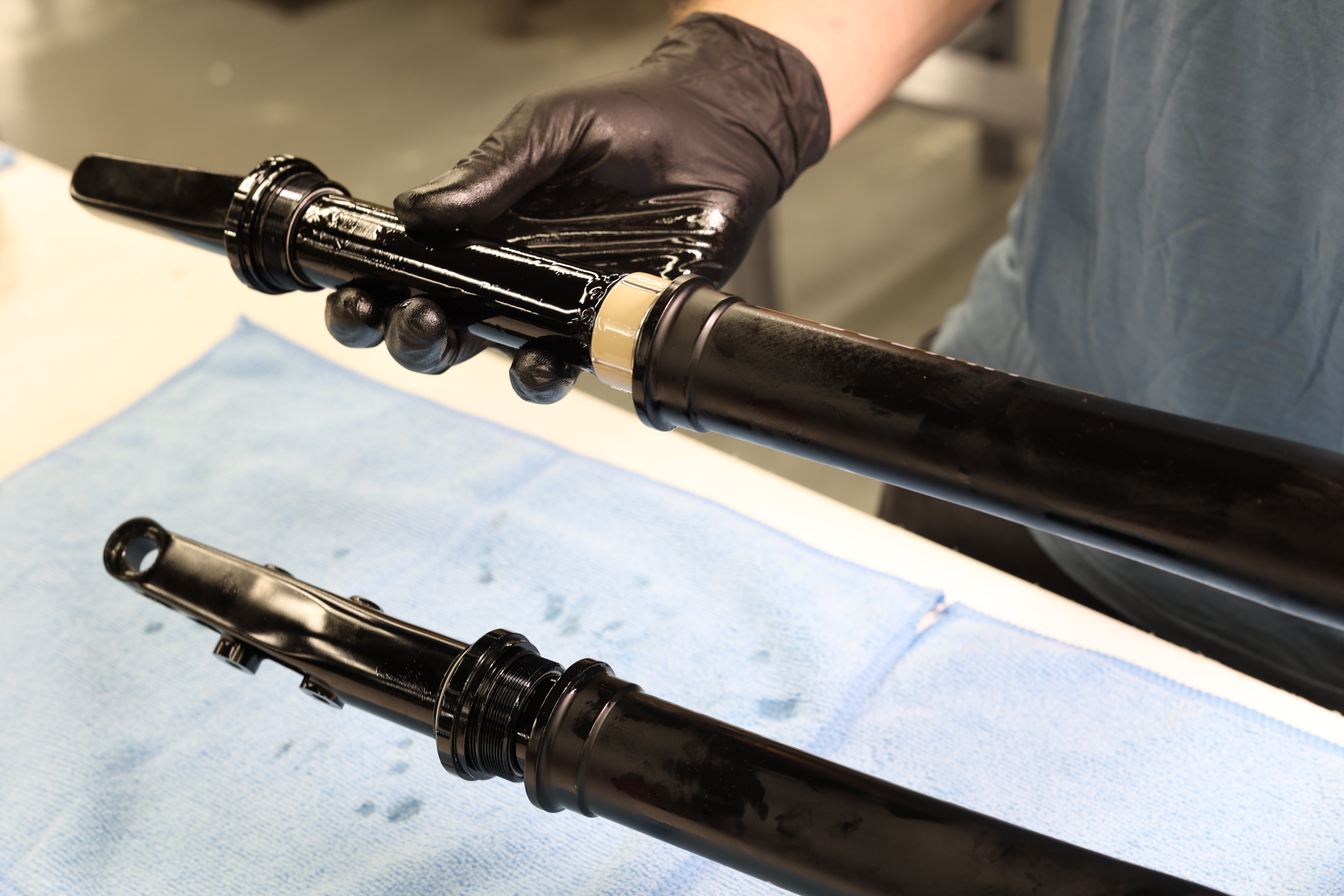

Seal Heads Backed Completely Off

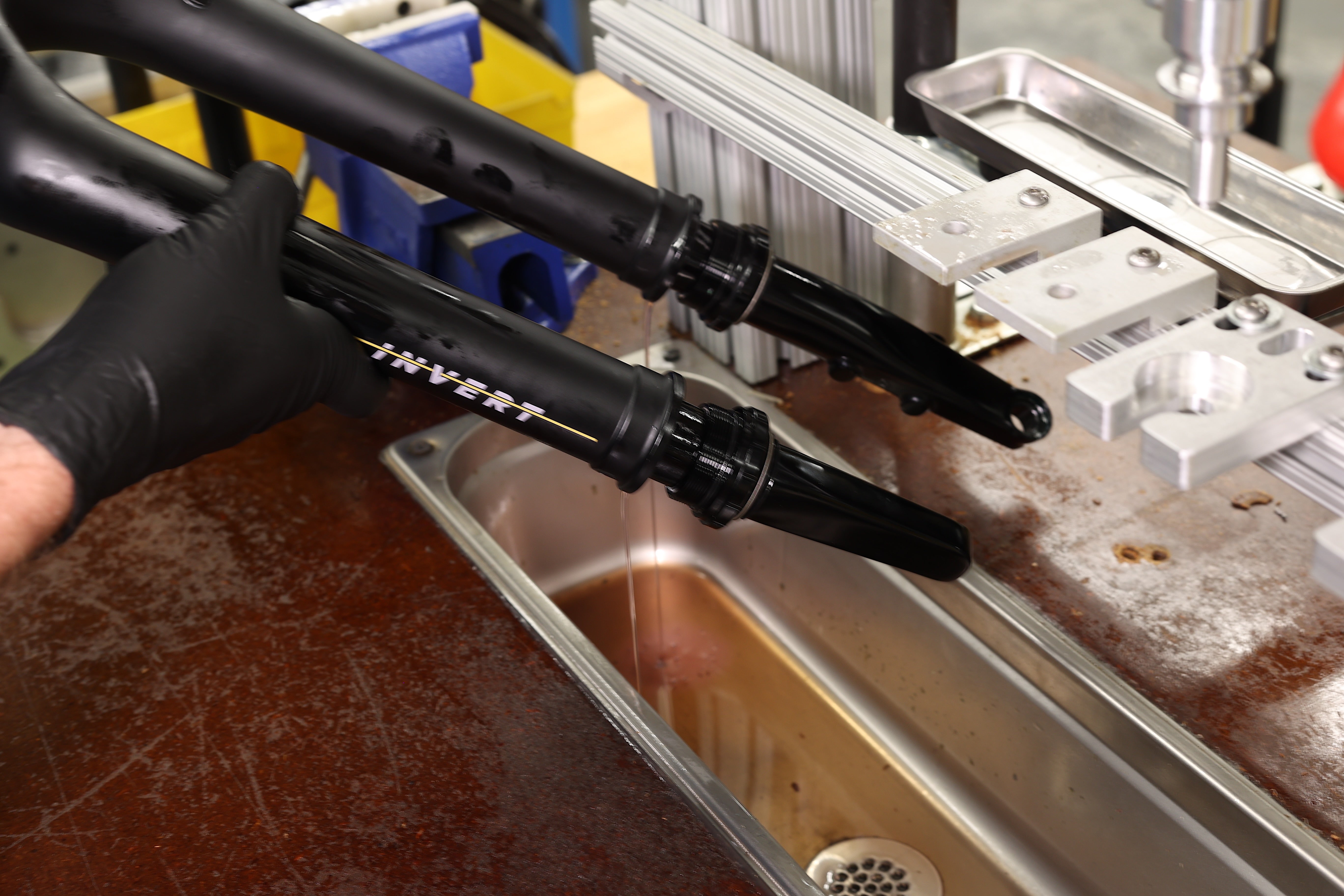

Draining Leg Oil
Step 2 – Air Spring Side Leg Removal
Using pick, remove air side plug on top of fork upper. Using non-ball end 4mm Allen, loosen air shaft nut until completely disengaged. Nut is contained within upper. Remove air spring leg. Remove air cap and bleed all air from air spring.

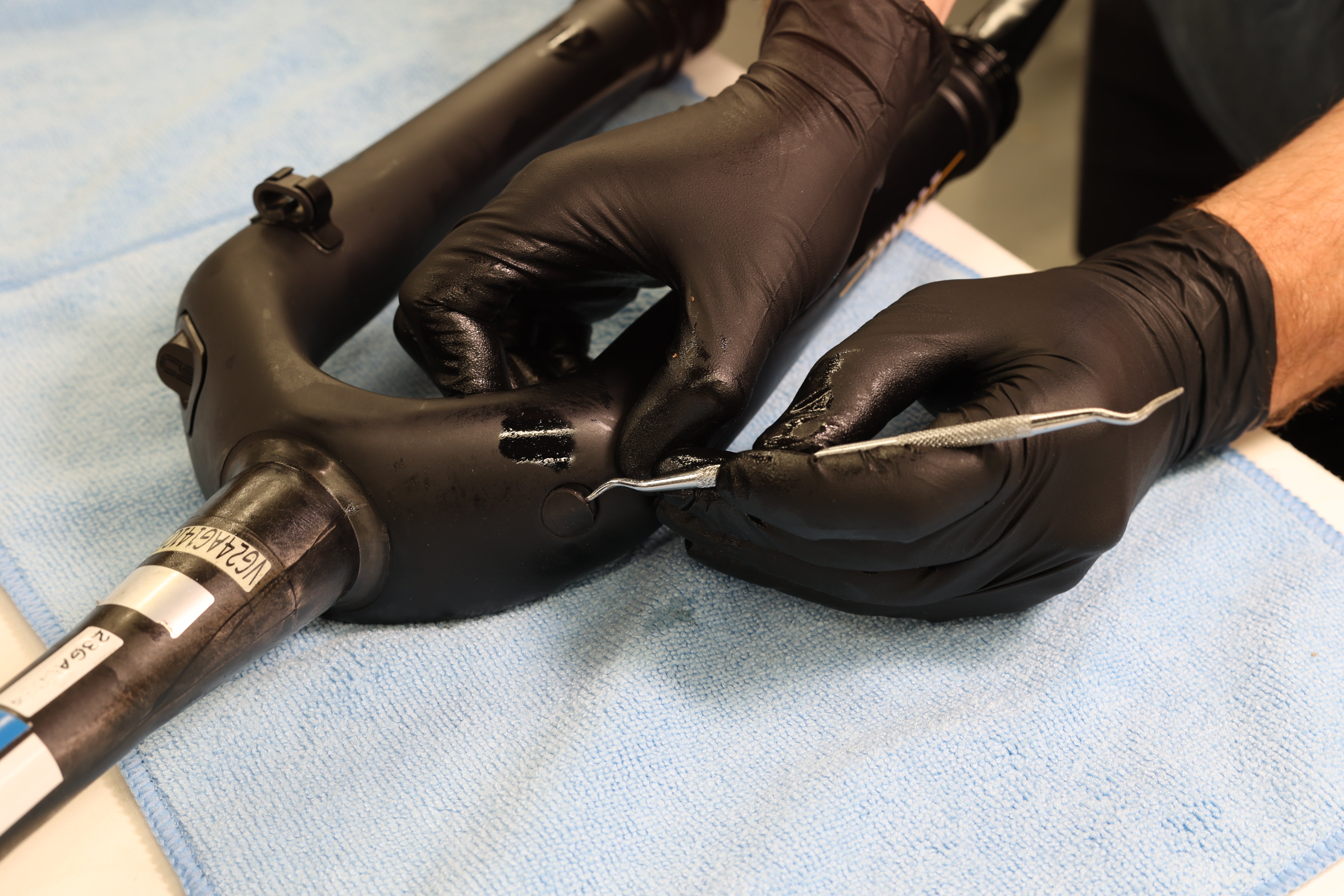

Air Side Plug Removal

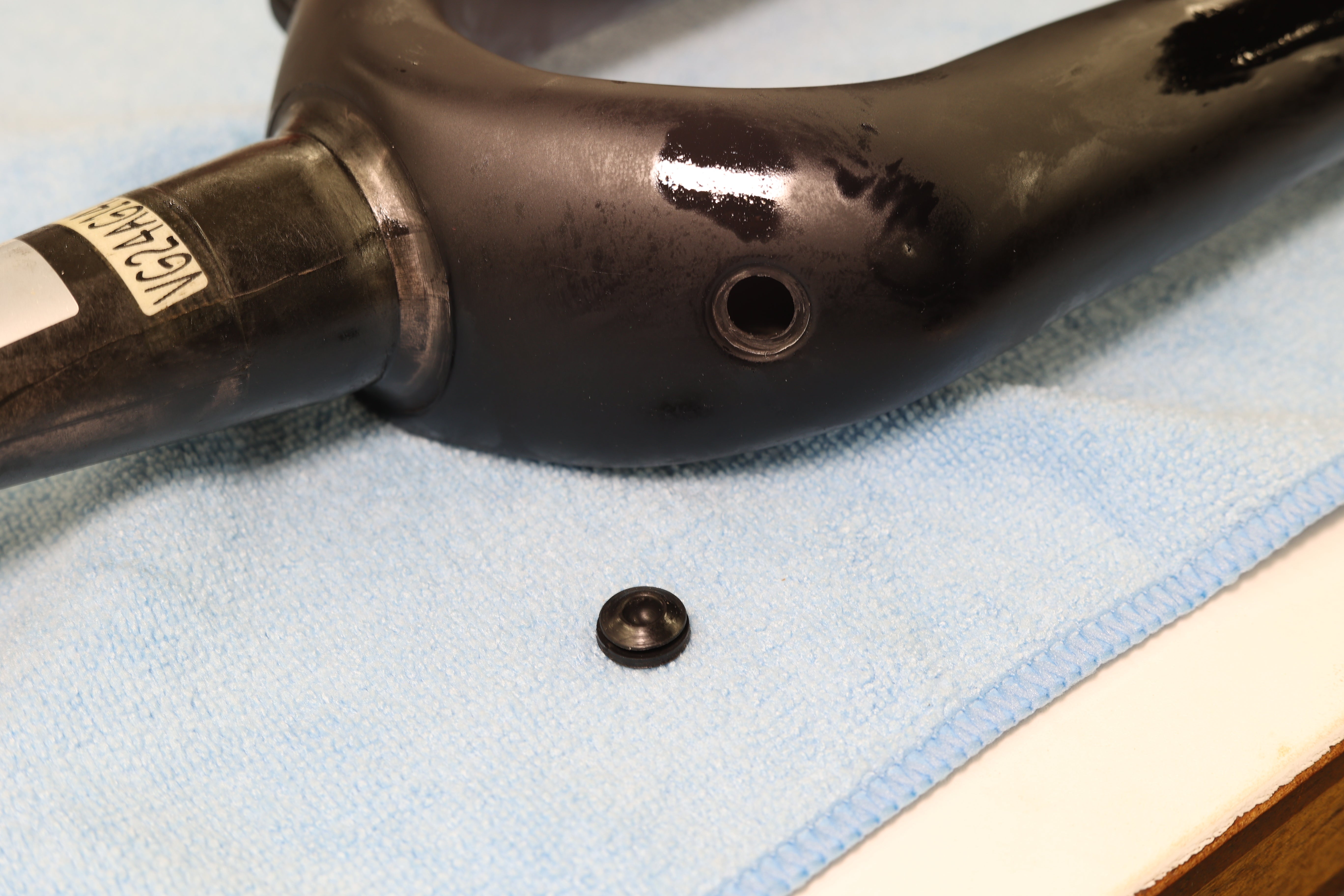

Air Side Plug Removed

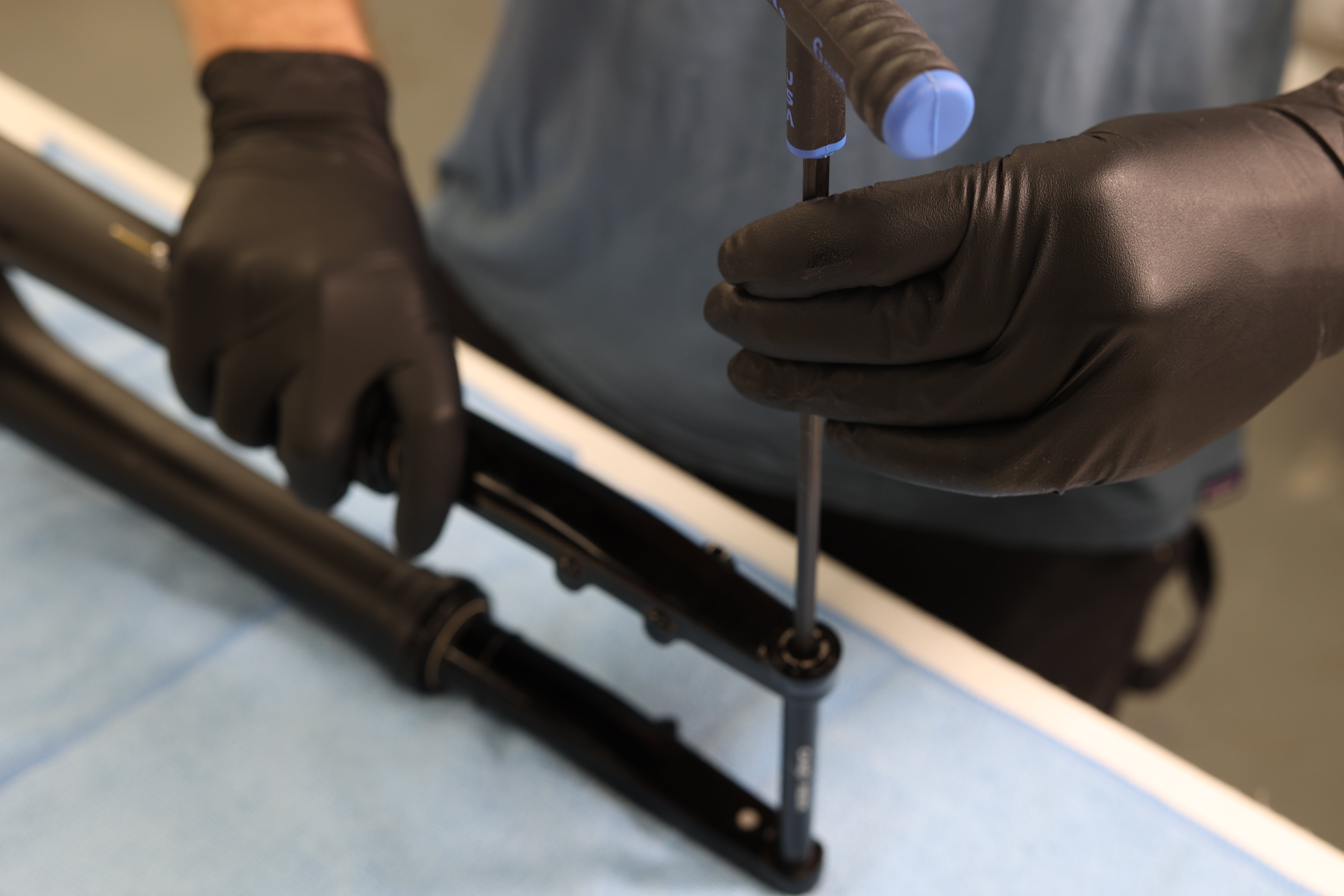

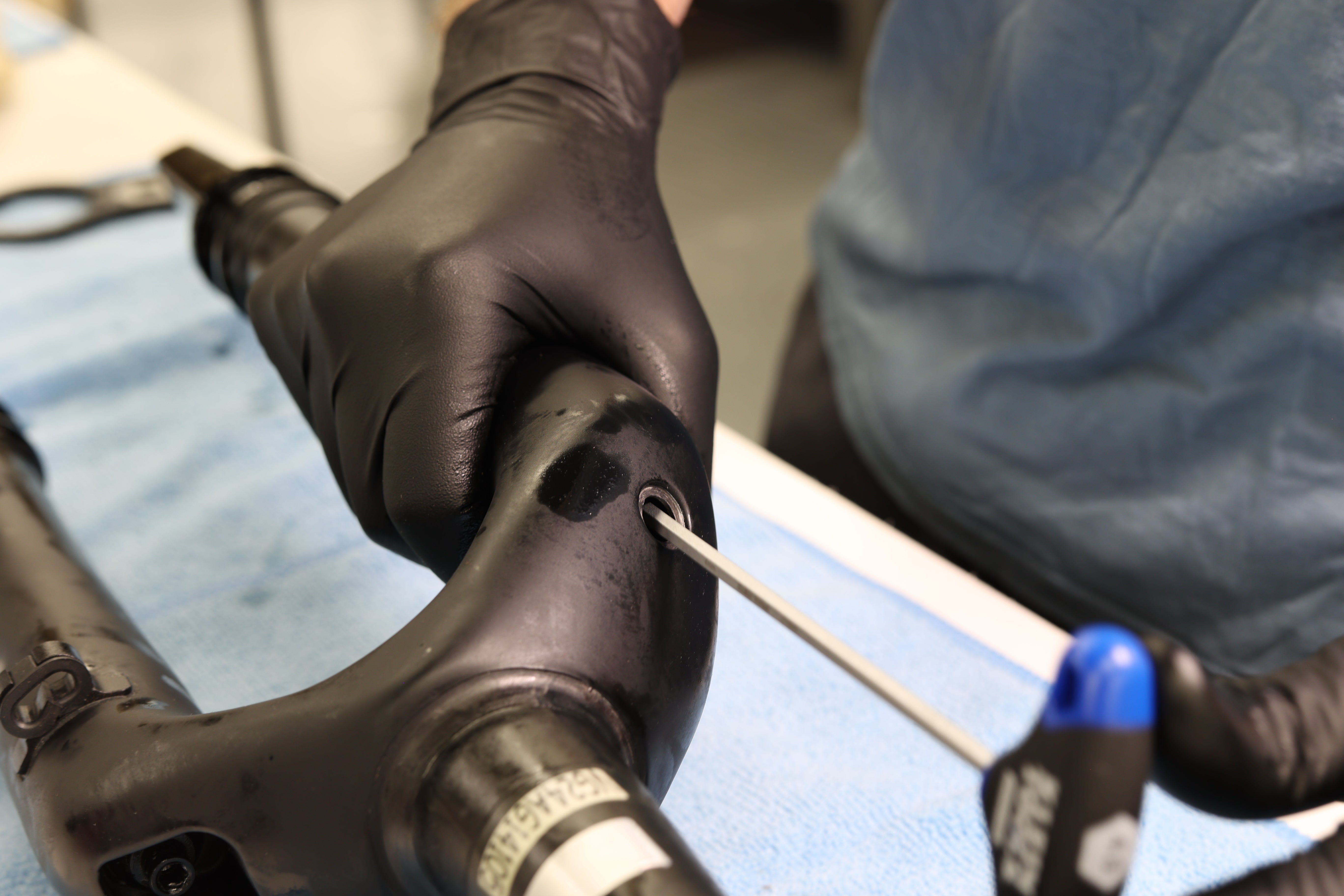

Freeing Air Shaft
Air Leg Removal

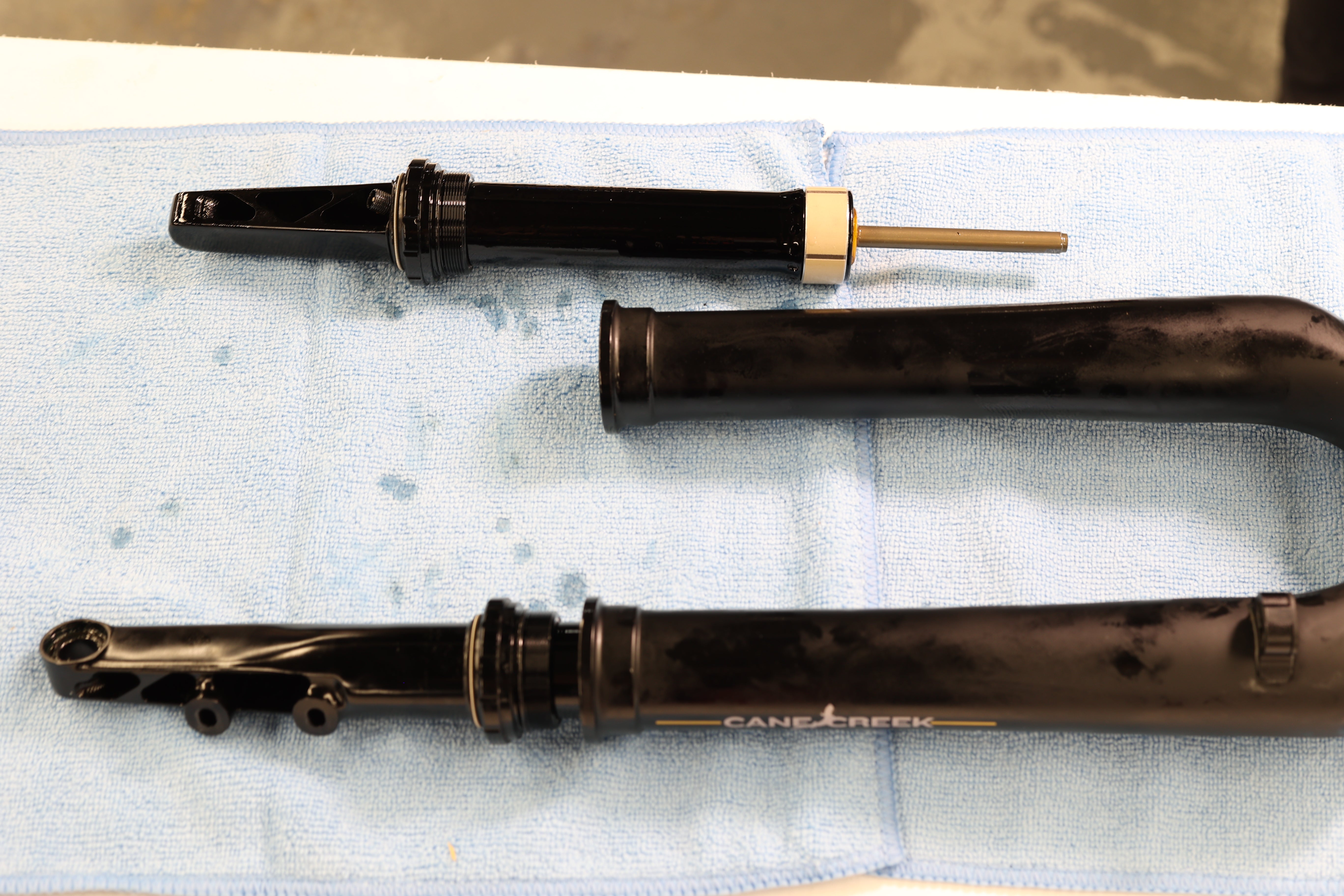

Air Leg Removed
Step 3 – Brake Side Leg Removal
For CS only: Use tape or other material to protect fork upper. Set button to locked position. Use 2mm Allen to loosen set screw until flush with brass insert. Remove button assembly. Using 13mm socket, remove clicker mechanism.
For CS & SL: Remove brake side leg. SL will not have a damper.

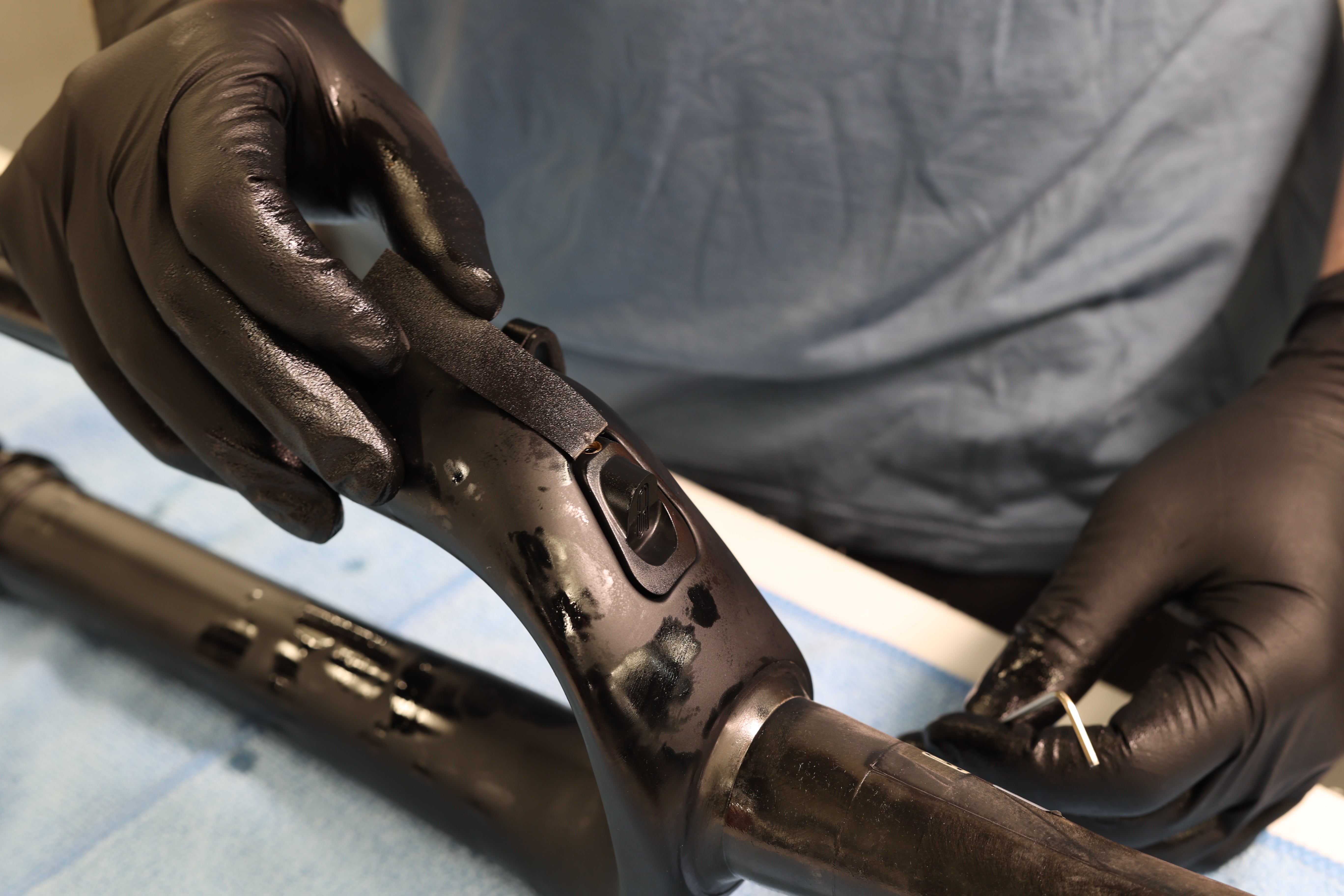

Prepping for Clicker Removal

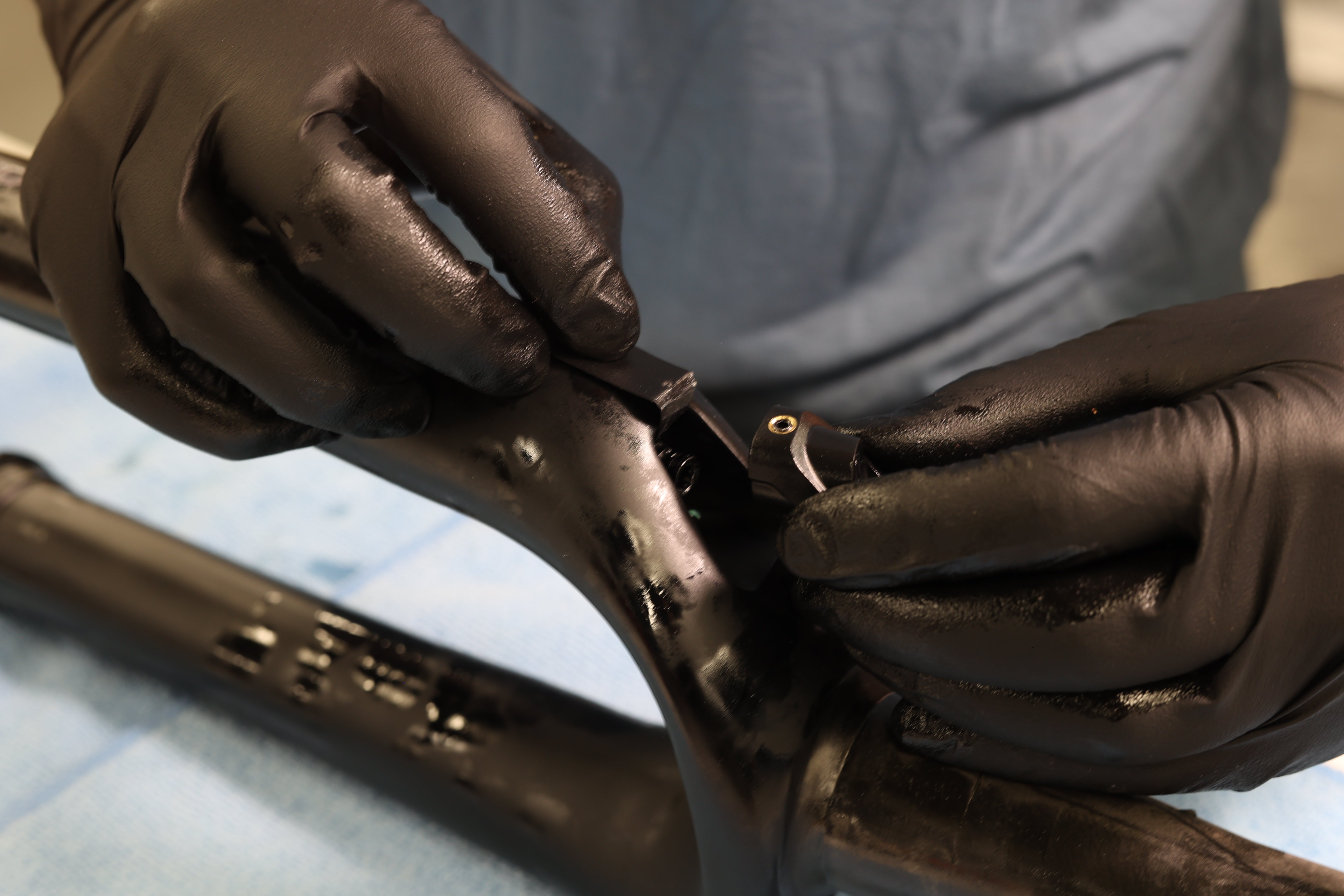

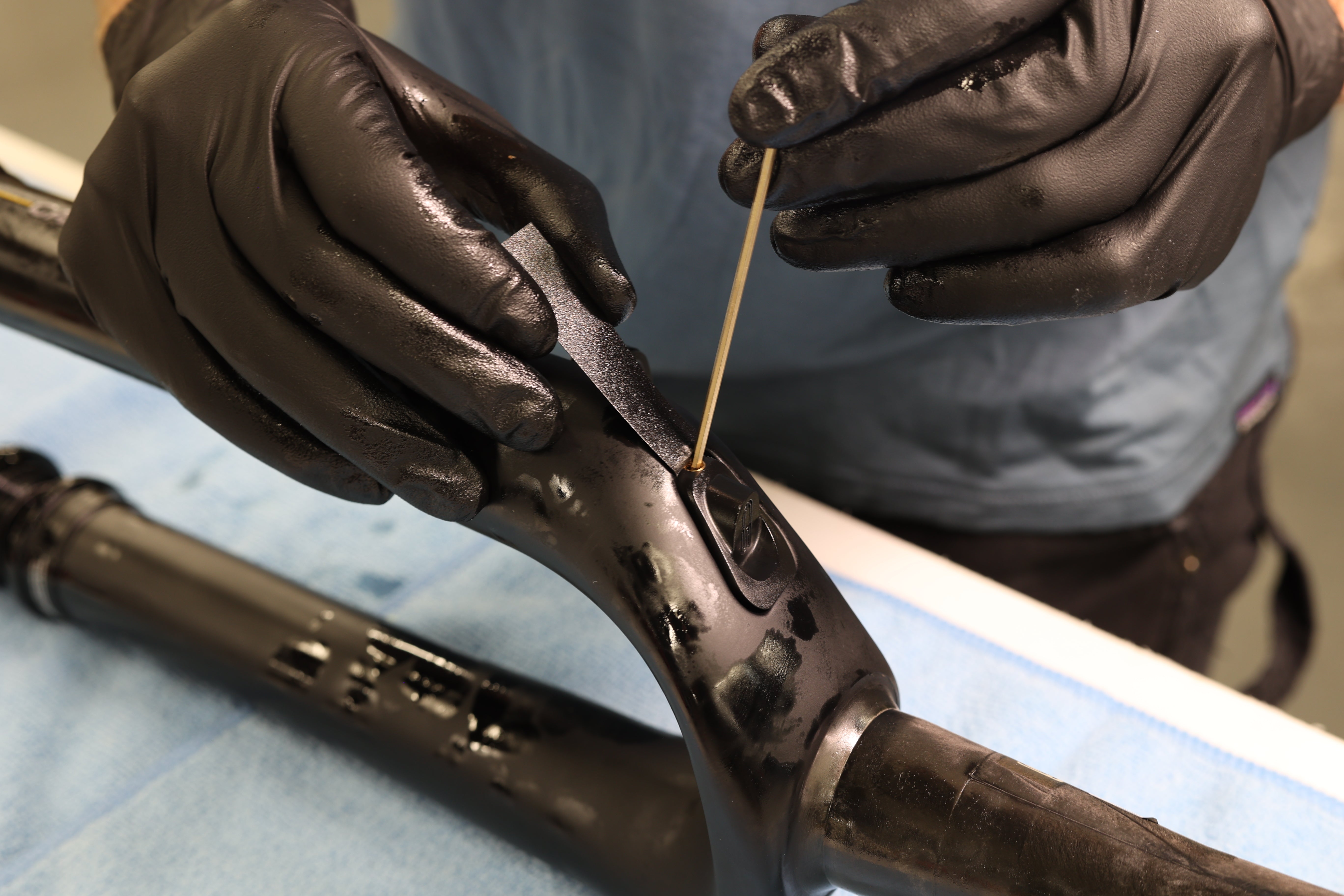

Loosening Set Screw
Clicker Button Removal

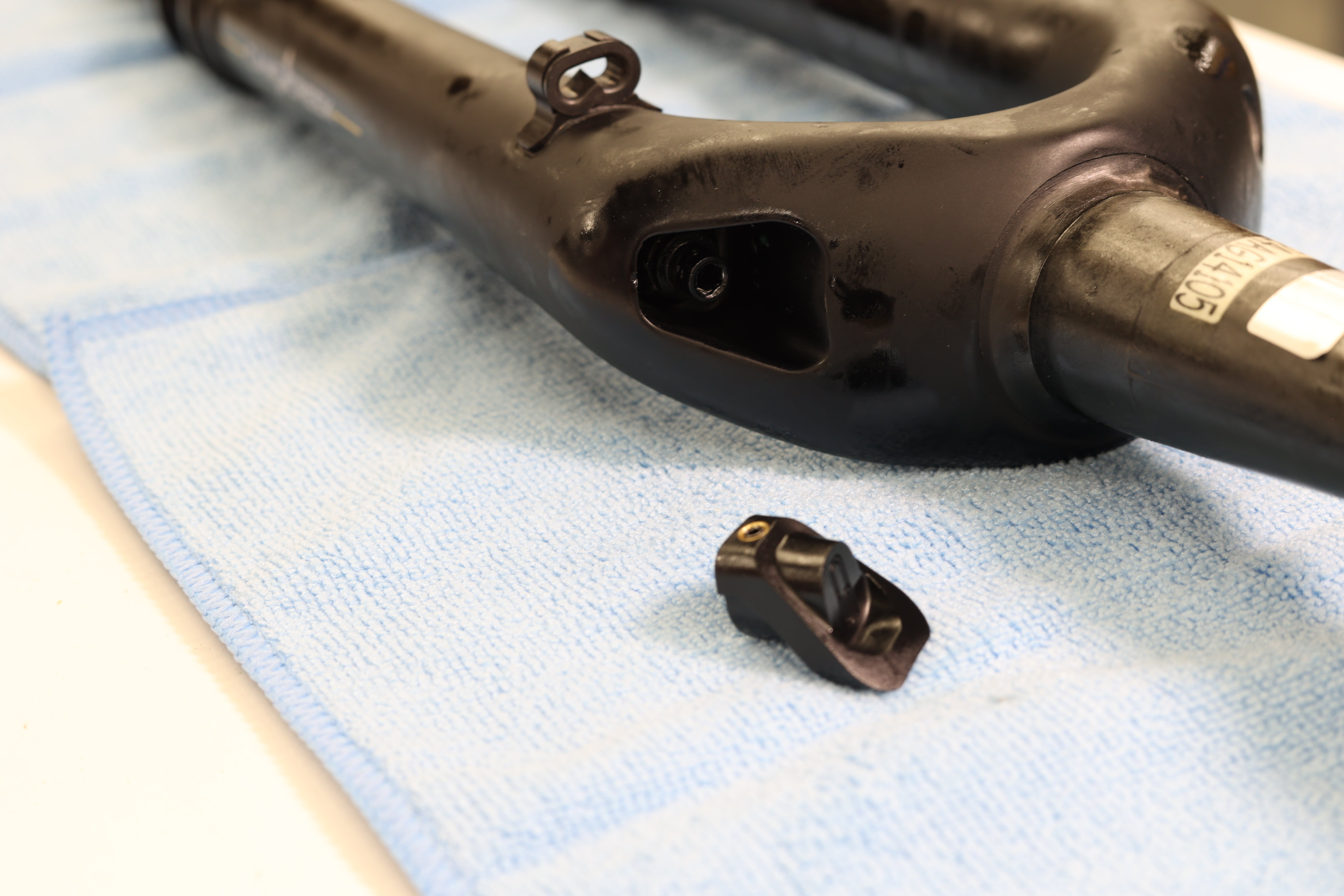

Clicker Button Removed

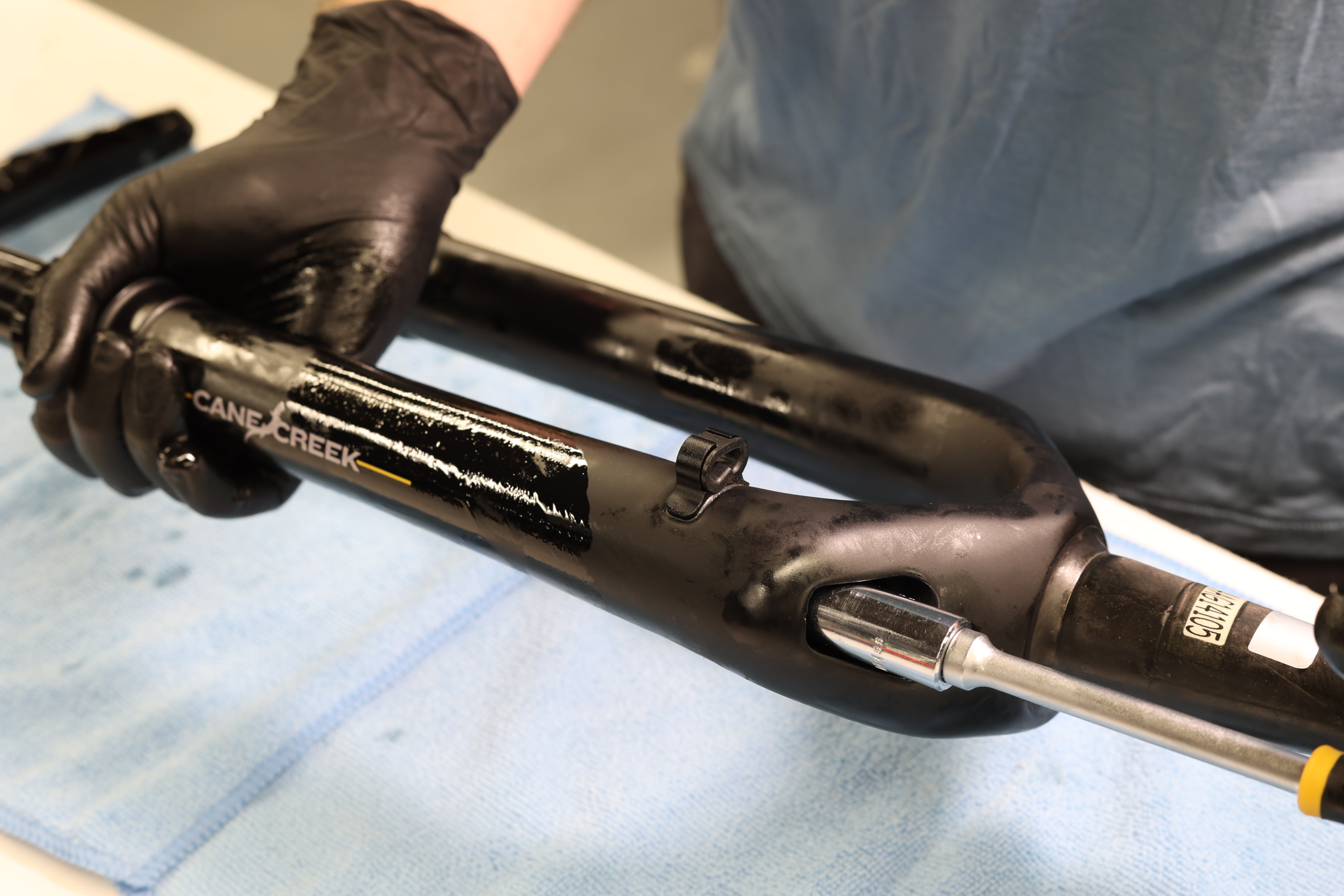

Clicker Mechanism Removal
Clicker Mechanism Removed

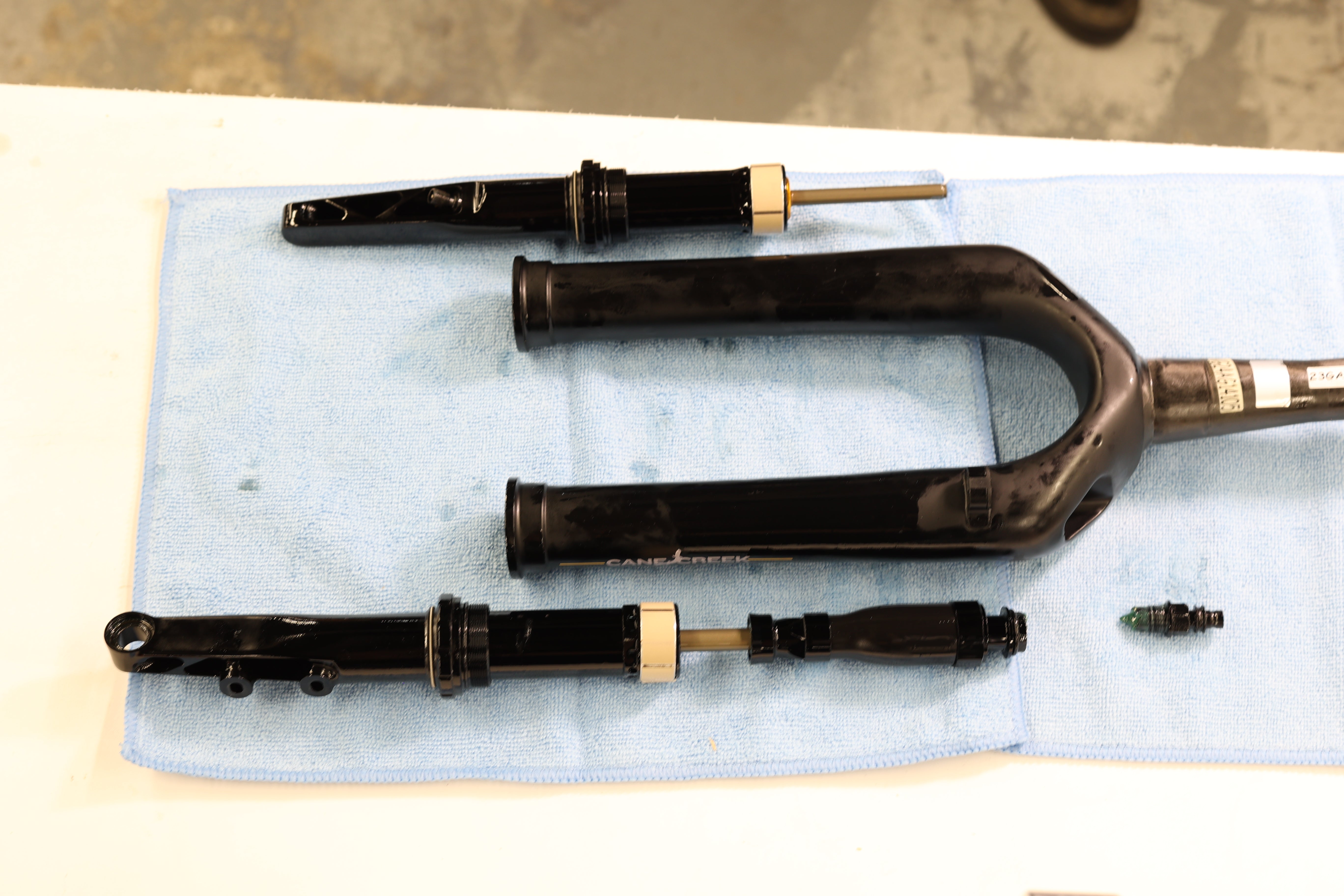

Brake Side Leg Removed
Leg Disassembly
Step 1 – Spring Side Leg Disassembly
On spring side leg, remove valve core from air valve. Using 3mm Allen, remove air valve. Remove and discard sag o-ring. Remove lower seal head.

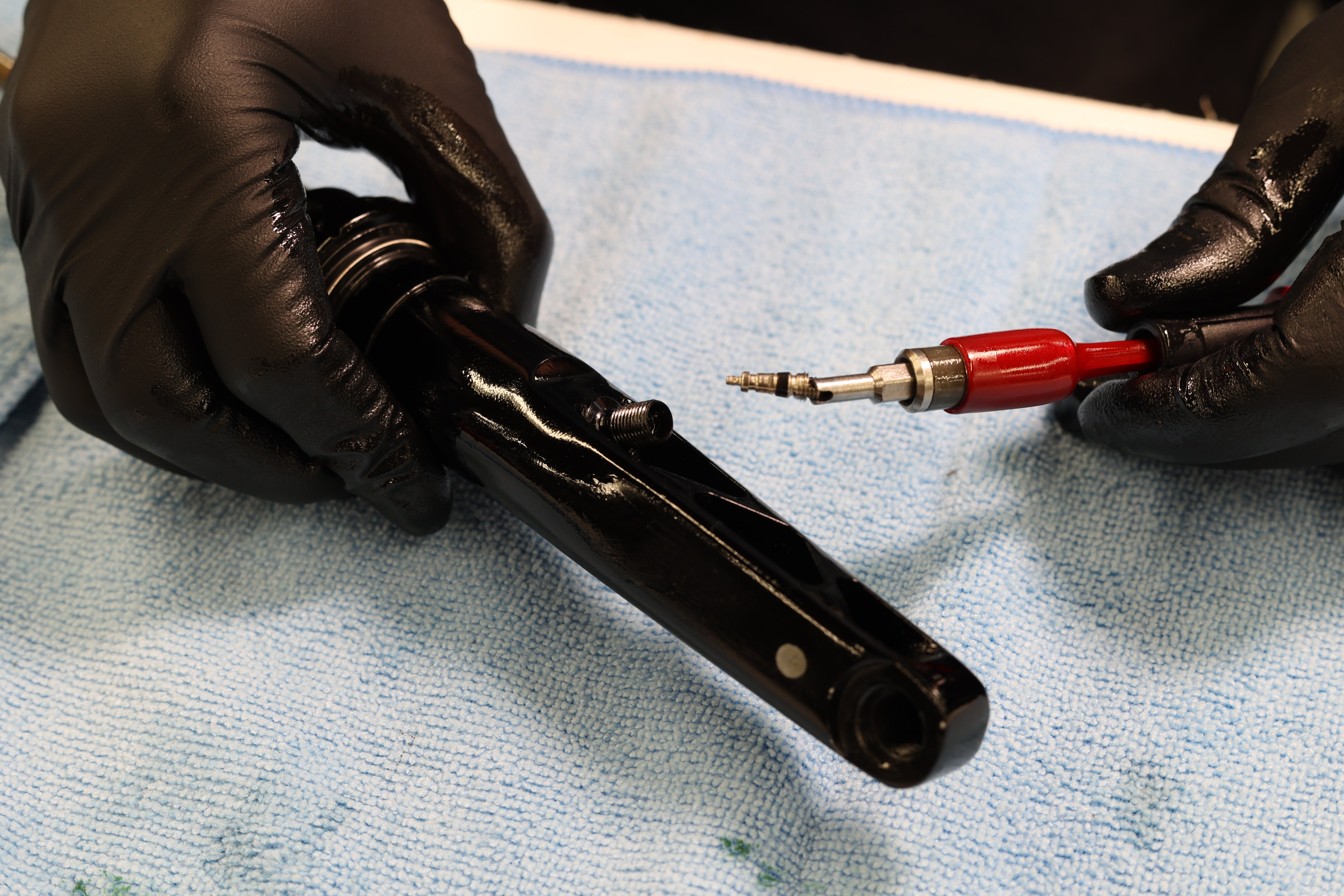

Valve Core Removal
Valve Core Removed

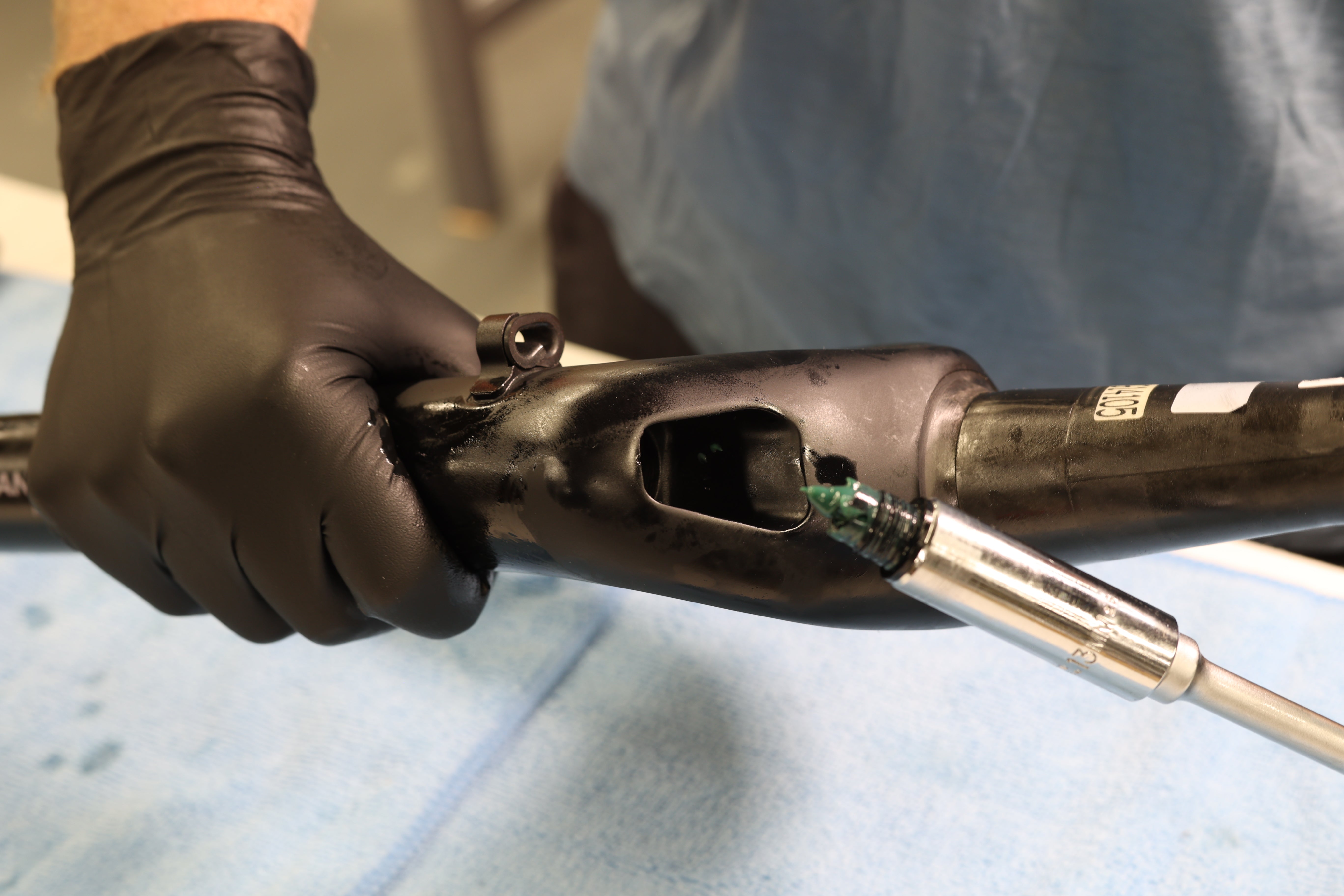

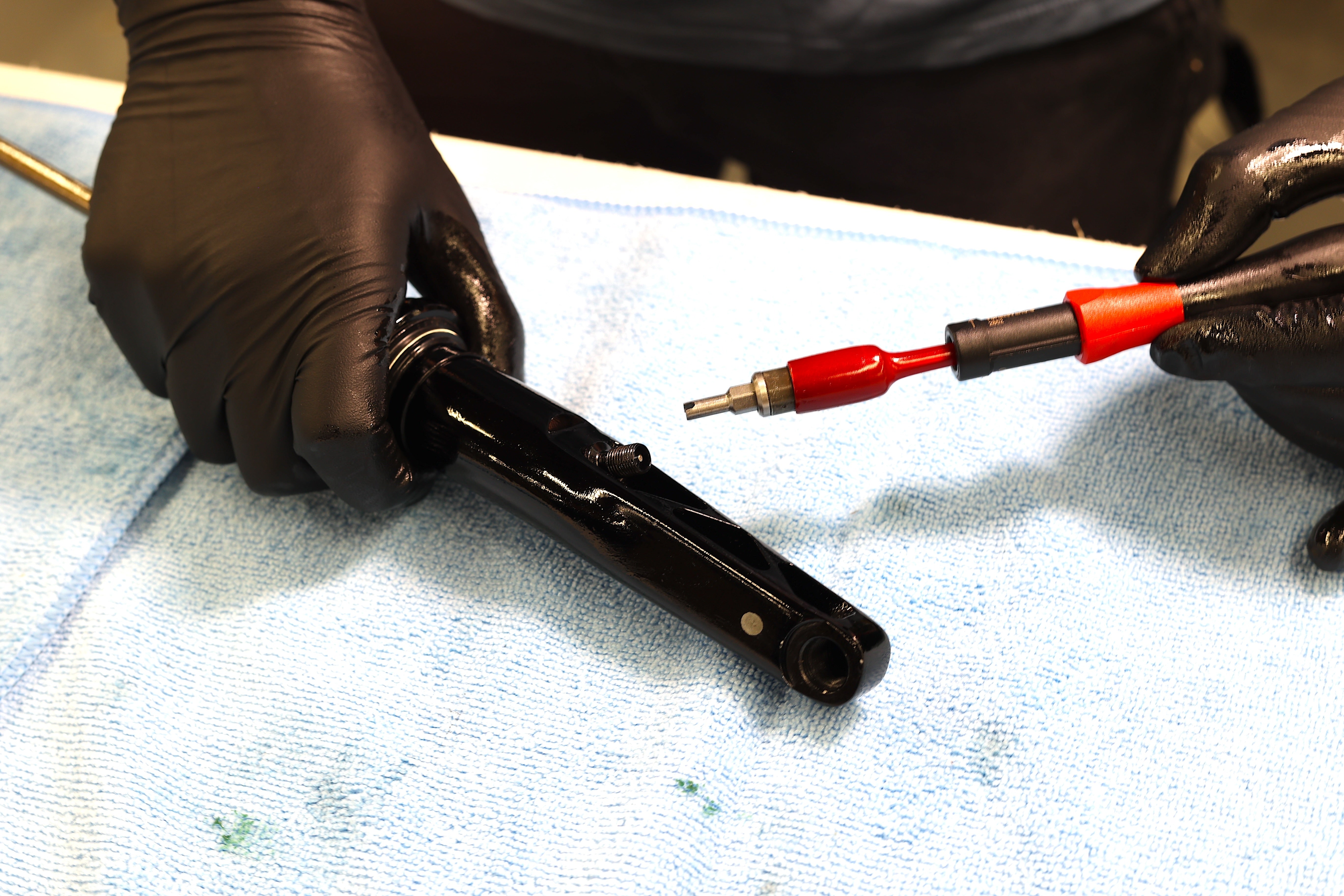

Air Valve Removal
Air Valve Removed

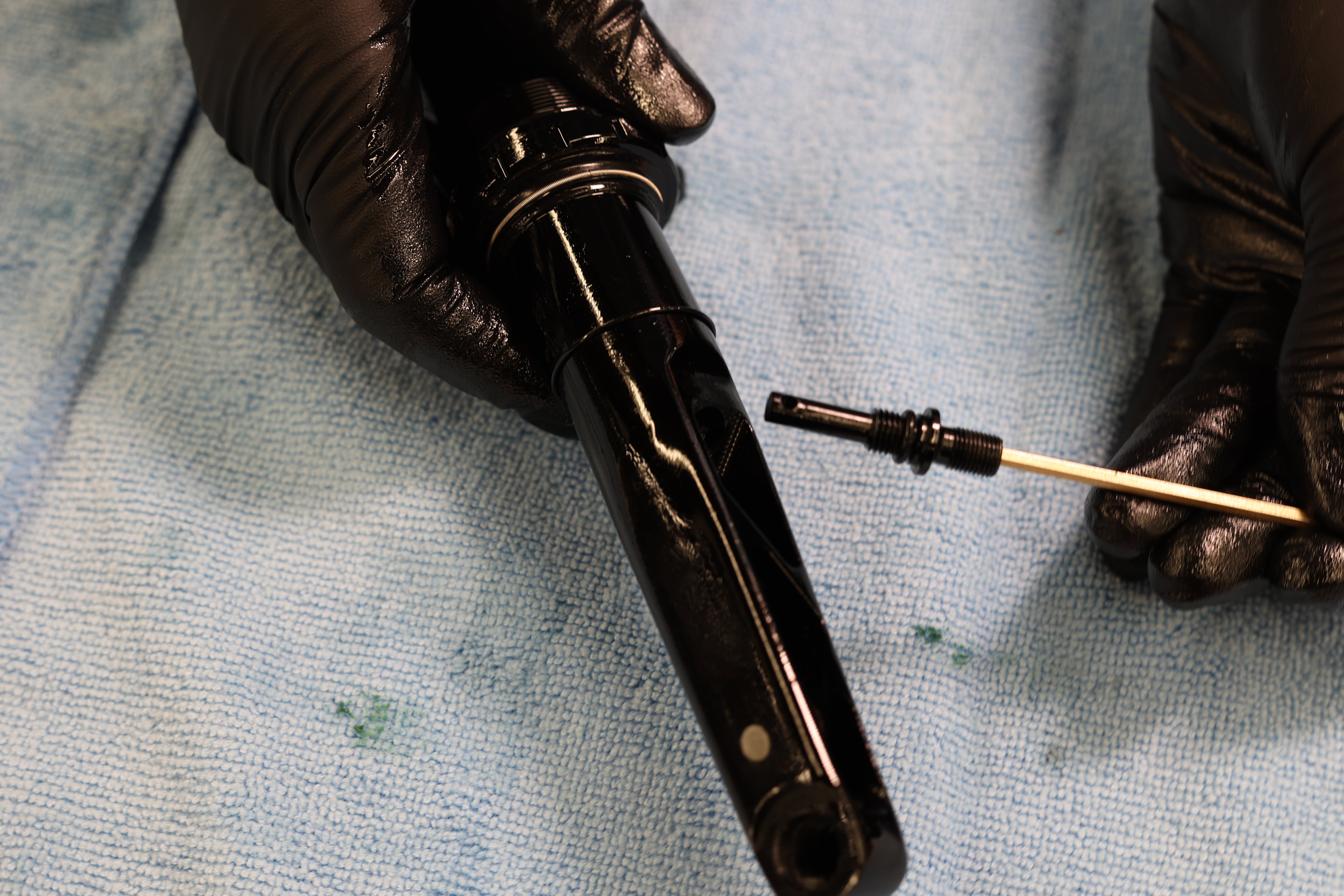

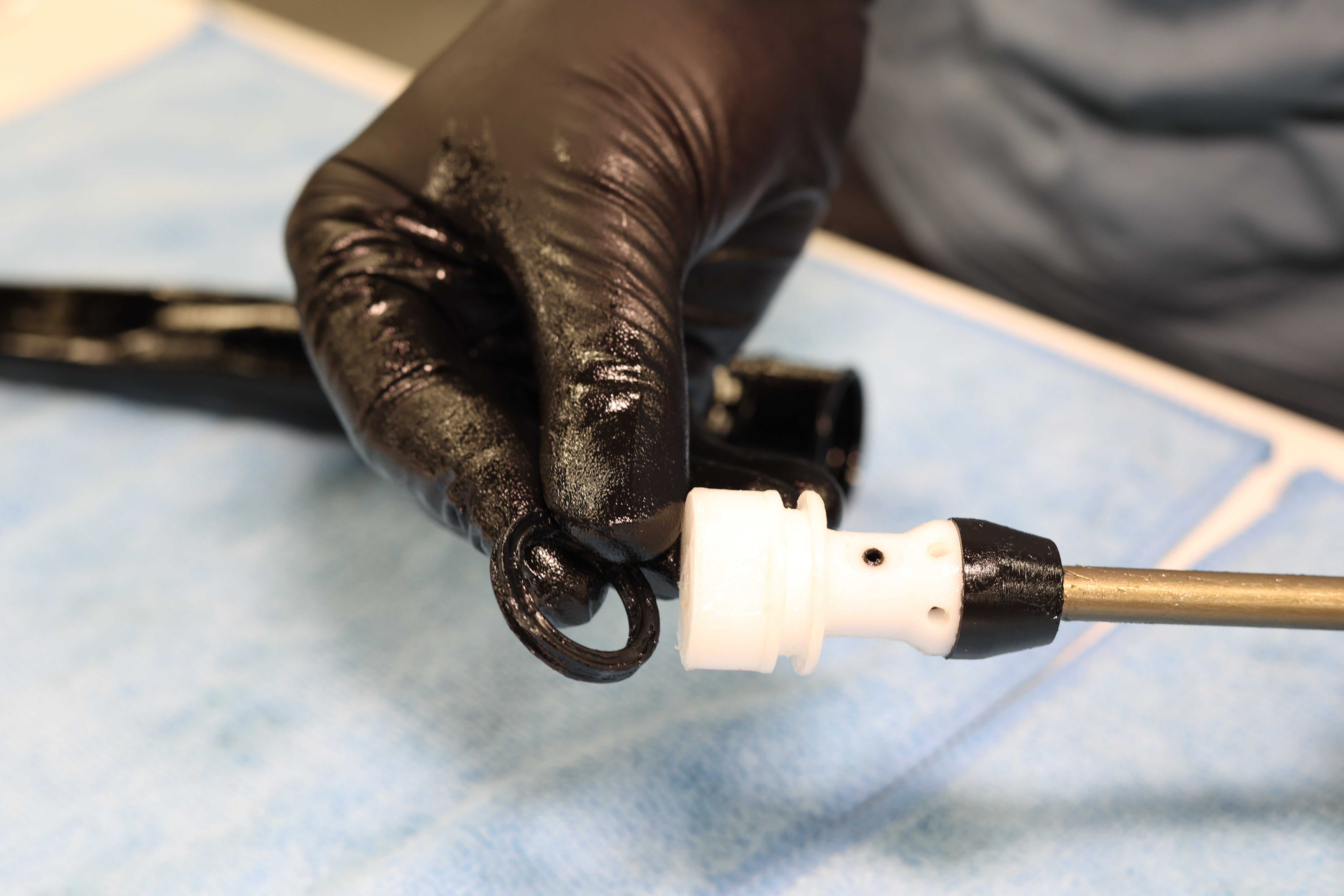

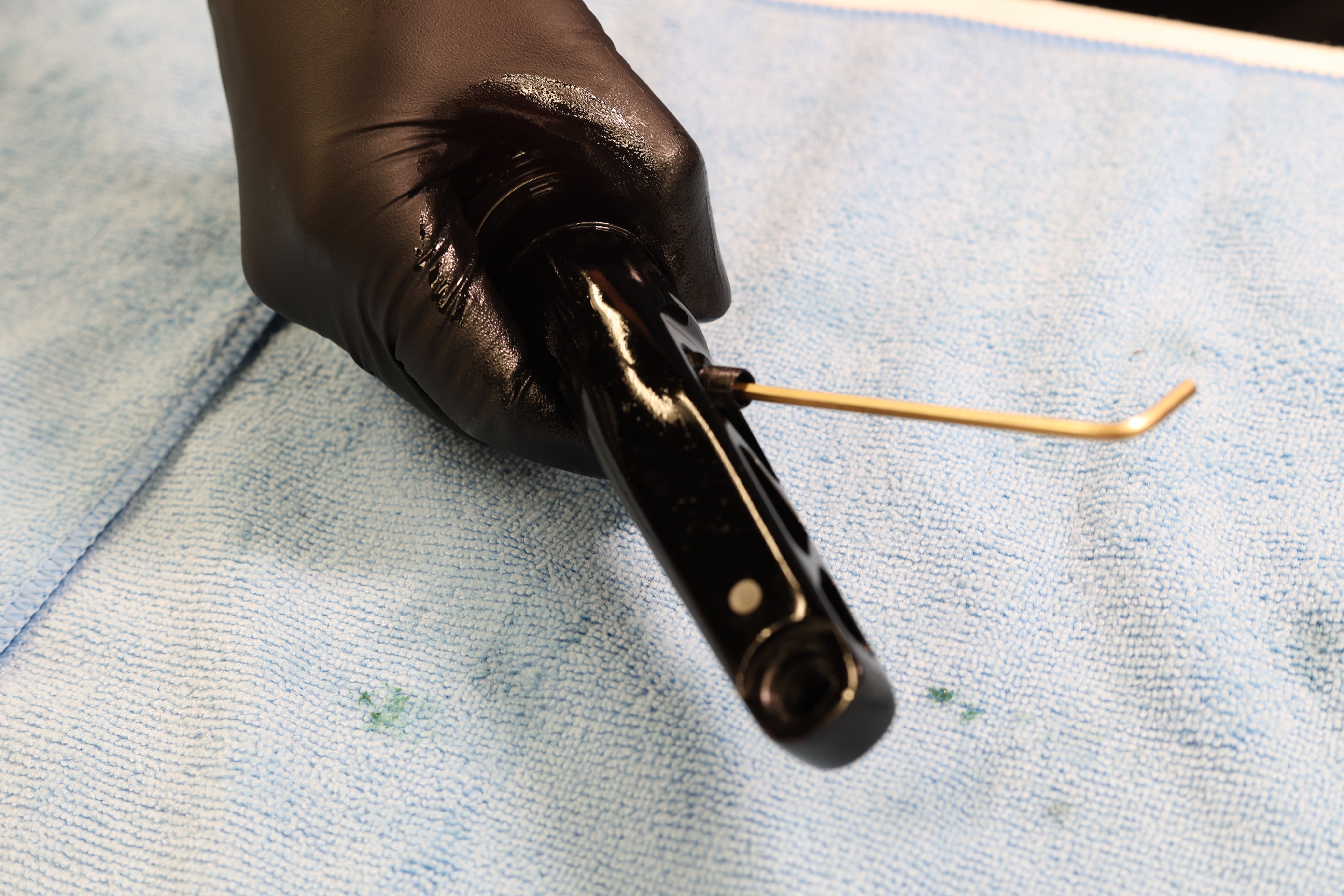

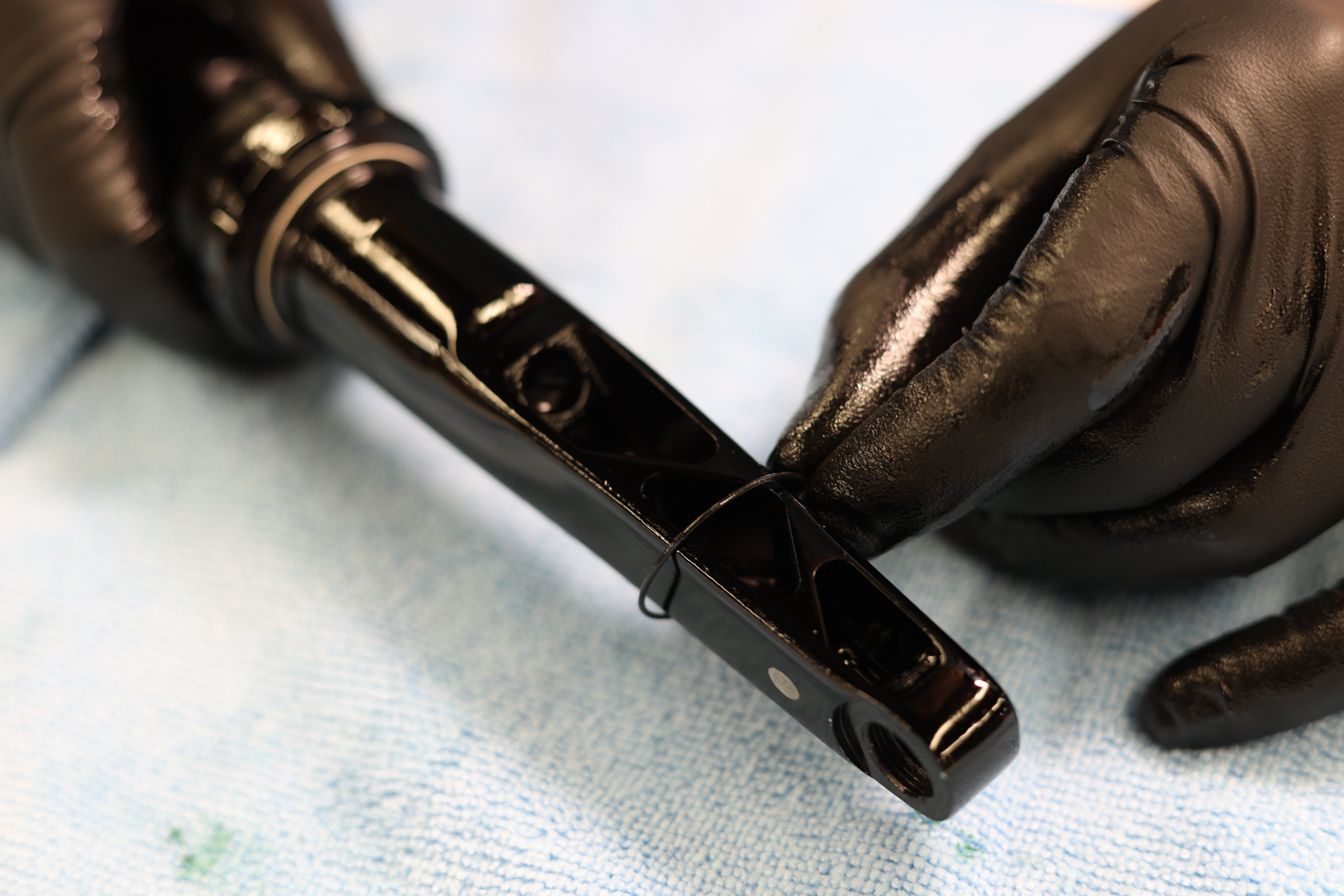

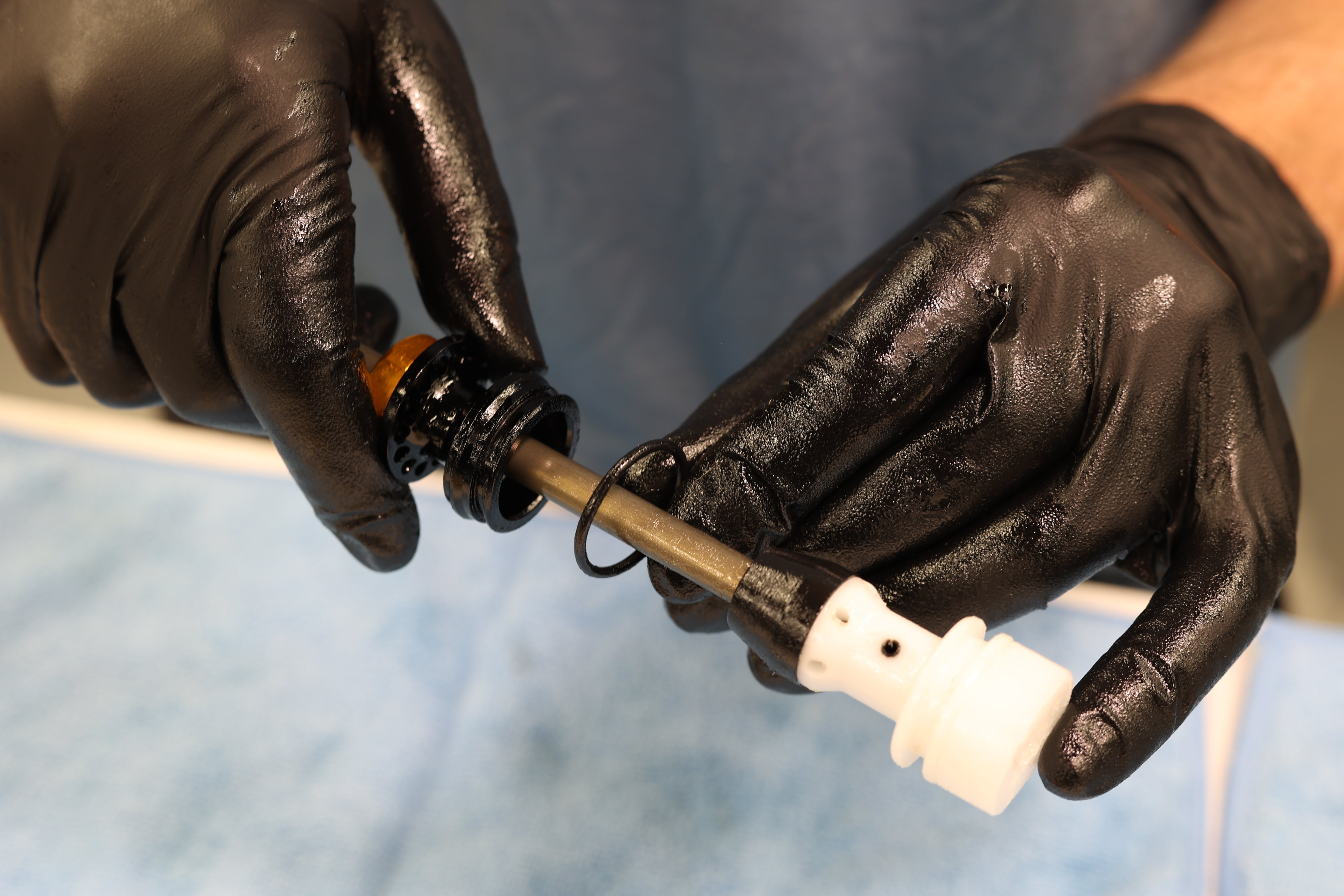

Sag O-Ring Removal

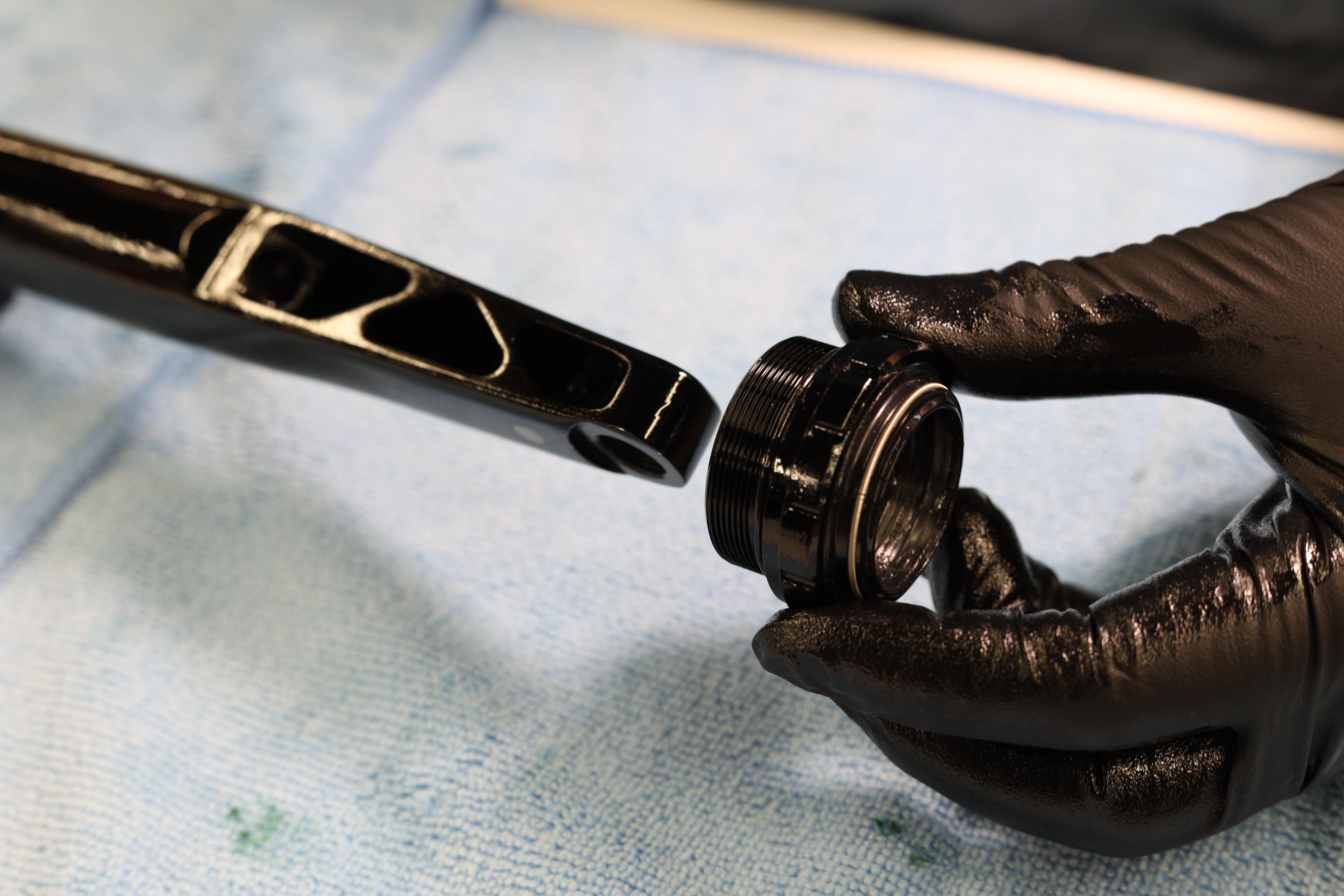

Seal Head Removal
Seal Head Removed
Step 2 – Brake Side Leg Disassembly
Clamp brake leg in a soft jawed vice on brake mounts. Using Knipex pliers, free bushing carrier. Unthread carrier completely. Remove seal head.

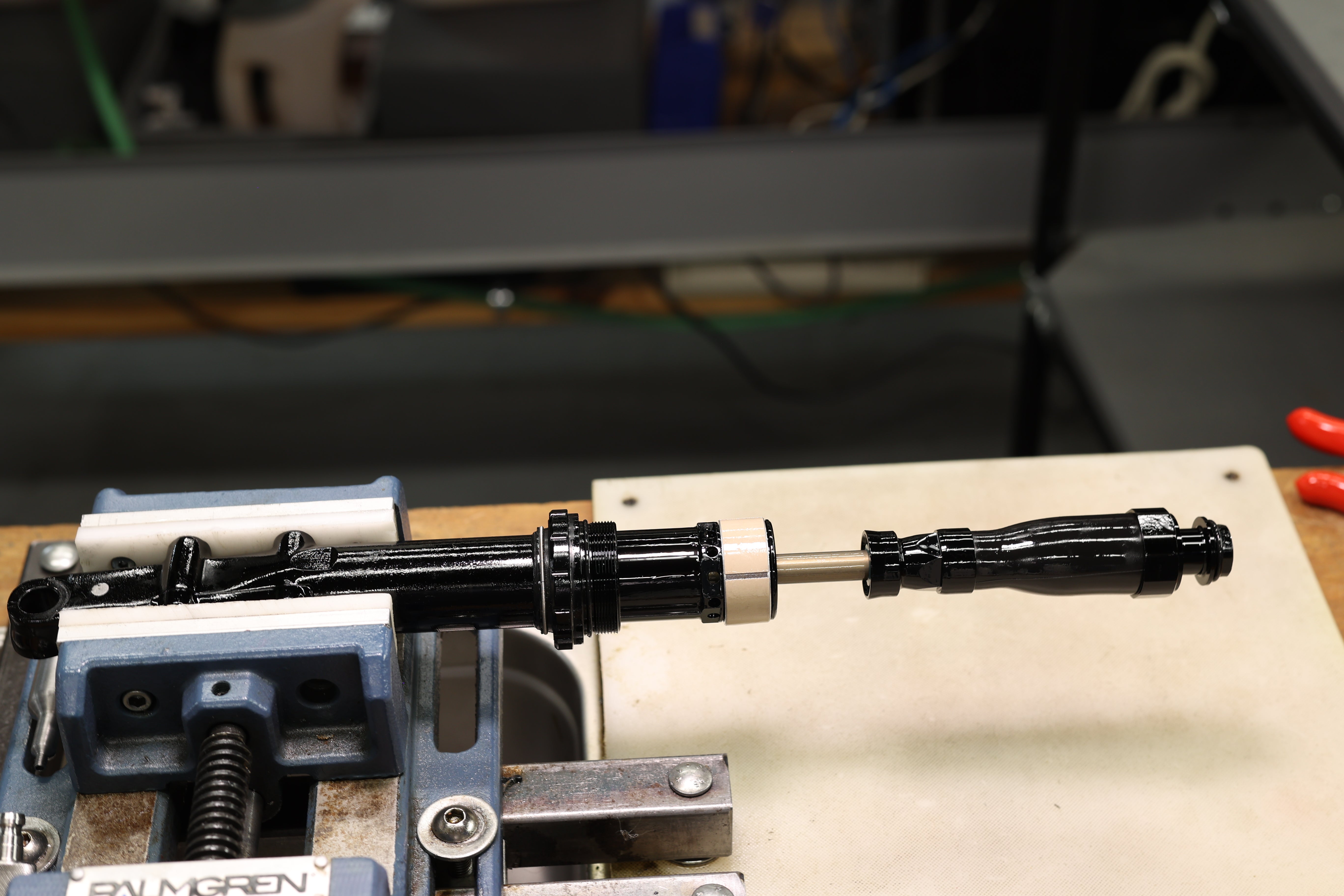

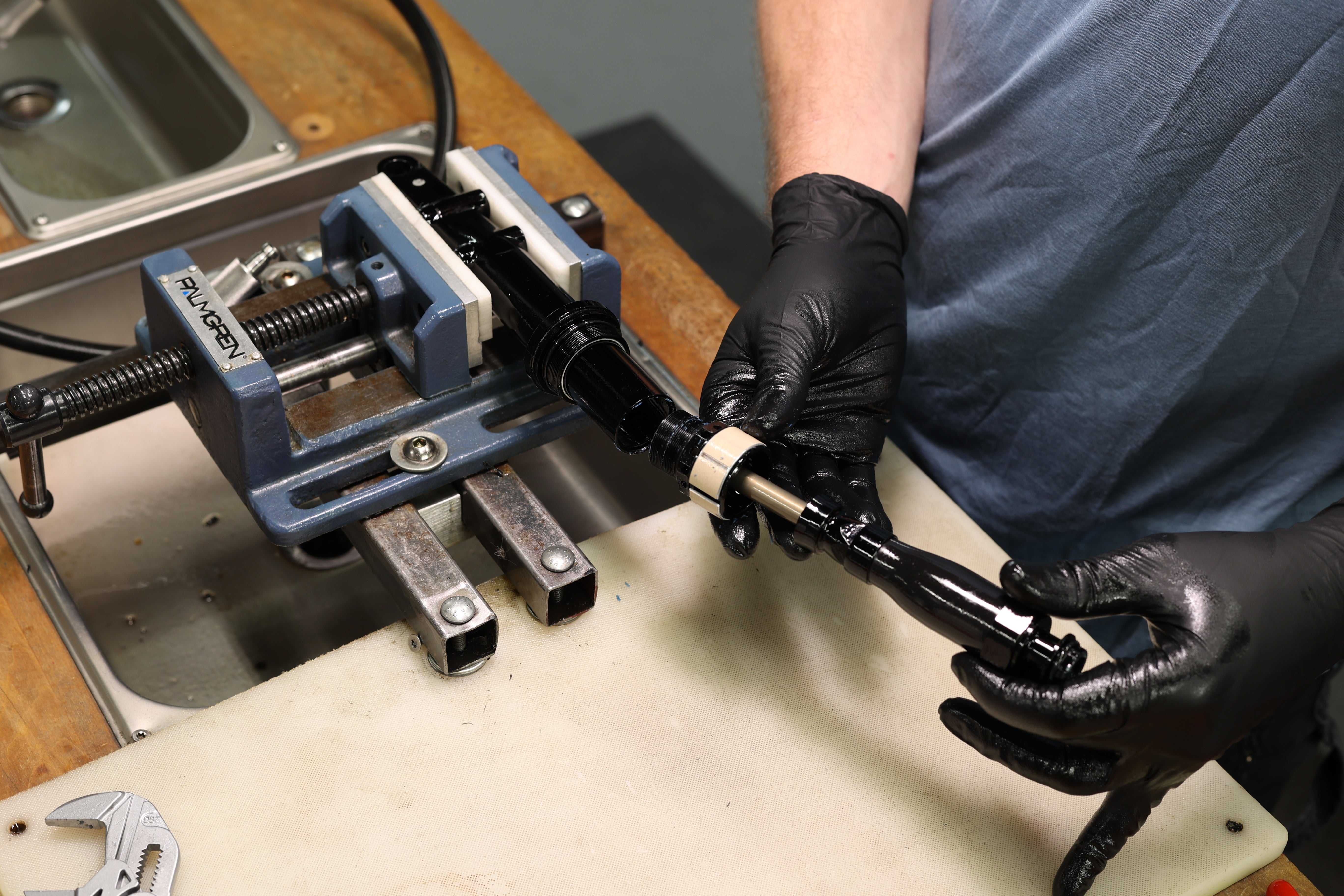

Leg Clamped for Damper Removal

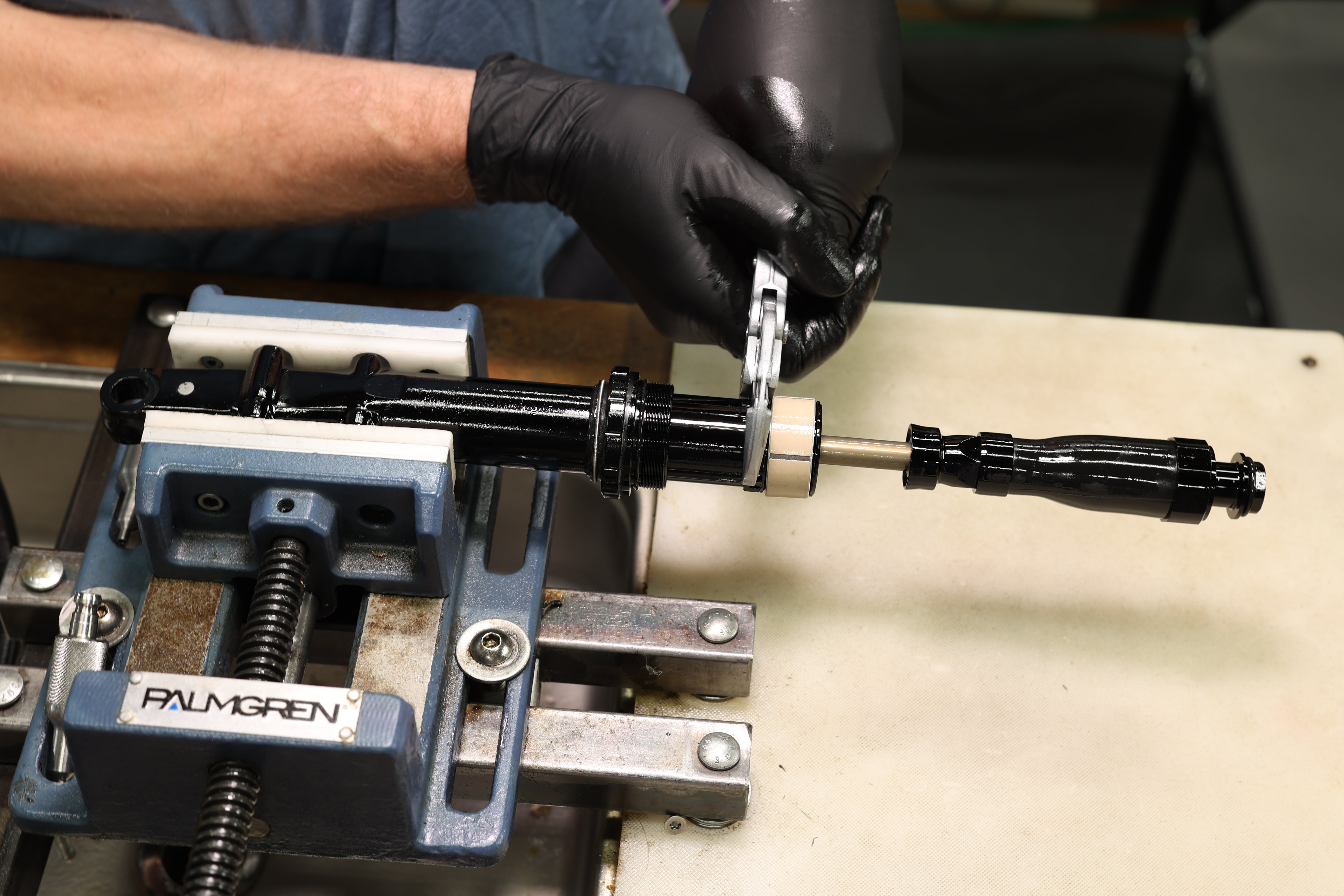

Freeing Bushing Carrier
Carrier Removed

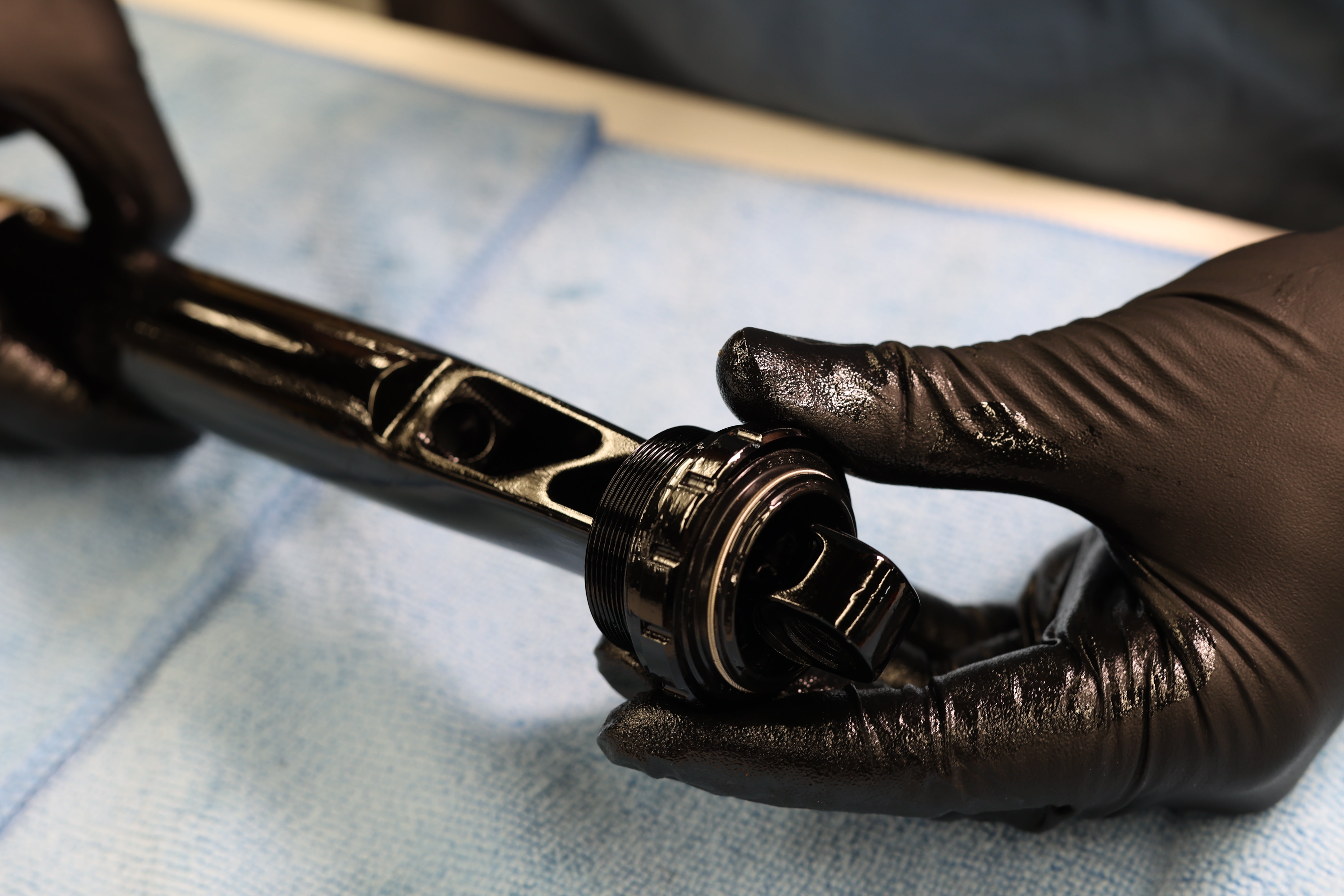

Seal Head Removed
Wiper Removal
Step 1 – Prepping Seal Heads
Pinch and remove seal head o-rings. Discard. To aid in wiper removal, thread lower seal heads back onto fork upper. Hand tight is fine.

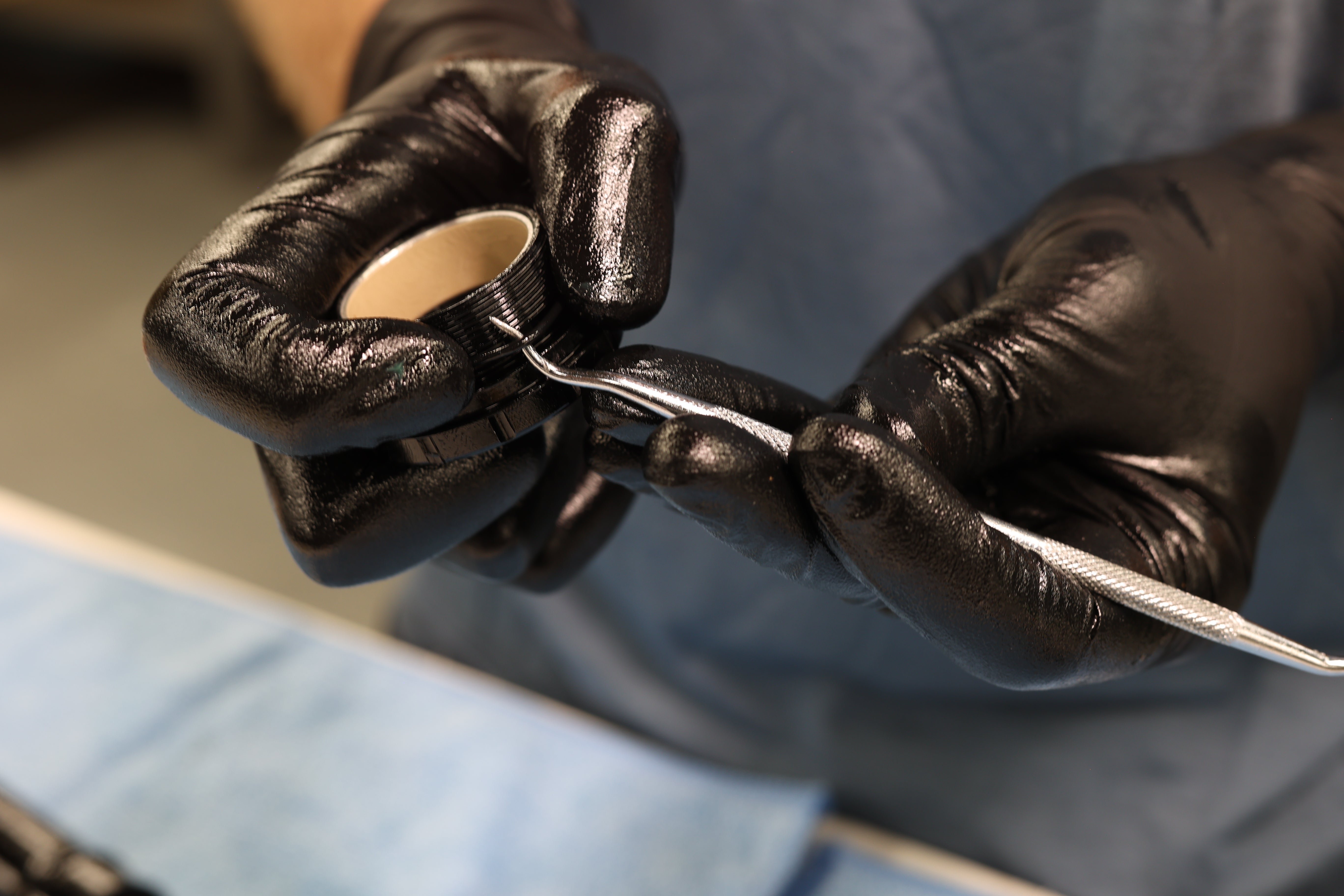

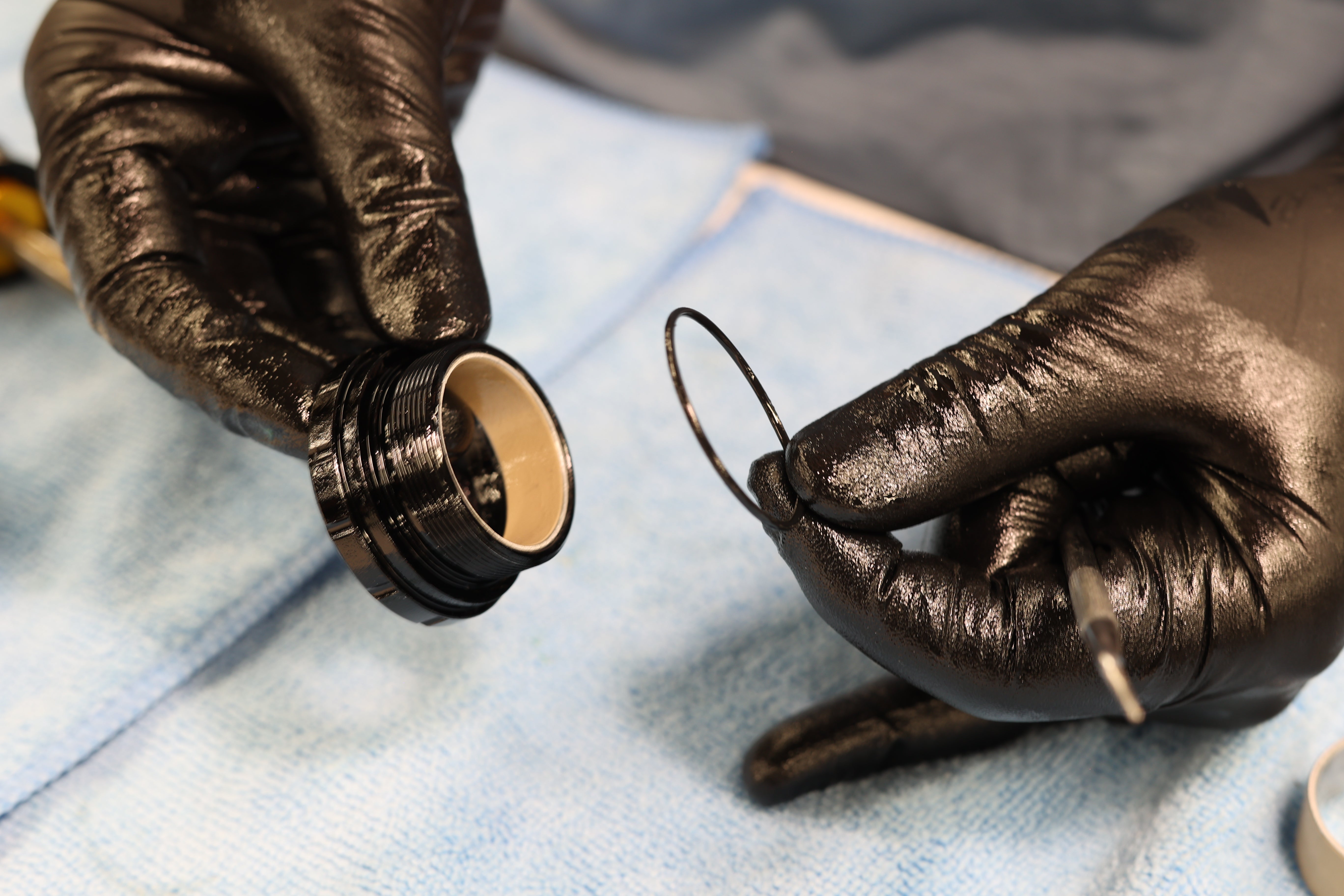

Seal Head O-Ring Removal
Seal Head O-Ring Removed

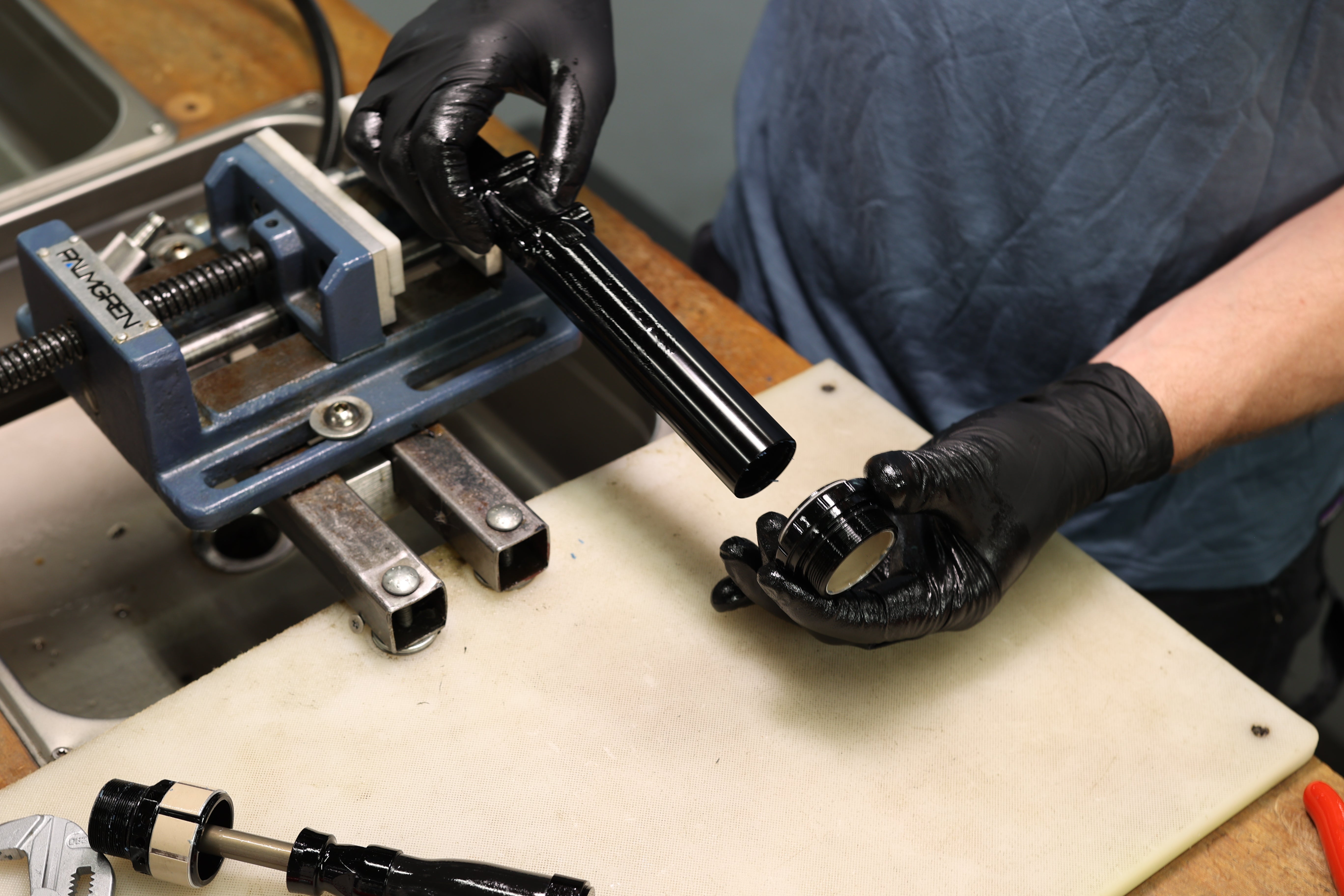

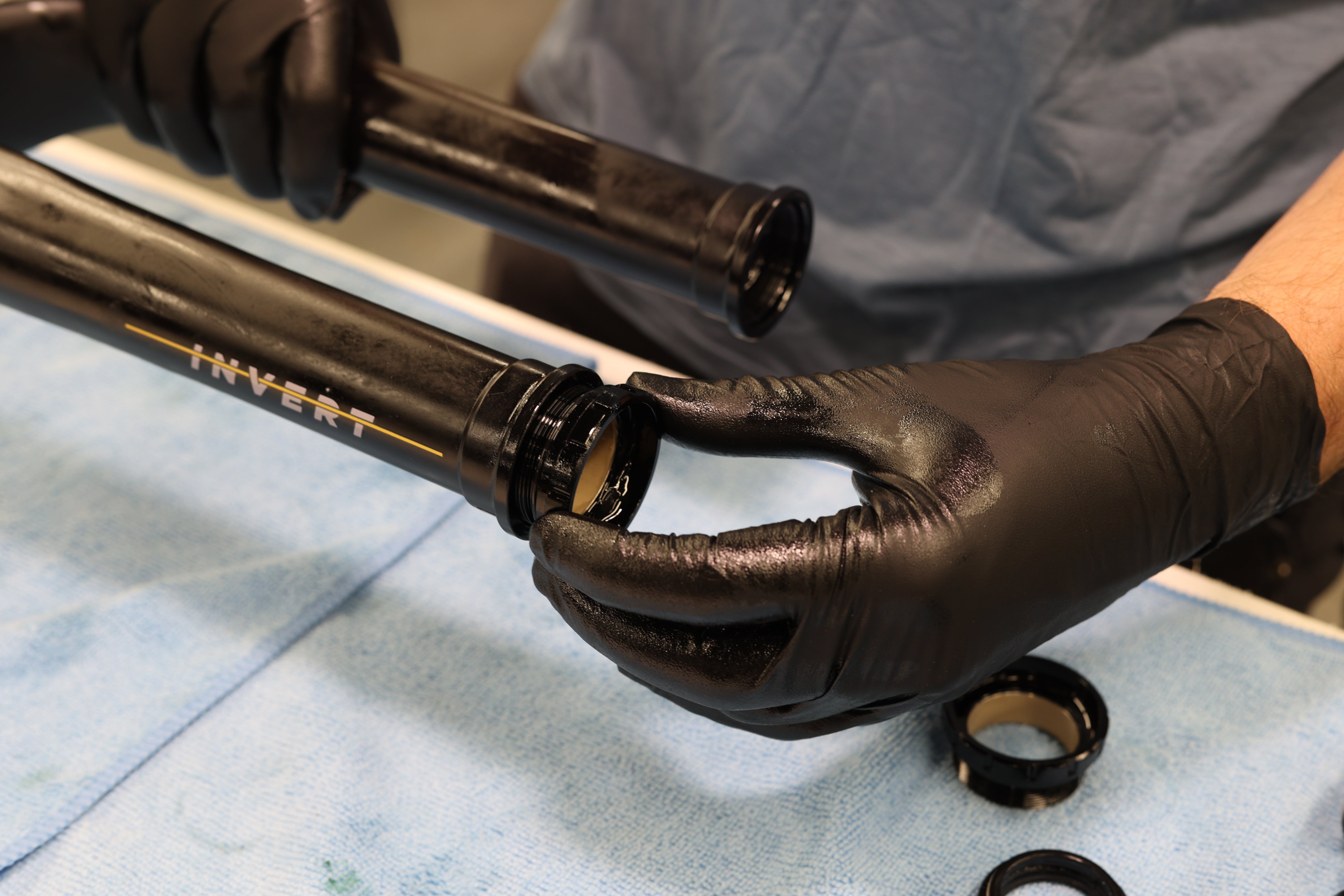

Seal Head Reinstall 1

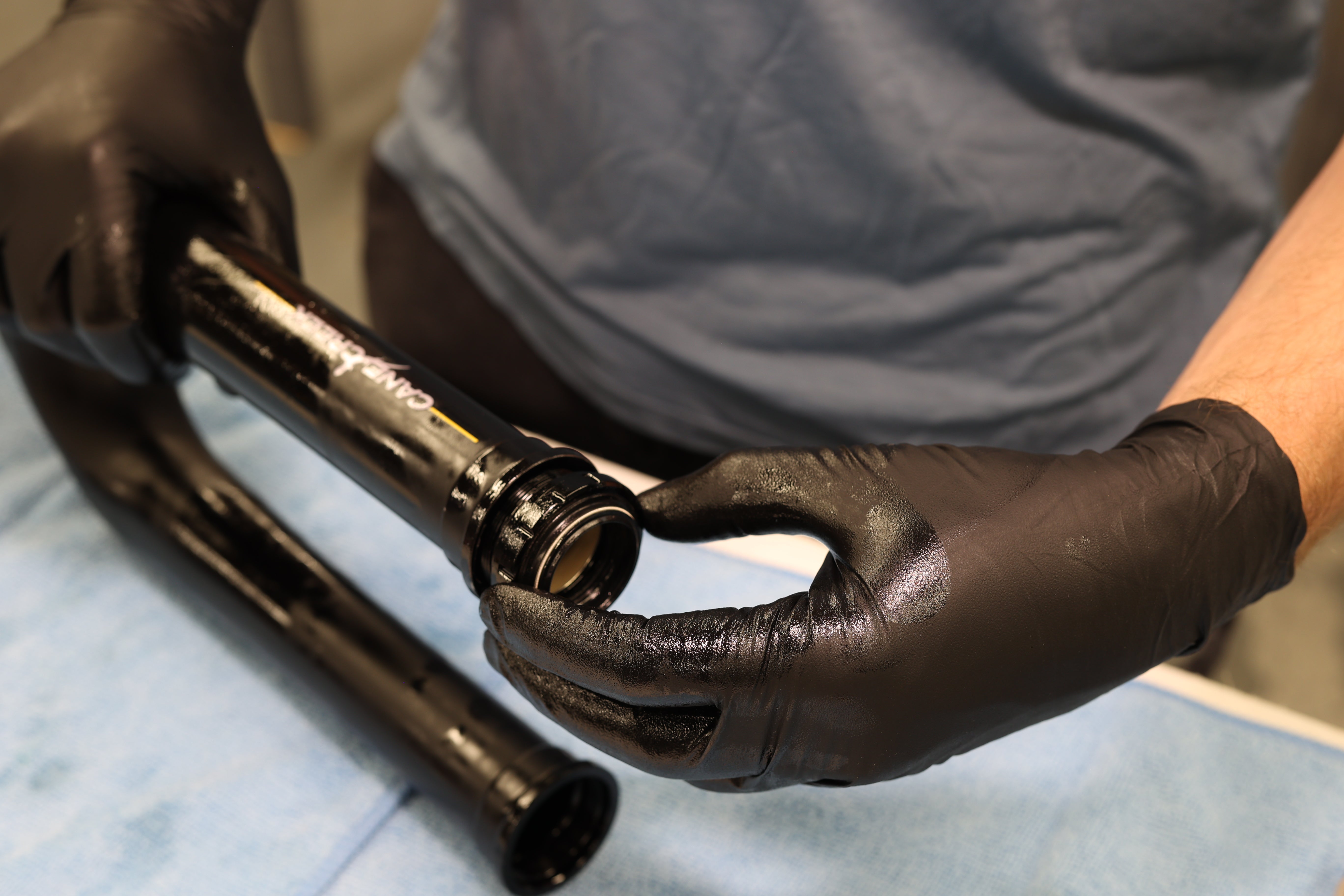

Seal Head Reinstall 2
Step 2 – Wiper Removal

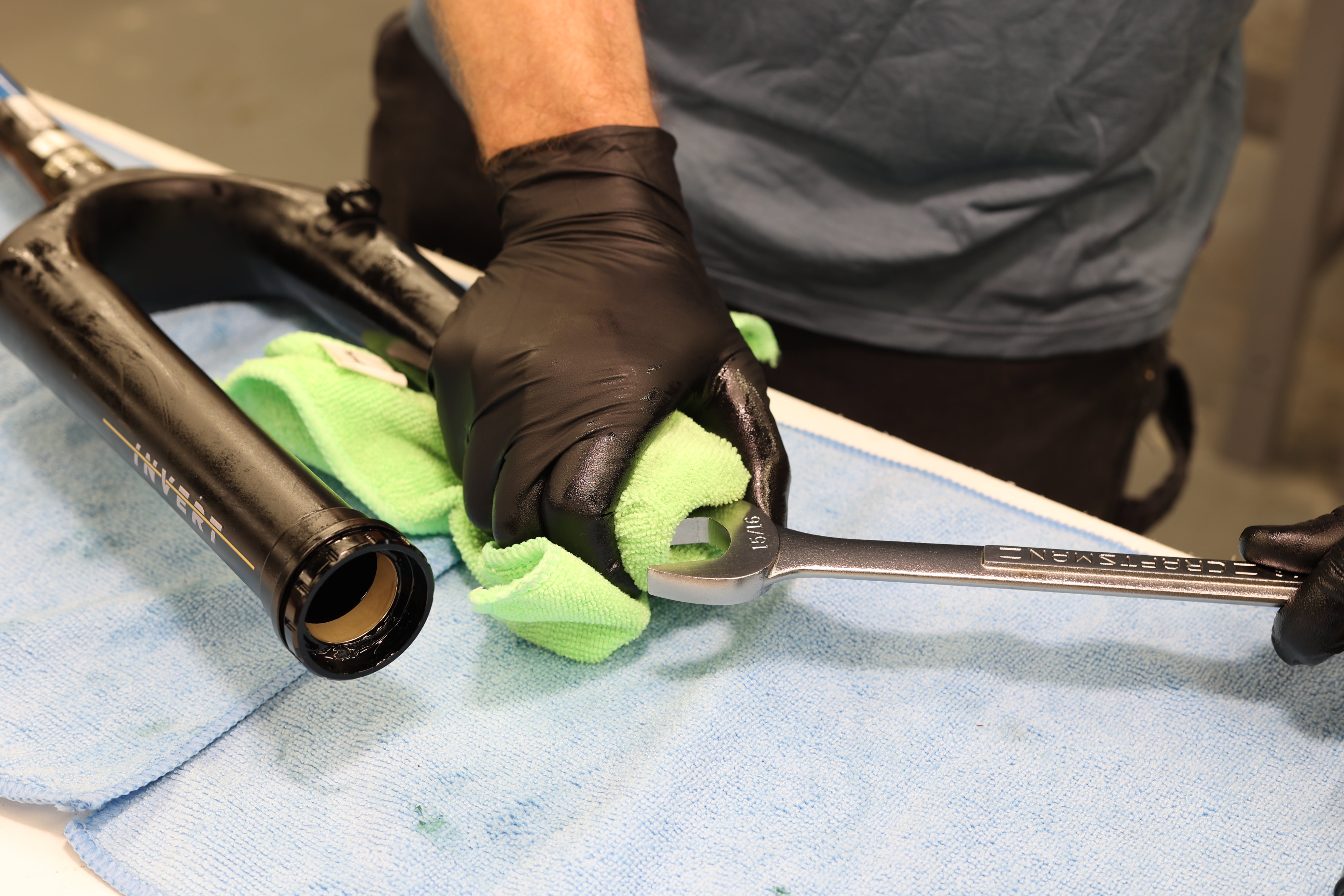

Using open end of box wrench and protecting seal head with rag, pry out and discard wipers. Remove seal heads from upper and thoroughly clean them.

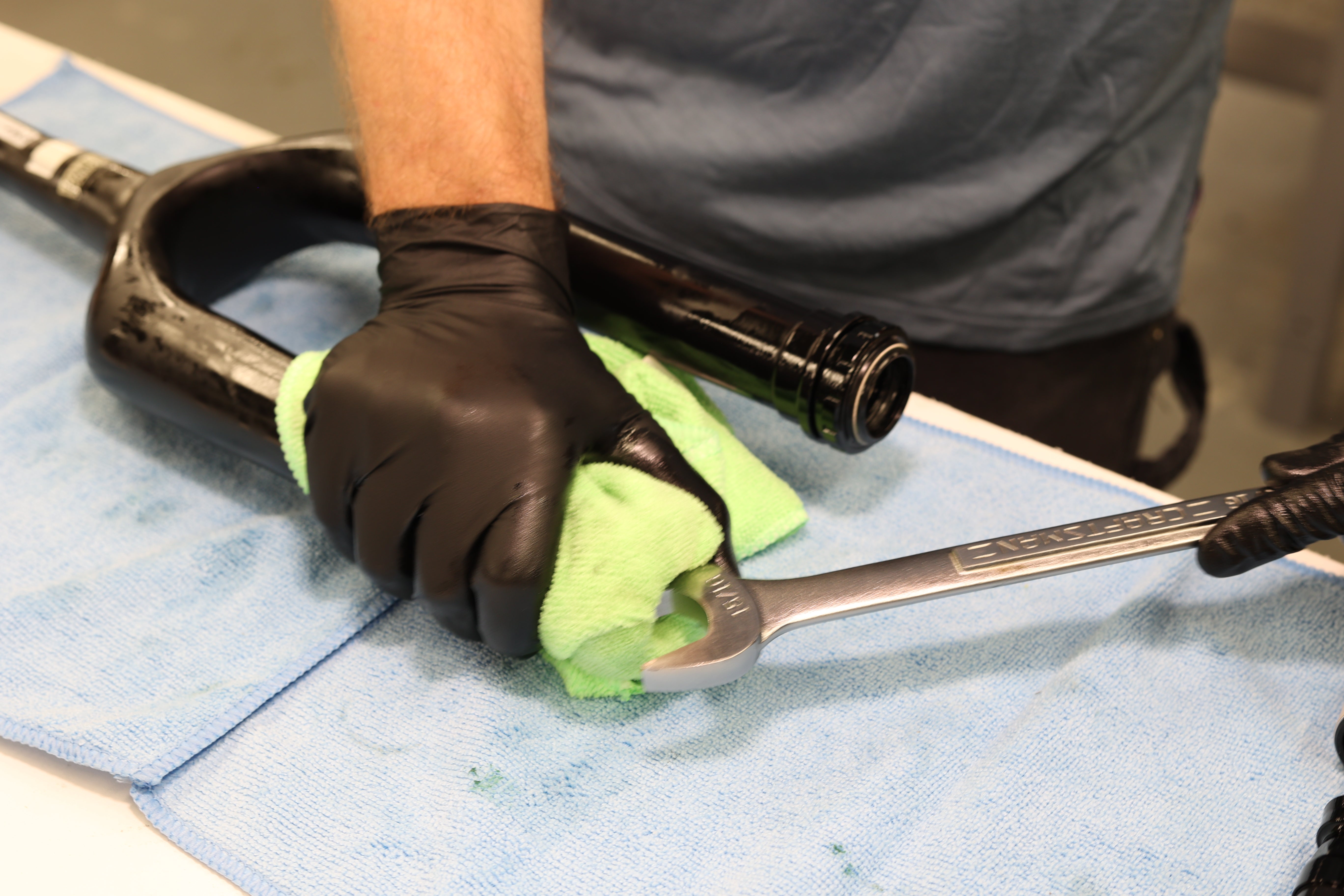

Wiper Removal 1
Wiper Removed 1
Wiper Removal 2
Wiper Removed 2

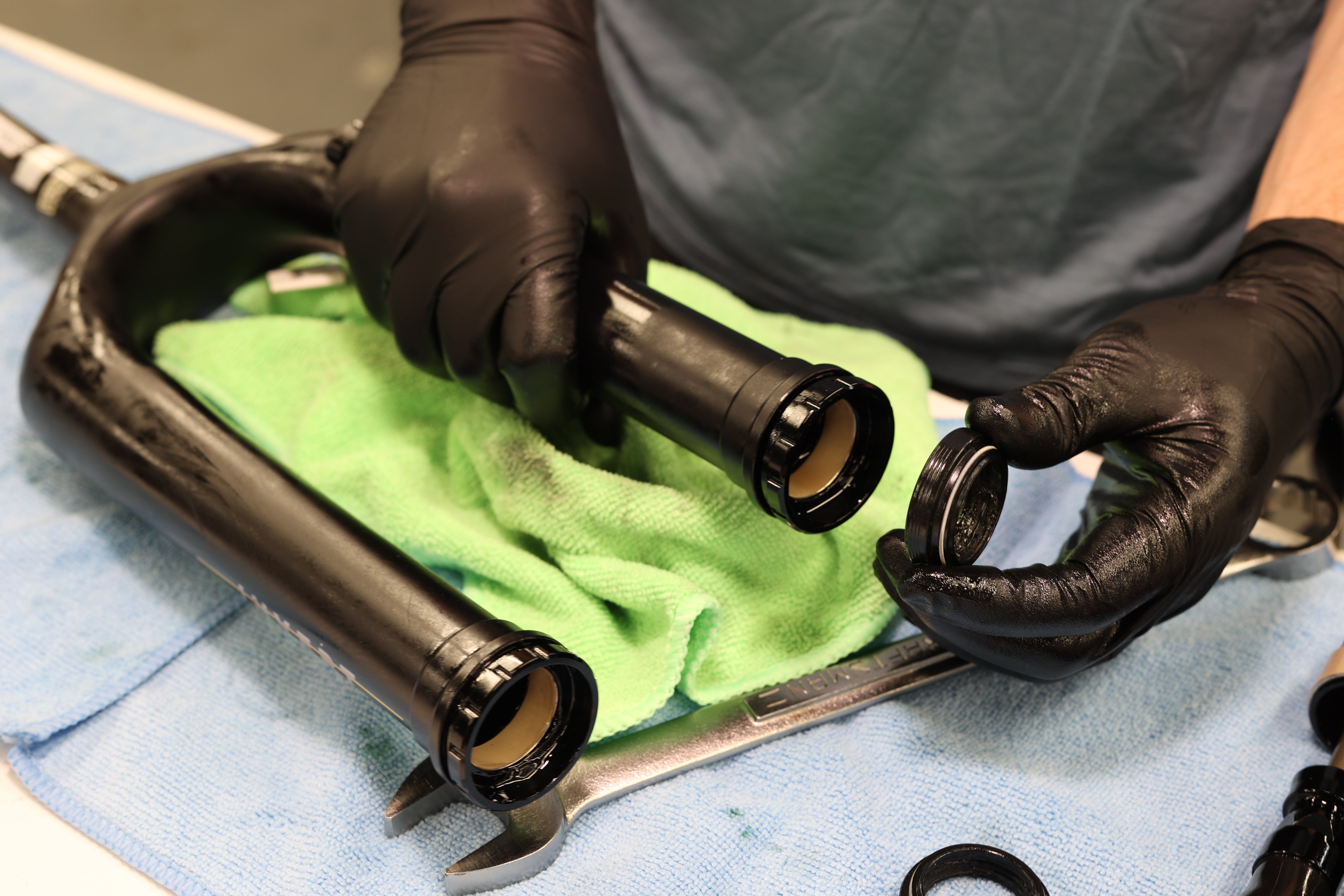

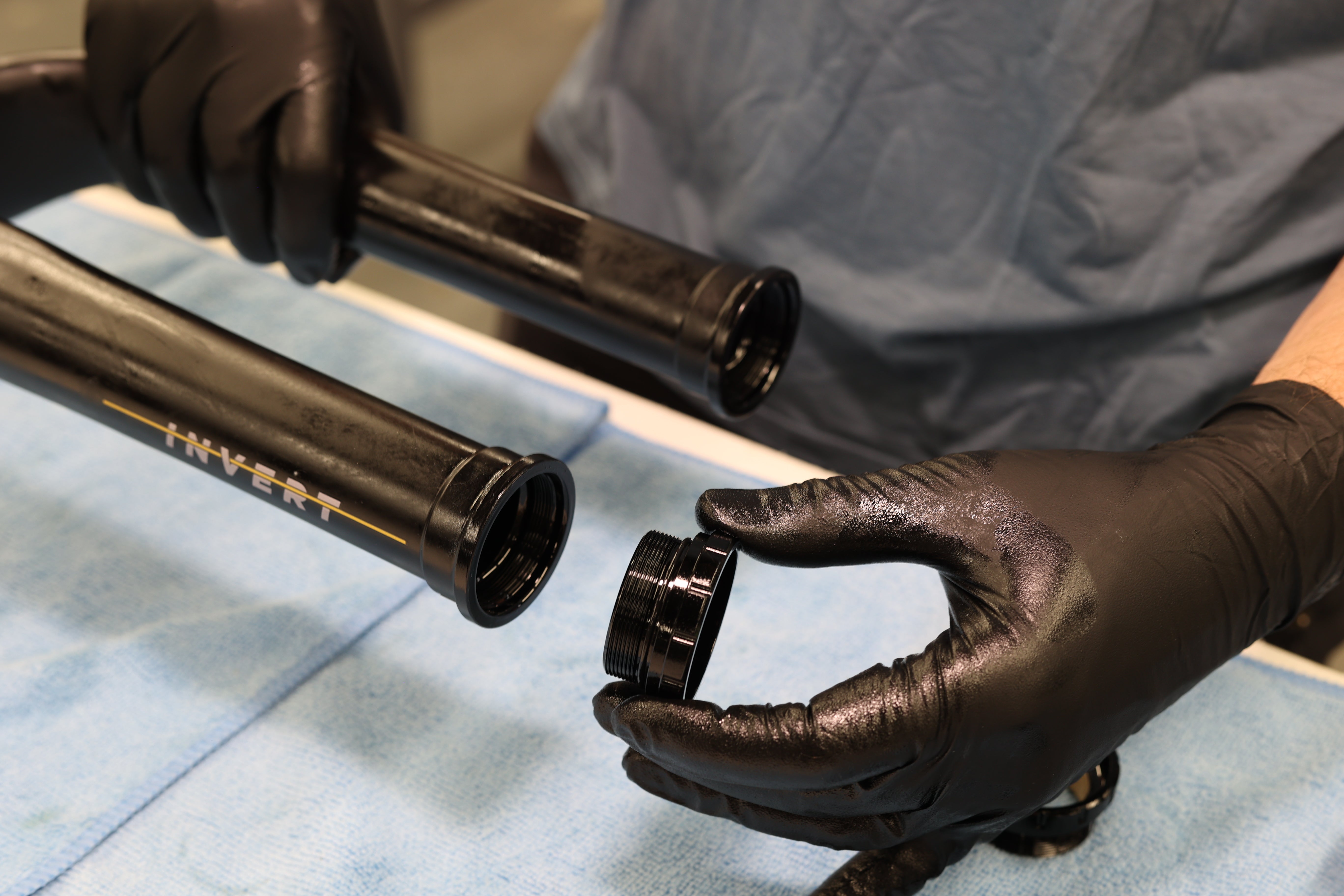

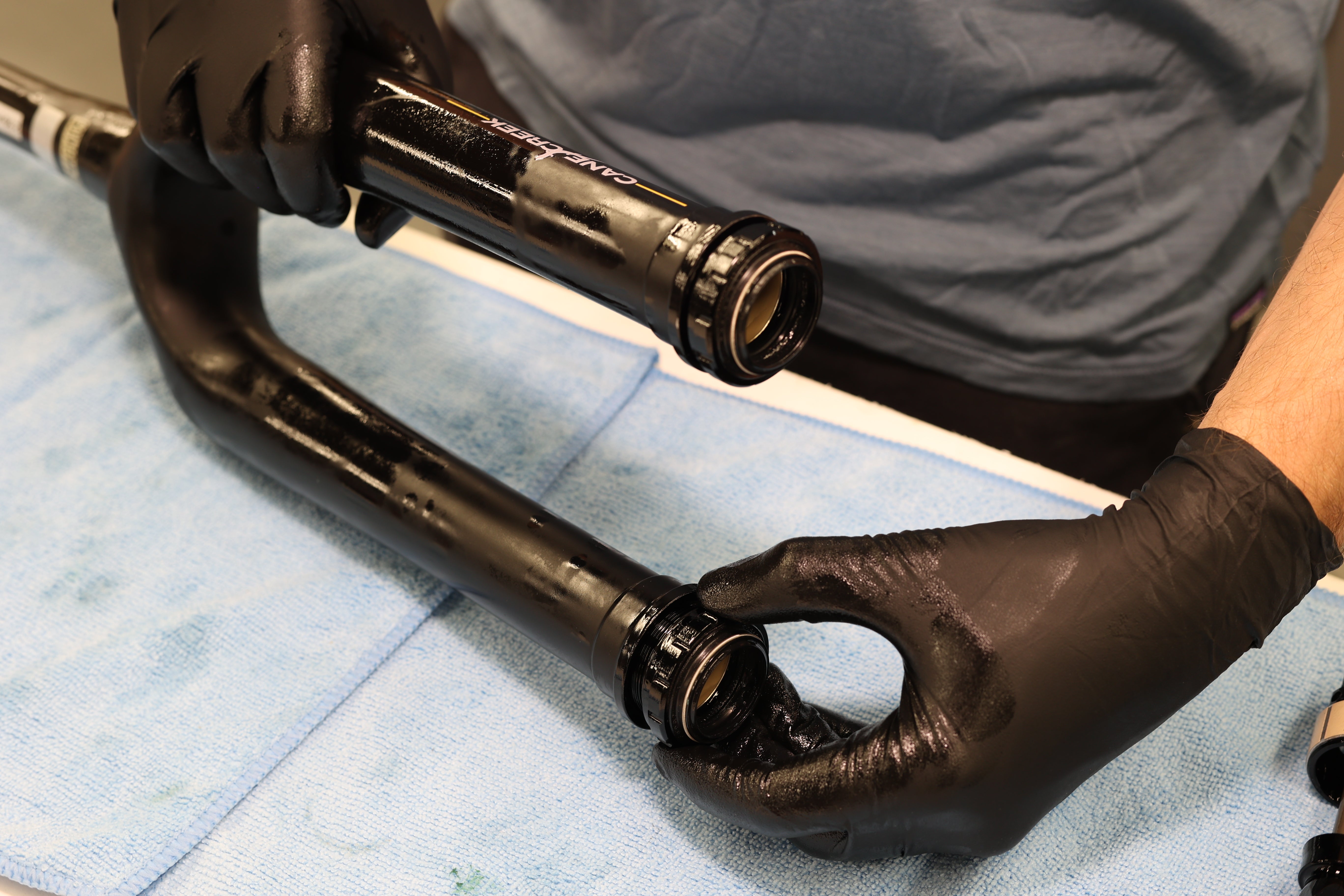

Empty Seal Head Removal
Empty Seal Head Removed
400 Hour Service
If doing a 400 hour service, proceed to those instructions from here. Return to this point for completion of 400 hour service.
Air Spring Service
Air Spring Service
Continue to Part 2
