DBcoil IL (Standard Mount) Complete 100 Hour Service Instructions (Part 2 of 4)
Mar 2022 orig., Jun 2024 rev.
Table of Contents
Recommendations and Warnings
Cane Creek recommends only trained suspension technicians perform service on all suspension, using all required tools and following all proper procedures. Anyone without access to the proper equipment or with any concerns on the procedures should defer to an authorized Cane Creek service center for service. Improper service can result in loss of performance or suspension failure. All Cane Creek shocks have pressurized nitrogen and oil, even coil shocks. Follow the service procedures exactly as written to avoid possible injury or harm to the suspension. Always wear eye protection while performing suspension service.
Please dispose of all waste products and materials through proper channels to avoid contamination of the environment.
Any damage or issues resulting from improper service will not be covered by warranty. If you have a shock still in its original warranty period and do not wish to void your warranty, please contact an authorized Cane Creek service center.
These service instructions cover the basic service procedures using standard service kits. If your suspension requires parts beyond standard replacement parts – shaft, damper tubes, end eyes – please consult your authorized Cane Creek service center or contact us at our Cane Creek Support Center.
Service Notes
The Air IL and Coil IL as well as the Standard and Trunnion variants of both share many service steps. Some images in these instructions may not be identical to the valve body or outer damper tube on the Air IL Standard, but that is only when the process is the same for the shock in the image and the shock on your bench.
Service Kits
BAD2370 – DBcoil IL Rebuild Kit (standard)
Required Cane Creek Tools
AAD1101-01 – Keith Cradle (for standard valve body)
BAD1032 – Gland Nut Wrench
BAD1174 – Oil Seal Head Pin Spanner Wrench
BAD1268 – Inline – Oil Fill Needle Adaptor
DBT016 – DB Gas Fill Needle
AAD0555 – 8mm & 9.5mm Shaft Clamp
BAD1273 – Inner Damper Tube Install Tool (required for Trunnion service, optional for standard service)
Additional Tools & Supplies
Allen wrenches – 1.5, 3 & 4mm
Torx wrenches – T10, T15 & T25
1/2″ crowfoot wrench
Torque wrenches
Pick
Suspension Grease
Motorex 4wt Racing Fork Oil
Vacuum Oil Fill Machine
Nitrogen Fill System
Torque, Loctite, Oil & Nitrogen Specs
Torque & Loctite Chart
| Part | Torque Spec | Loctite Spec |
|---|---|---|
| Shaft Bolt | 5 Nm | 243 (Blue) |
| TSN | 0.6 Nm | 668 (Green) |
| Spool Valve | 0.16 Nm | 243 (Blue) |
| Inner Damper Tube | 17 Nm | 263 (Red) |
| Oil Seal Head | 15 Nm | None |
| Gland Nut | 52 Nm | 243 (Blue) |
| Climb Switch Screw | 0.16 Nm | 243 (Blue) |
| End Eye | 8 Nm | 263 (Red) |
Oil Chart
| Oil Location | Oil Type | Oil Amount |
|---|---|---|
| Damper Fill | Motorex 4wt Racing Fork Oil | Fill to 3 Bars |
Nitrogen Chart
| Nitrogen Location | Nitrogen Pressure |
|---|---|
| Valve Body | 11 - 12 Bars |
TSN Disassembly (if desired)
TSN service is not required as part of a standard IL service. However, if the shock exhibits any audible sounds, usually a “chirp”, during use, this could be related to a bent TSN spring. No additional parts are required to do the TSN service. Images from Previous Gen DB IL valve body, but the process is identical to the Next Gen IL.
Step 1 – TSN Removal
Remove TSN stem from valve body using T15 from both High Speed valves. Clean valve body TSN threads with tap if green Loctite has built up on threads

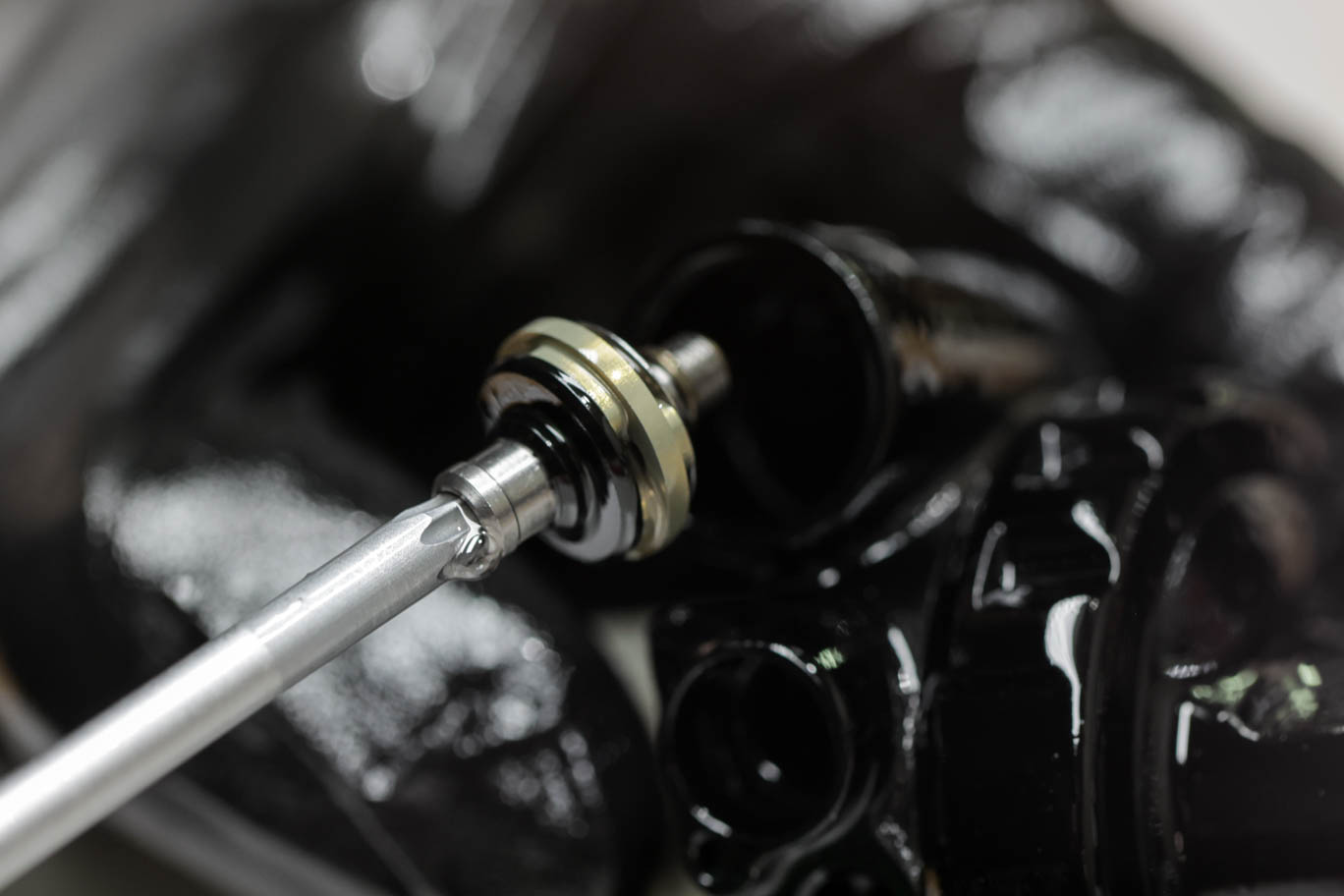

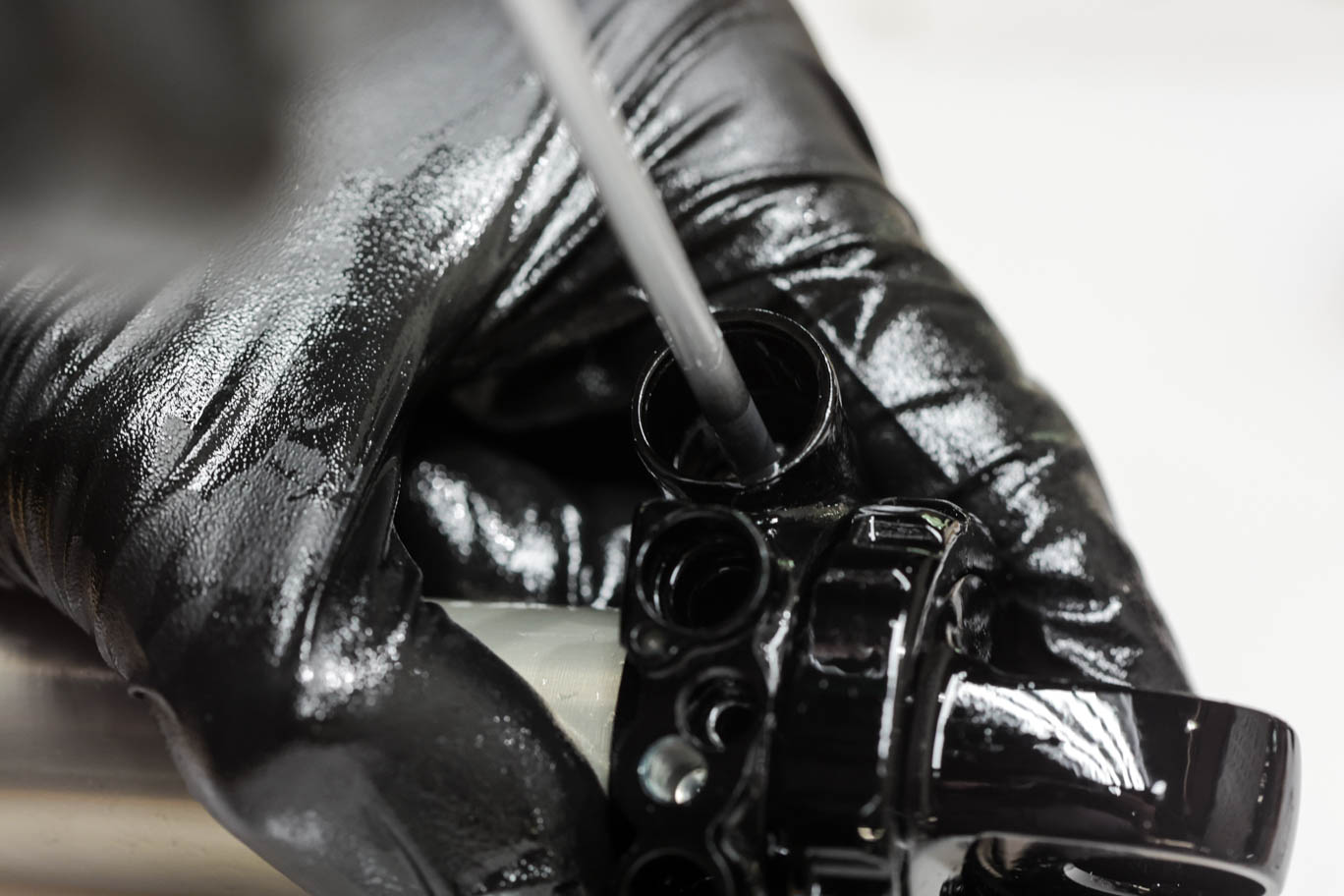

TSN Removal from High Speed Valves
TSN Removed from High Speed Valves
Step 2 – TSN Disassembly
Disassemble TSN assembly by unthreading spring from the TSN stem. Remove TSN shim, piston and poppet.

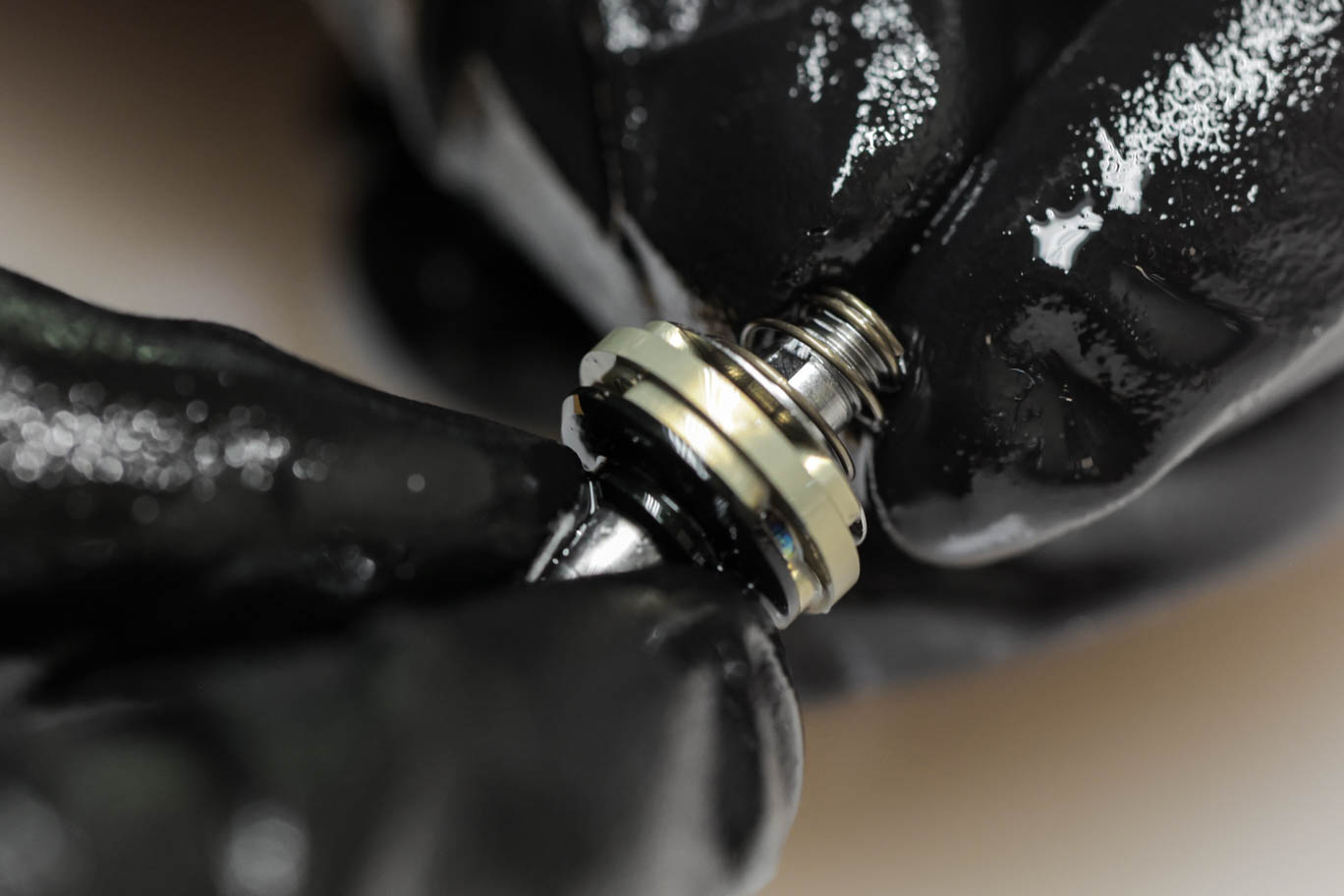

TSN Disassembly 1
TSN Disassembly 2
TSN Disassembly 3

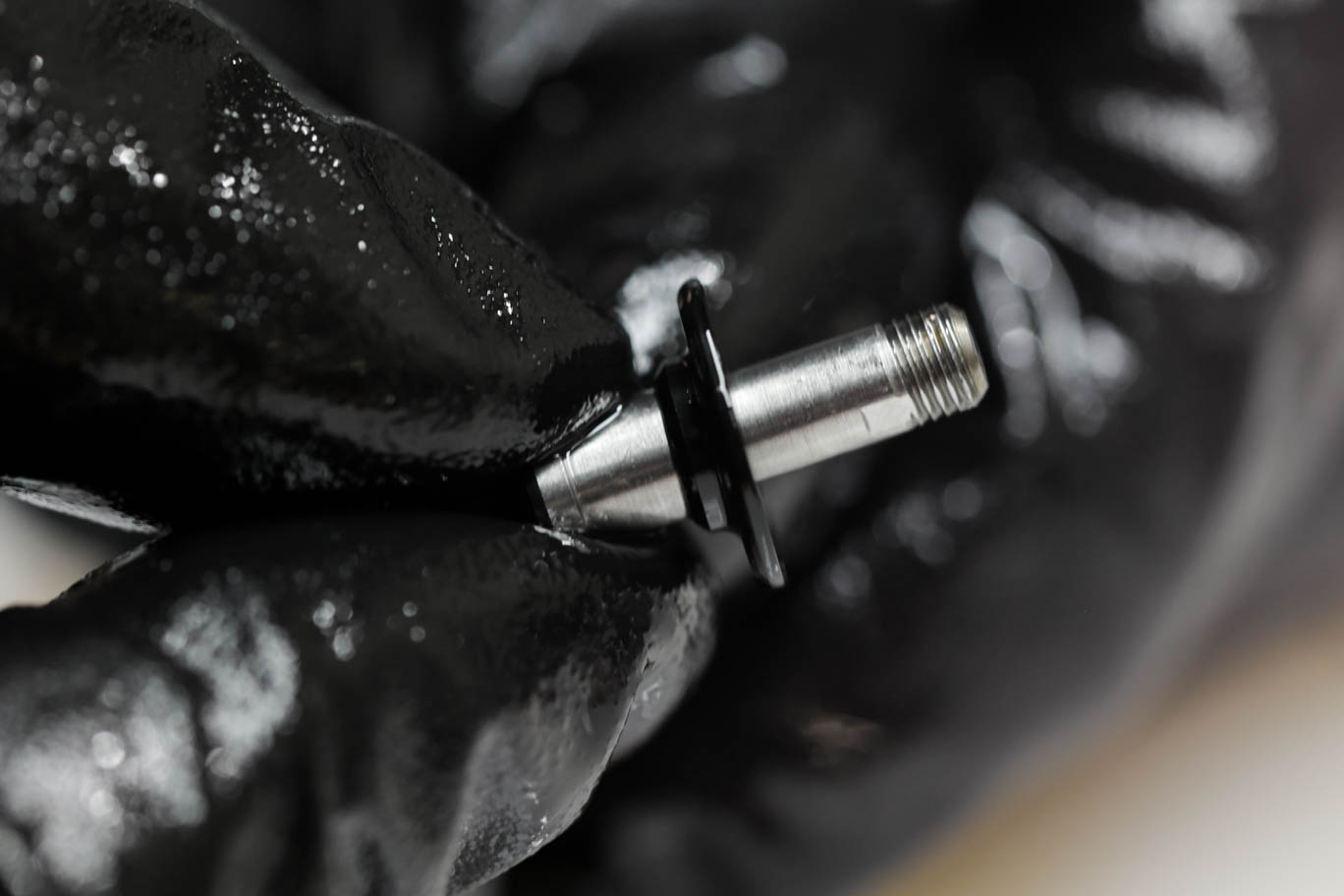

TSN Disassembly 4

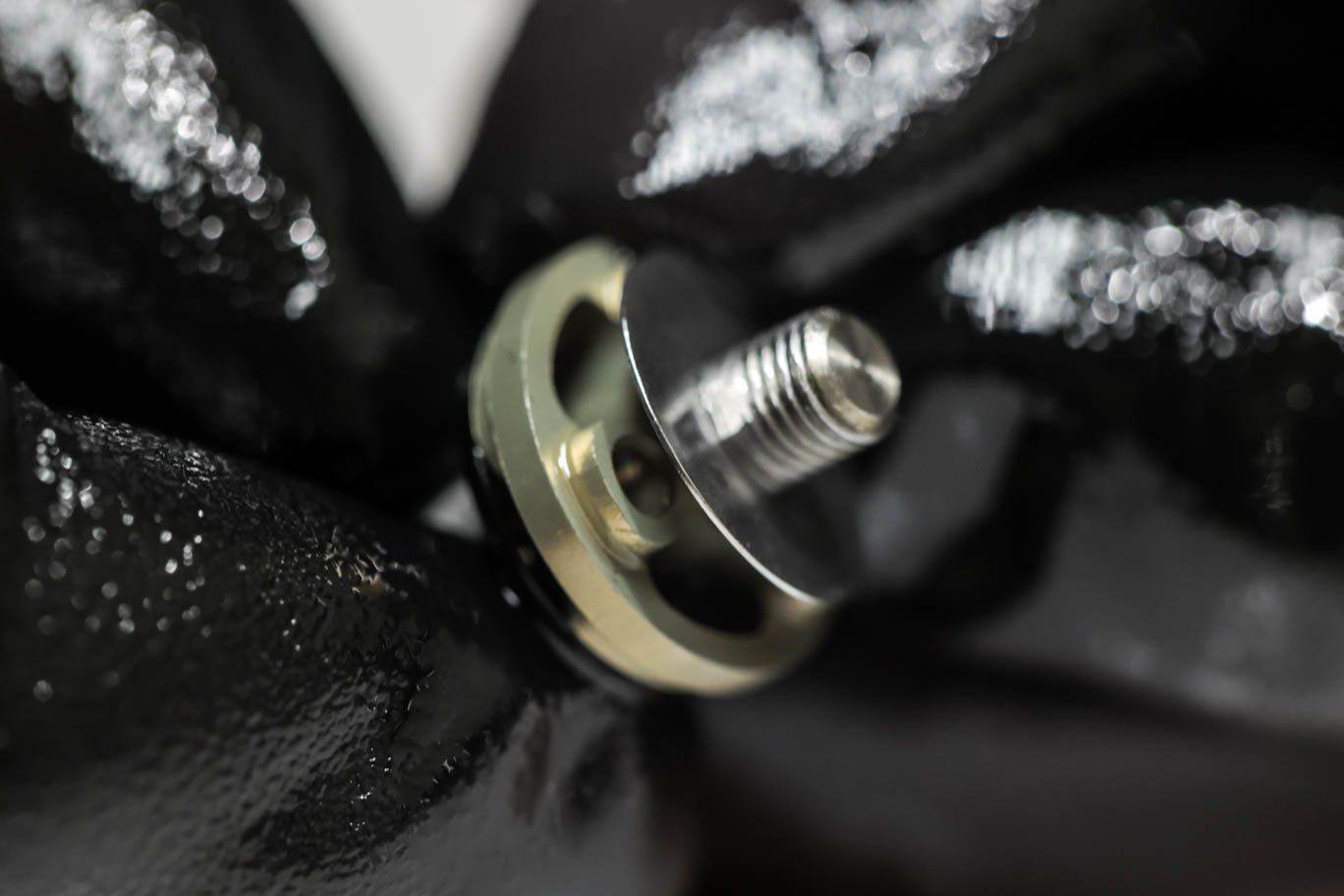

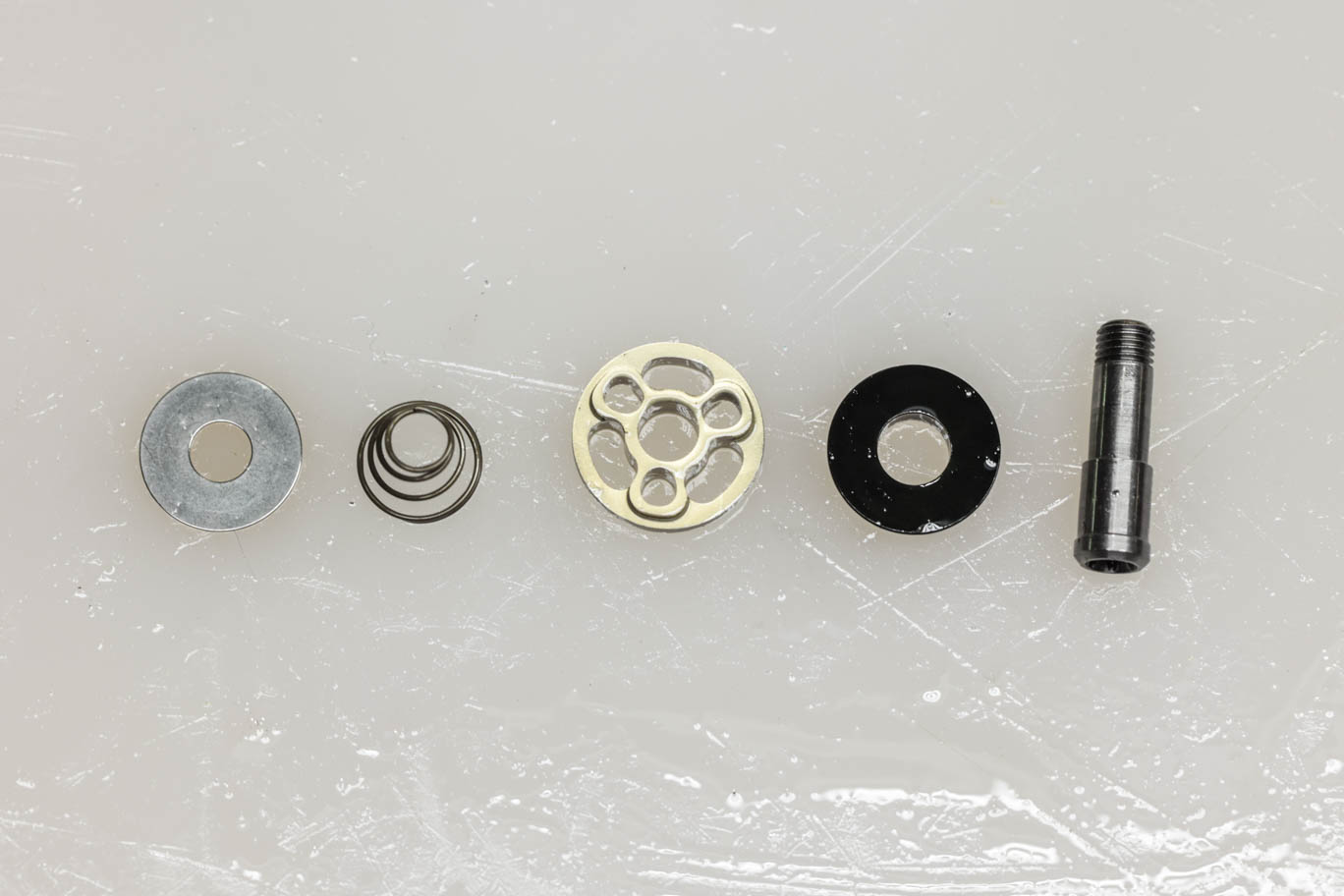

TSN Disassembled
Step 3 – TSN Inspection
Inspect spring for possible bent end of spring tail which can cause valve chirp. (Correcting bent spring covered in TSN Reassembly.)

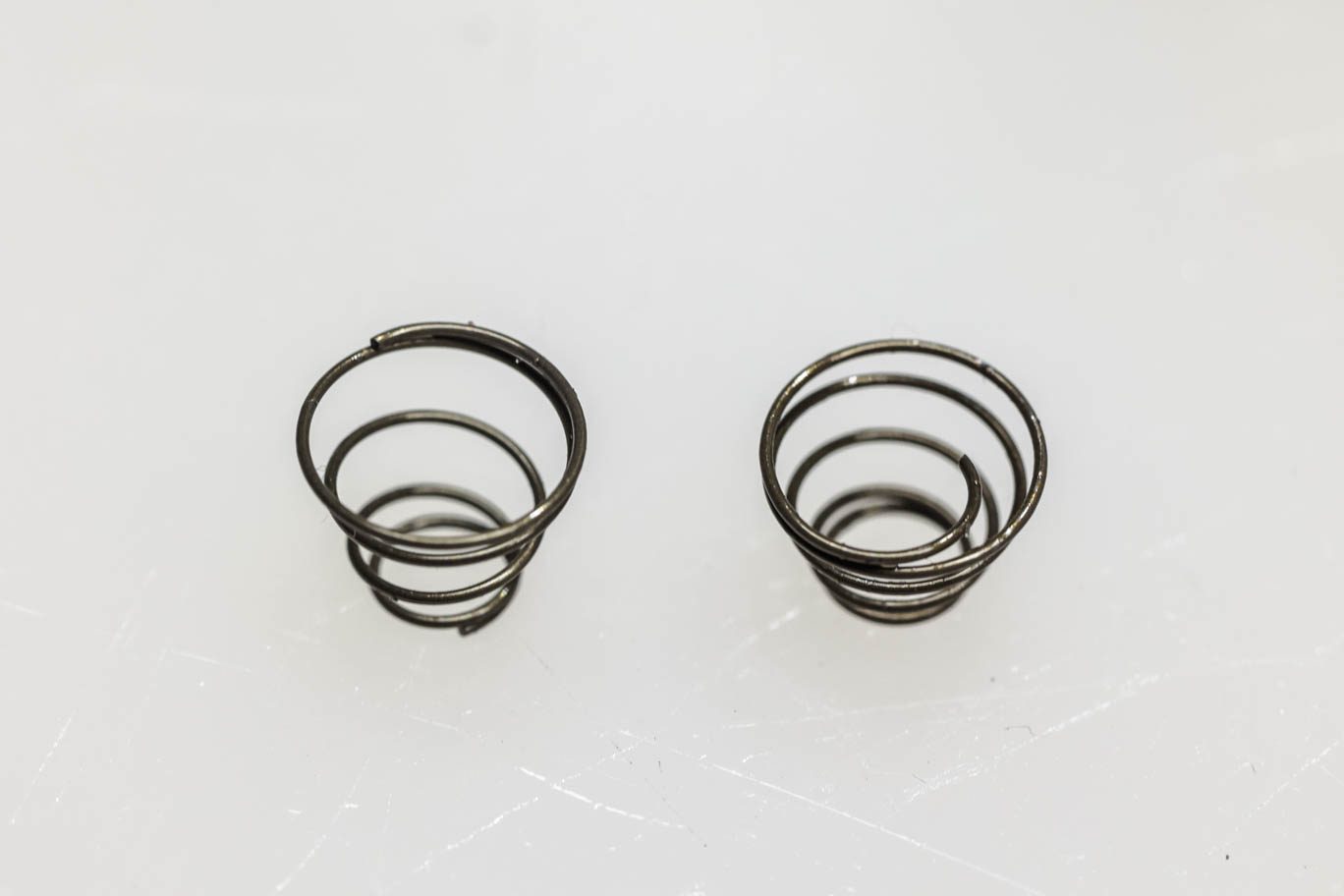

TSN Spring - Good vs. Bad 1

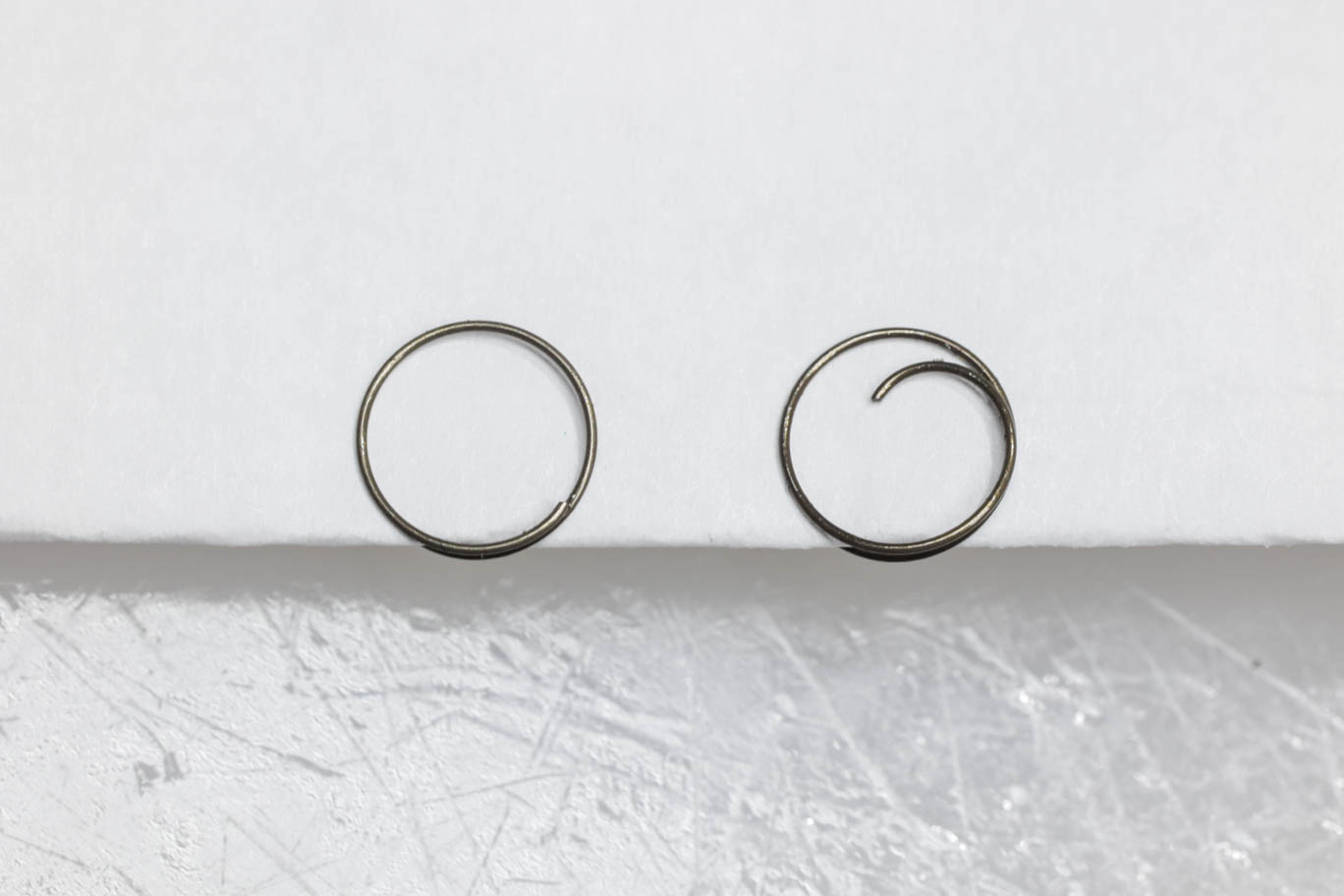

TSN Spring - Good vs. Bad 2

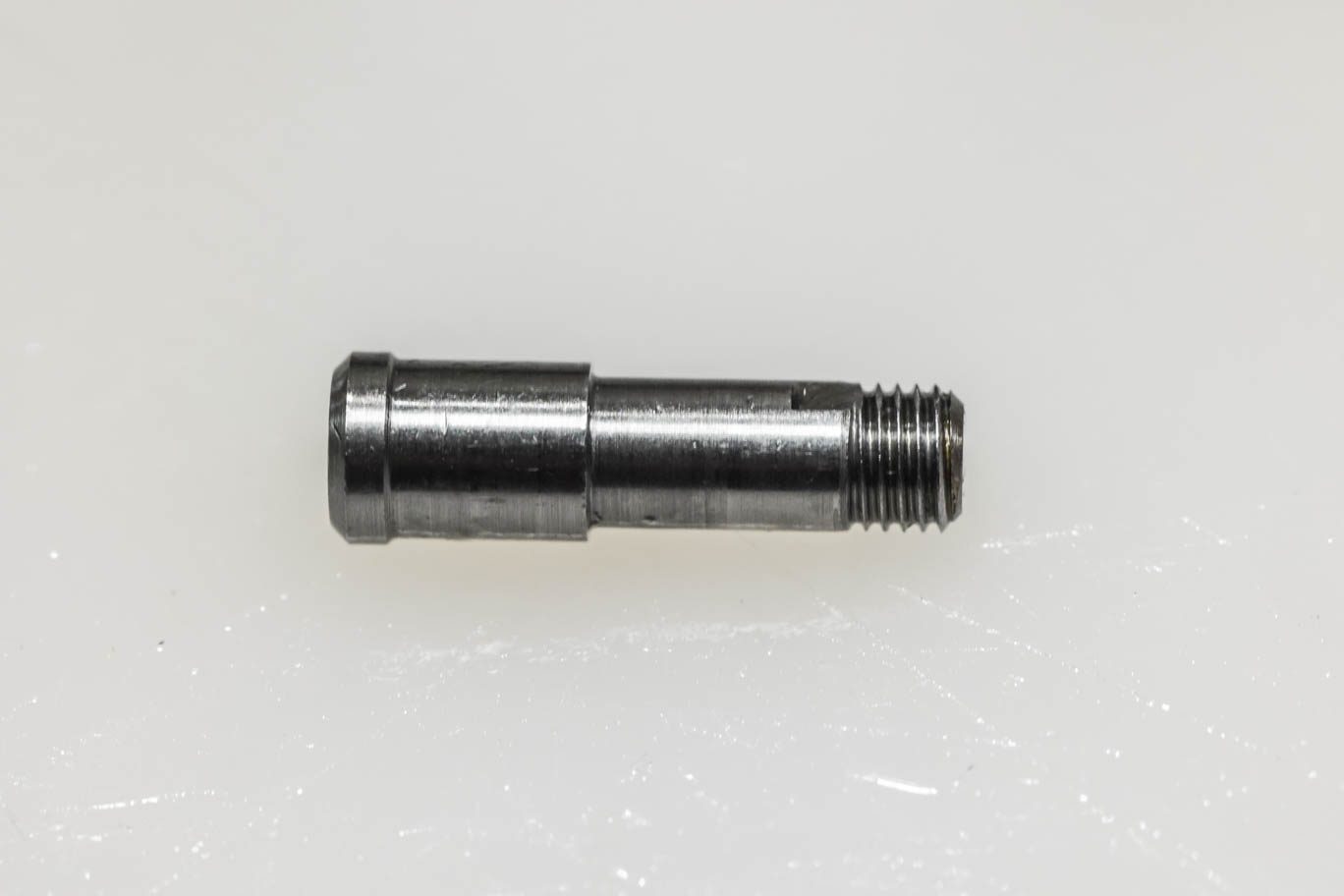

TSN Stem
Shaft Disassembly
Step 1 – Determining Shaft Type
Clevis bikes require a solid shaft. Solid shafts can be identified by sticker or laser etching on the end eye. When end eye is removed, shaft can also be inspected to confirm. The three types of shafts – hollow, pinned (hollow shaft with insert), solid – pictured here.
TSB032 – COIL IL Damper Shaft Update

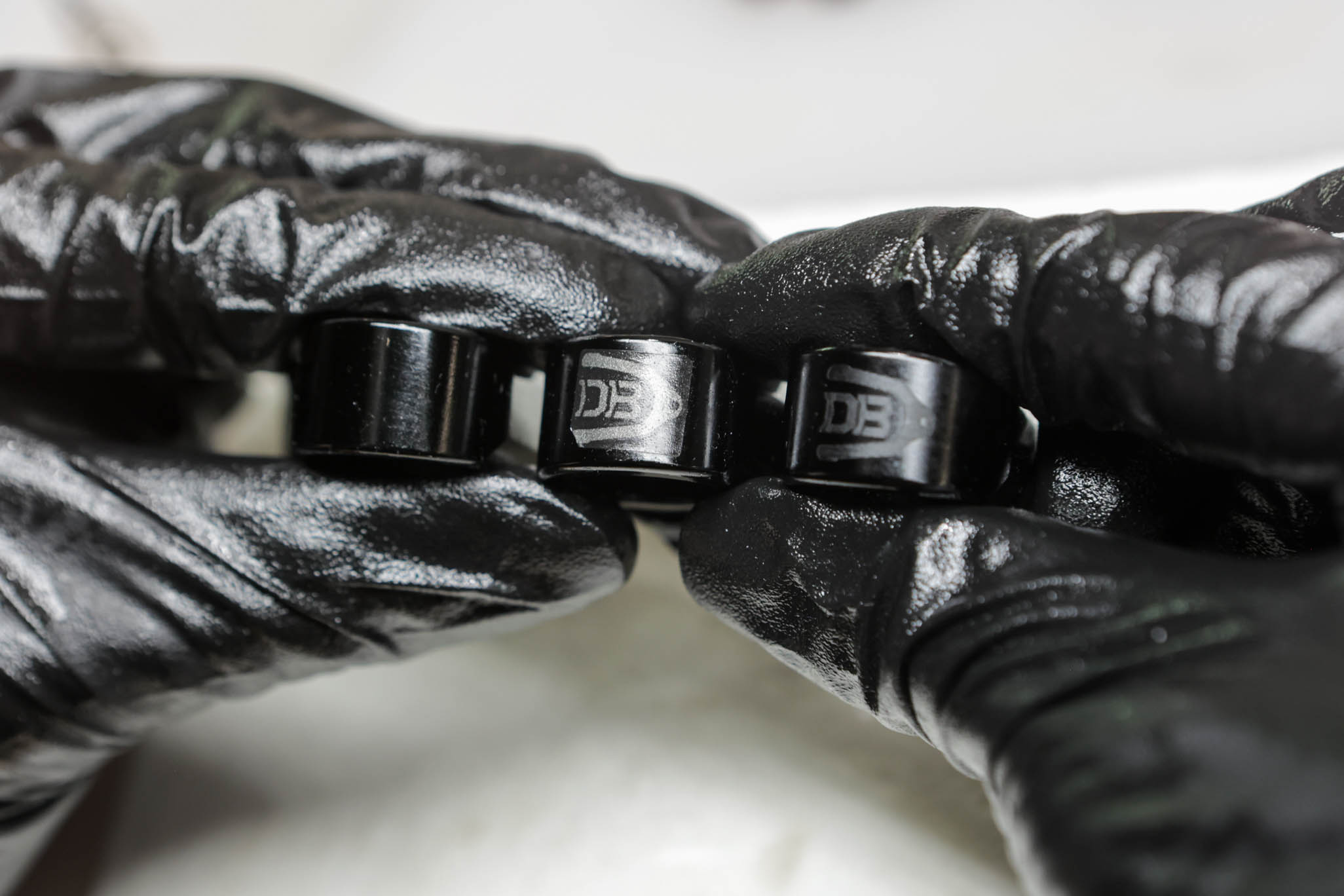

End Eye Labeling

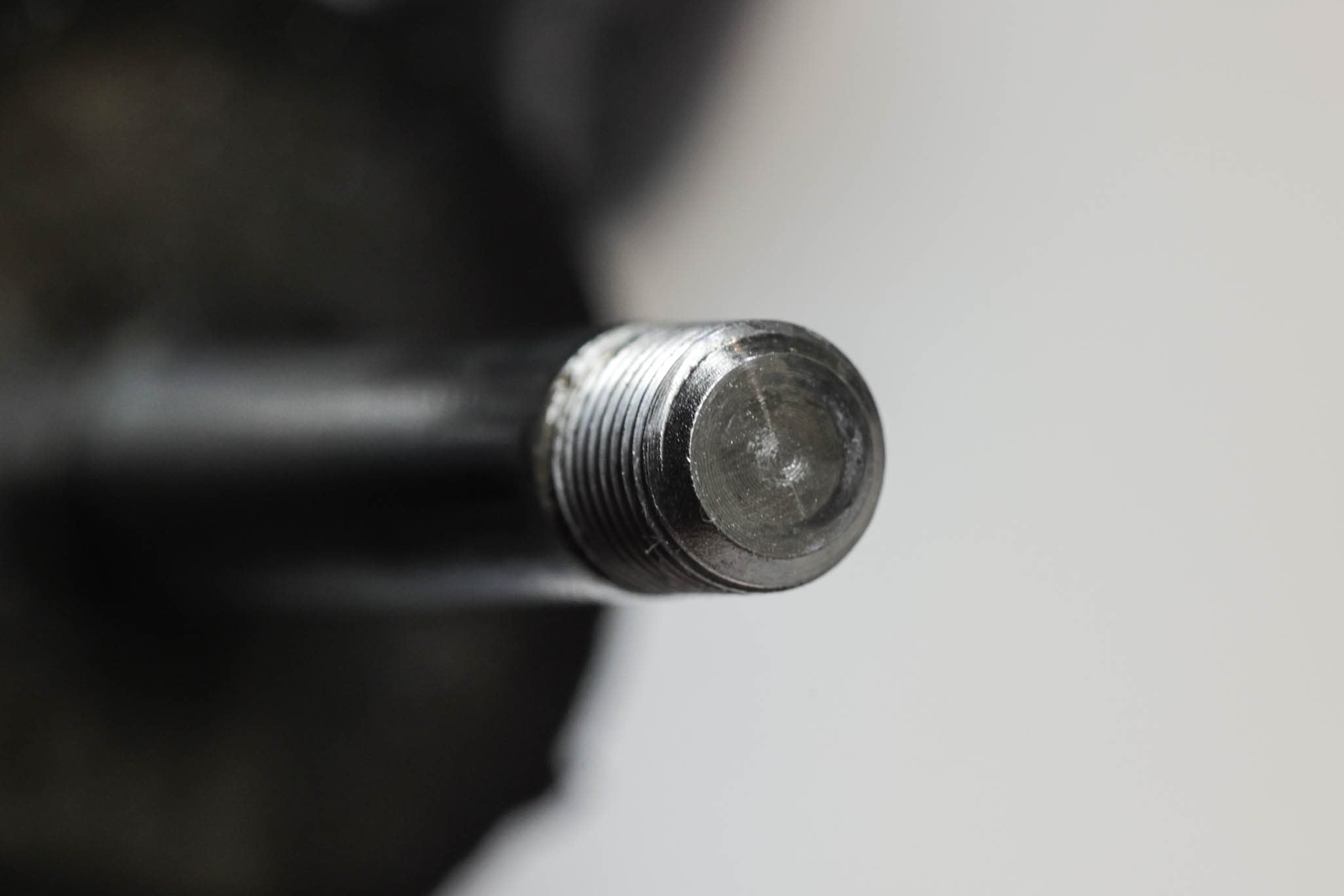

Solid Shaft

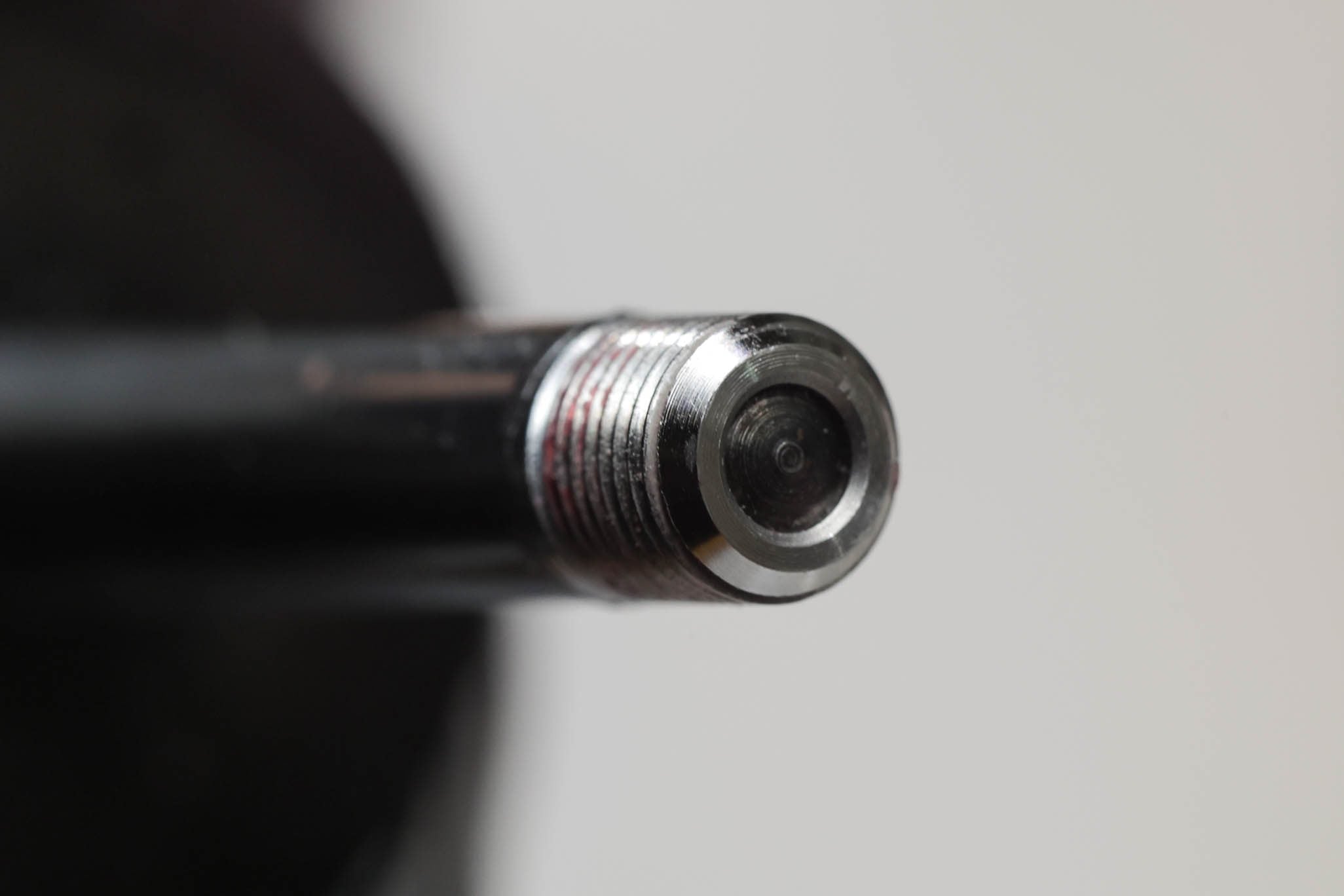

Pinned Shaft

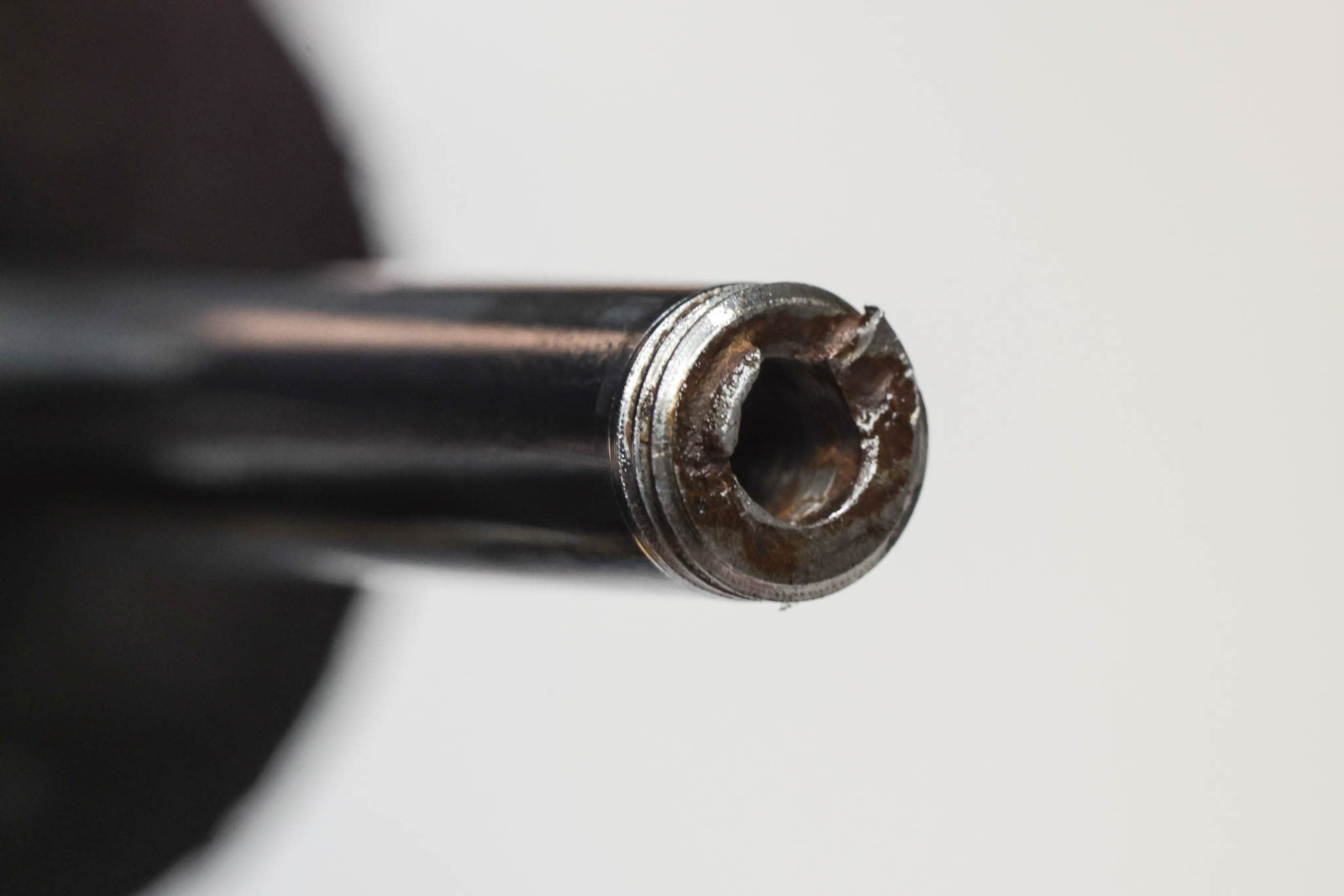

Hollow Shaft (broken)
Step 2 – End Eye Removal

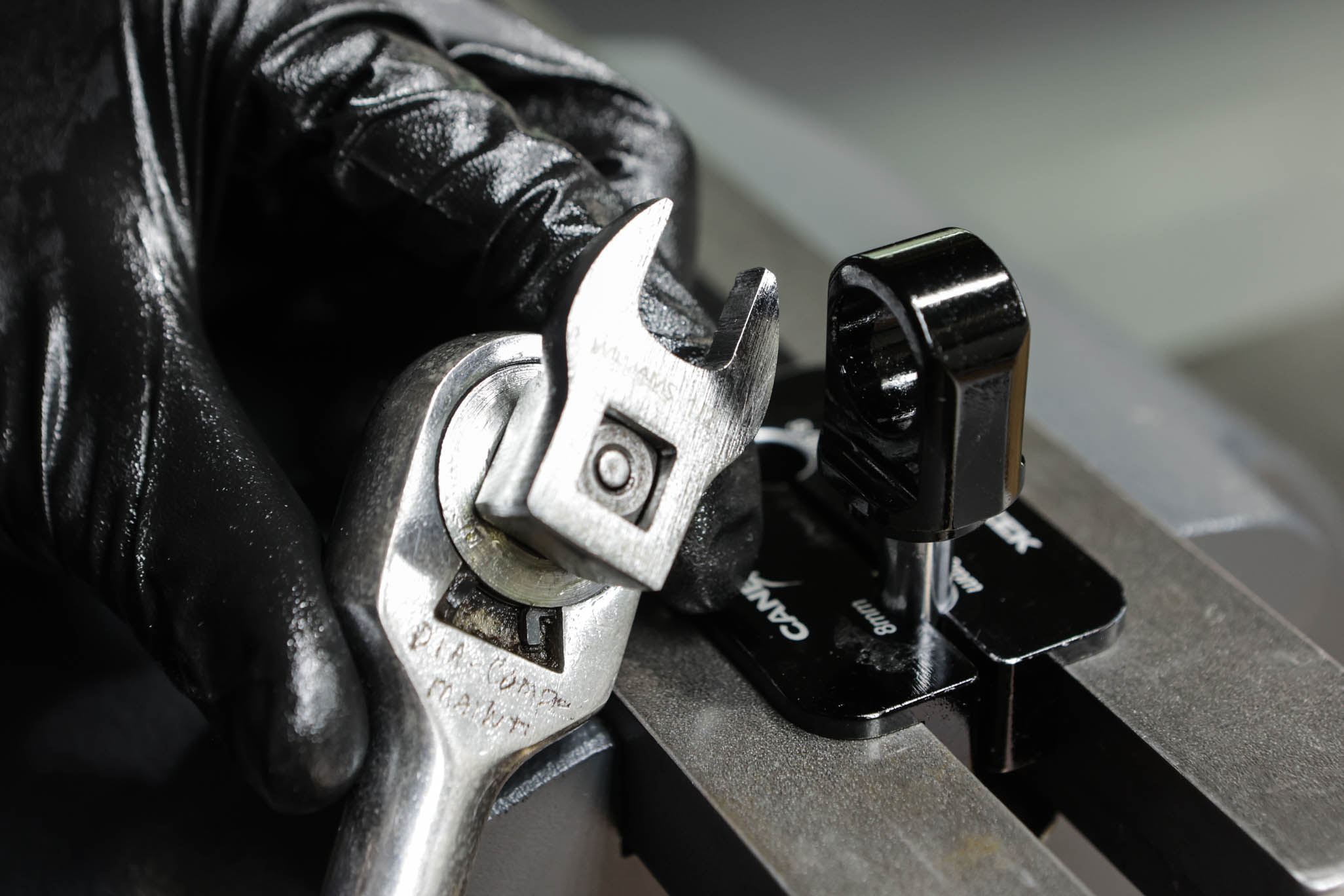

Clamp shaft assembly into vise using shaft clamp (AAD0555) with end eye up. Remove end eye from shaft with 1/2″ crows foot. Apply heat gun if end eye is stuck
Crows Foot for End Eye

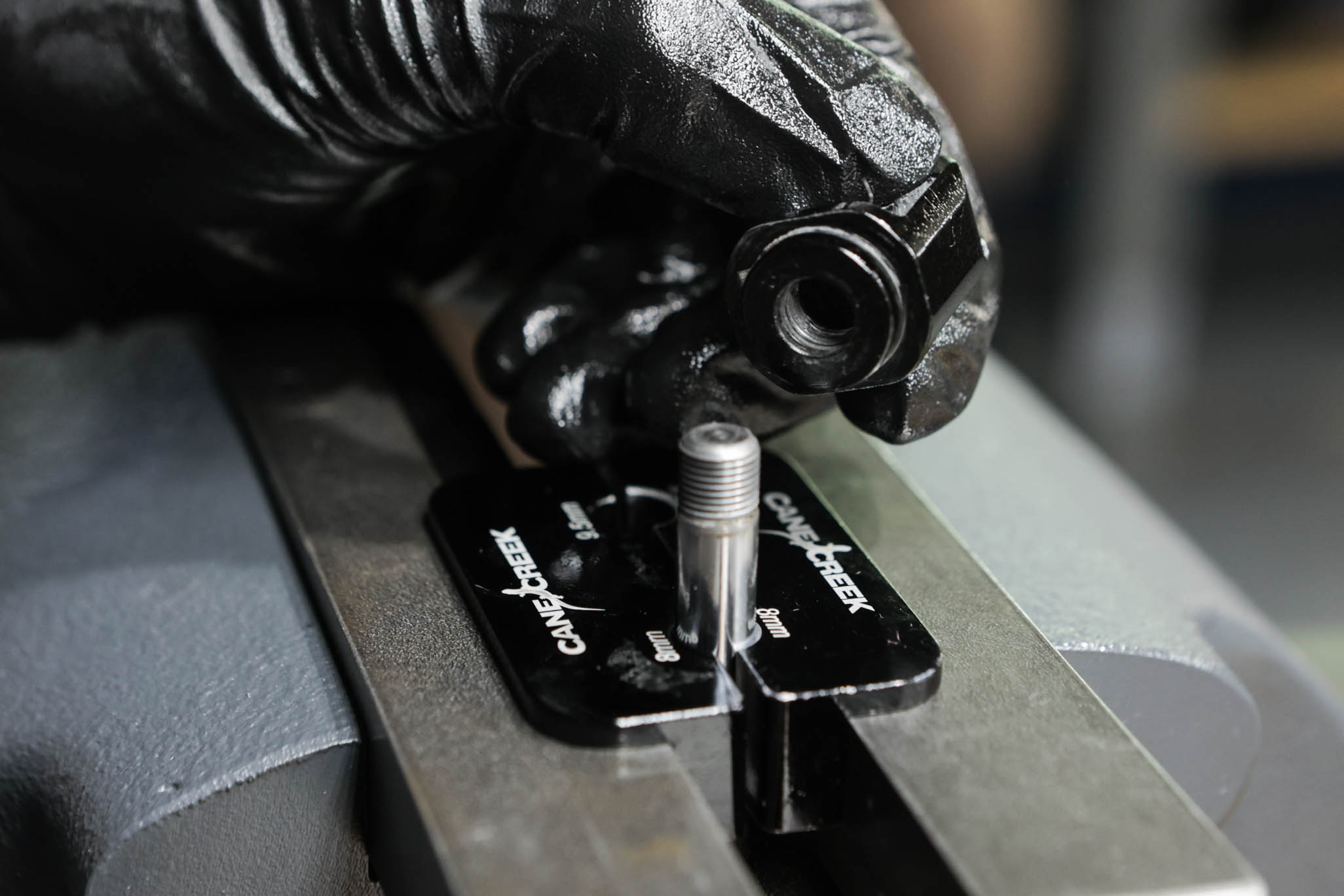

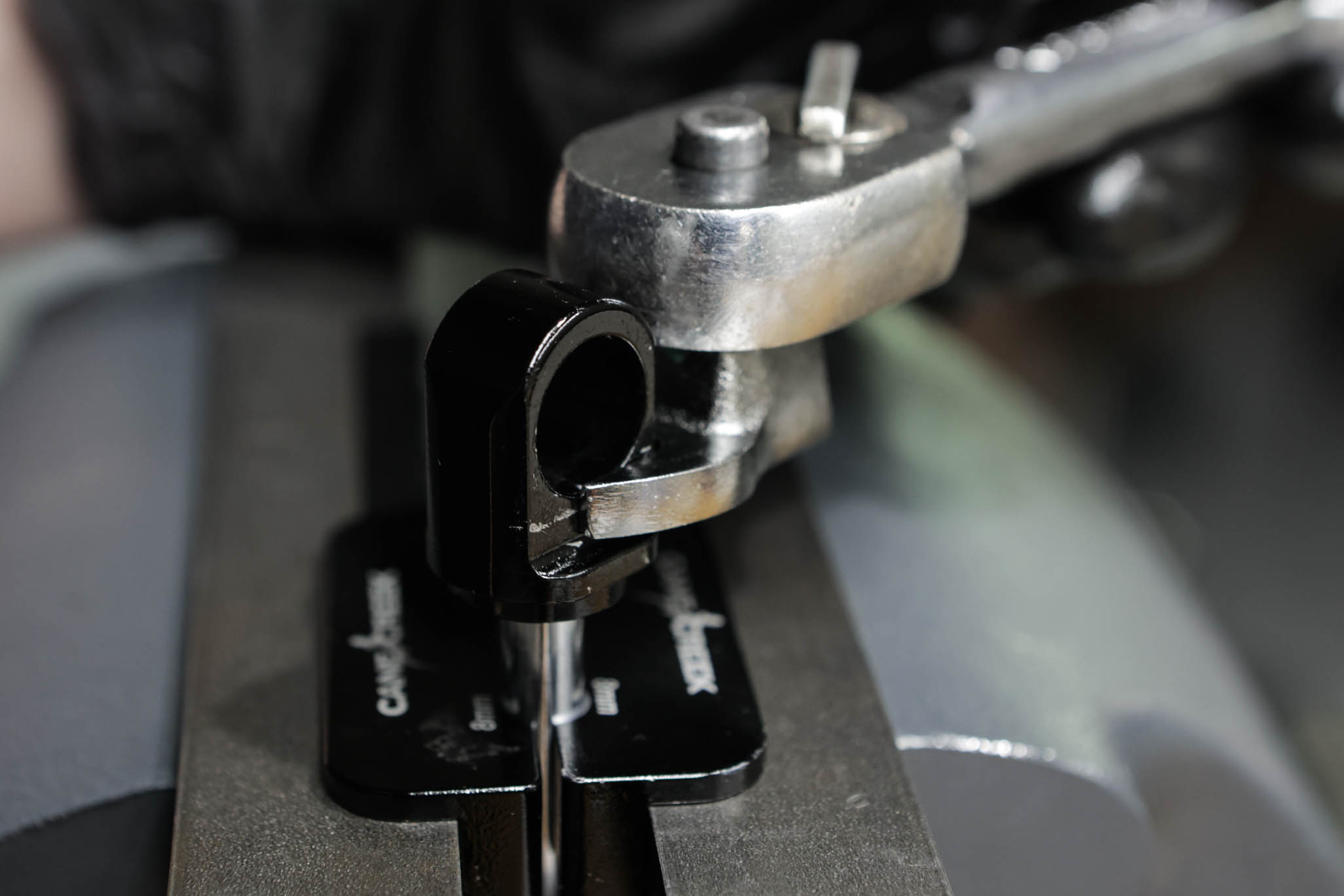

End Eye Removal
End Eye Removed
Step 3 – Piston Assembly Removal
Flip shaft in clamp. Remove shaft bolt with T25. Remove piston, shims and stop washer, noting orientation.

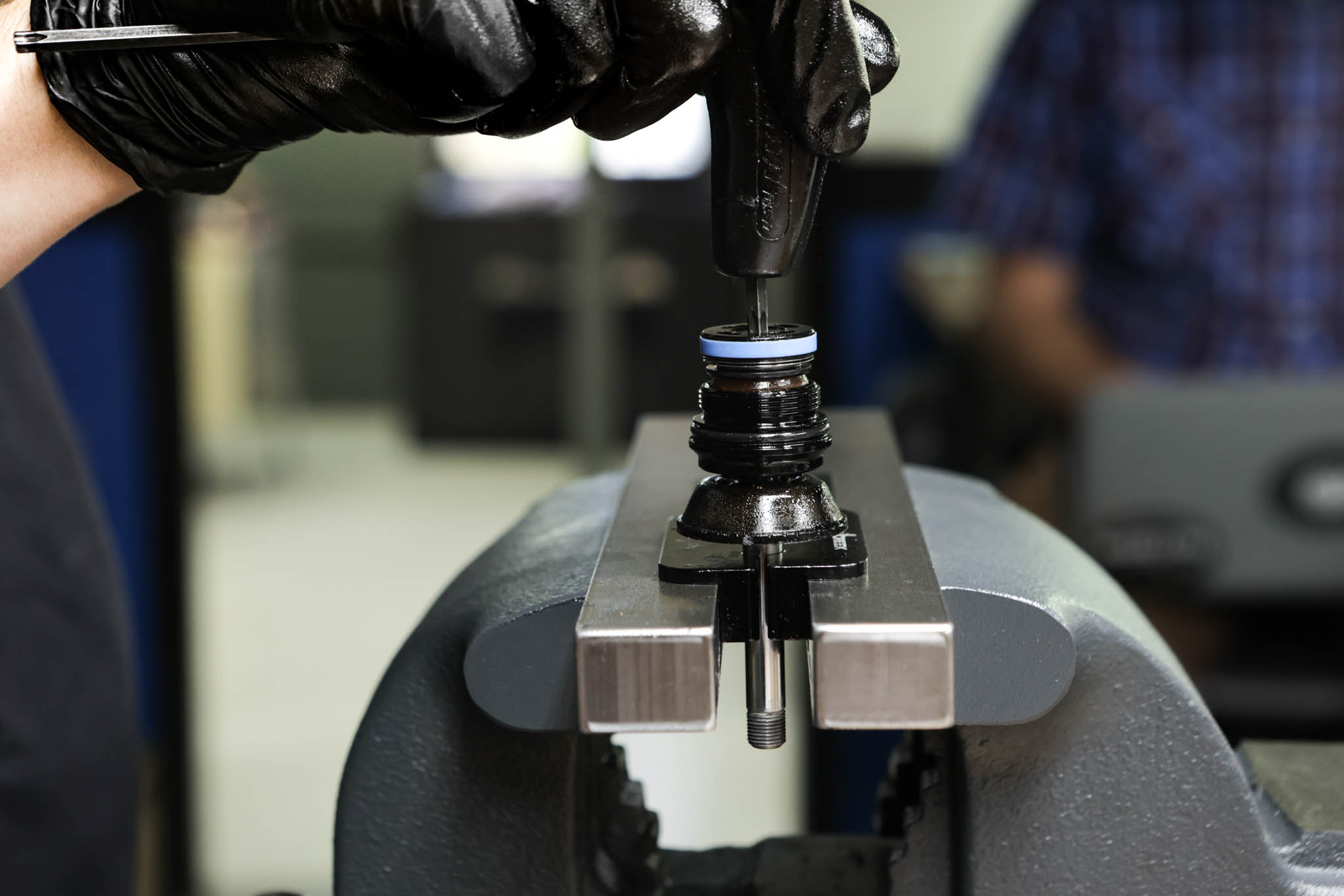

Freeing Shaft Bolt

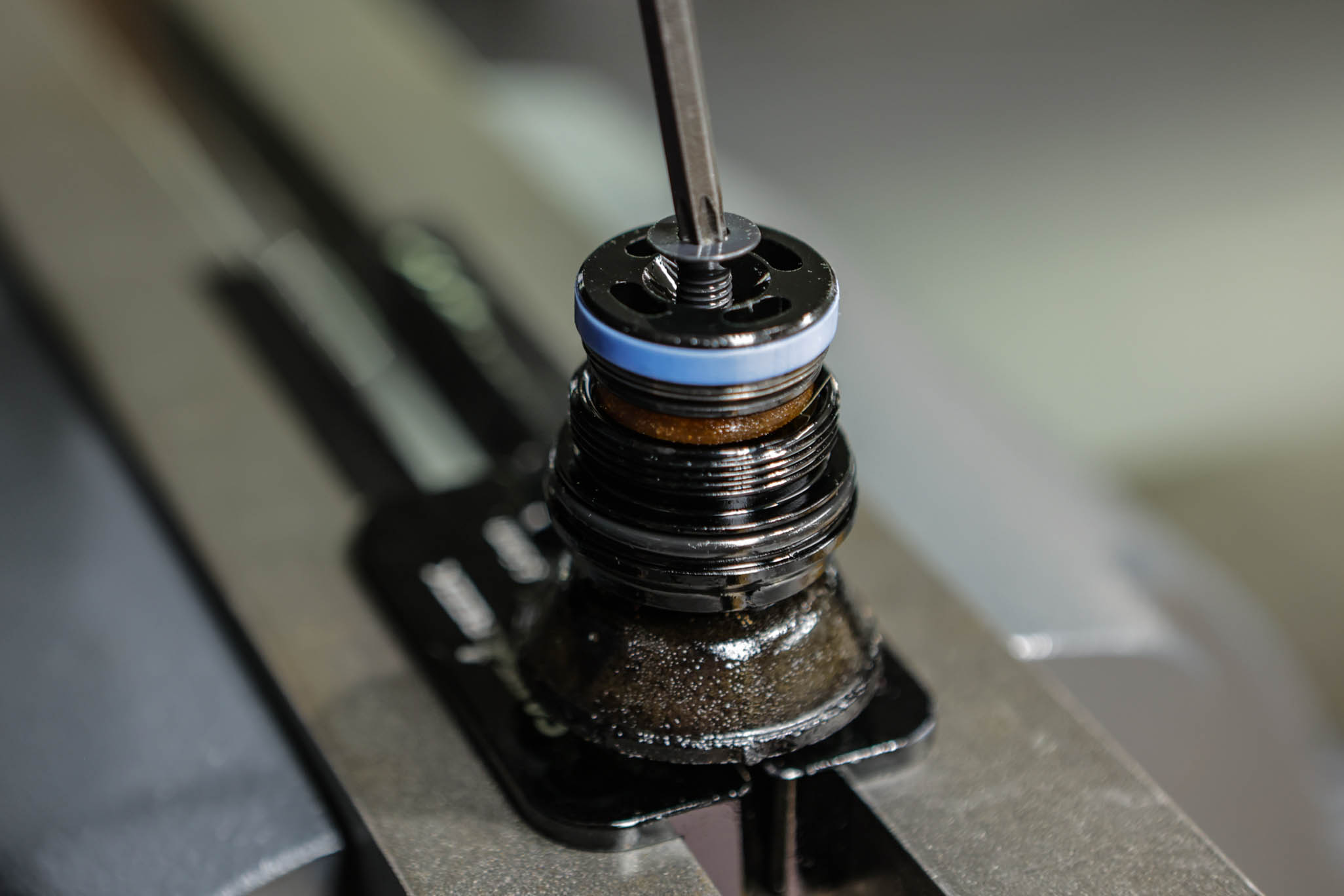

Shaft Bolt Removal

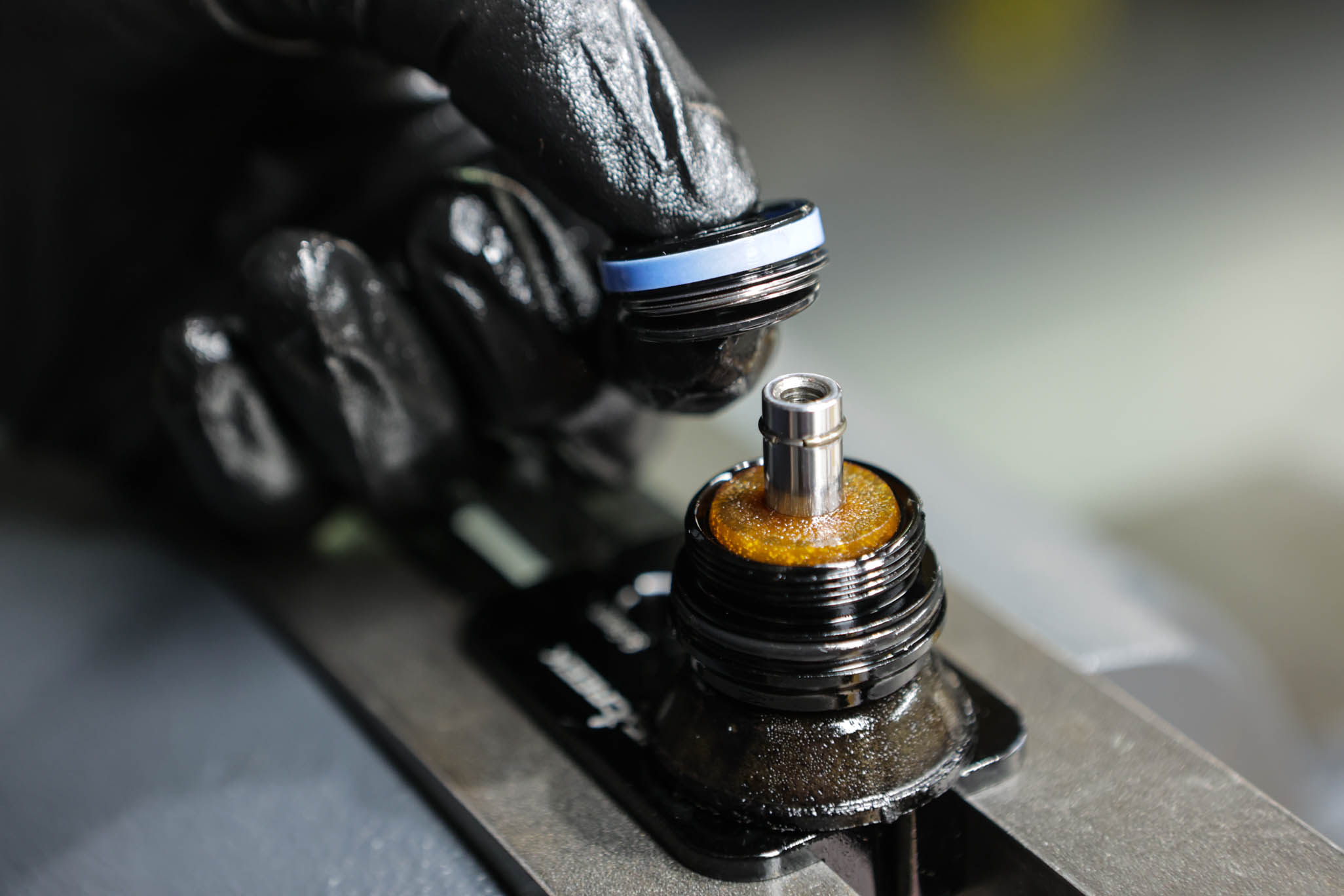

Piston, Shim & Stop Washer Removal

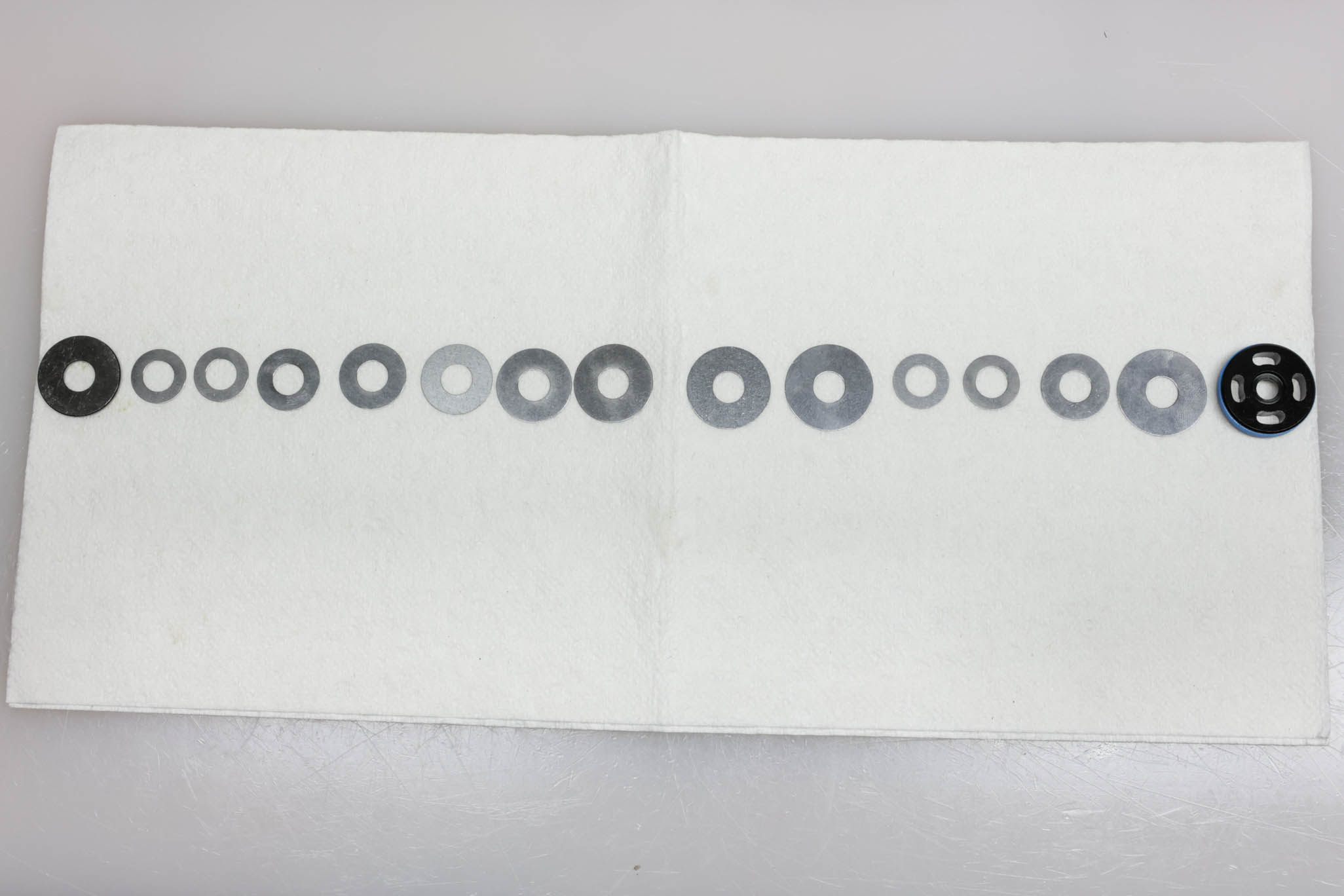

Piston and Shim Stack Orientation
Step 4 – Shim & Piston Inspection
Check face shim for port wear and flip on reinstall if necessary. Check ports on piston for excessive wear. If present, resurfacing or replacement of piston may be necessary. Carefully cut piston band off piston. Pinch & remove piston o-ring.

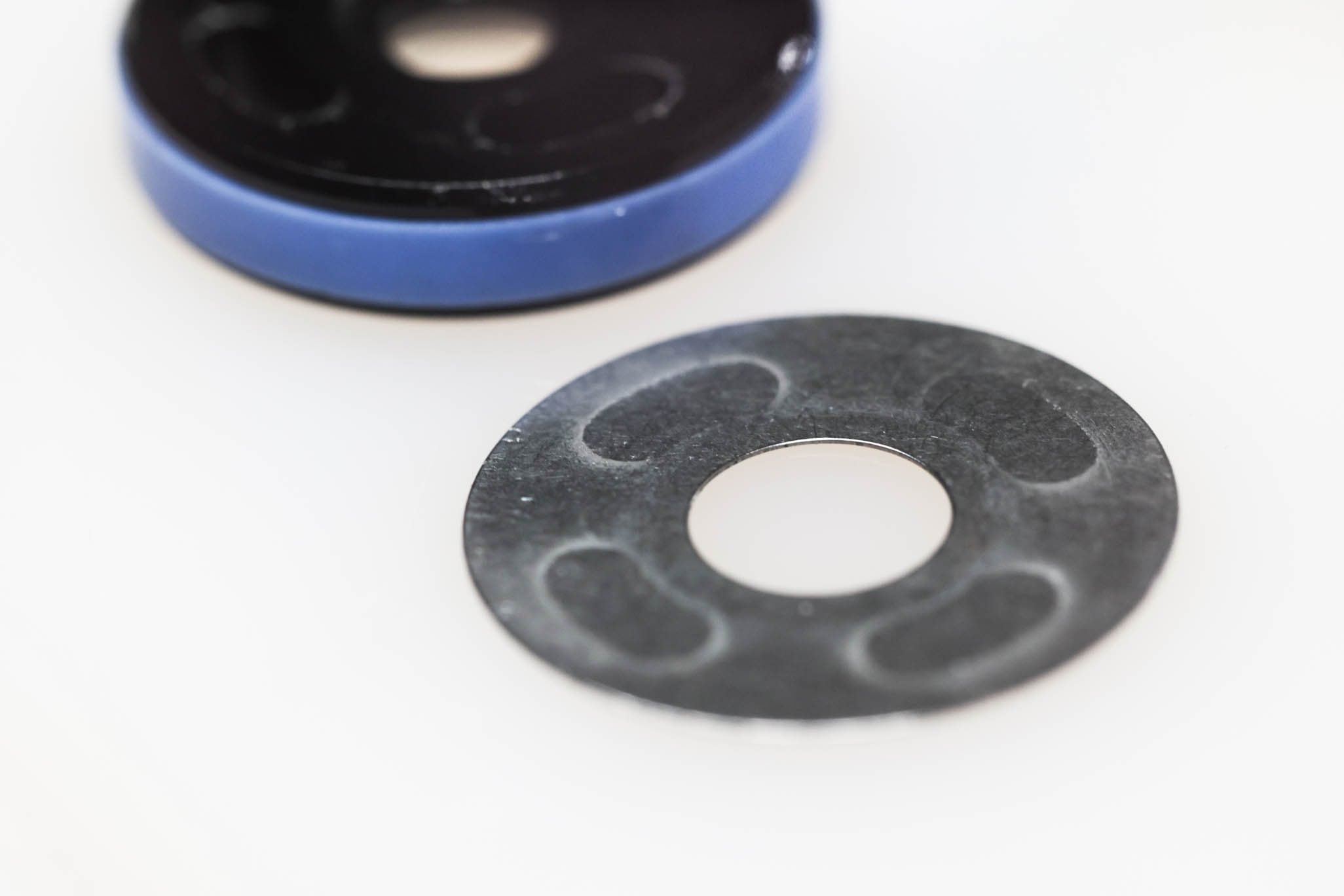

Sealing Shim with Port Wear

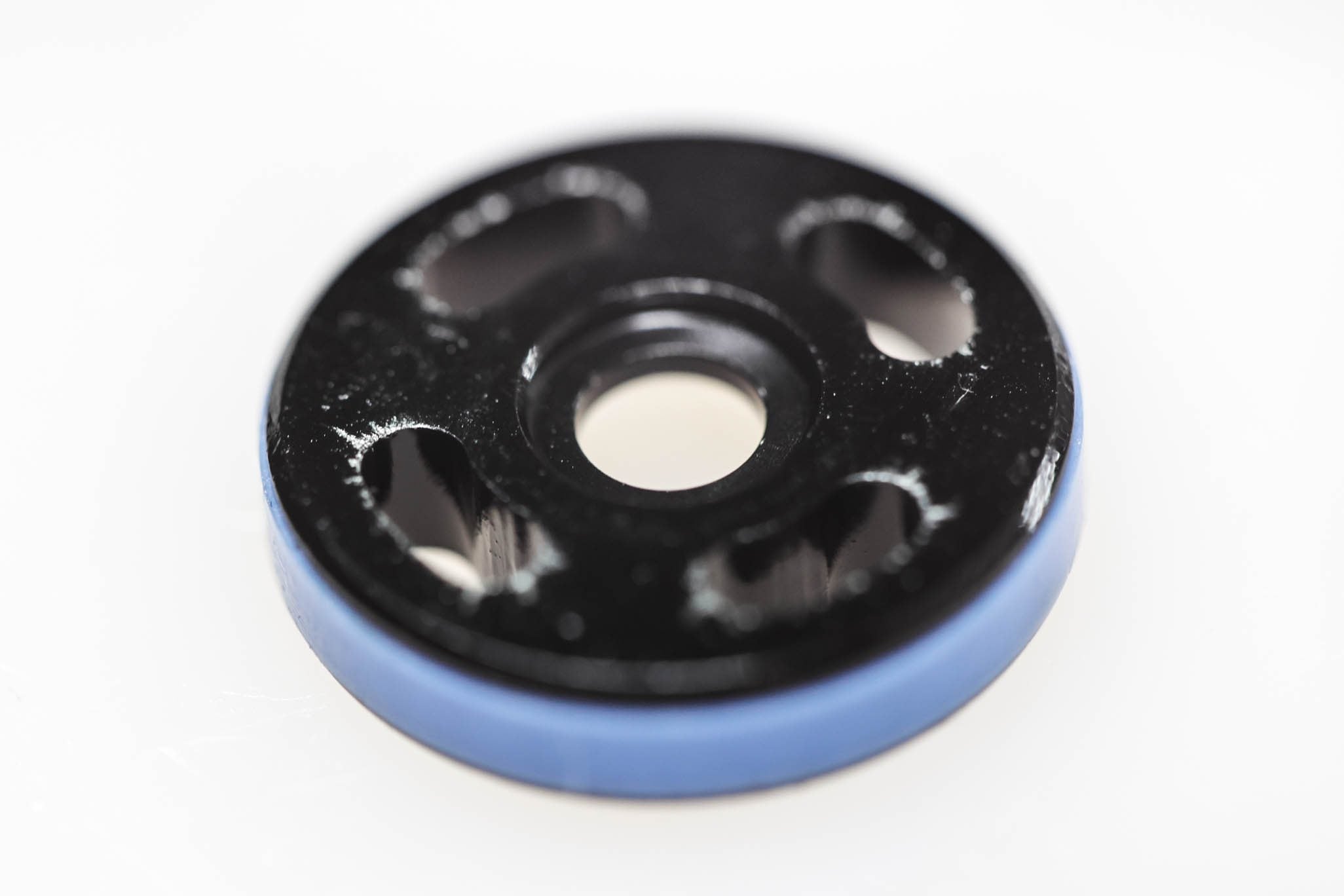

Piston with Port Wear

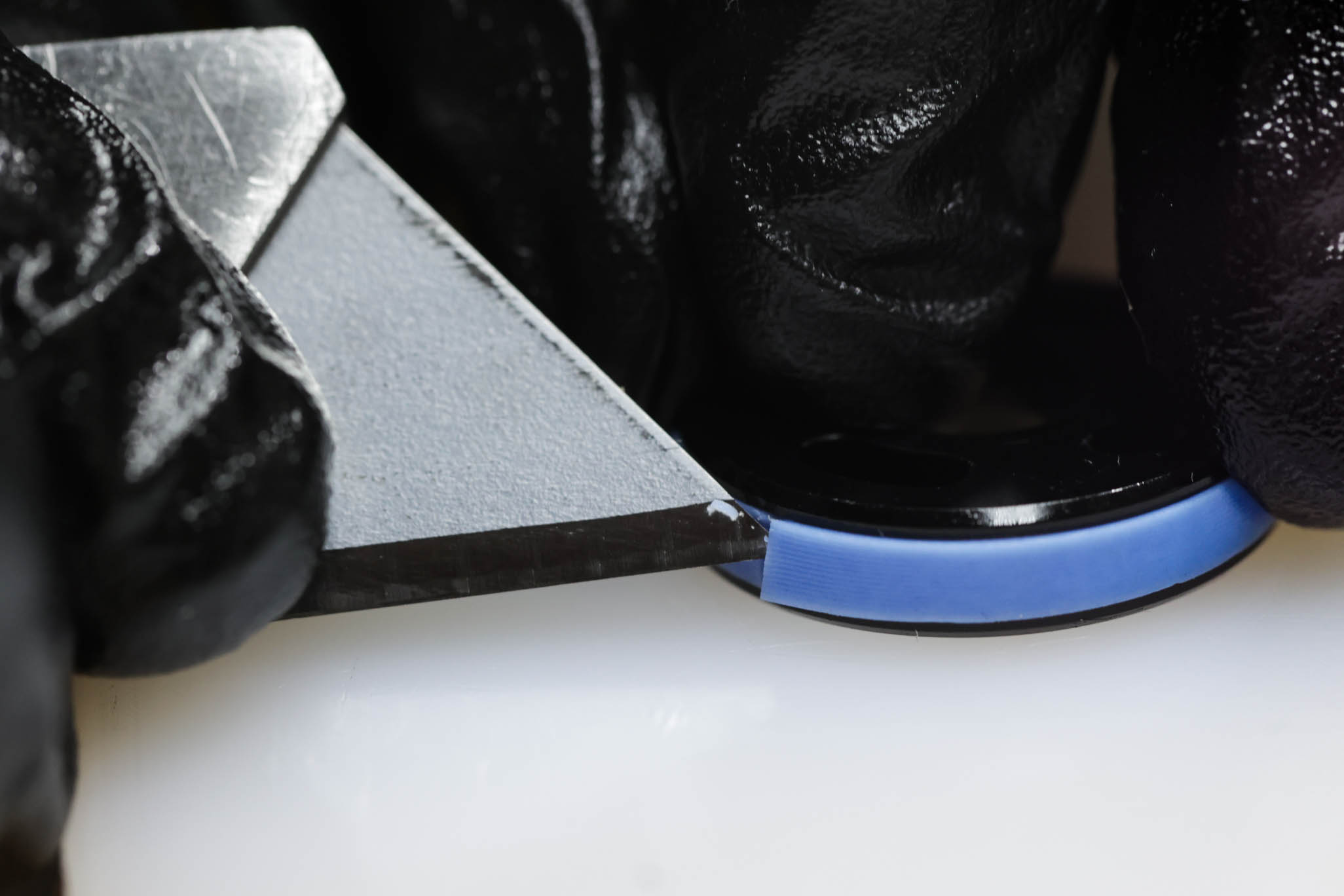

Piston Band Removal

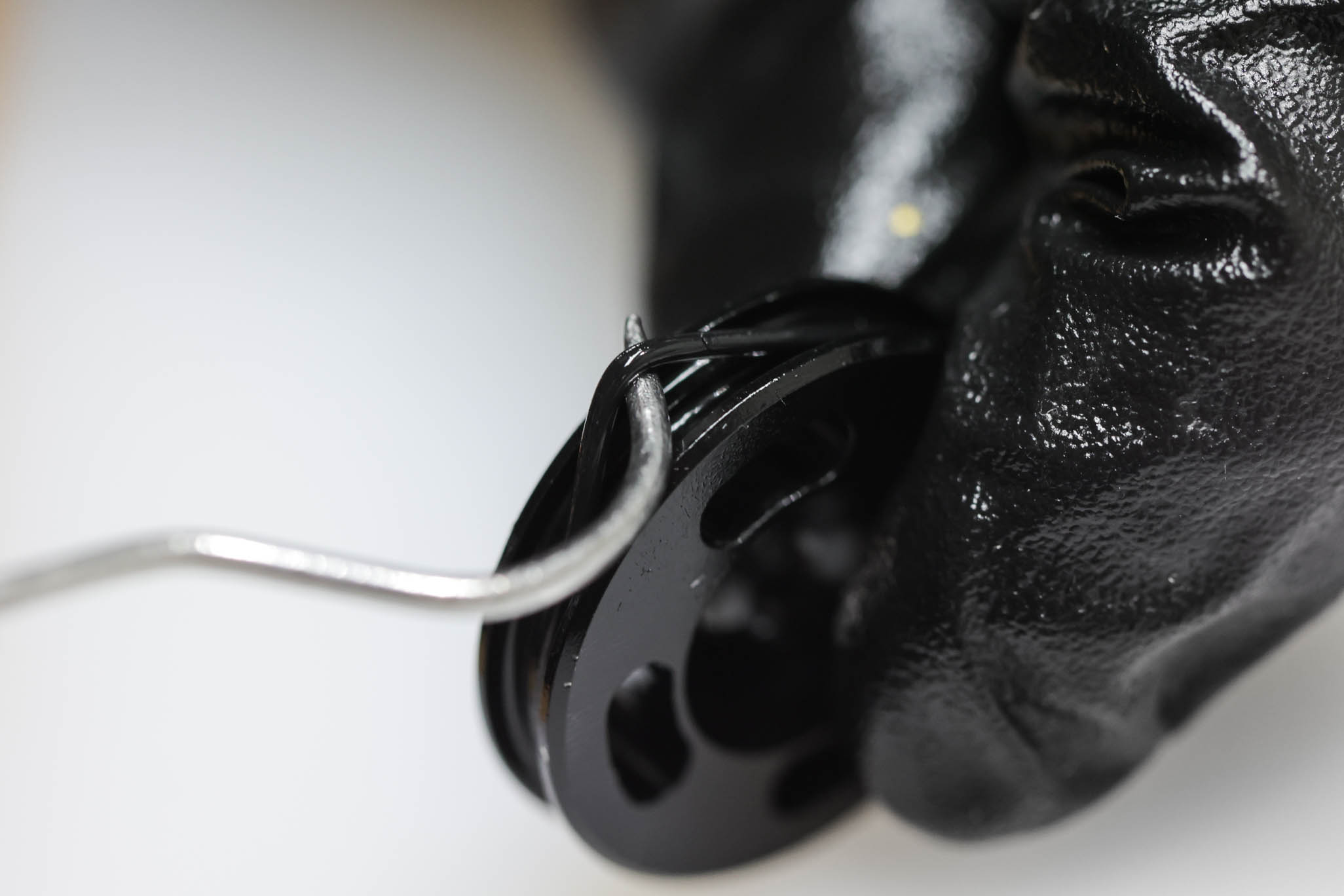

Piston O-Ring Removal
Step 5 – Final Disassembly

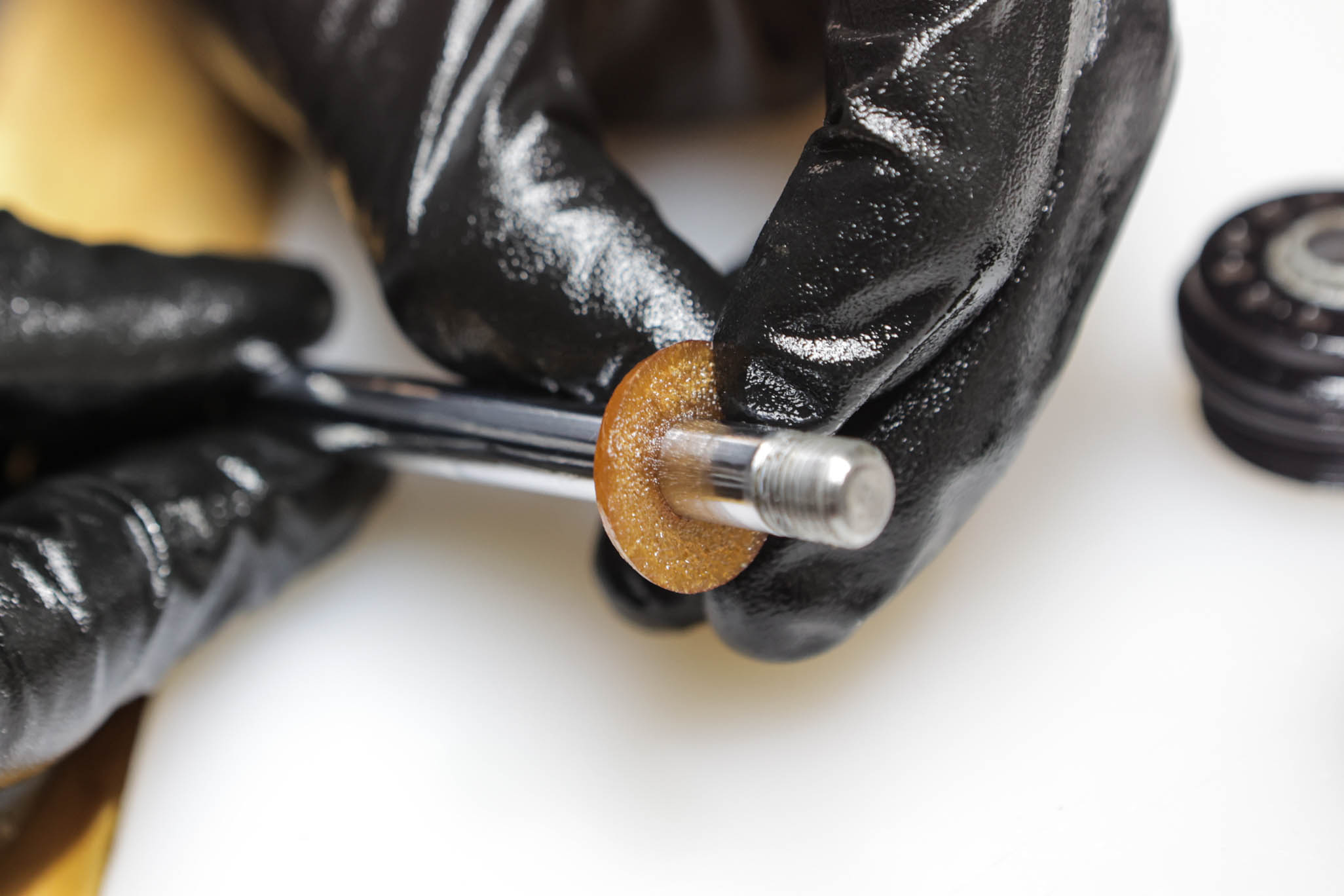

Remove and discard oil seal head and top out bumper.

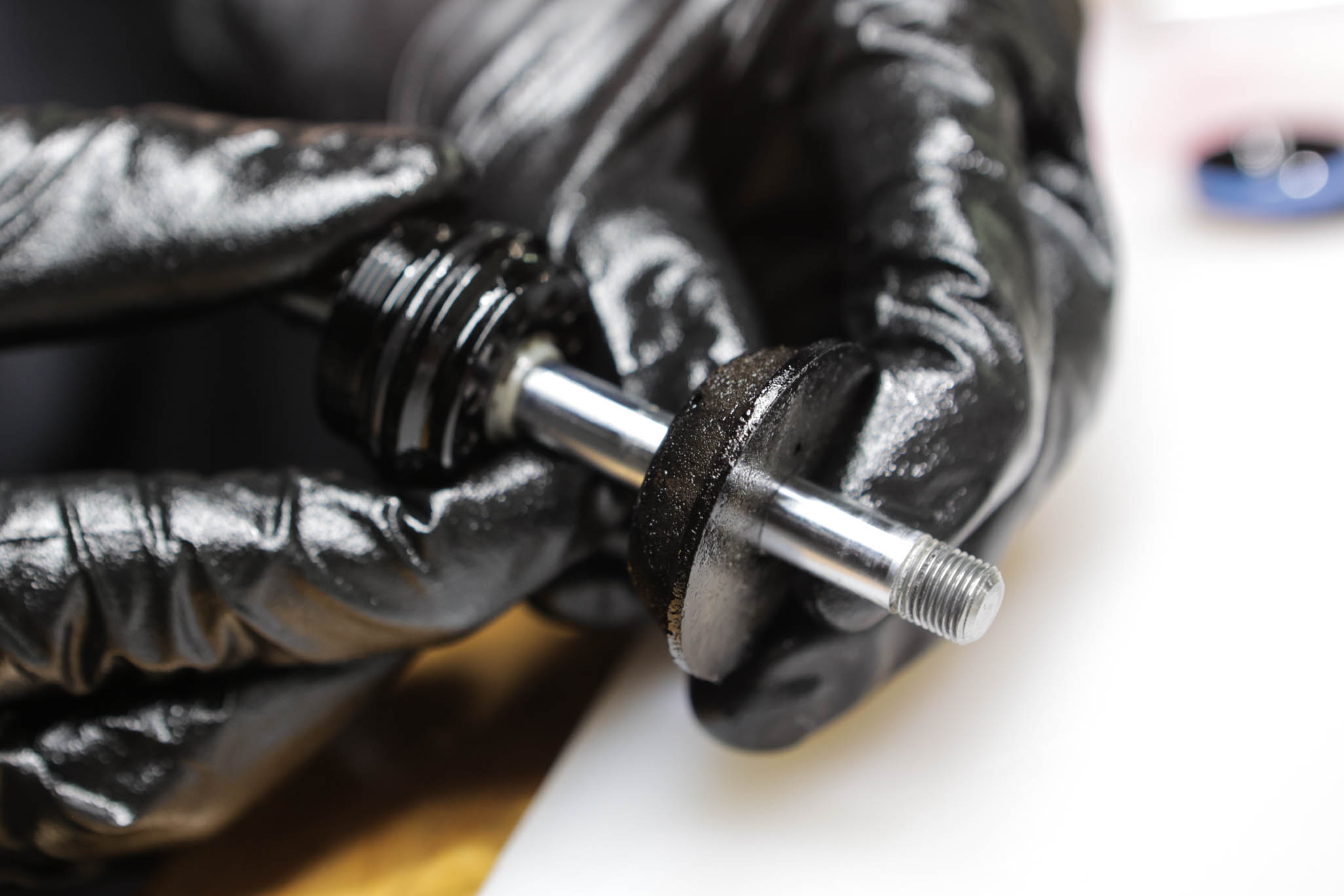

Bottom Out Bumper Removal

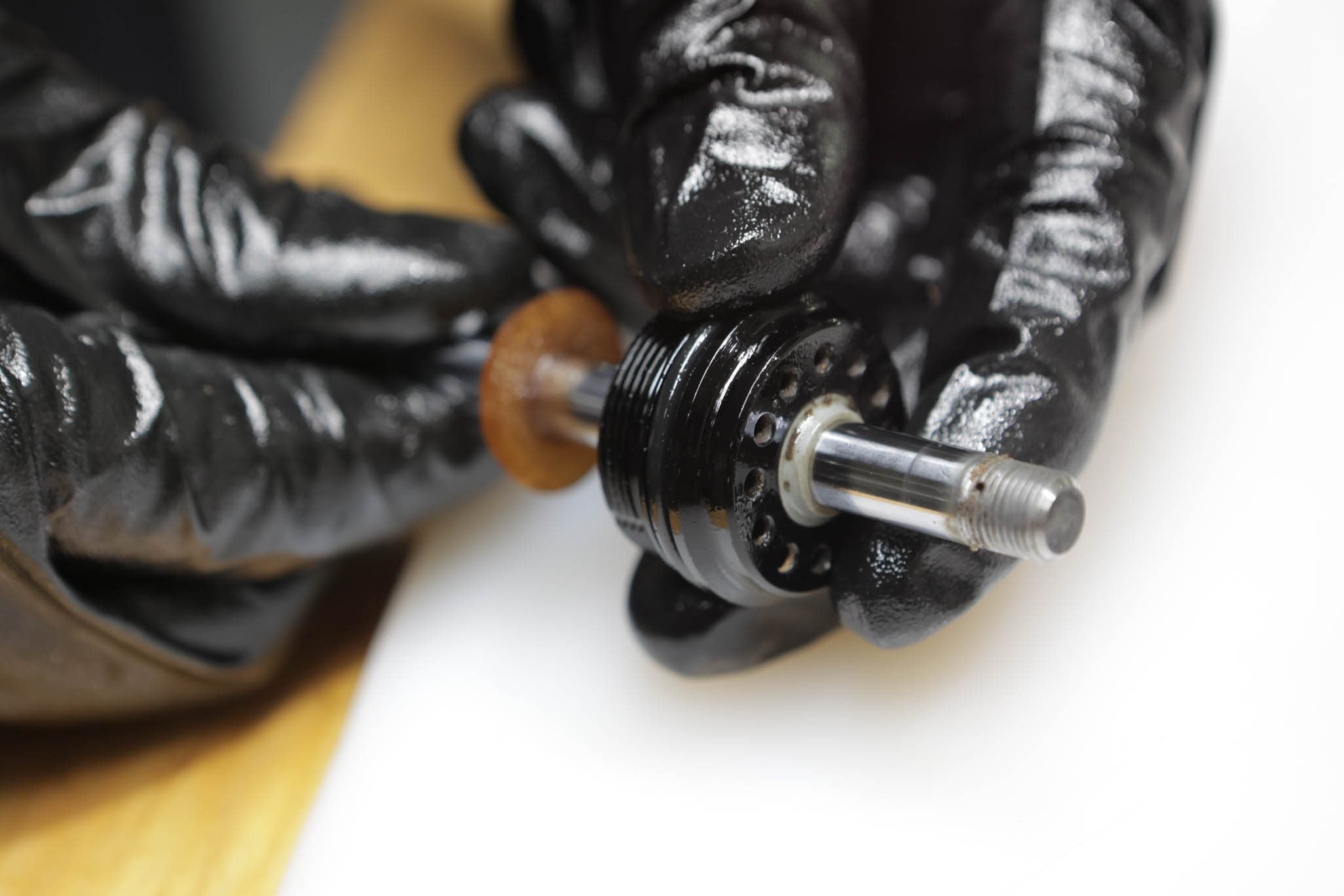

Oil Seal Head Removal
Top Out Bumper Removal
Shaft Reassembly
Step 1 – Piston Reassembly
Install new piston o-ring (AAD0800) and piston band (AAD0469) on piston.

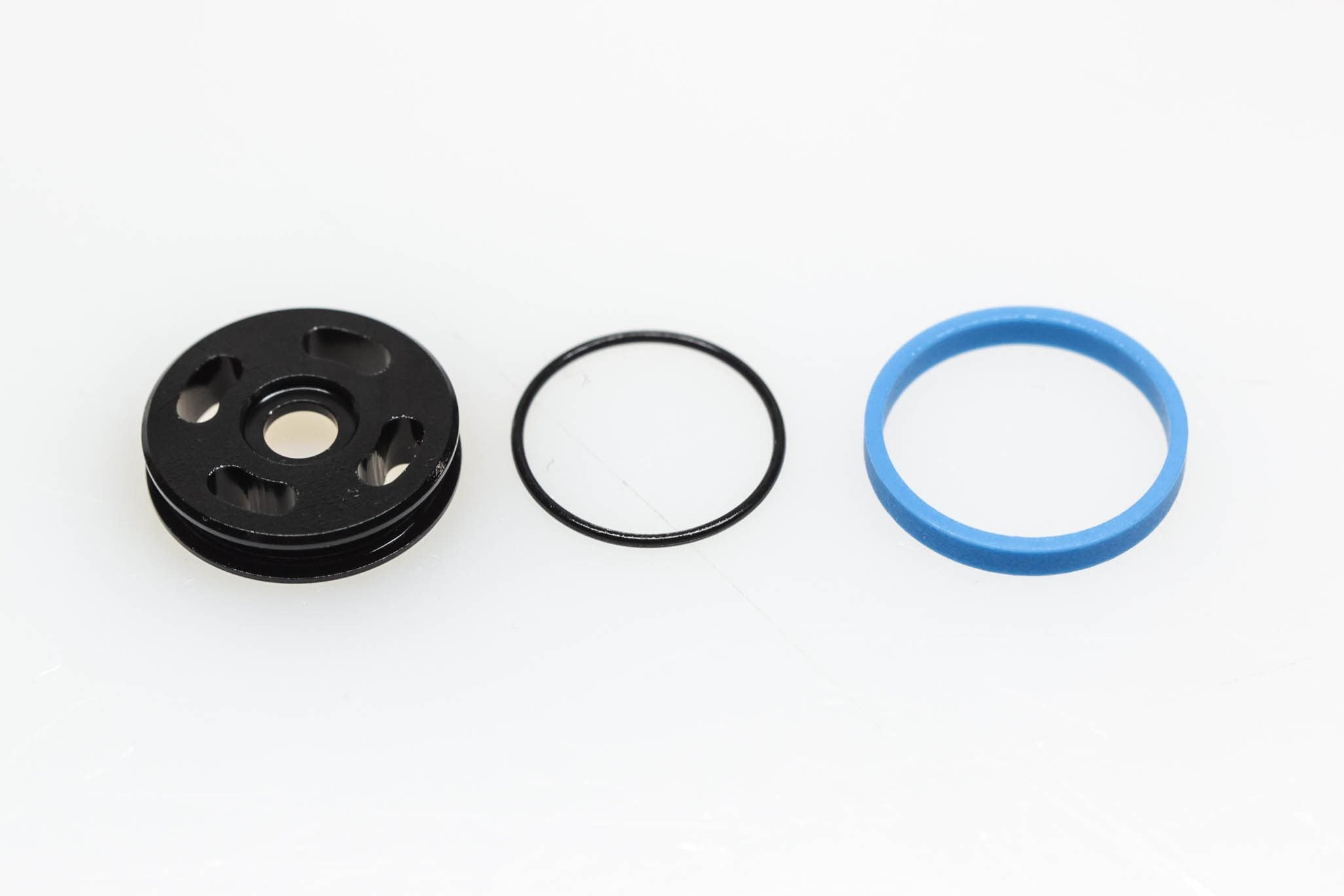

Piston, O-Ring & Band

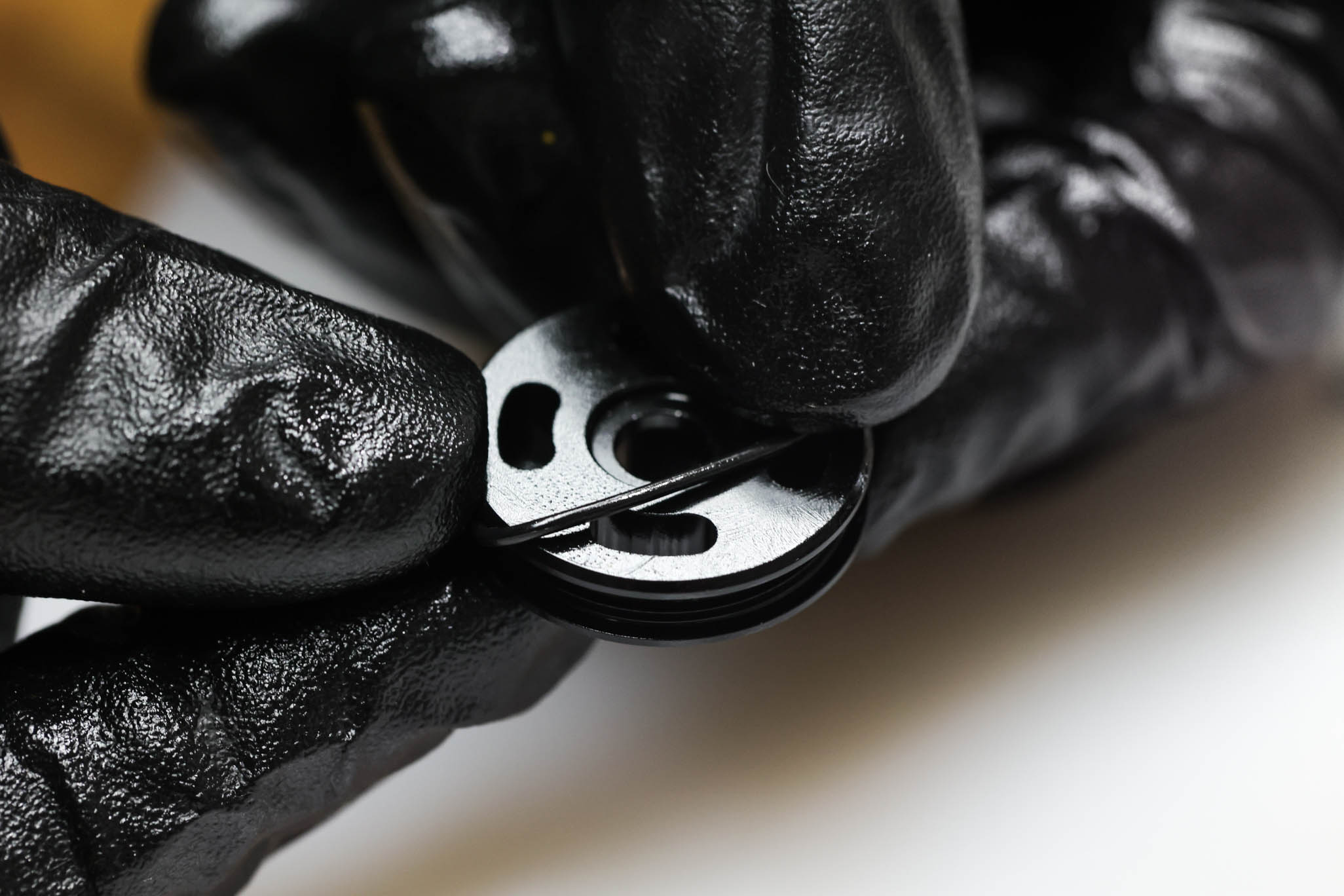

O-Ring Install on Piston

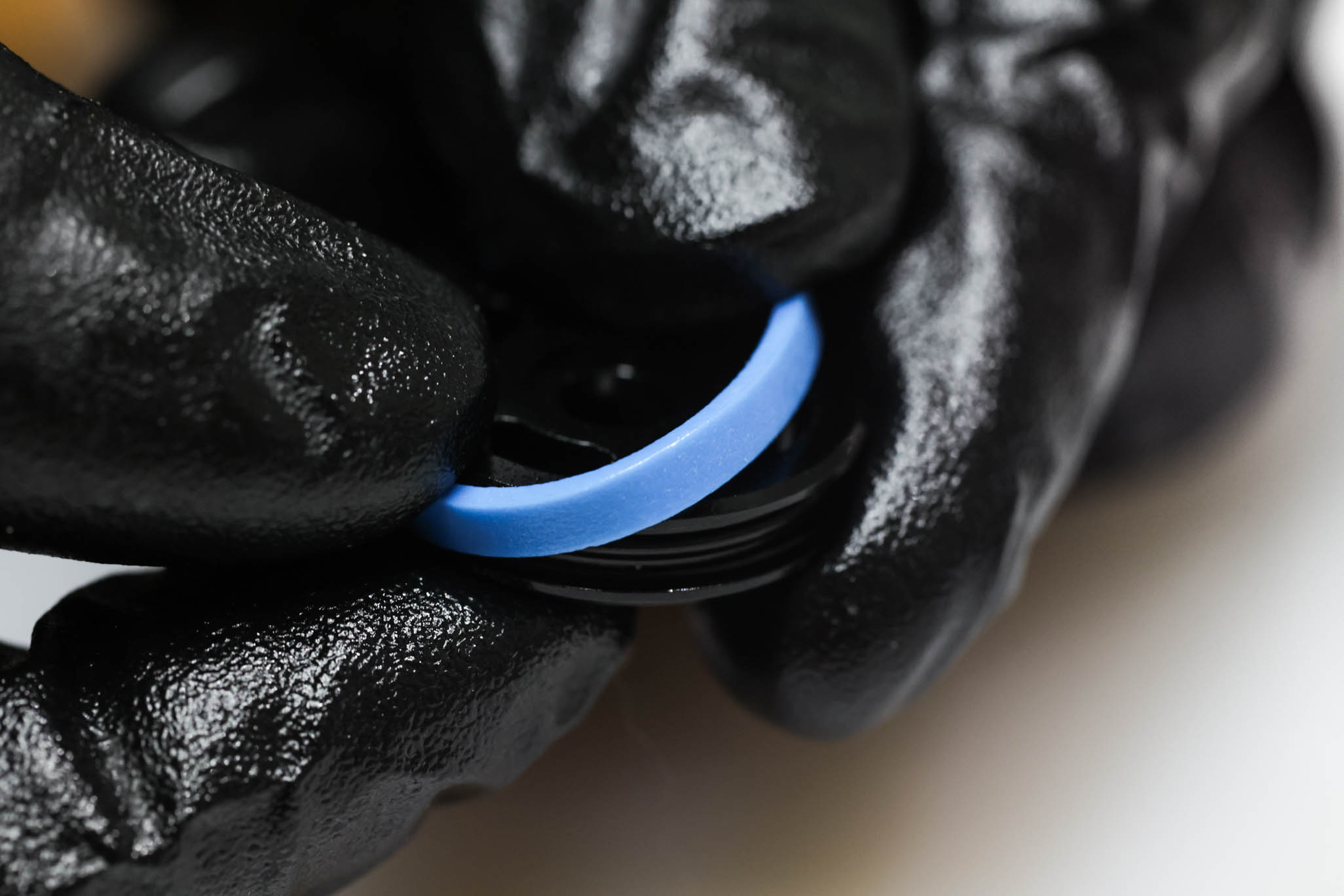

Band Install on Piston
Step 2 – Piston and Shim Stack Install
Reassemble shim stack, flipping face shim if necessary, and reinstall stop washer, shim stack and piston on shaft. Add one drop of blue Loctite (243) on the shaft threads. Install shaft bolt with T25. Torque to 5 Nm.
When installing the piston bolt, keep downward pressure on the piston with your other hand to prevent any Loctite from getting between the piston and face shim.
Piston and Shim Stack Orientation

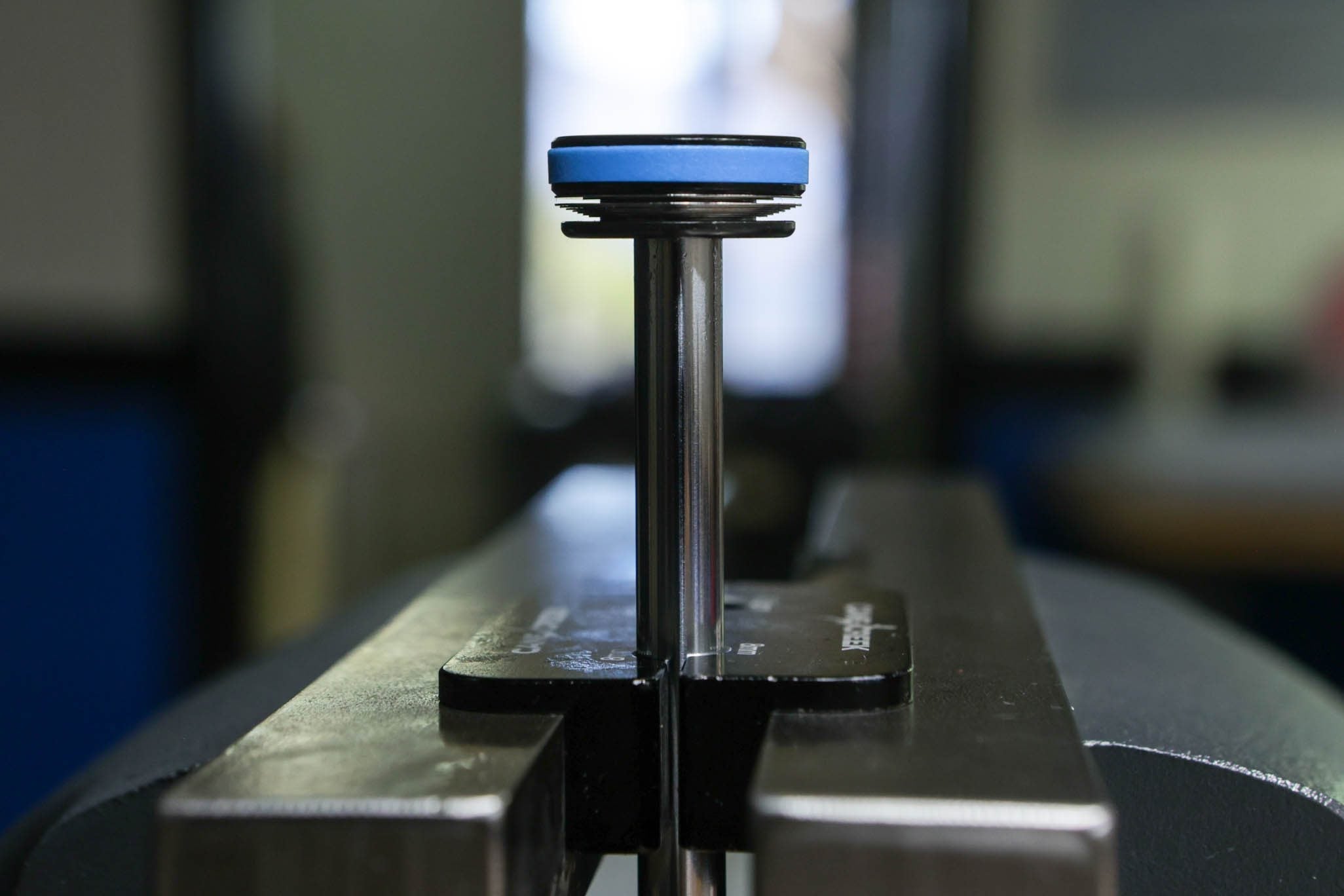

Piston & Shim Stack Installed

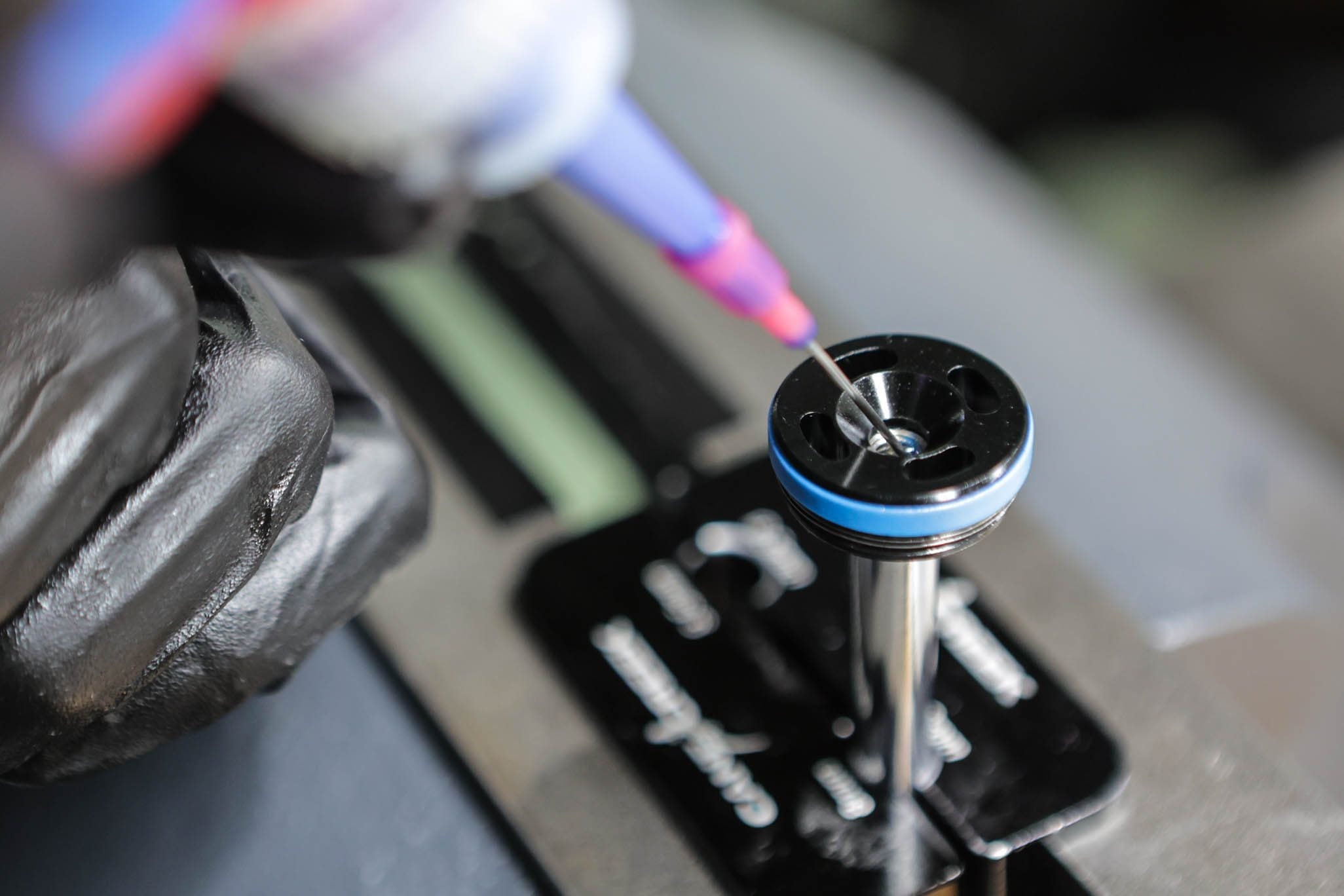

Apply Loctite to Shaft

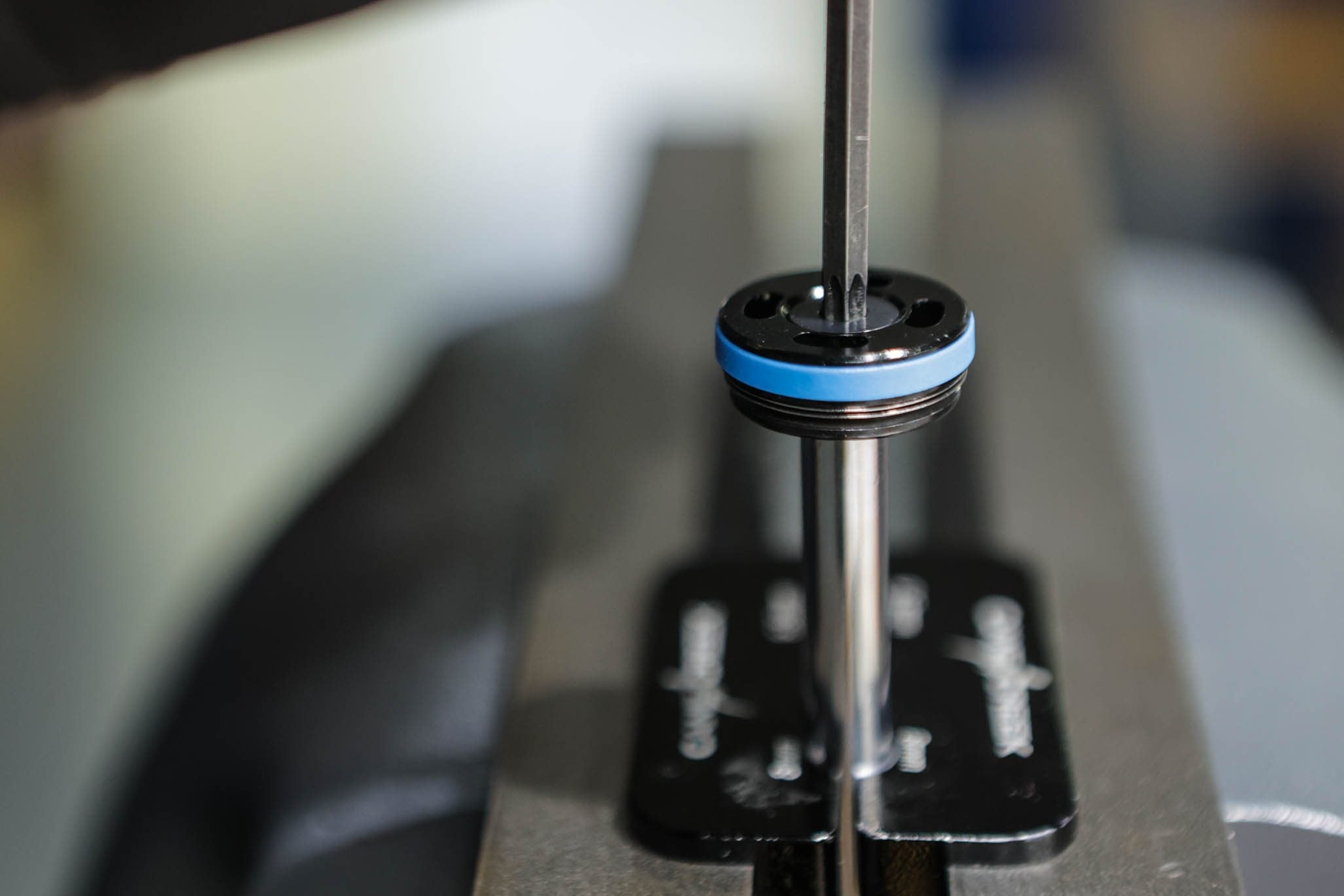

Install Shaft Bolt

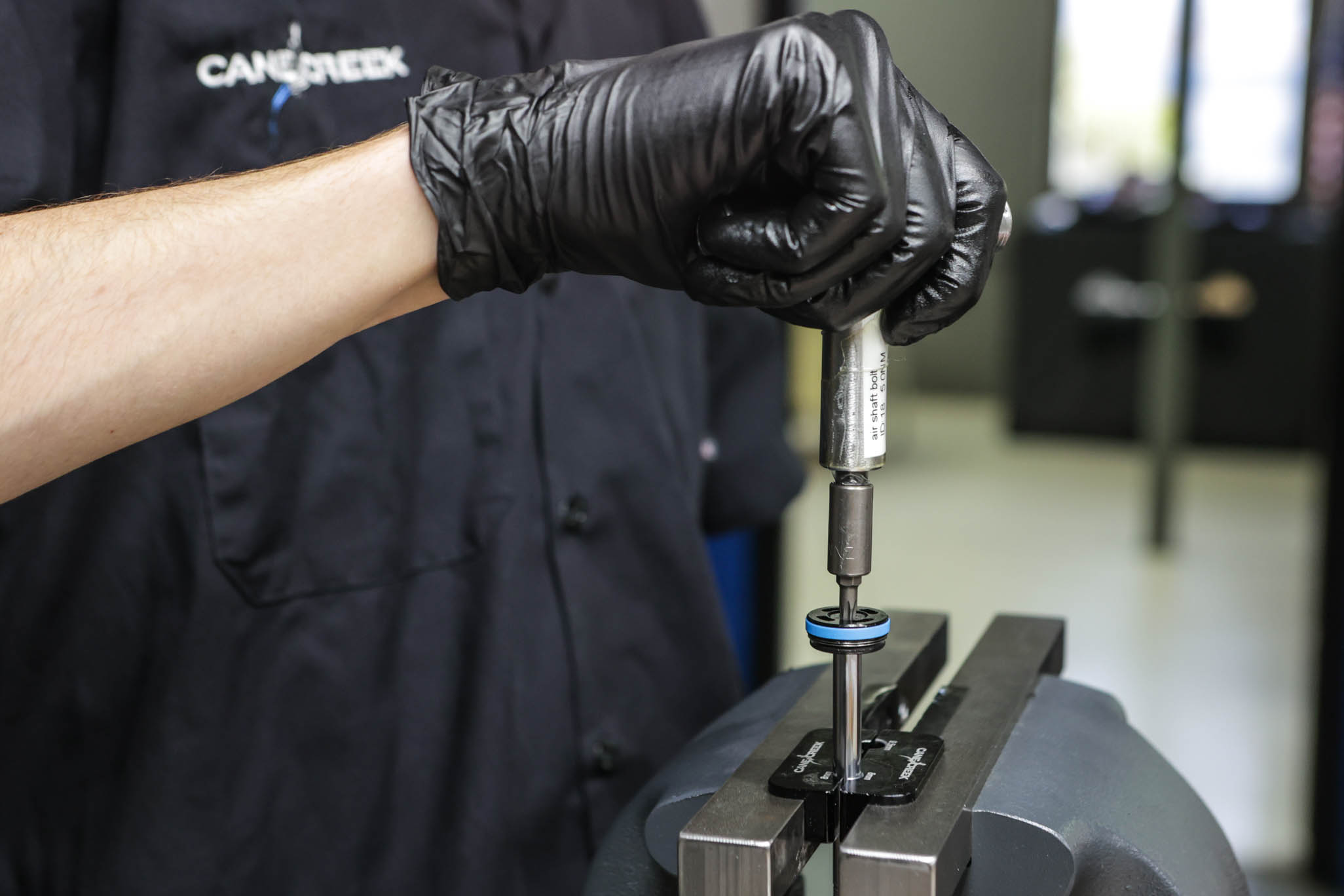

Torque Shaft Bolt

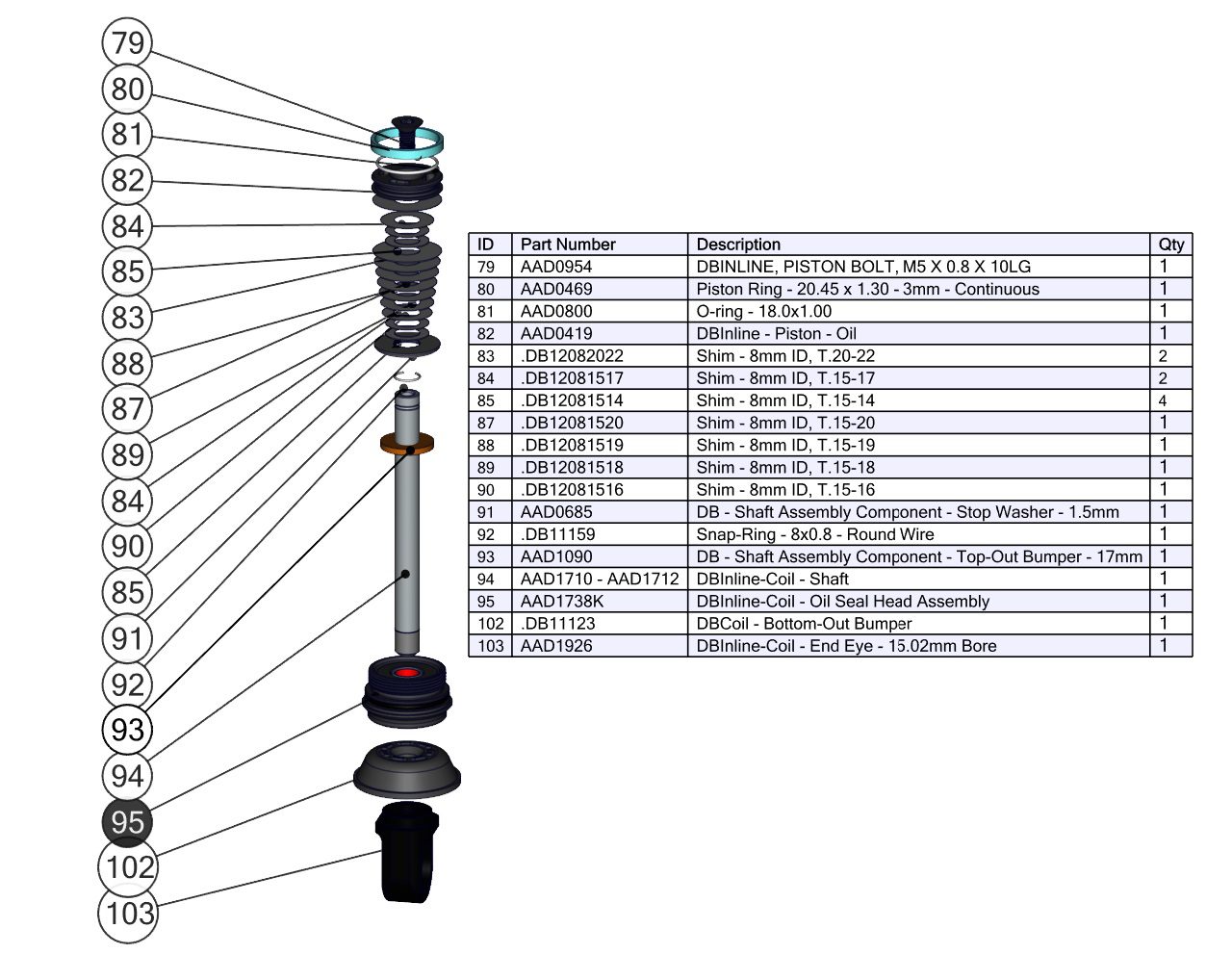

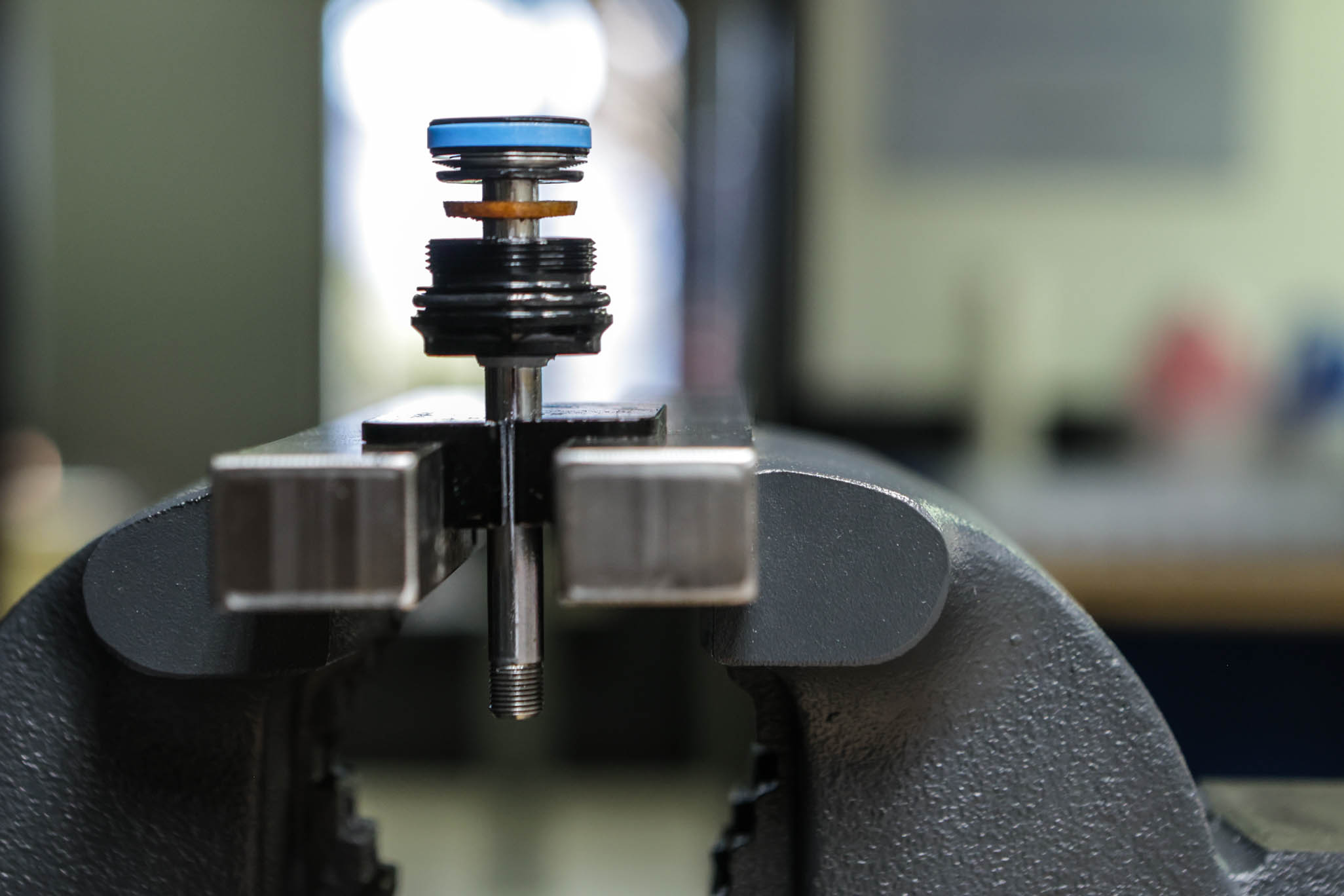

Complete Shaft Assembly
Step 3 – Top Out Bumper & Oil Seal Head Install
Grease the bushing and quad ring of oil seal head. If available, slide shaft cover (.DBT010 – discontinued) on shaft to cover threads only. Trim shaft cover to length if necessary. If cover not available, you can use tape to cover threads or simply take care installing seal head. Install new (AAD1090) top out bumper and new oil seal head (AAD2642). Remove any shaft thread covering.

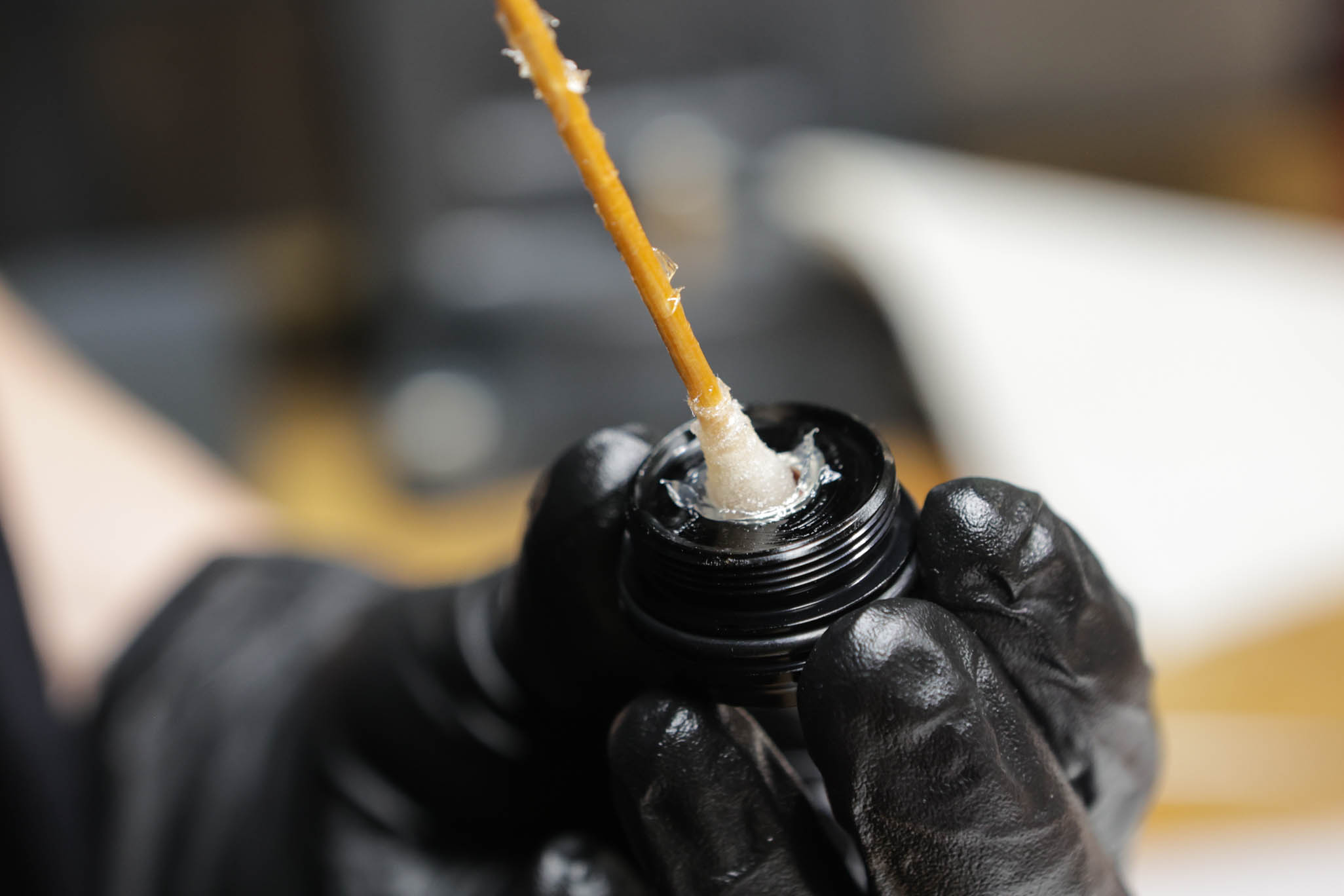

Greasing Oil Seal Head

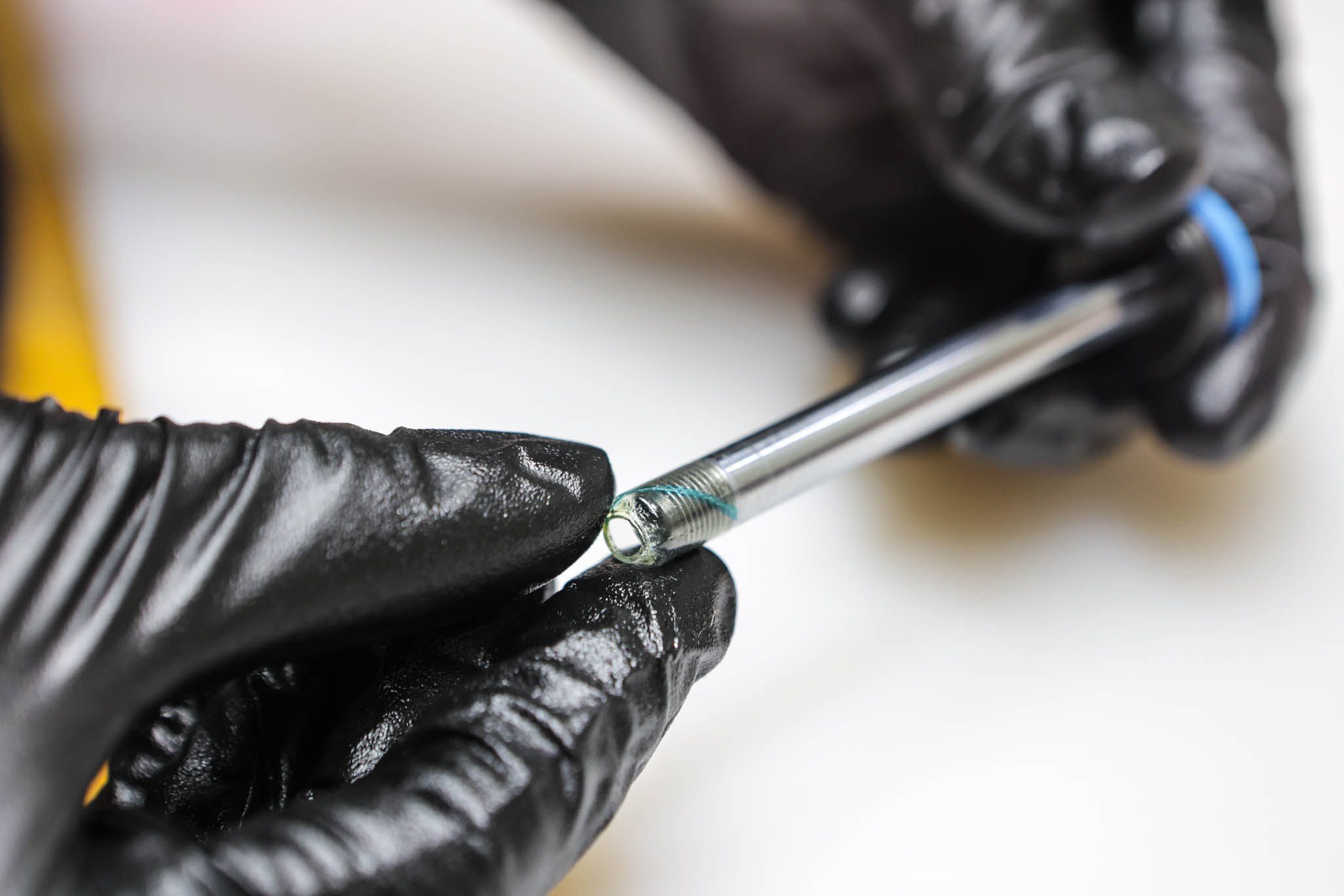

Shaft Cover Install (if available)

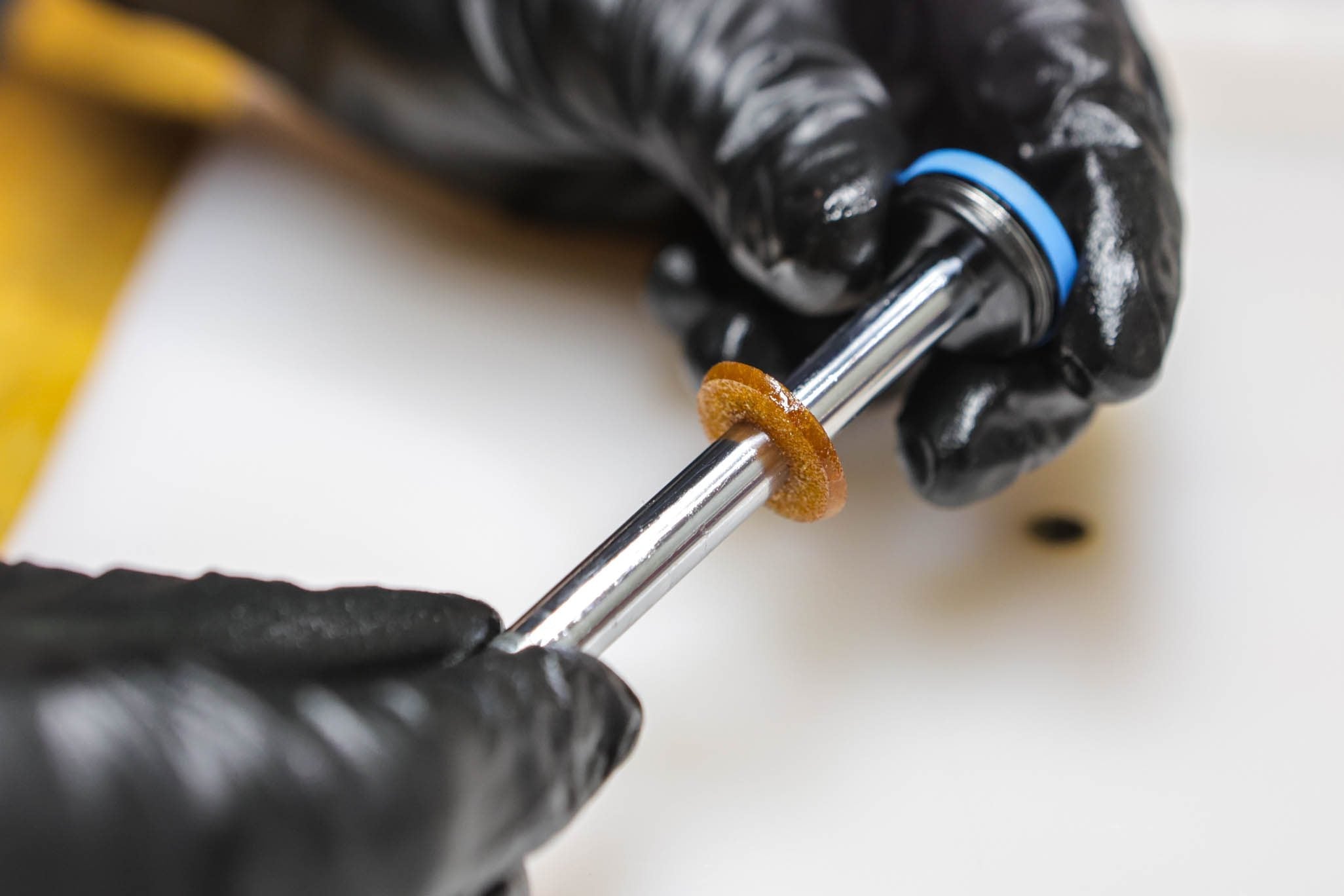

Top Out Bumper Installed

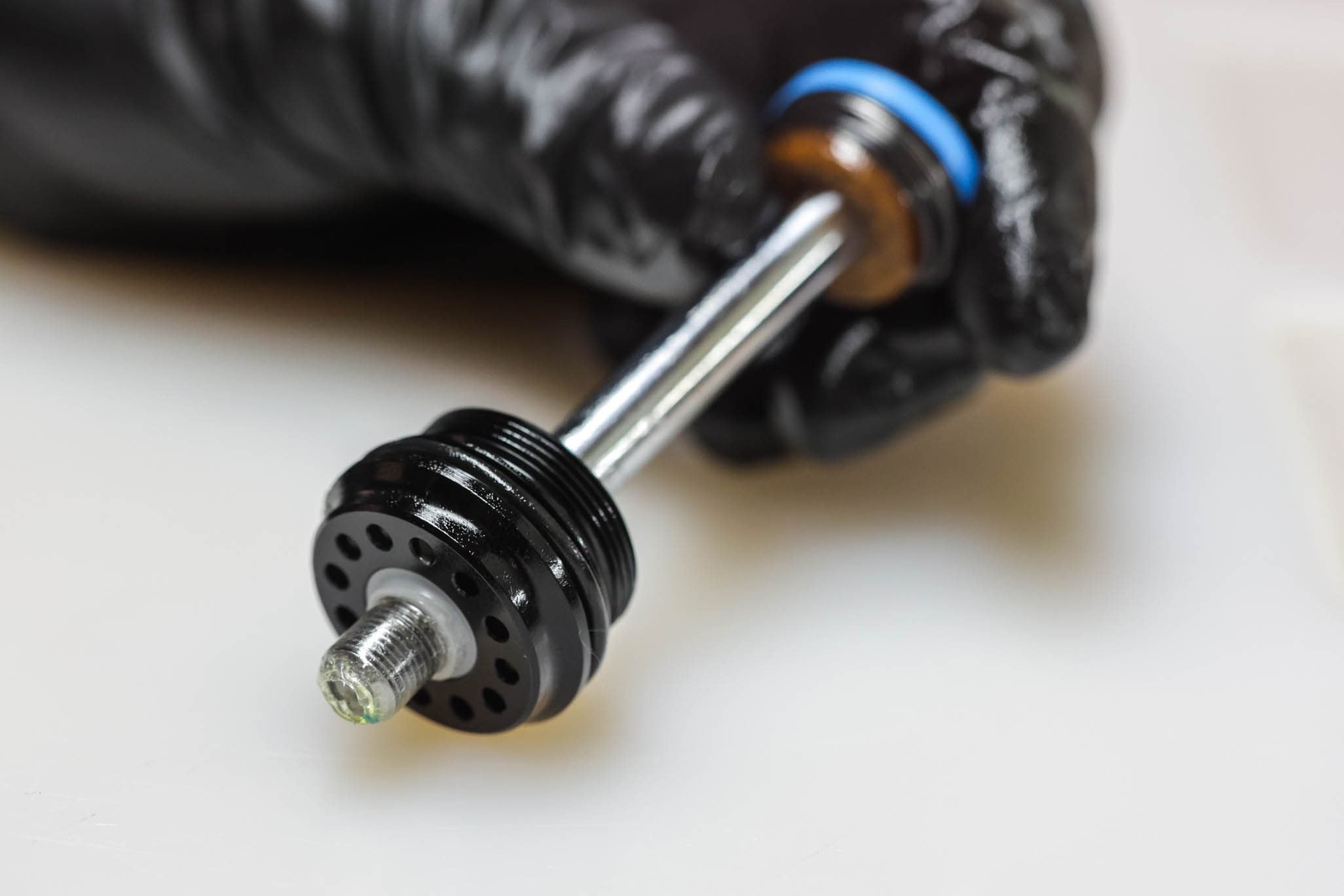

Oil Seal Head Installed
Complete Shaft Assembly
TSN Reassembly (if required)
Step 1 – Prepping TSN Springs, Pistons & Poppets
If TSN spring tail is bent, trim the spring to remove damaged end. Surface piston and poppet if necessary using a surfacing block or high grit sandpaper.
TSN Spring - Good vs. Bad

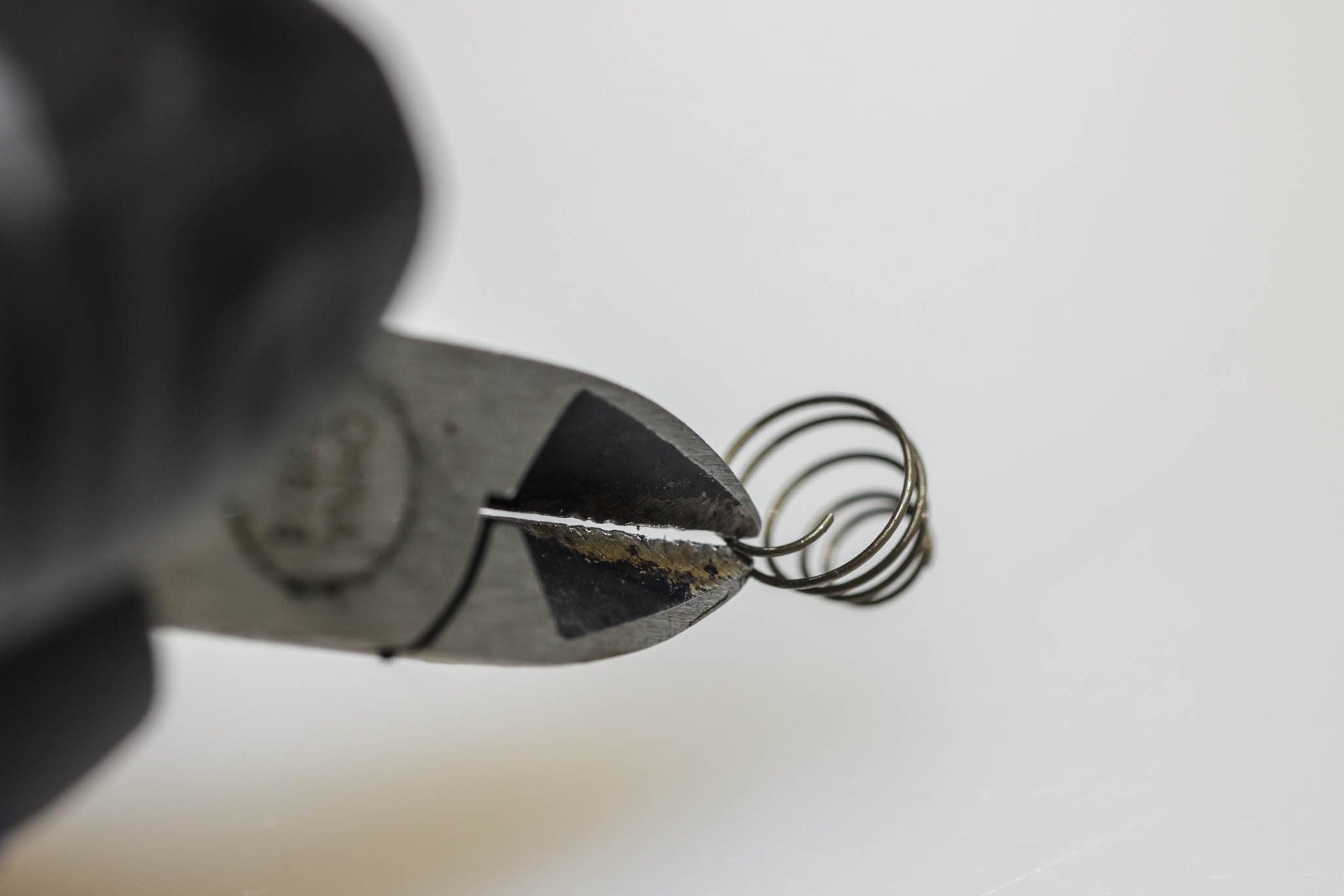

Trimming Bent TSN Spring

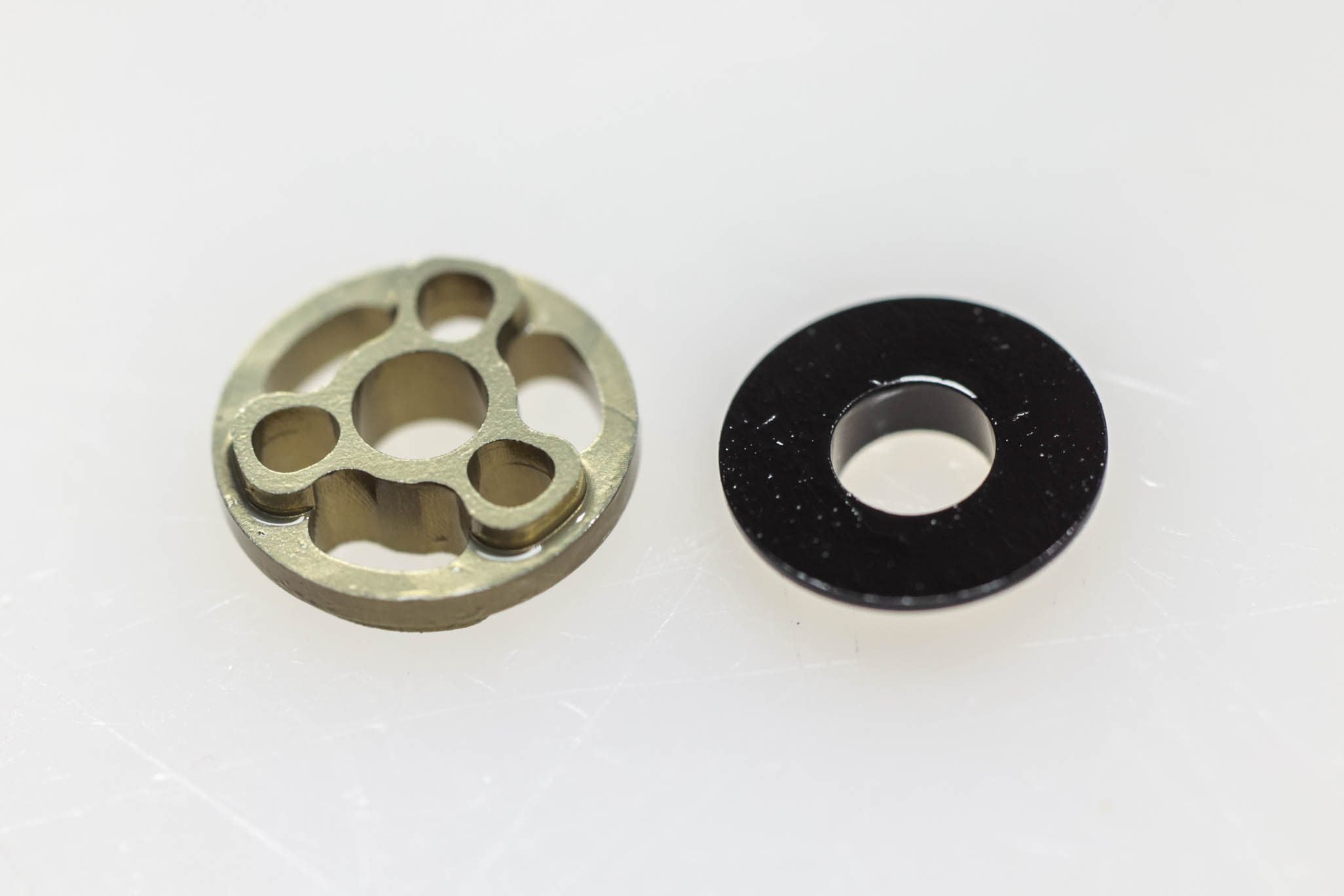

TSN Piston & Poppet

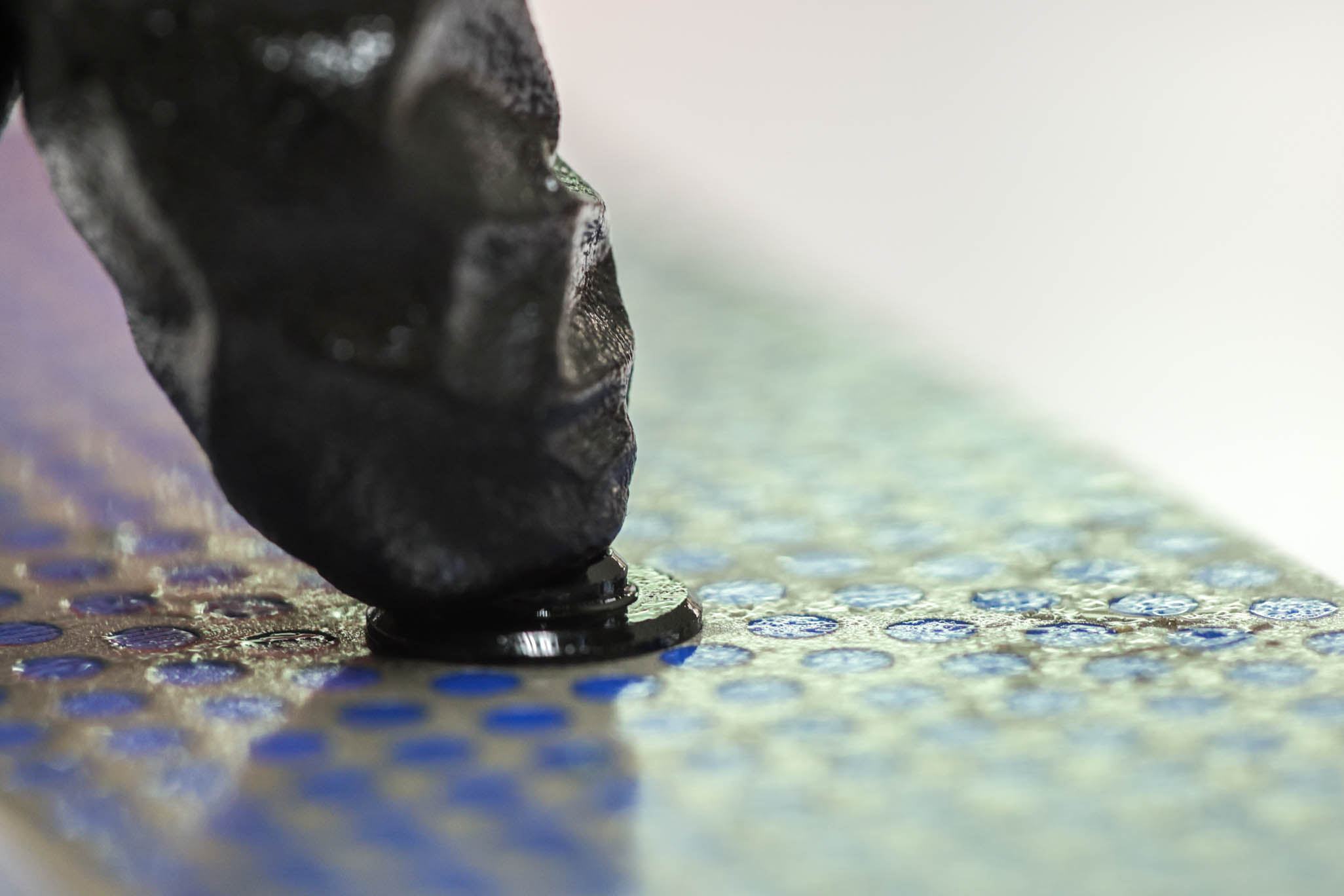

Resurfacing TSN Piston & Poppet
Step 2 – Rebound TSN Reassembly
Rebound TSN stem has a small bleed port. Reinstall poppet, piston, and shim, noting the correct orientation for rebound: On piston, small ports face poppet; large ports face shim. Thread spring onto stem.
TSB010 – DB COIL IL Rebound piston orientation

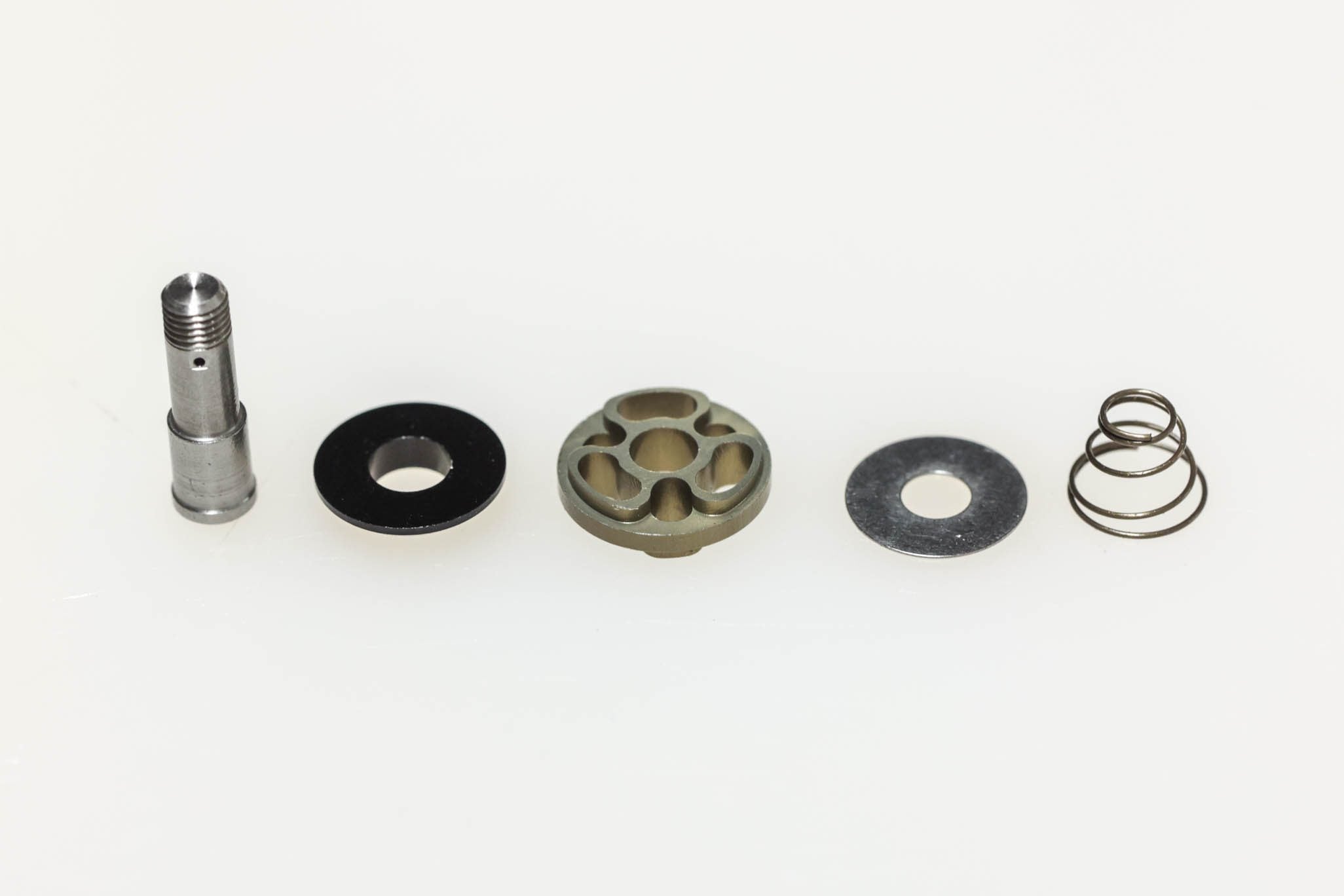

TSN Rebound Side Disassembled

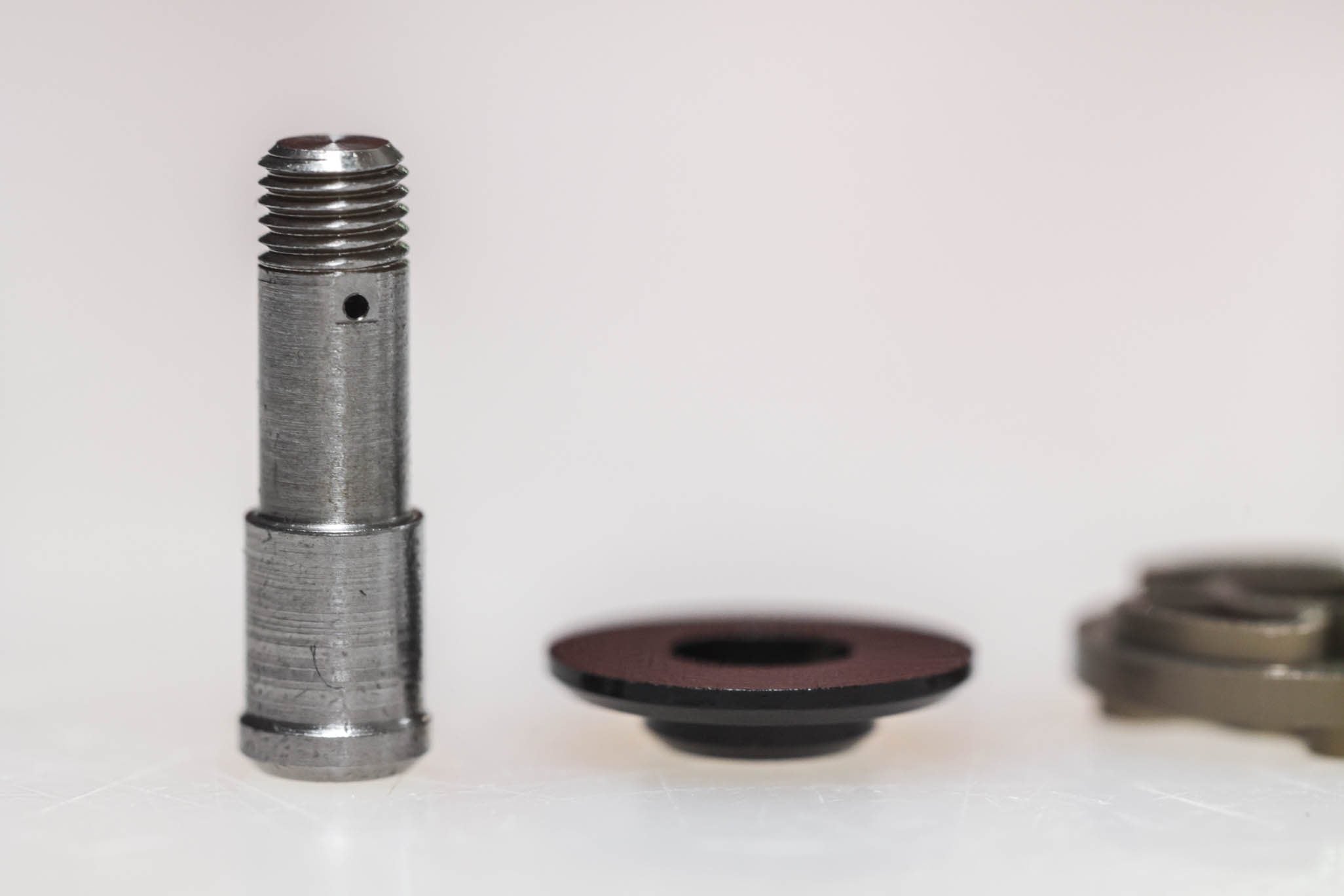

TSN Rebound Stem w/ Port

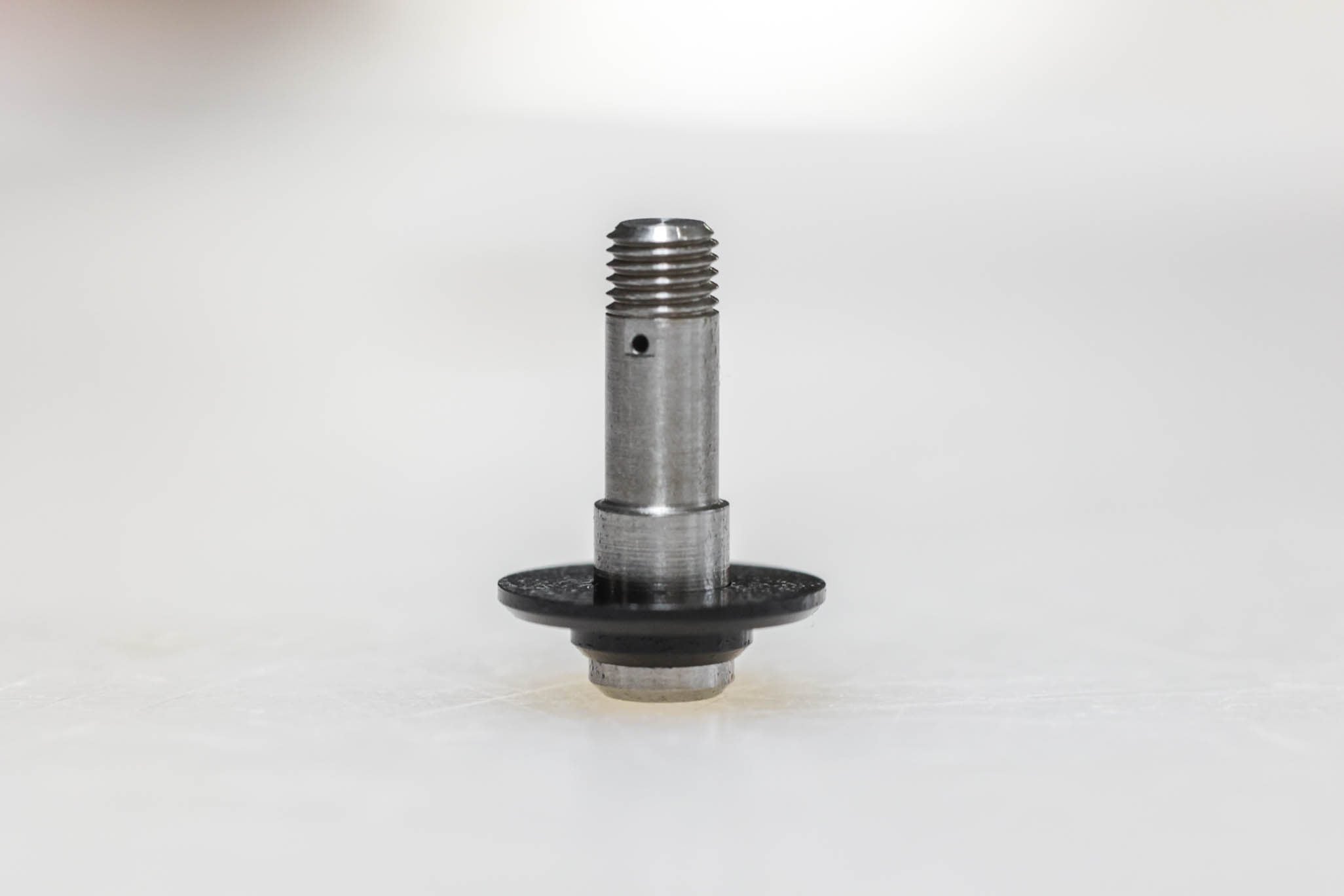

TSN Rebound Stem w/ Poppet Installed

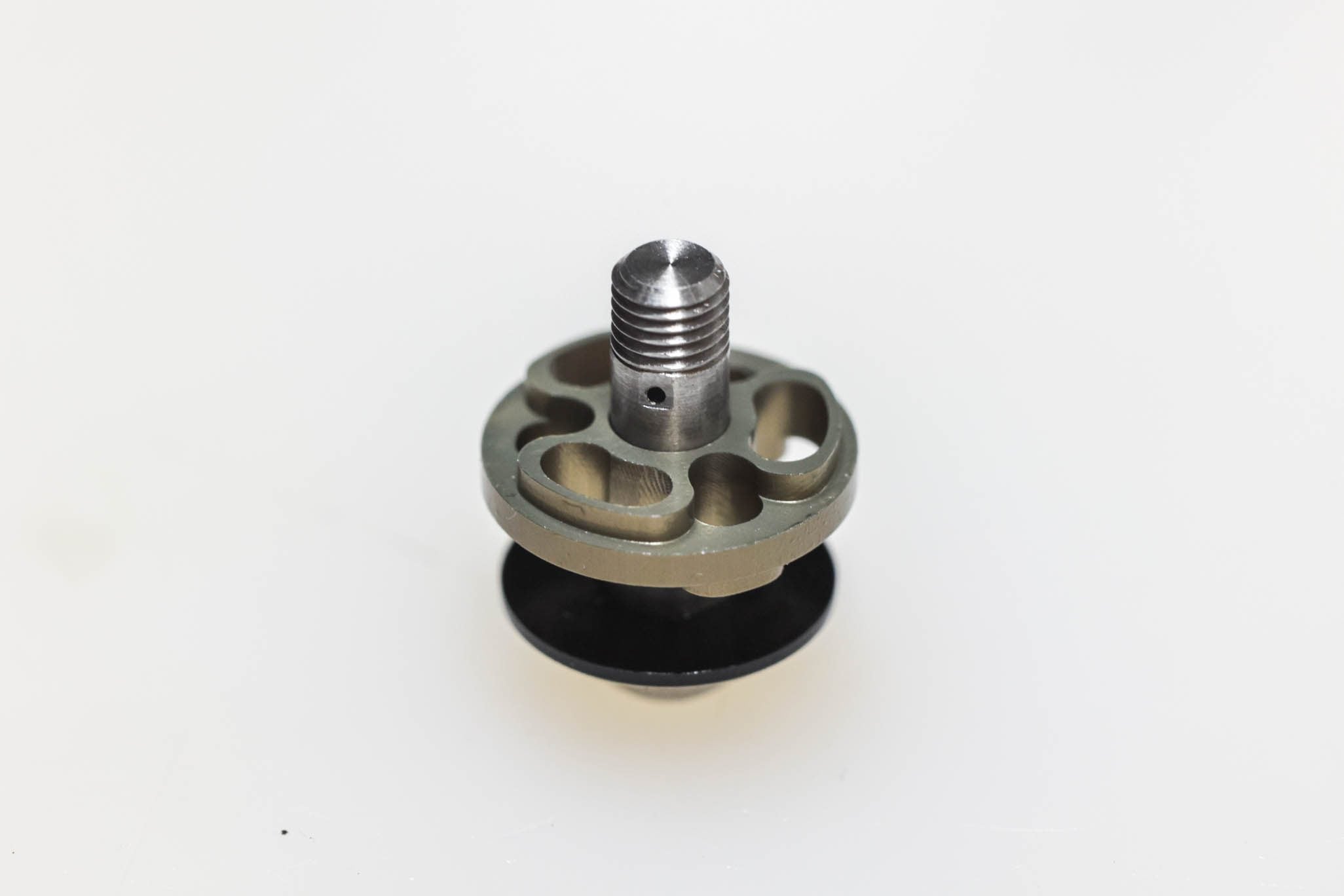

TSN Rebound Stem w/ Piston Installed

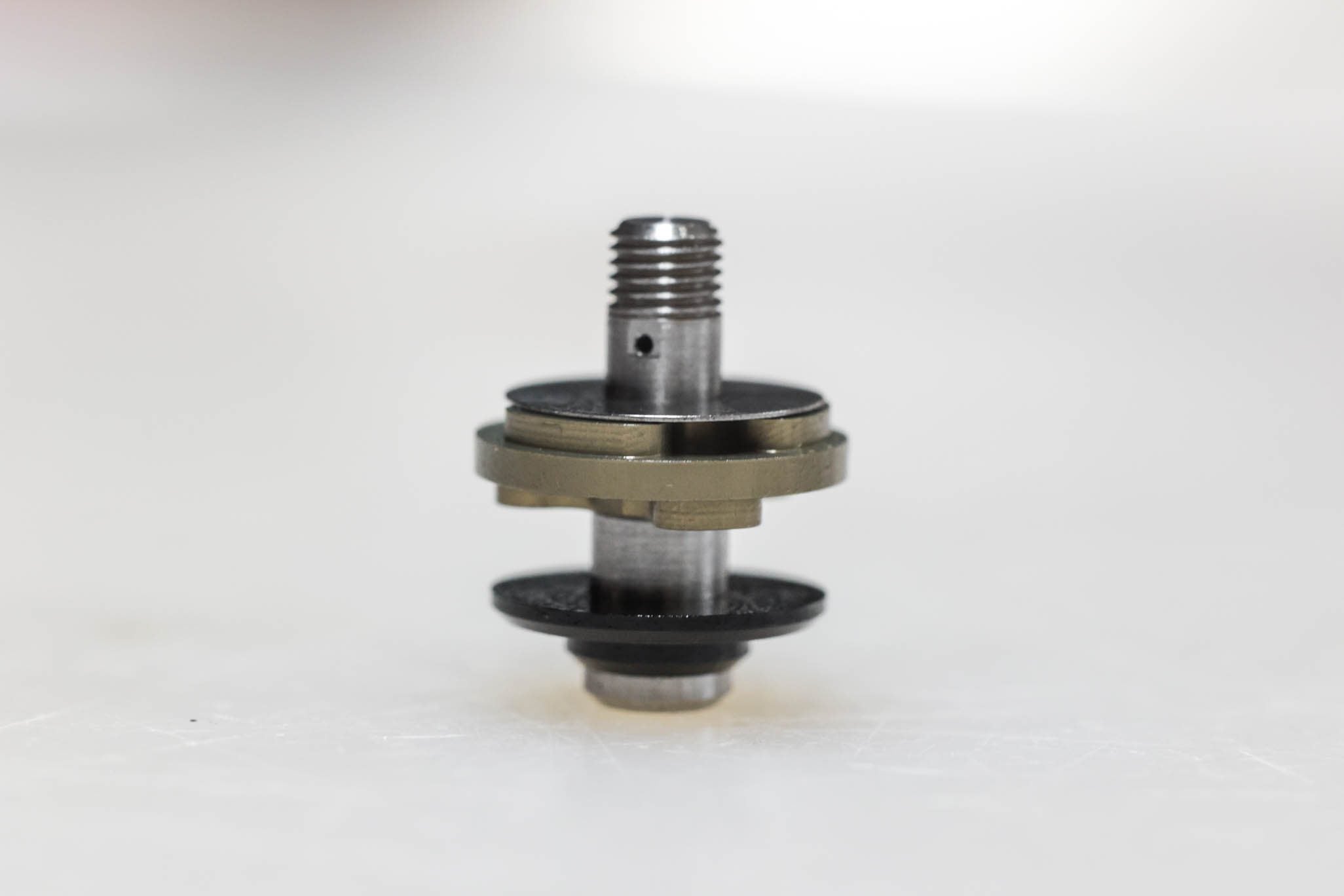

TSN Rebound Stem w/ Shim Installed

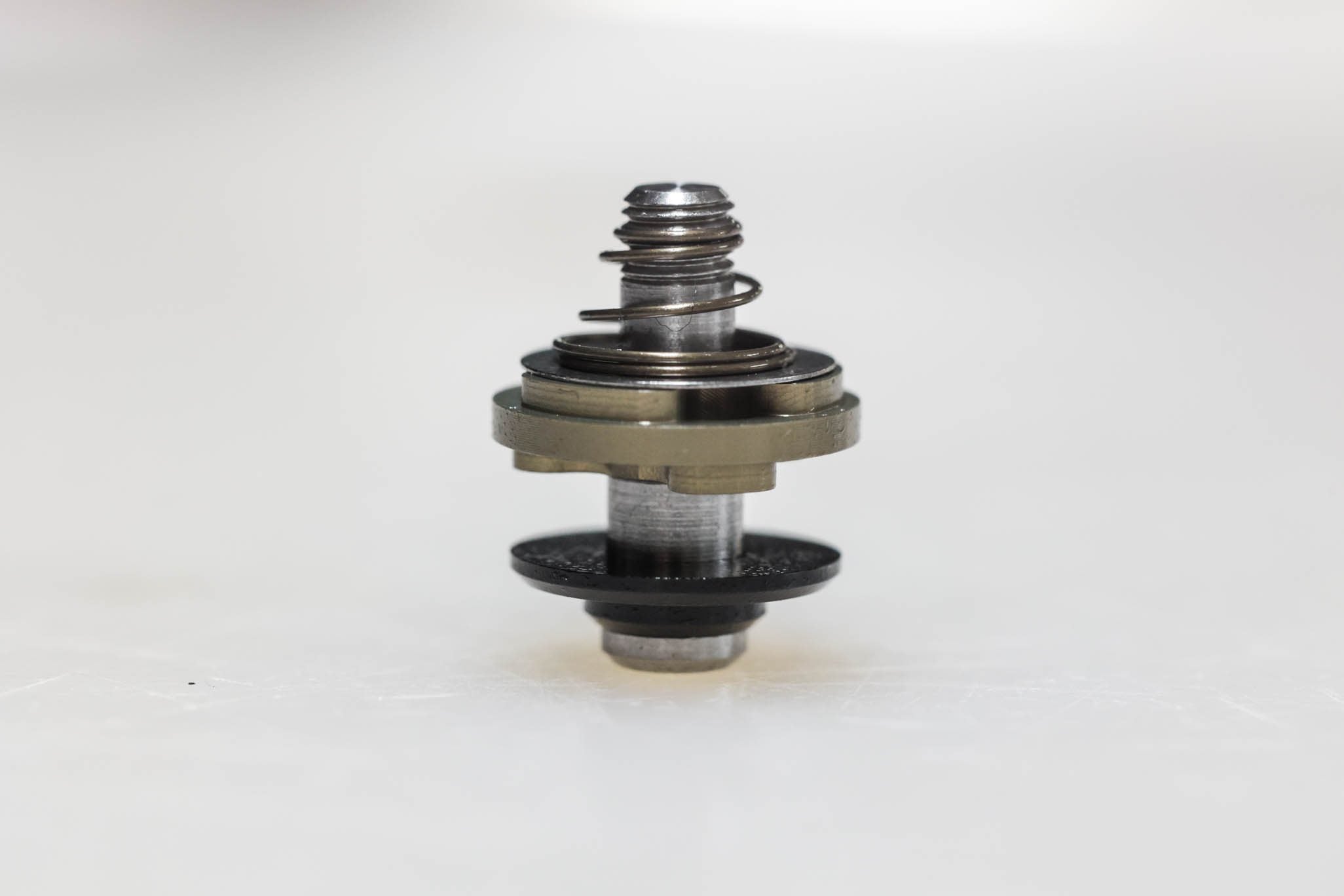

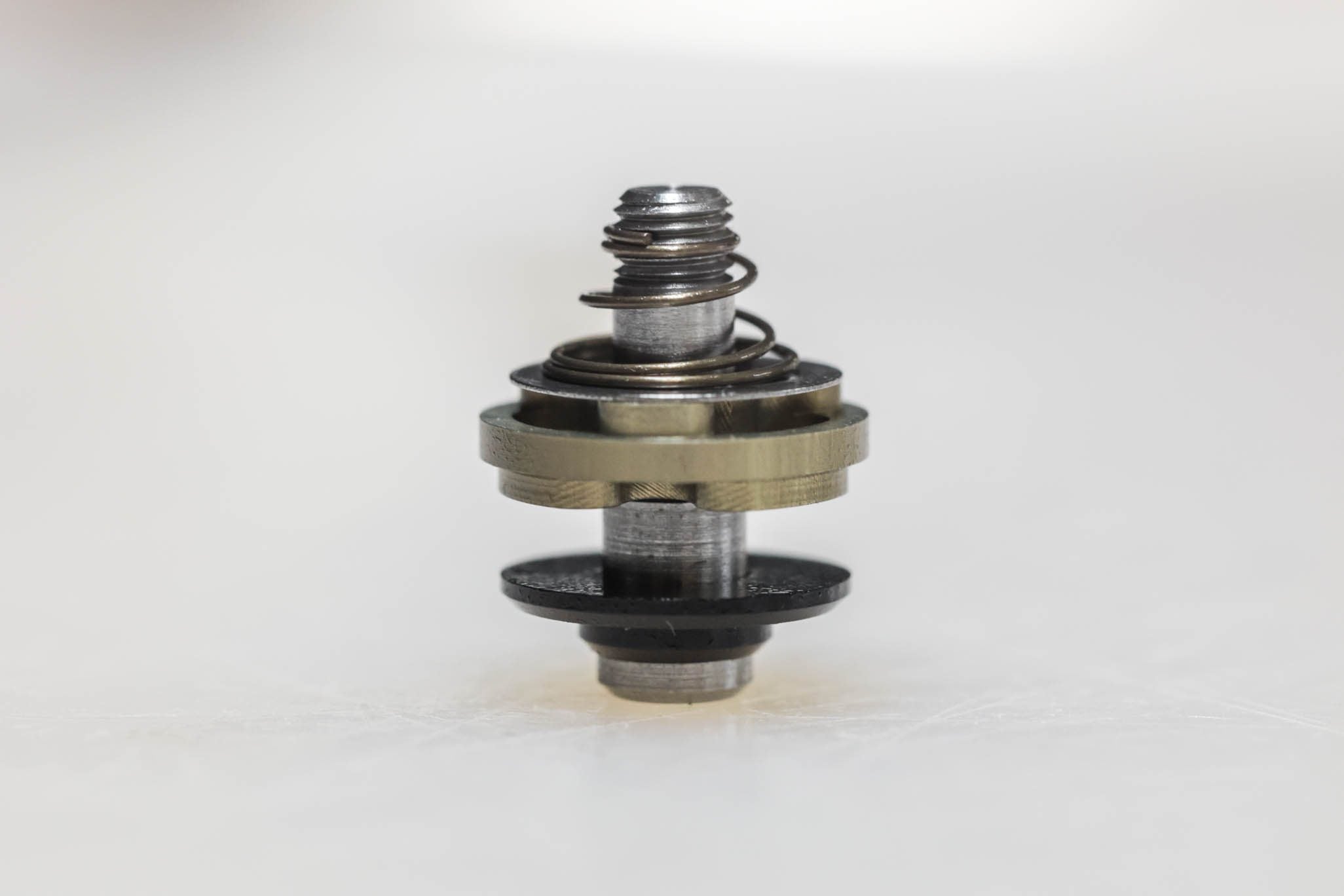

TSN Rebound Stem w/ Spring Installed
Step 3 – Compression TSN Reassembly
Compression TSN stem has no bleed port. Reinstall poppet, piston, and shim, noting the correct orientation for compression: On piston, large ports face poppet; small ports face shim. Thread spring onto stem.

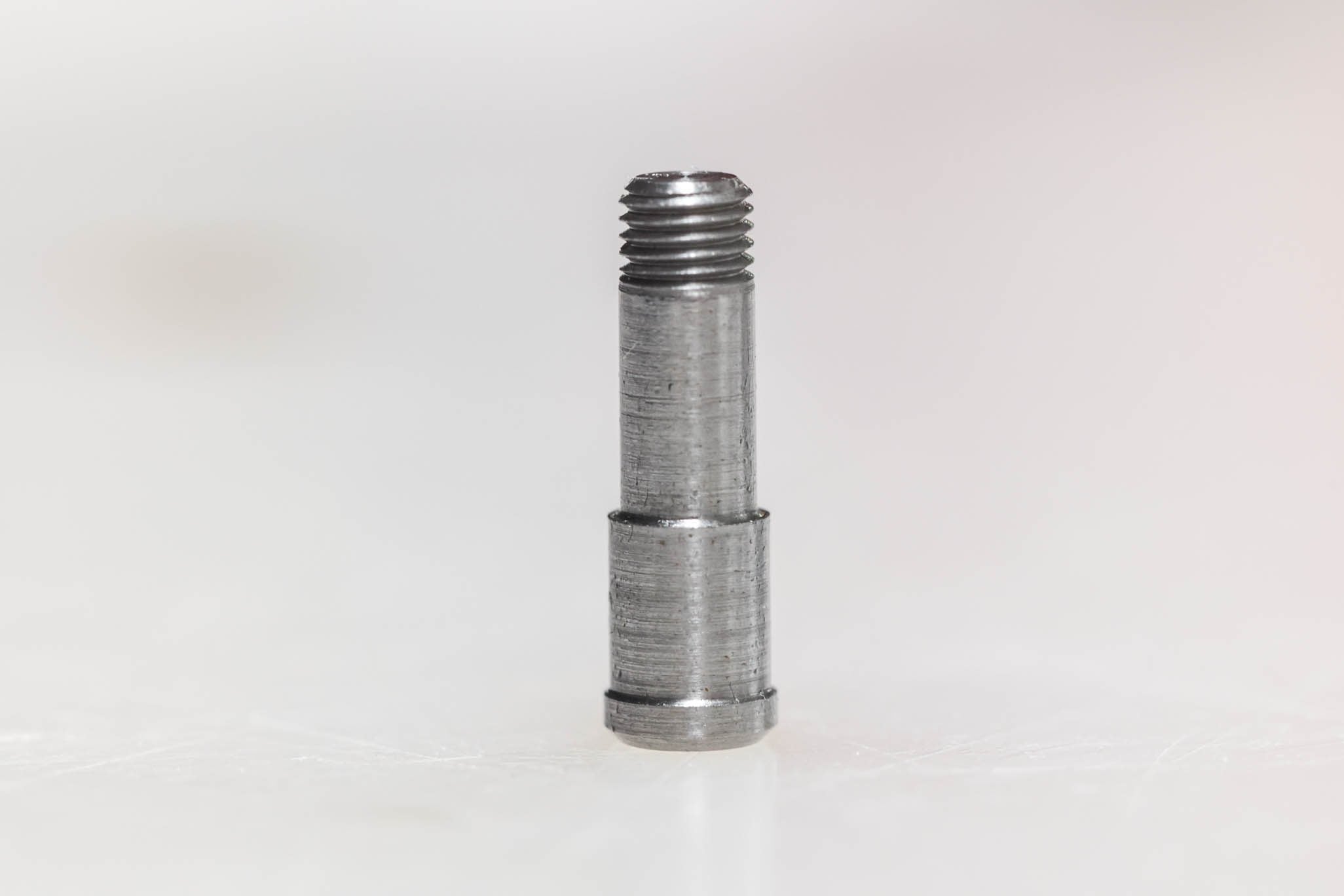

TSN Compression Stem w/o Port

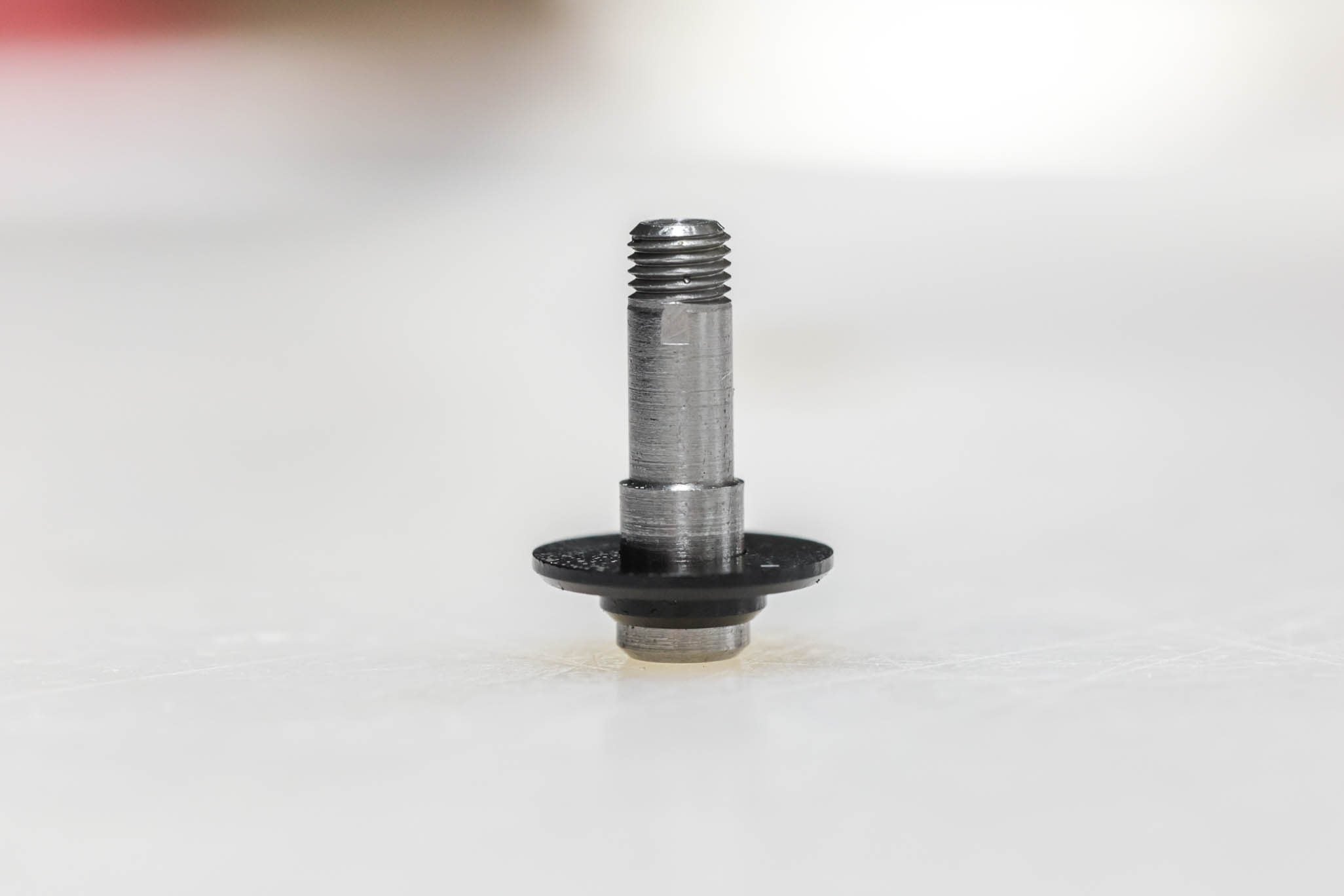

TSN Compression Stem w/ Poppet Installed

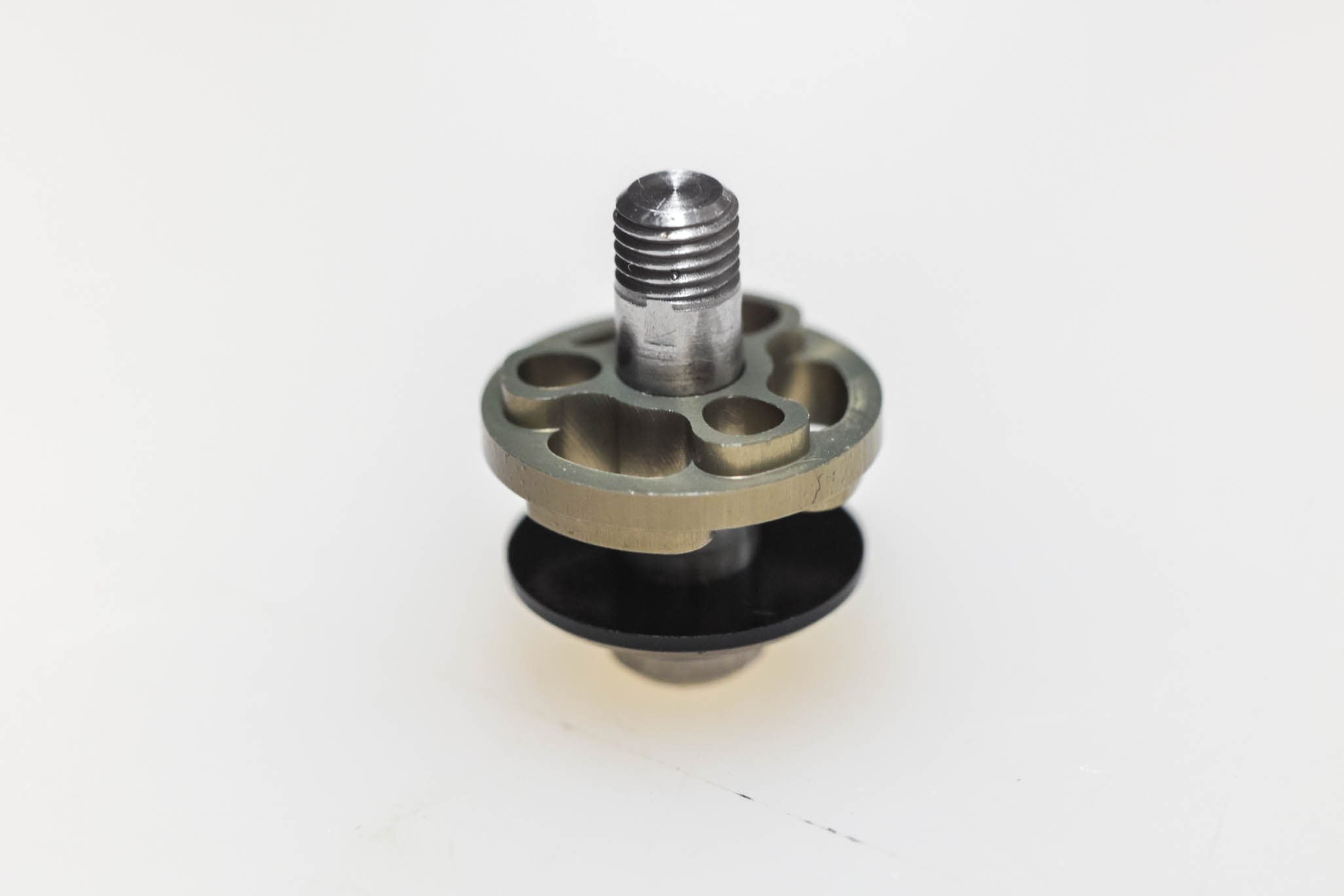

TSN Compression Stem w/ Piston Installed

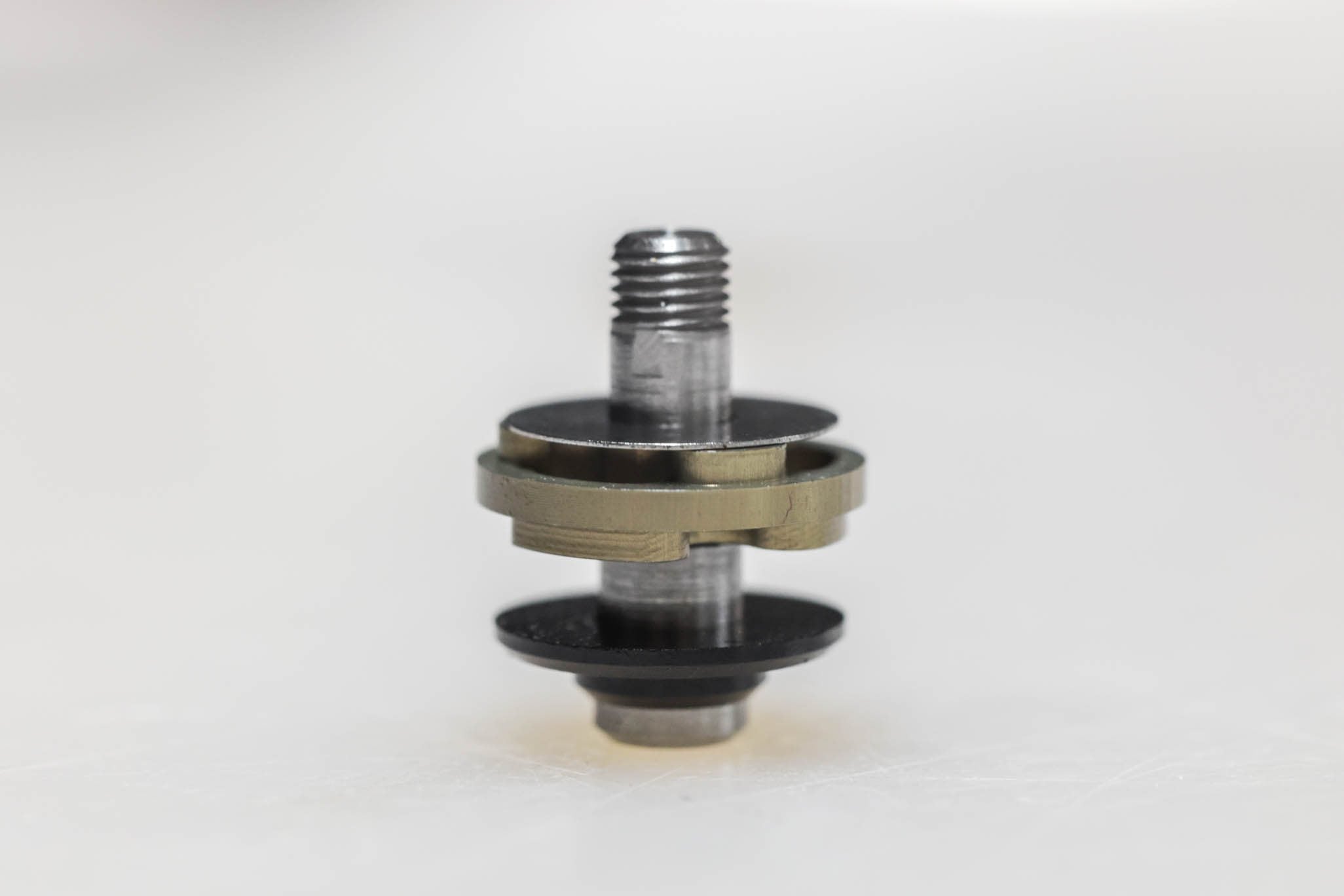

TSN Compression Stem w/ Shim Installed
TSN Compression Stem w/ Spring Installed
Step 4 – TSNs into Valve Body Install
With a straight pick apply a small amount of green Loctite (668) to TSN threads in valve body. Install TSNs ensuring the correct TSN is installed on the correct side of valve body. Torque to 0.6 Nm with T15.

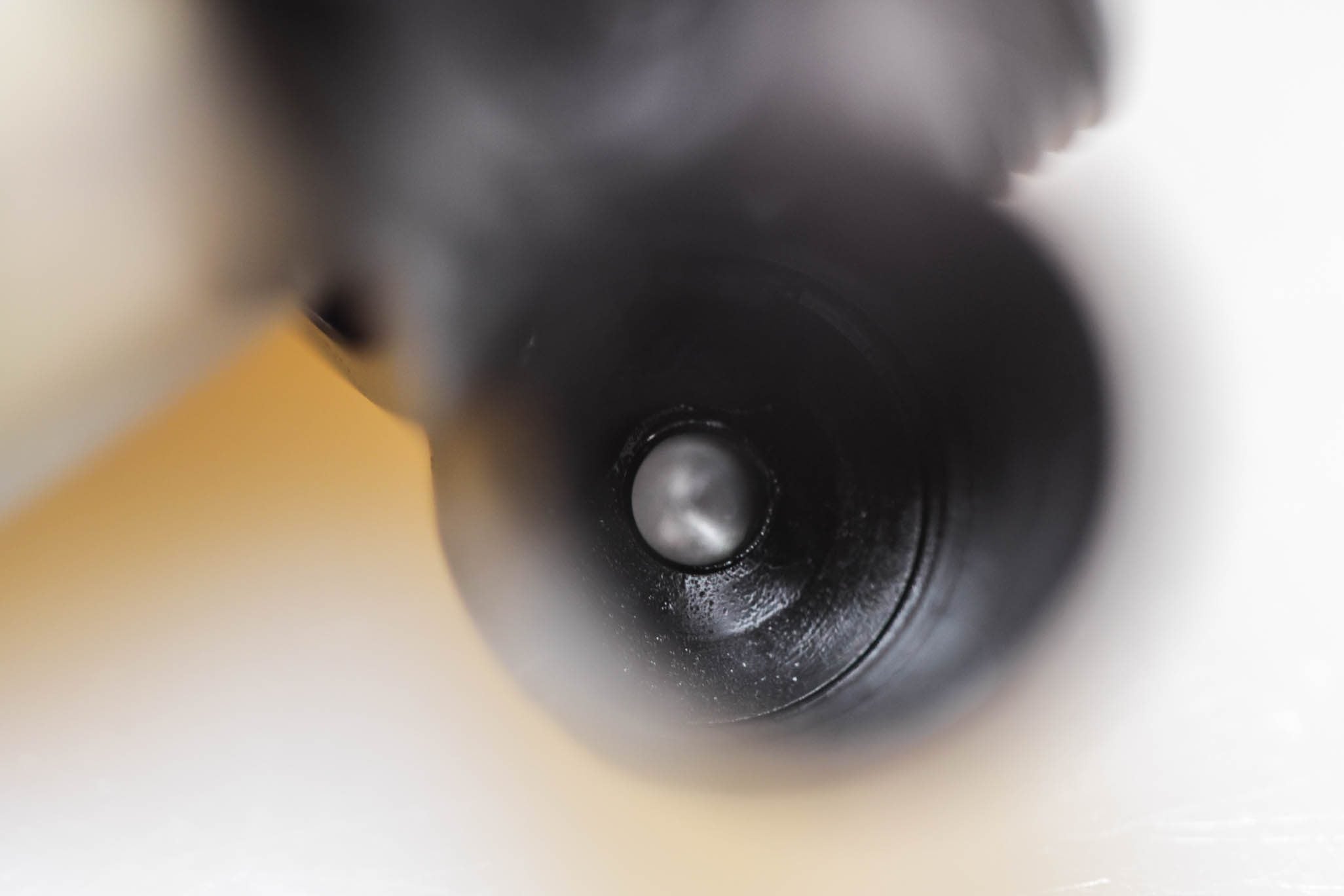

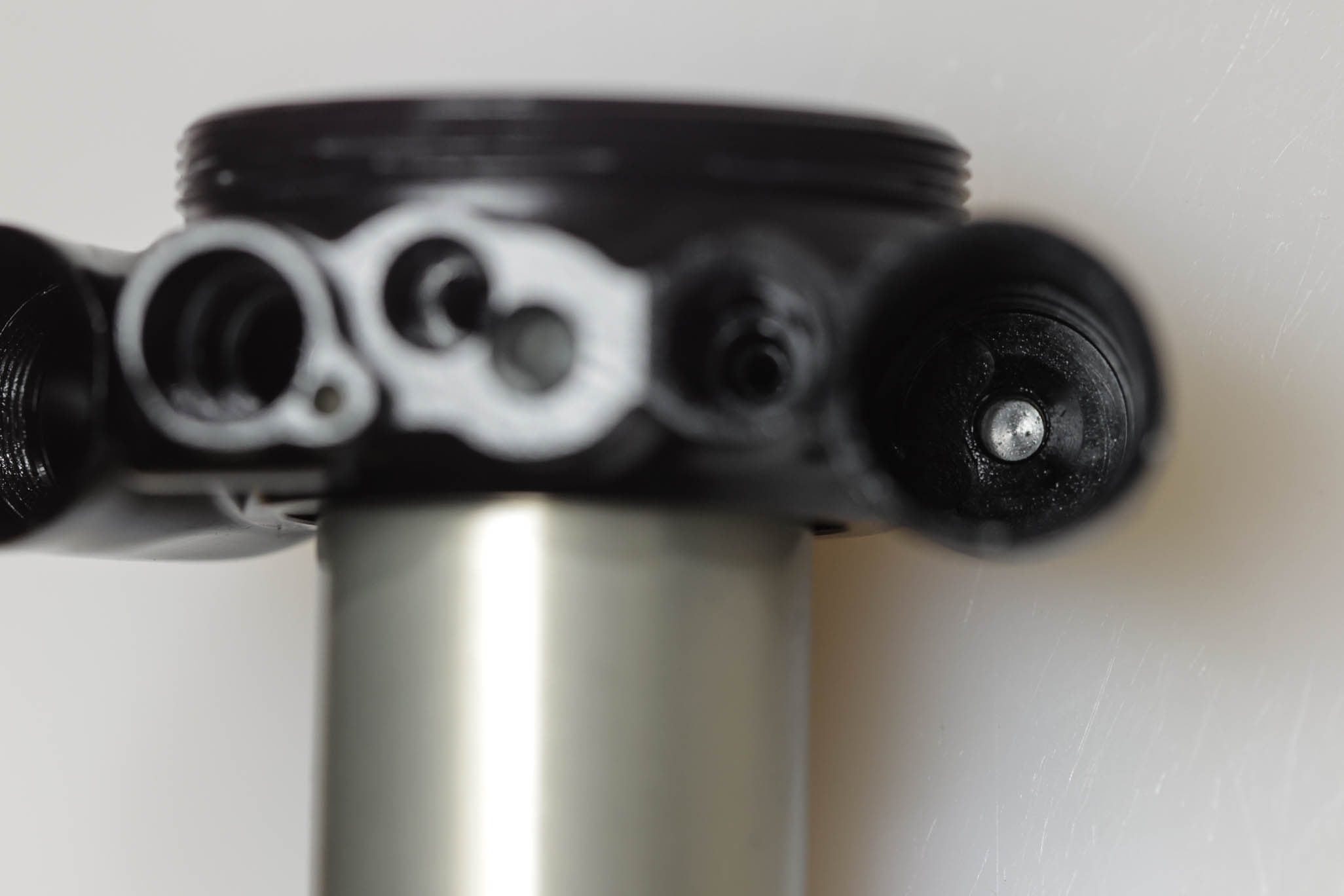

TSN Seat in Valve Body
TSN Seat in Valve Body - Close-Up

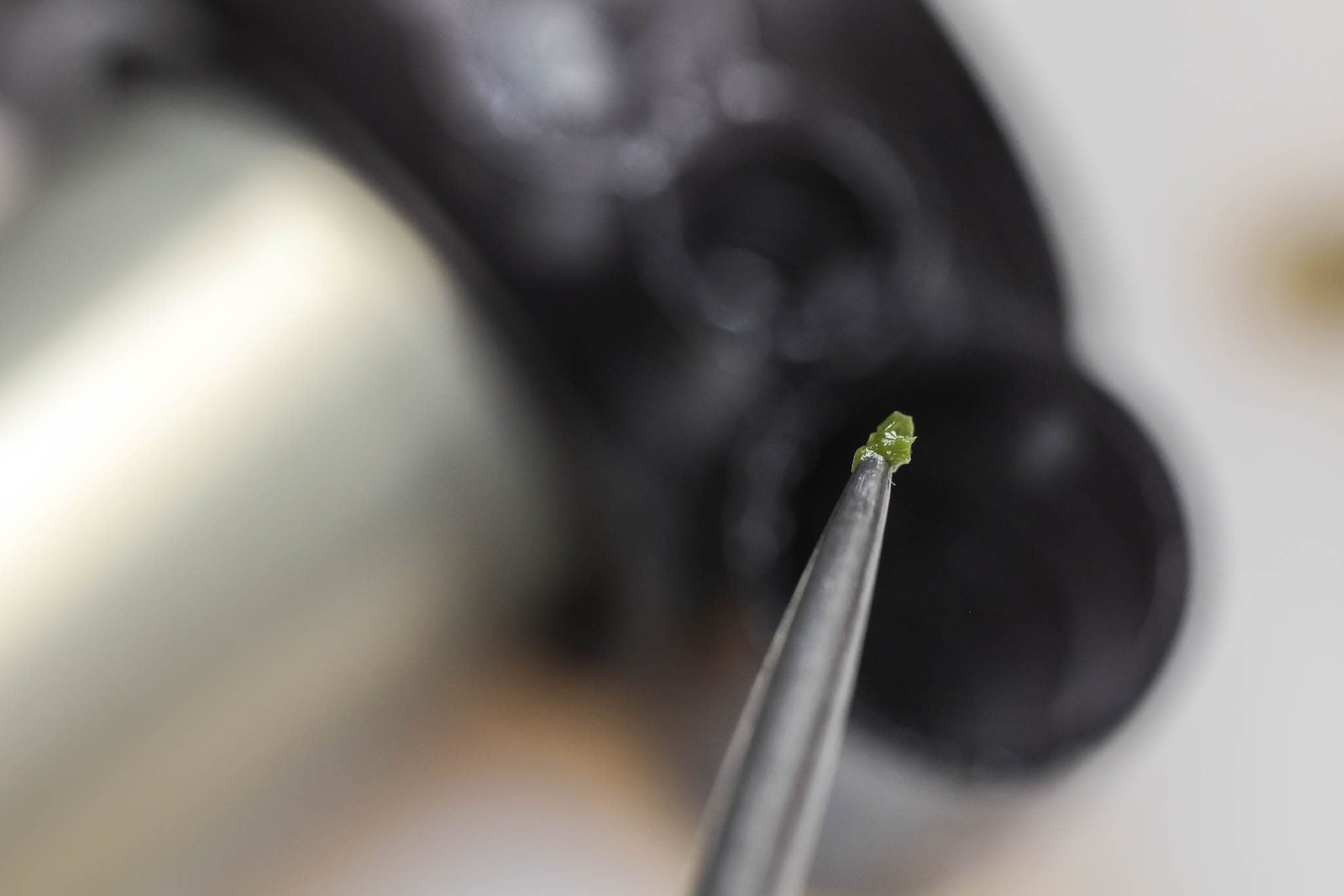

Loctite on Pick

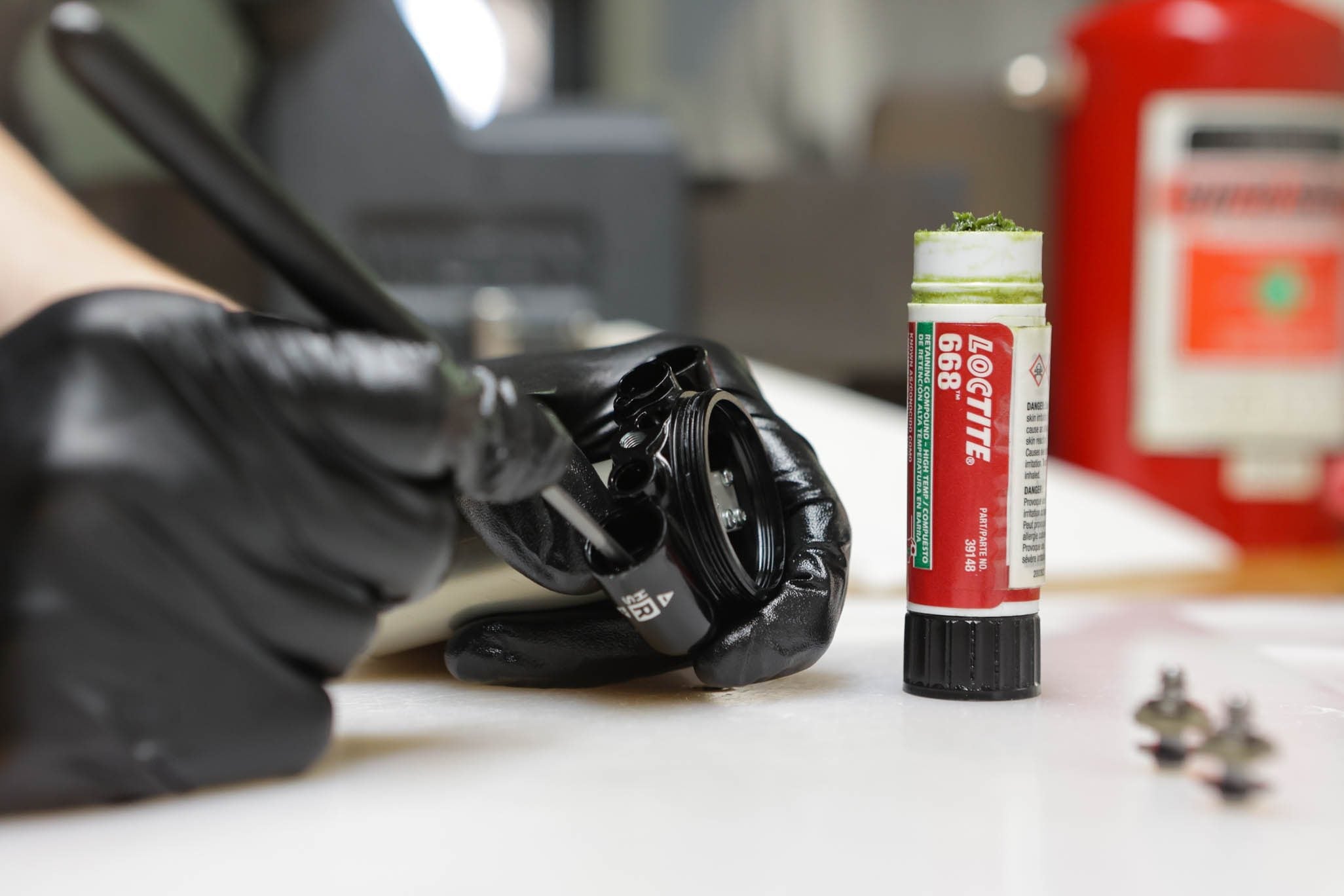

Applying Loctite to Rebound TSN Threads

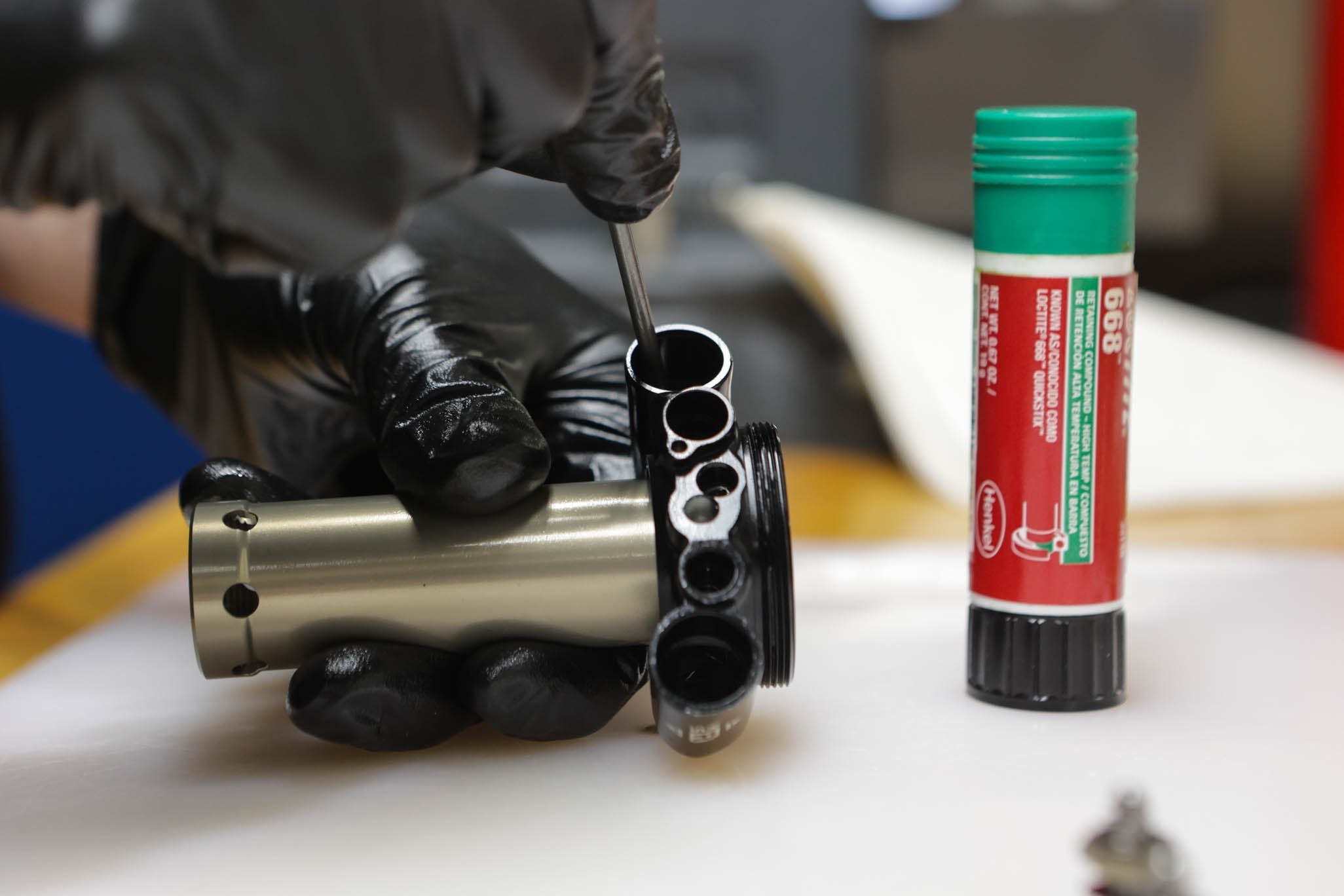

Applying Loctite to Compression TSN Threads

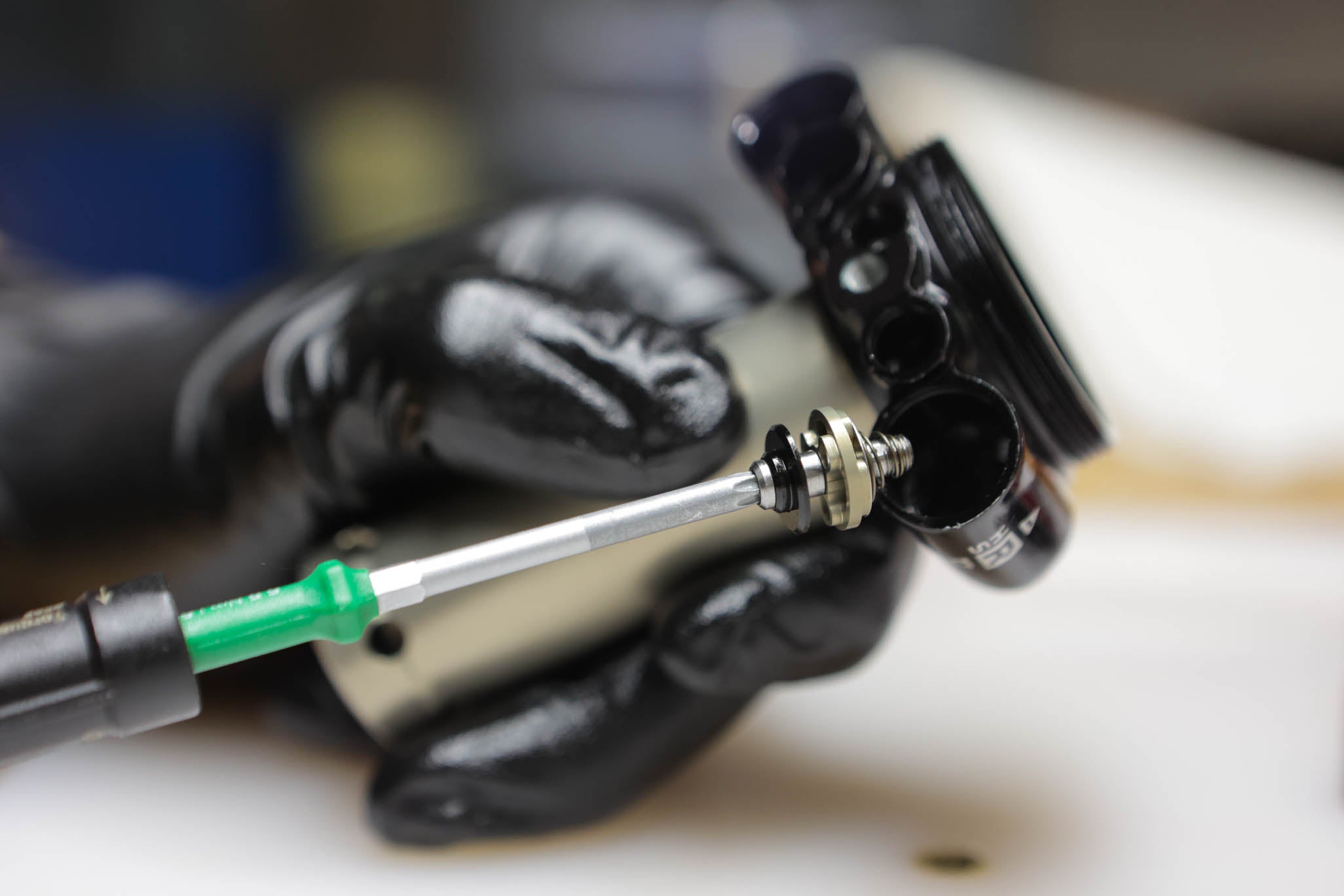

Installing Rebound TSN

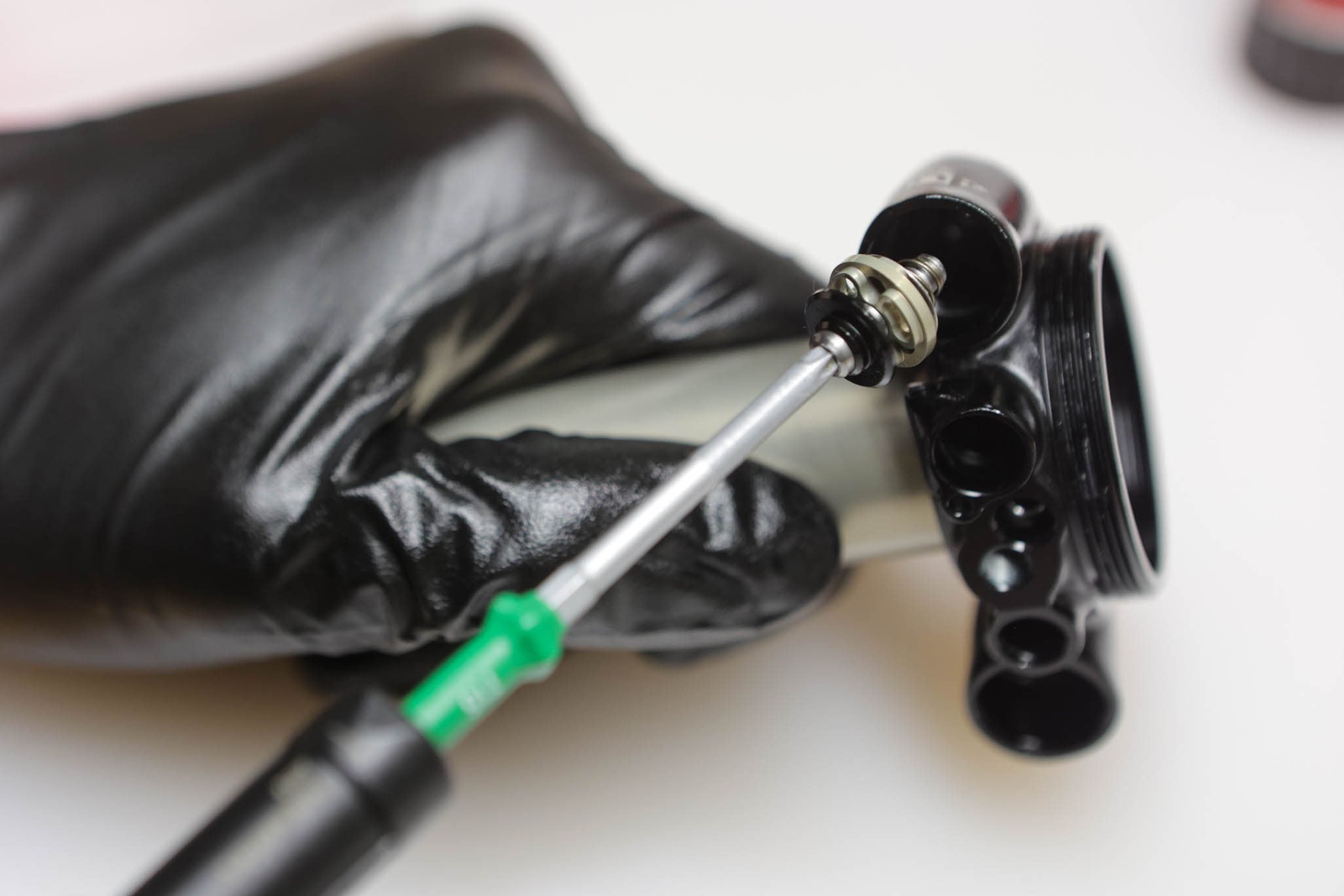

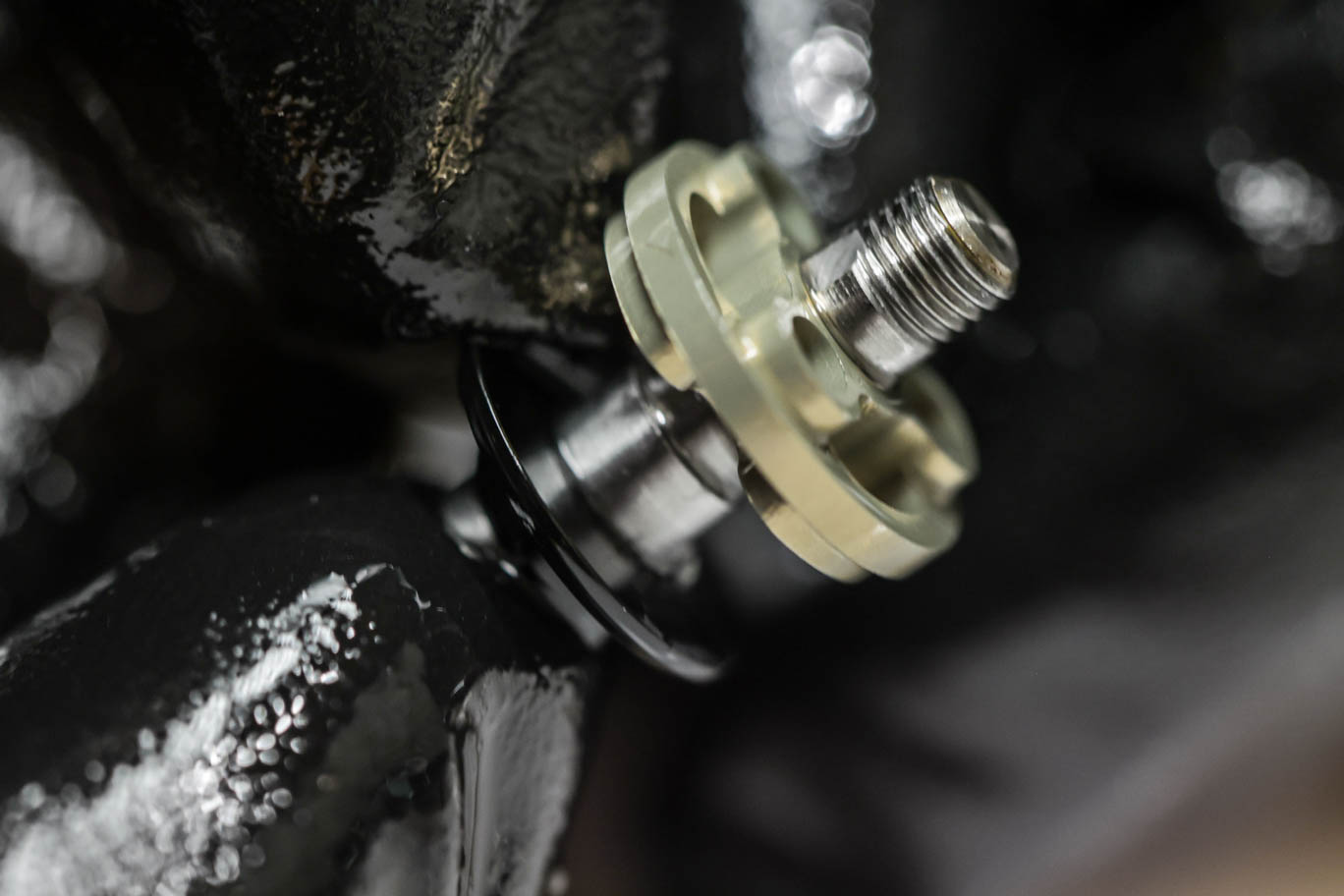

Installing Compression TSN
Continue to Part 3
