HELM MKII Coil Spring Complete 100 Hour Service Instructions
Mar 2022 orig.
Recommendations and Warnings
Cane Creek recommends only trained suspension technicians perform service on all suspension, using all required tools and following all proper procedures. Anyone without access to the proper equipment or with any concerns on the procedures should defer to an authorized Cane Creek service center for service. Improper service can result in loss of performance or suspension failure. All Cane Creek forks have pressurized oil. Follow the service procedures exactly as written to avoid possible injury or harm to the suspension. Always wear eye protection while performing suspension service. Please dispose of all waste products and materials through proper channels to avoid contamination of the environment.
Any damage or issues resulting from improper service will not be covered by warranty. If you have a fork still in its original warranty period and do not wish to void your warranty, please contact an authorized Cane Creek service center.
These service instructions cover the basic service procedures using standard service kits. If your suspension requires parts beyond standard replacement parts – CSU, compression rods, etc. – please consult your authorized Cane Creek service center or contact us at our Cane Creek Support Center.
Service Notes
These instructions cover just the coil spring leg of a complete 100 hour service. Combine these instructions with the appropriate damper side and 50 hour lower service to get a complete 100 hour fork service.
Additionally, you can send the damper for a service with an authorized Cane Creek service center.
Service Kit
none
Required Cane Creek Tools
none
Additional Tools & Supplies
Sockets – chamfer-less 30mm
Torx wrenches – T10
Torque wrenches
Pick
Suspension Grease
PolyLube Grease
Torque, Loctite, Oil & Nitrogen Specs
Torque & Loctite Chart
Part | Torque Spec | Loctite Spec |
---|---|---|
Preloader | 36 Nm | 243 (Blue) |
Preloader Cap Screw | 1.6 Nm | 243 (Blue) |
Related Technical Service Bulletins
Review all related TSBs before performing any service.
No specific HELM MKII Coil spring TSBs at this time.
Lower Assembly Removal
Prior to beginning spring service, remove the lower assembly per the 50 hour service instructions.
Spring Assembly Removal
Step 1 – Preloader Assembly Removal
Secure CSU. Using T10 Torx, remove spring preloader cap. Using 30mm chamferless socket, remove preloader assembly. Breaker bar may be necessary.
Step 2 – Spring Removal
Remove spring and inspect sleeve location. Clean spring thoroughly. Reposition sleeves for even spacing. Apply heat to sleeves to affix them in place.
Step 3 – Compression Rod Assembly Removal

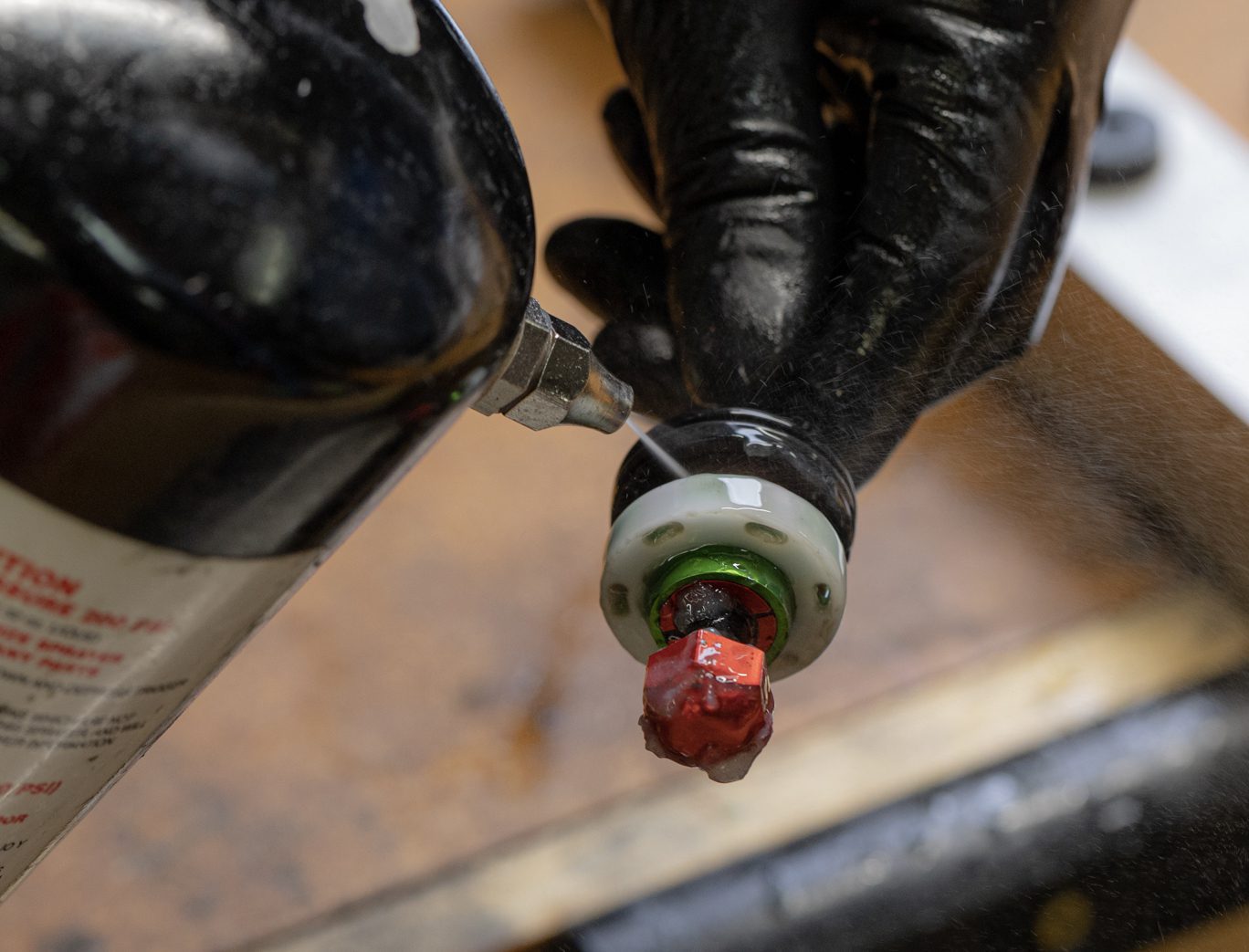

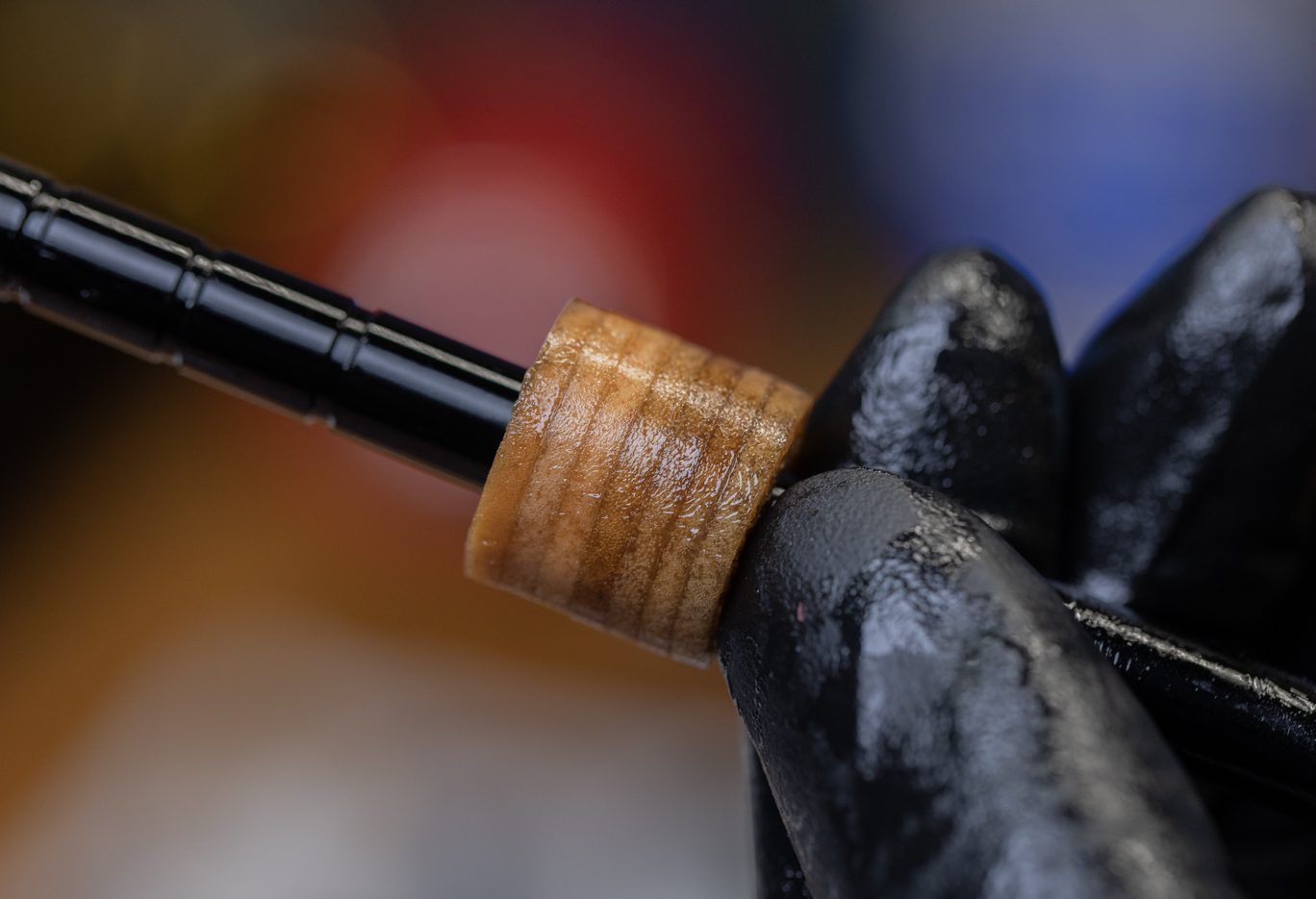

Remove seal head circlip. Remove coil compression rod assembly by pulling straight up. Clean all oil from compression rod assembly using diluted alcohol. Inspect top out bumpers.
Always use extreme caution when using a pick in this step or others to avoid scratching metal parts. Failure to do this can create scratches in the o-ring glands which cause leak paths for oil or air.
Spring Assembly Install
Step 1 – Compression Rod Assembly Install

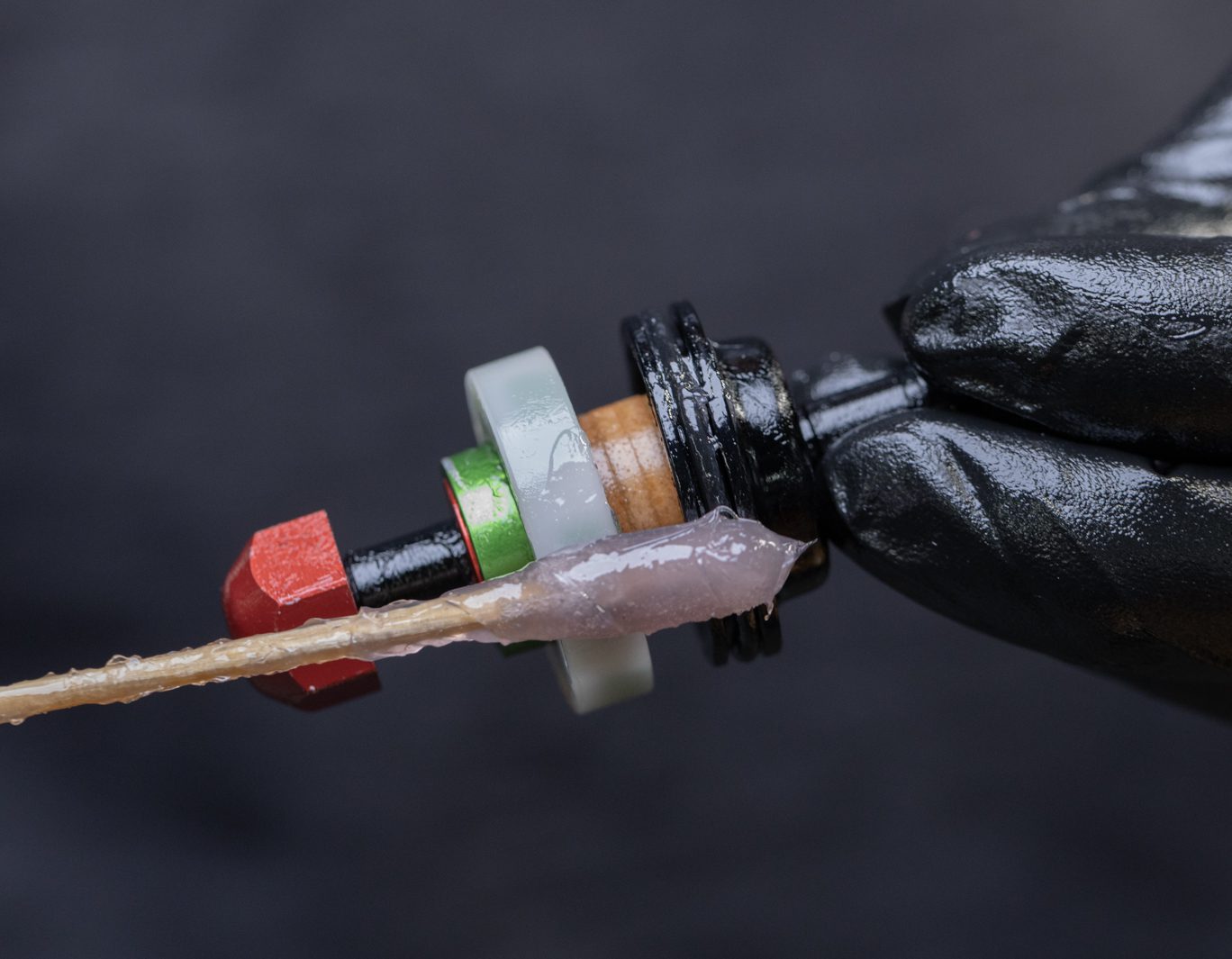

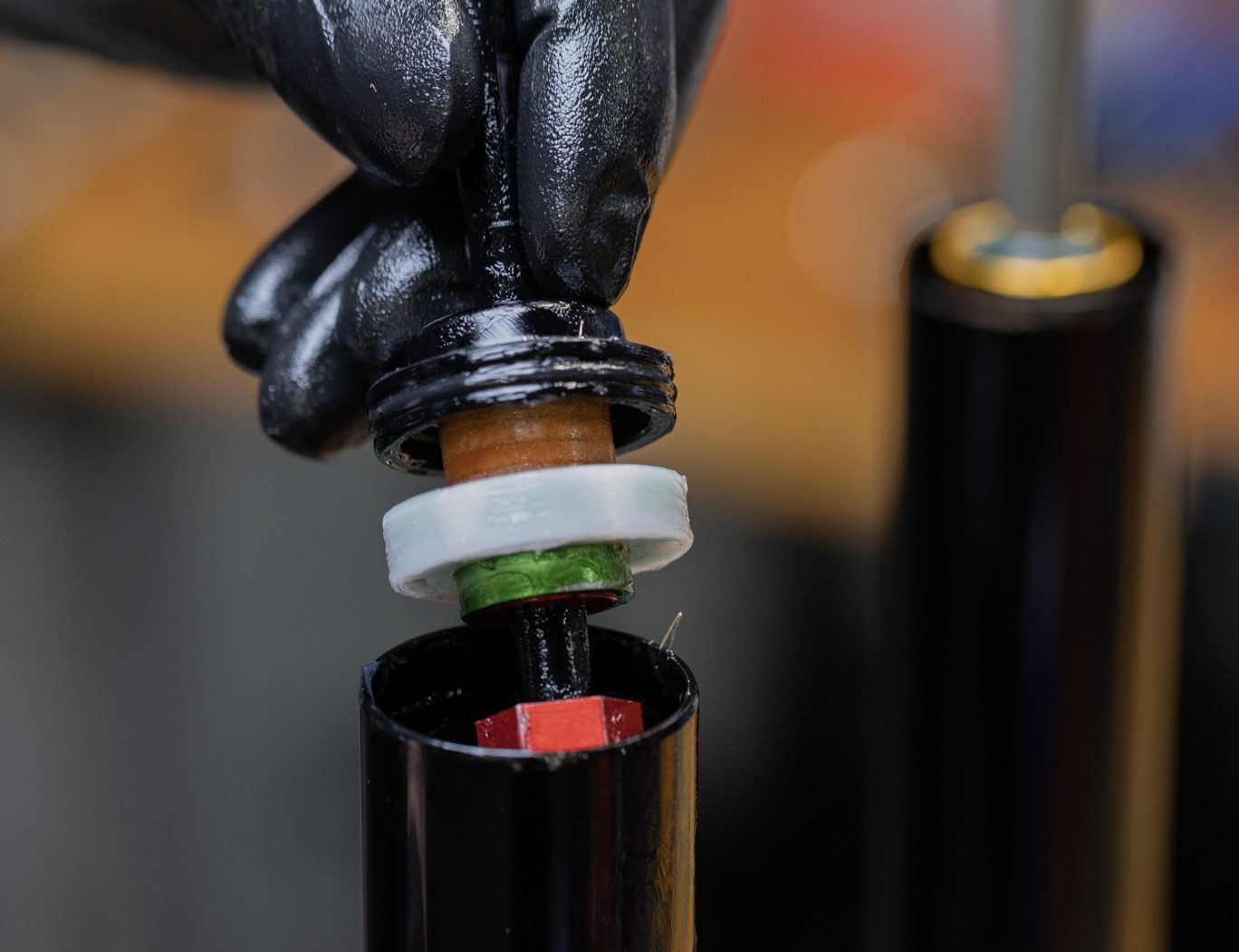

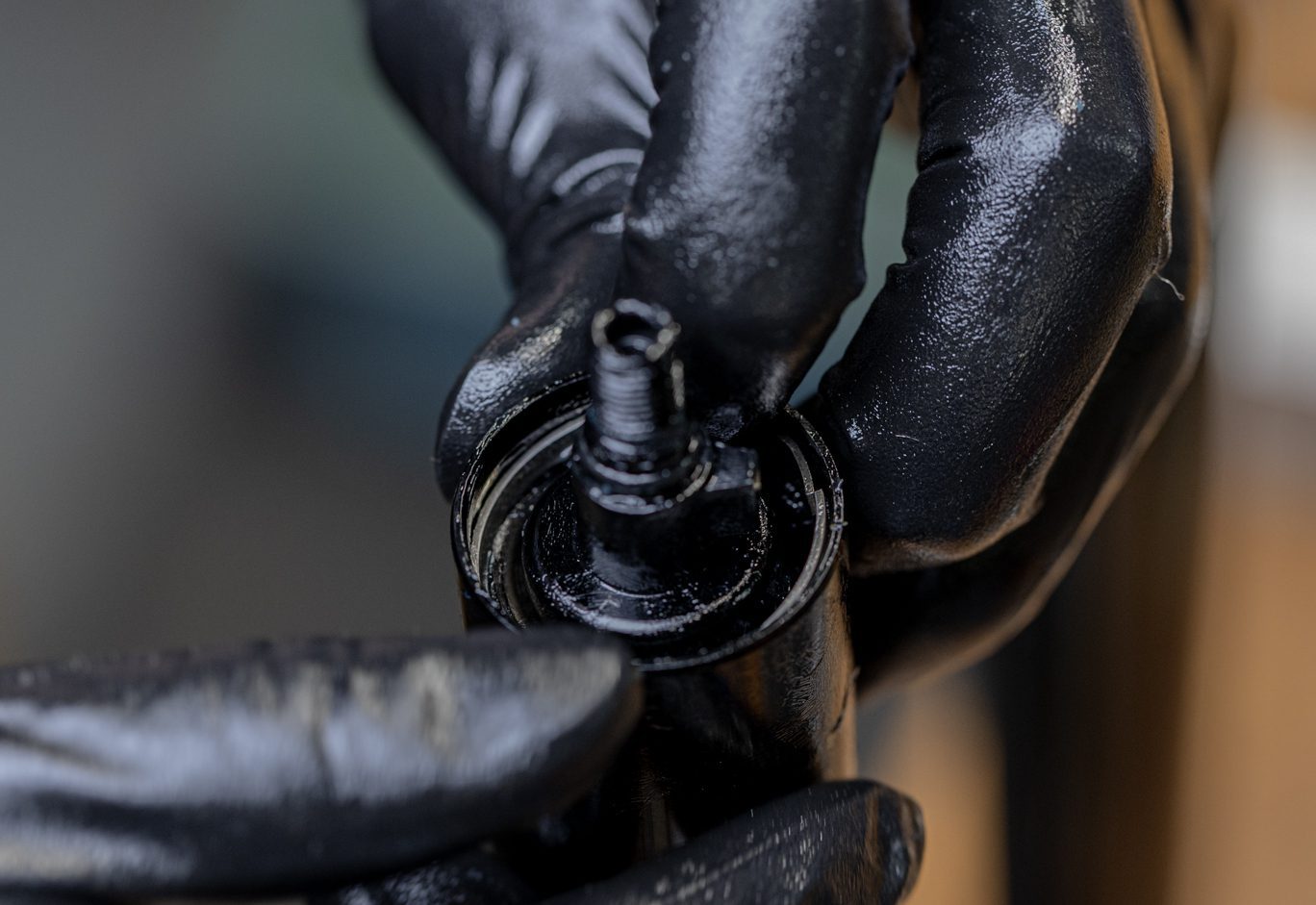

Install sag o-ring (AAG0408) on spring side stanchion. Grease interior of stanchion, seal head o-ring and spring perch. Insert compression rod assembly into spring side stanchion. Using compression rod, firmly tap the seal head into the stanchion until seated. Reinstall seal head circlip. Pull up on compression rod to ensure circlip is properly seated.
Step 2 – Preloader Assembly Install
Flip CSU. Apply fresh grease to spring. Install spring back into spring side stanchion. Thoroughly clean preloader assembly and check for free movement of preloader. Apply blue Loctite (243) to threads. Install preloader assembly. Torque to 36 Nm using 30mm socket.
Step 3 – Preloader Cap Install
Apply PolyLube to detents on underside of preloader cap. Apply blue Loctite (243) to preloader cap screw. Install preloader cap and screw. Torque to 1.6 Nm with T10.
Lower Assembly Install
Step 1 – Air Spring Assembly Install
Upon completion of the spring side install and any damper service, install lower assembly per the 50 hour service instructions.
