TAKE CONTROL

WITH THE WORLDS MOST ADJUSTABLE INLINE AIR SHOCK

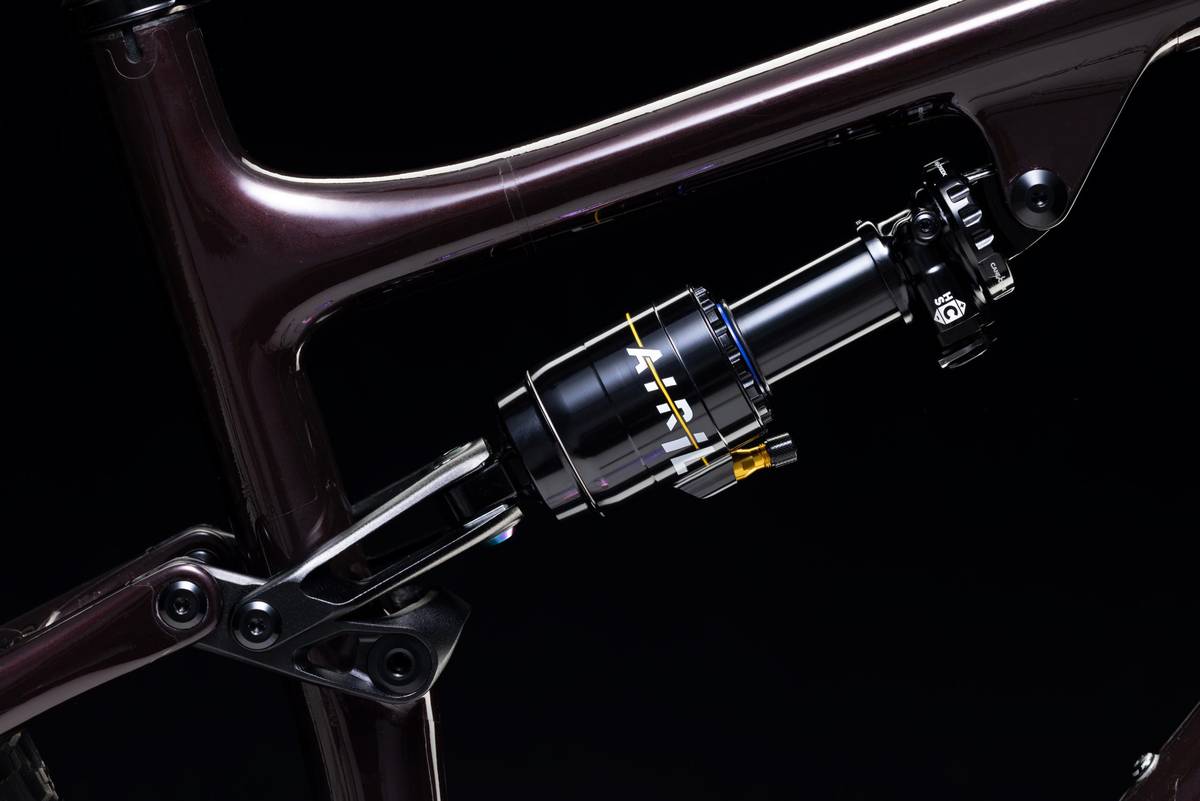

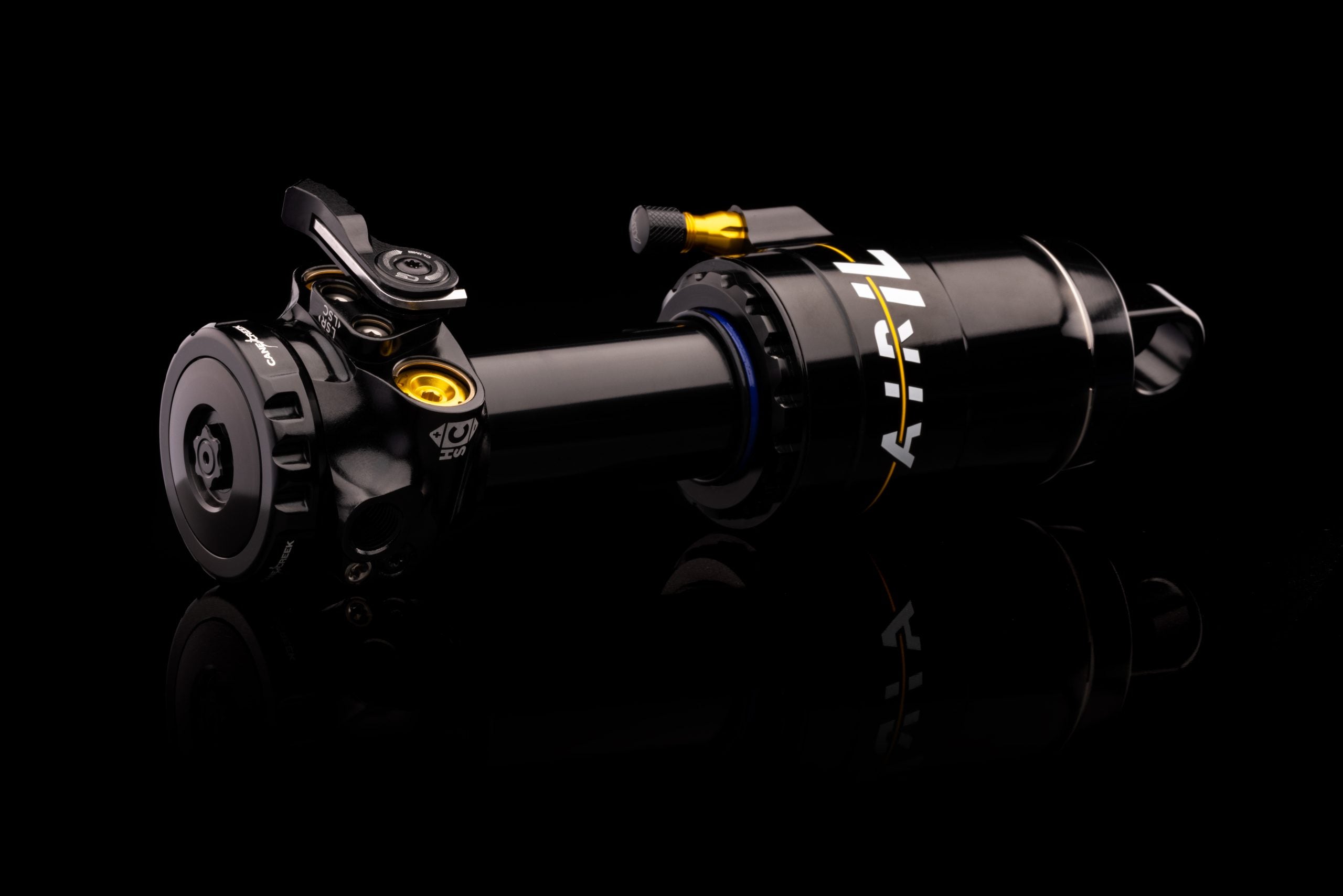

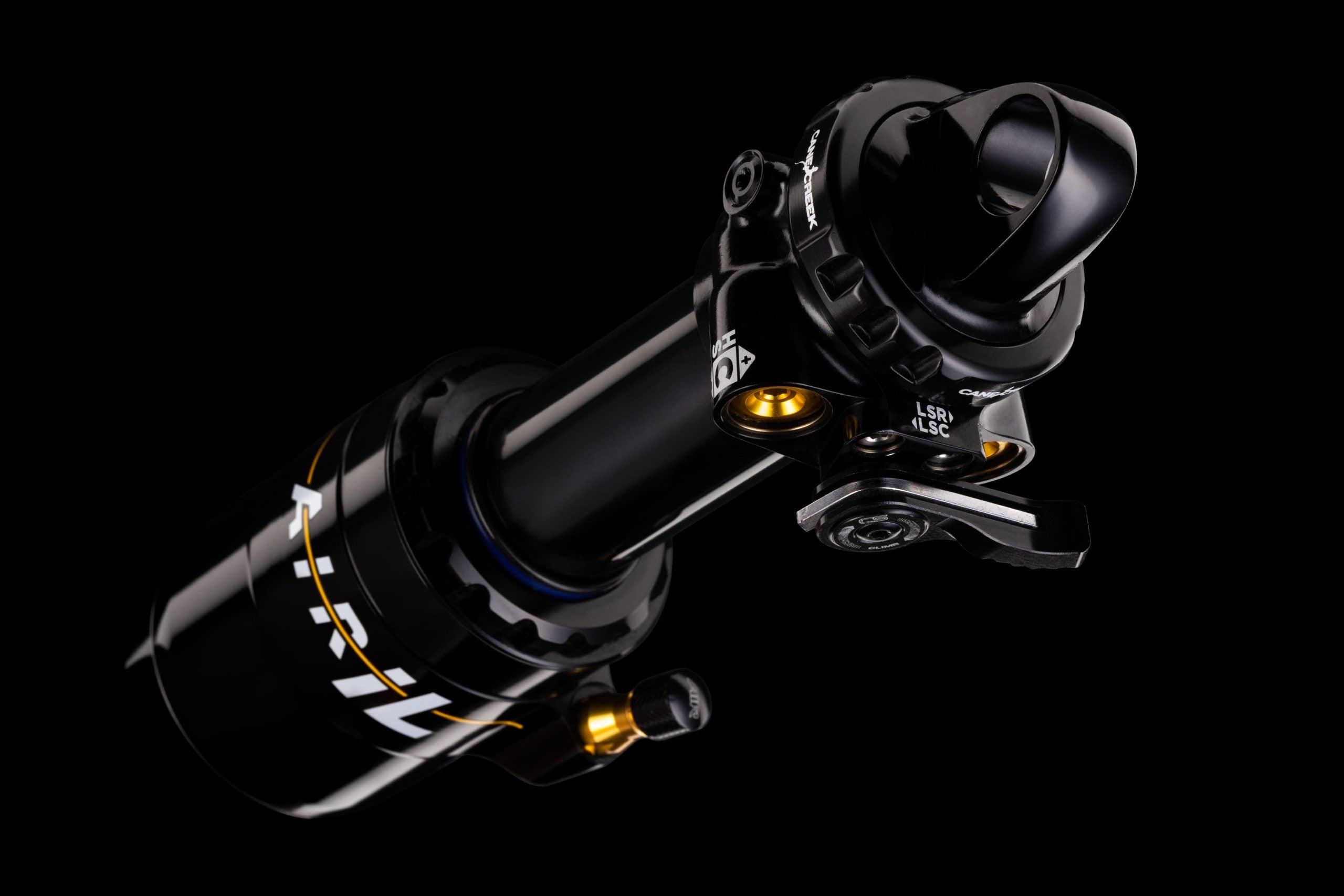

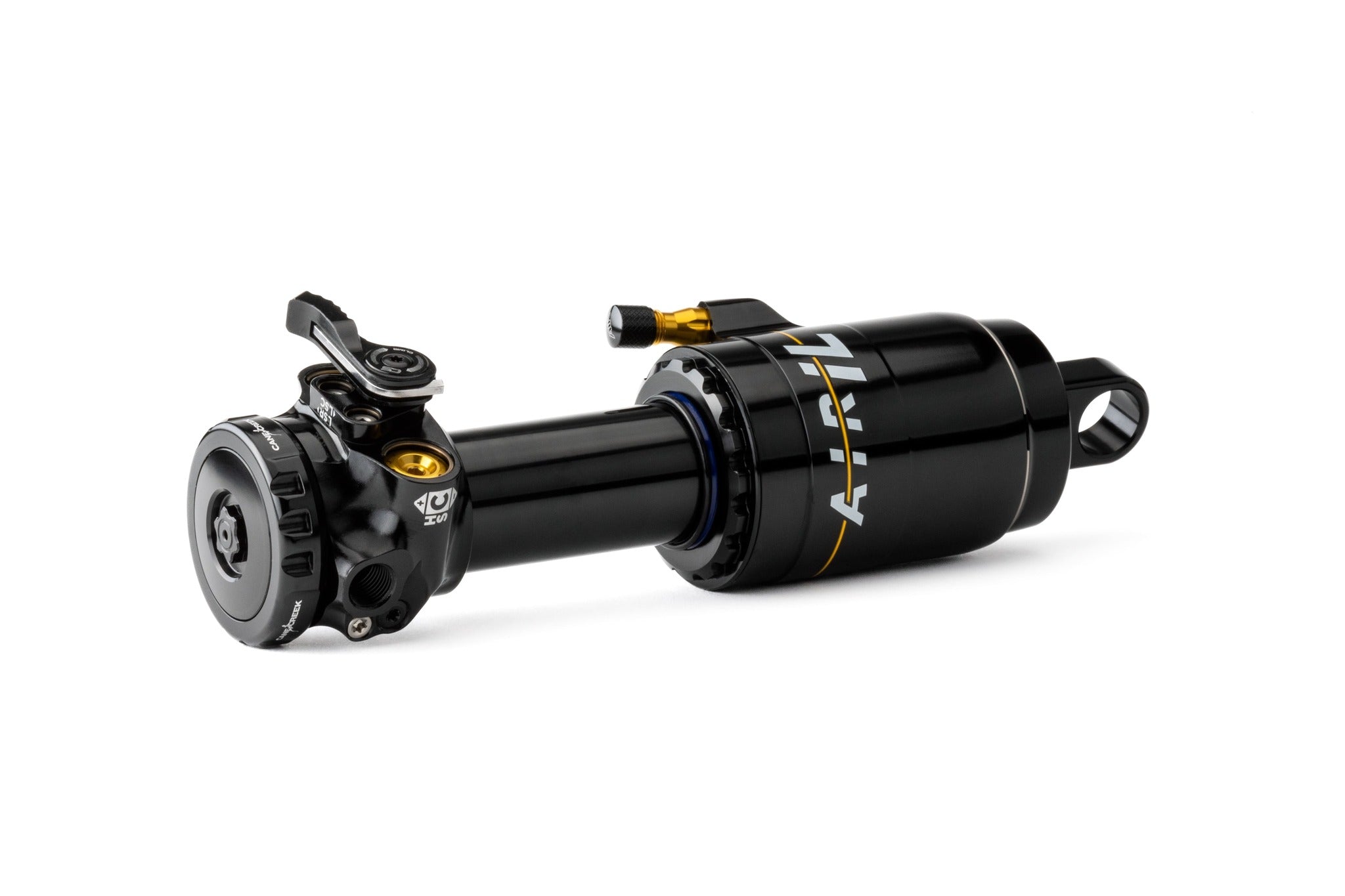

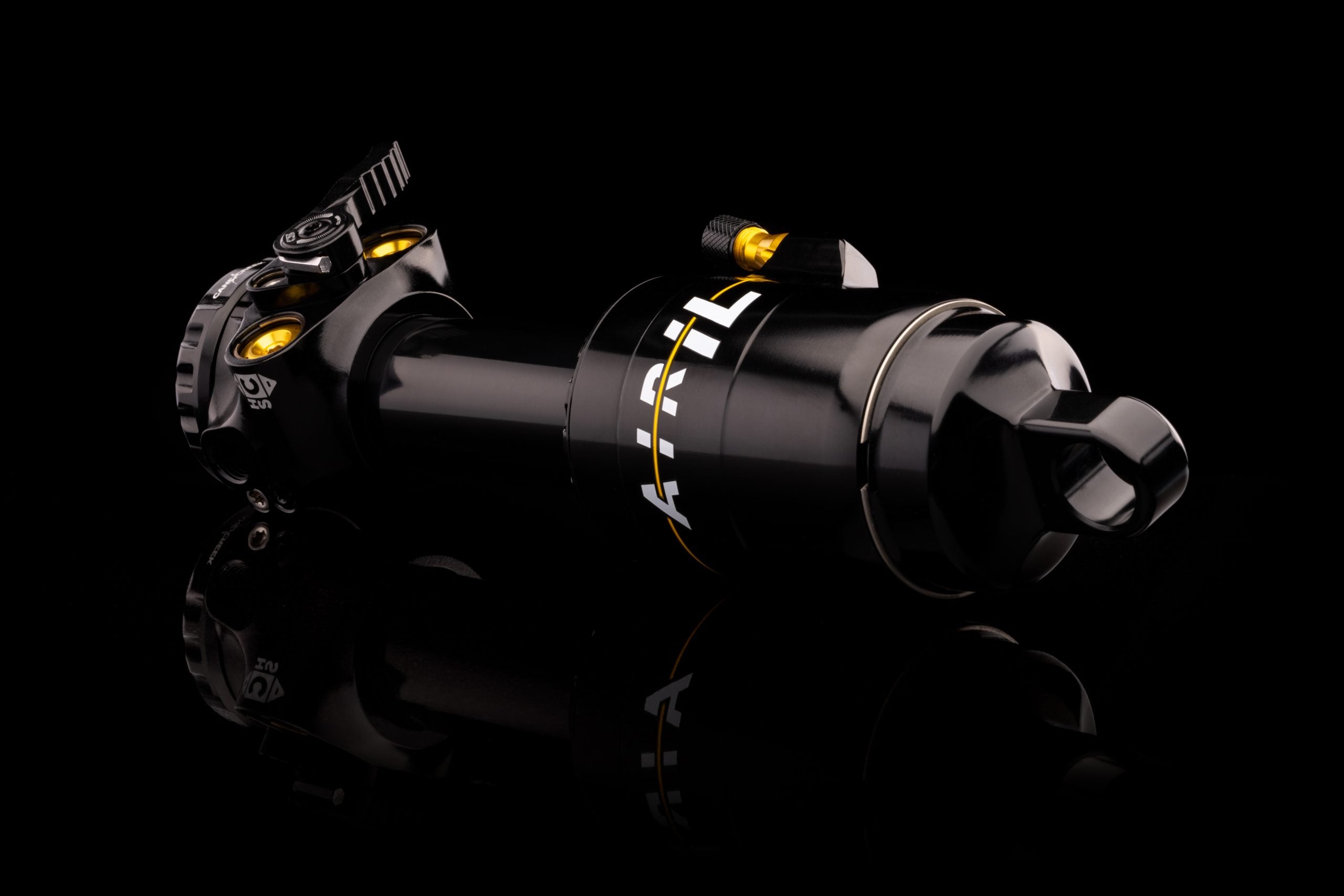

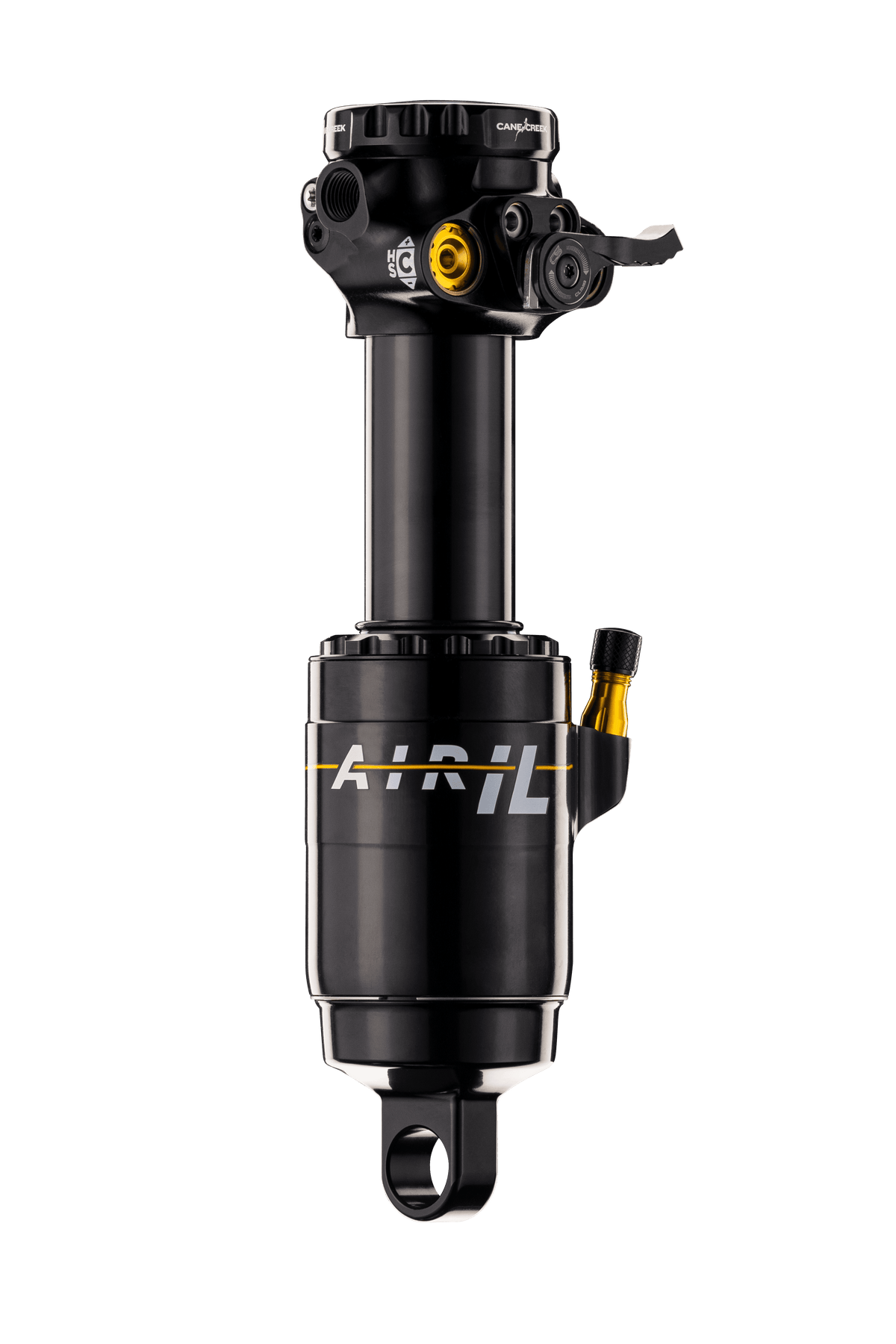

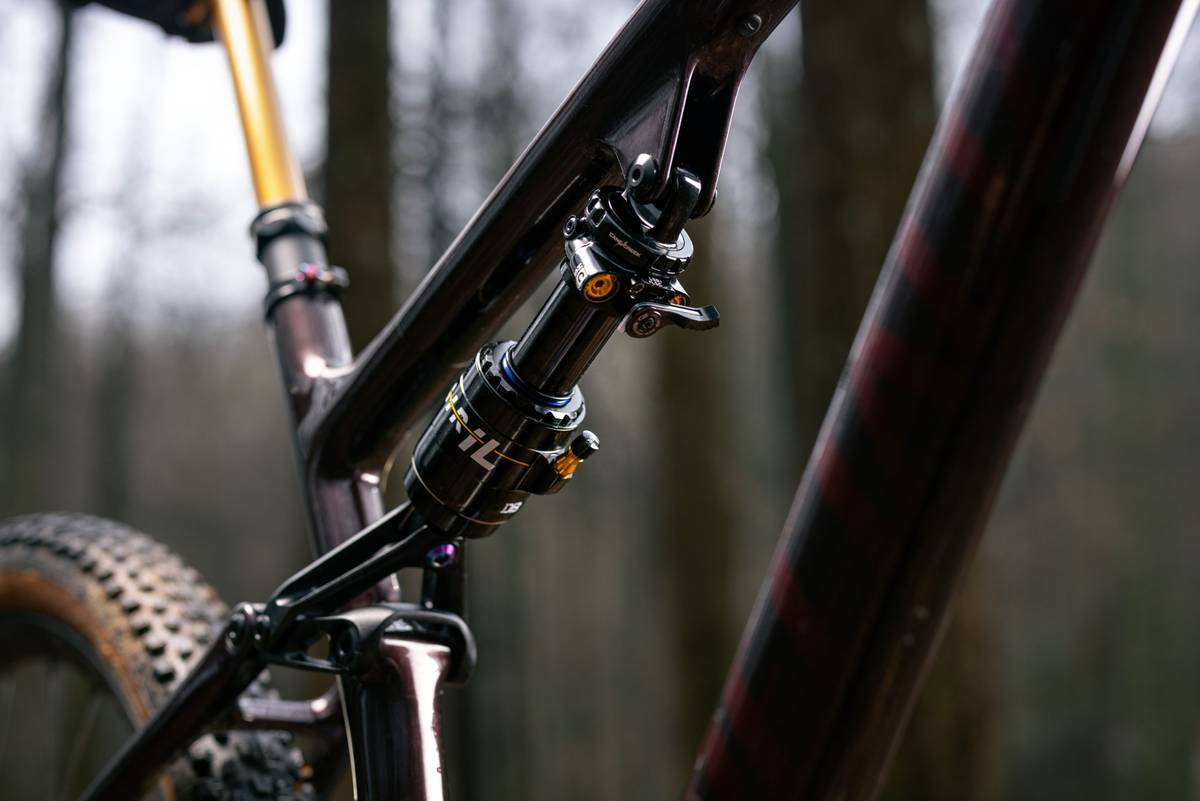

Packing class-leading performance in a smaller and stronger package, the all new Cane Creek Air IL gives riders maximum control over their ride with twin-tube technology and 4-way external adjustability. Designed and tested for improved suspension performance, increased reliability and seamless compatibility with more trail bikes than ever before. The new Cane Creek Air IL and Coil IL shocks are ready to take on anything your next all-day epic or quick rip has in store.

The Next Generation of Cane Creek Air IL

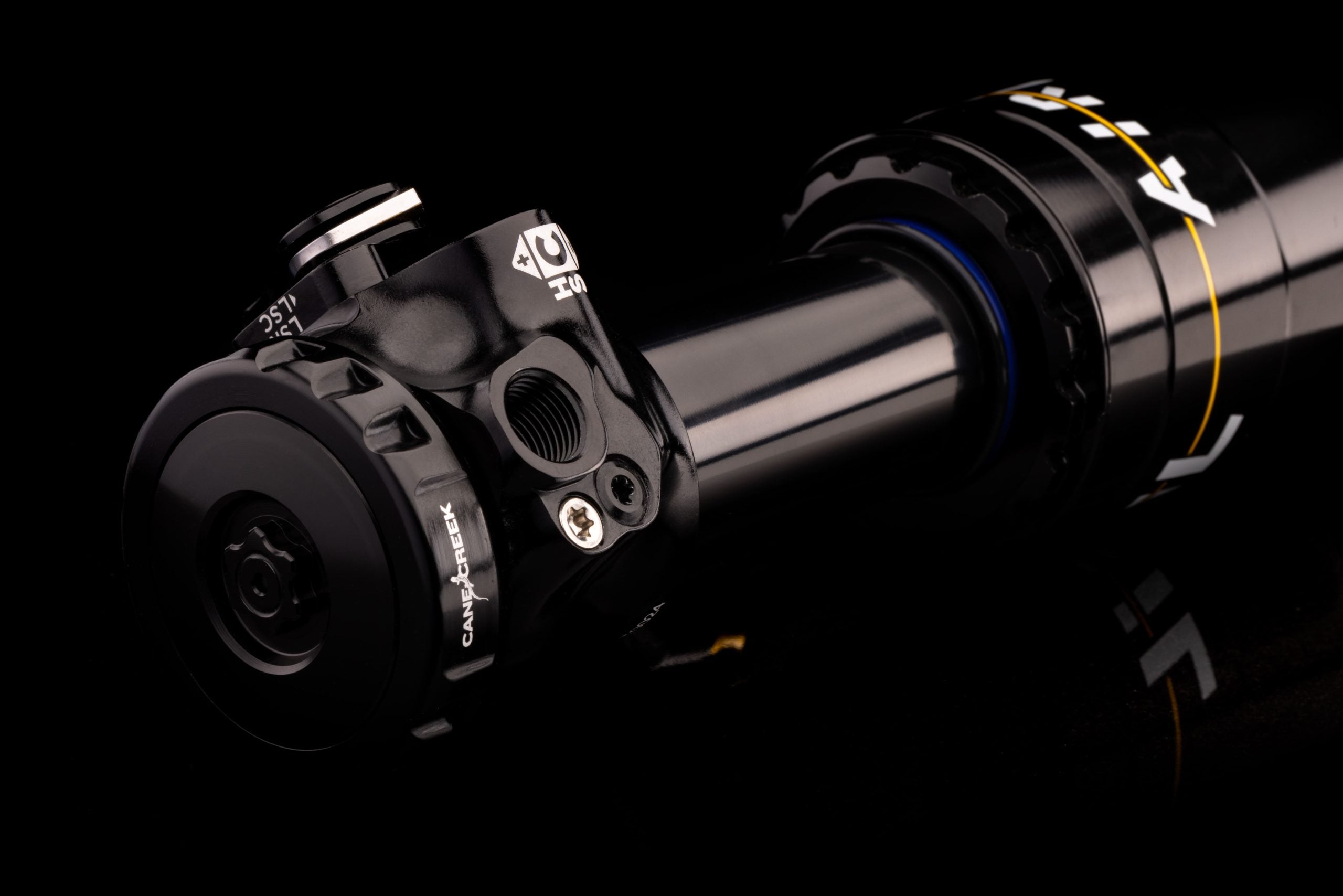

Four-Way Independent Adjustment

Built with Cane Creek DB Twin-Tube Technology, the next generation of IL shocks have the widest range of damping adjustability on the market – designed to bring a new level of control to XC and Trail Bikes. The Air IL provides riders with accessible external adjusters that control the shocks’ High and Low Speed Compression and High and Low Speed Rebound.

The DB Twin-Tube four-way control of the Air IL allows riders to make quick trail-side adjustments to increase pop, improve plushness or add support to their ride.

Four-Way Independent Adjustment

Built with Cane Creek DB Twin-Tube Technology, the next generation of IL shocks have the widest range of damping adjustability on the market – designed to bring a new level of control to XC and Trail Bikes. The Air IL provides riders with accessible external adjusters that control the shocks’ High and Low Speed Compression and High and Low Speed Rebound.

The DB Twin-Tube four-way control of the Air IL allows riders to make quick trail-side adjustments to increase pop, improve plushness or add support to their ride.

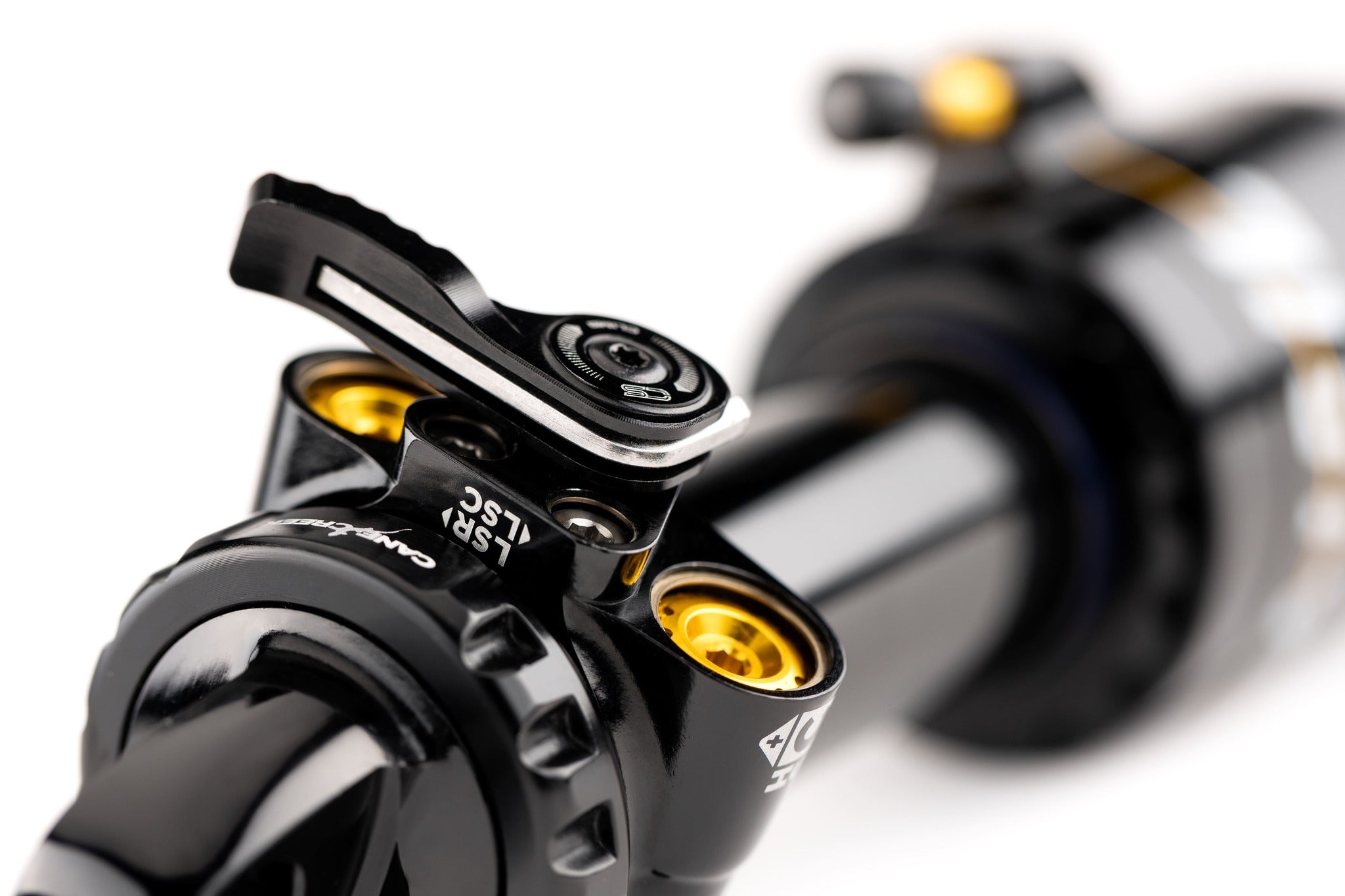

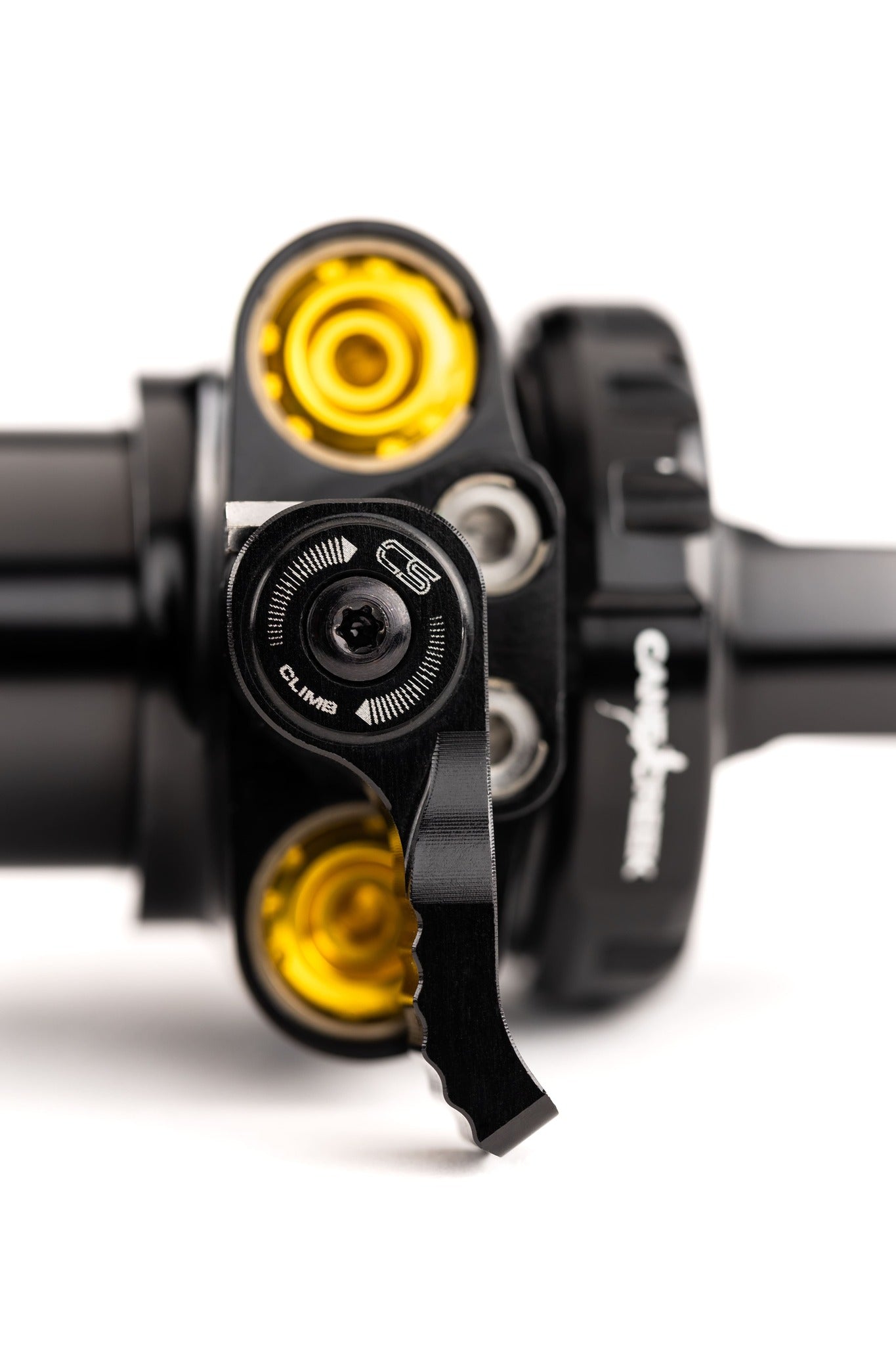

CLIMB SWITCH

INTEGRATED TOOL

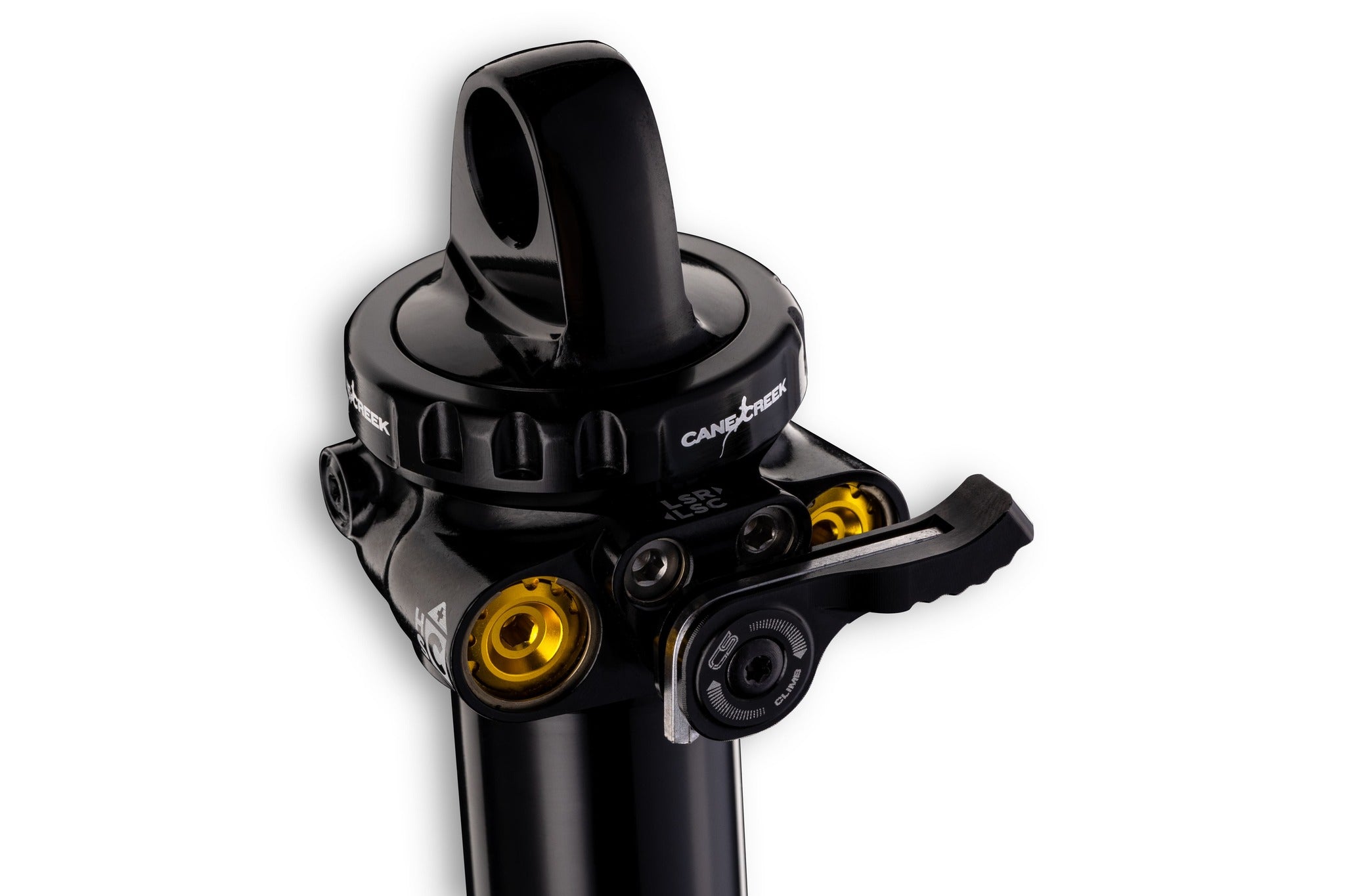

Four-way adjustability becomes even more accessible with the new integrated tool nested in our CS (Climb Switch) lever.

When engaged, the low-speed damping is changed with a set of internal “climbing circuits.” We tune these circuits specifically for the demands of off-road climbing to achieve improved pedal efficiency with less chassis motion. Unlike other climbing platforms, our CS feature adjusts both low-speed compression and rebound.

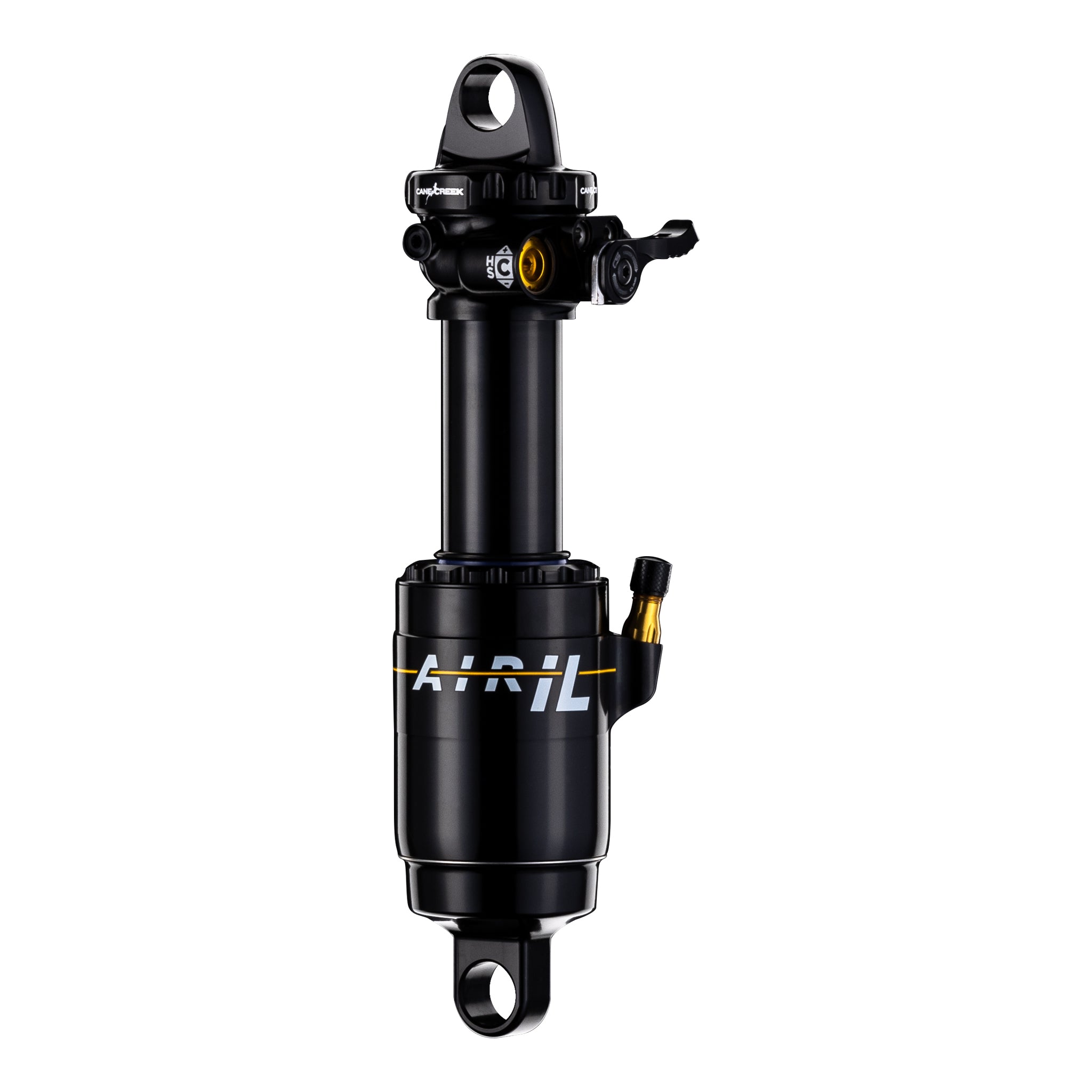

New Air Spring + Compact Design

The redesigned Air Spring on the Cane Creek Air IL was developed to enhance the overall ride characteristics while reducing the physical size of the shock. The new compact design and increased MAX to 350psi results in an air spring that fits more bikes and more riders.

STRUCTURAL DURABILITY

ASSEMBLED BY HAND

Cane Creek’s engineers have upgraded the all new Air IL with thicker inner damper tubes for increased strength and resilience from forces that the shock has to withstand while being ridden hard. To ensure maximum quality control and performance each and every Cane Creek rear shock is hand assembled and individually dyno tested in our Western North Carolina facility.

Double Barrel Twin Tube Technology

TAKE CONTROL

Exclusive Twin Tube Technology circulates oil continuously through the damping valving to achieve highly controllable, independent damping for both compression and rebound strokes. This unique design moves oil through externally adjustable valving instead of the main piston, allowing for superior tunability and eliminating the need for internal valving changes to achieve proper shock setup.

BRING MORE CONTROL TO YOUR RIDE

DB Twin Tube Technology is built into every Cane Creek Rear Shock

DB_Tech

MORE OIL | LESS HEAT | MAX CONTROL

Technical Specifications

WEIGHT:
+/- 385g* (Air – 210) *varies by size

DAMPING:
DB Twin-Tube independent compression
and rebound in two high-speed and
two low-speed damping circuits

EXTERNAL ADJUSTMENTS:
– High speed compression
– High speed rebound
– Low speed compression
– Low speed rebound
– Climb Switch (Two Position)

AIR SPRING:
– 350psi max
– Volume Spacers

DIMENSIONS:
– 50.5mm valve body
– 51mm air spring

MANUFACTURING:
Hand assembled and Individual Dyno Tested in Fletcher, NC

Metric Sizing

BAD2615 – 190×40
BAD2616 – 190×42.5
BAD2617 – 190×45
BAD2621 – 210×50
BAD2622 – 210×52.5
BAD2623 – 210×55

Trunnion Sizing

BAD2612 – 165×40
BAD2613 – 165×42.5
BAD2614 – 165×45
BAD2618 – 185×50
BAD2619 – 185×52.5
BAD2620 – 185×55

dimension compare
